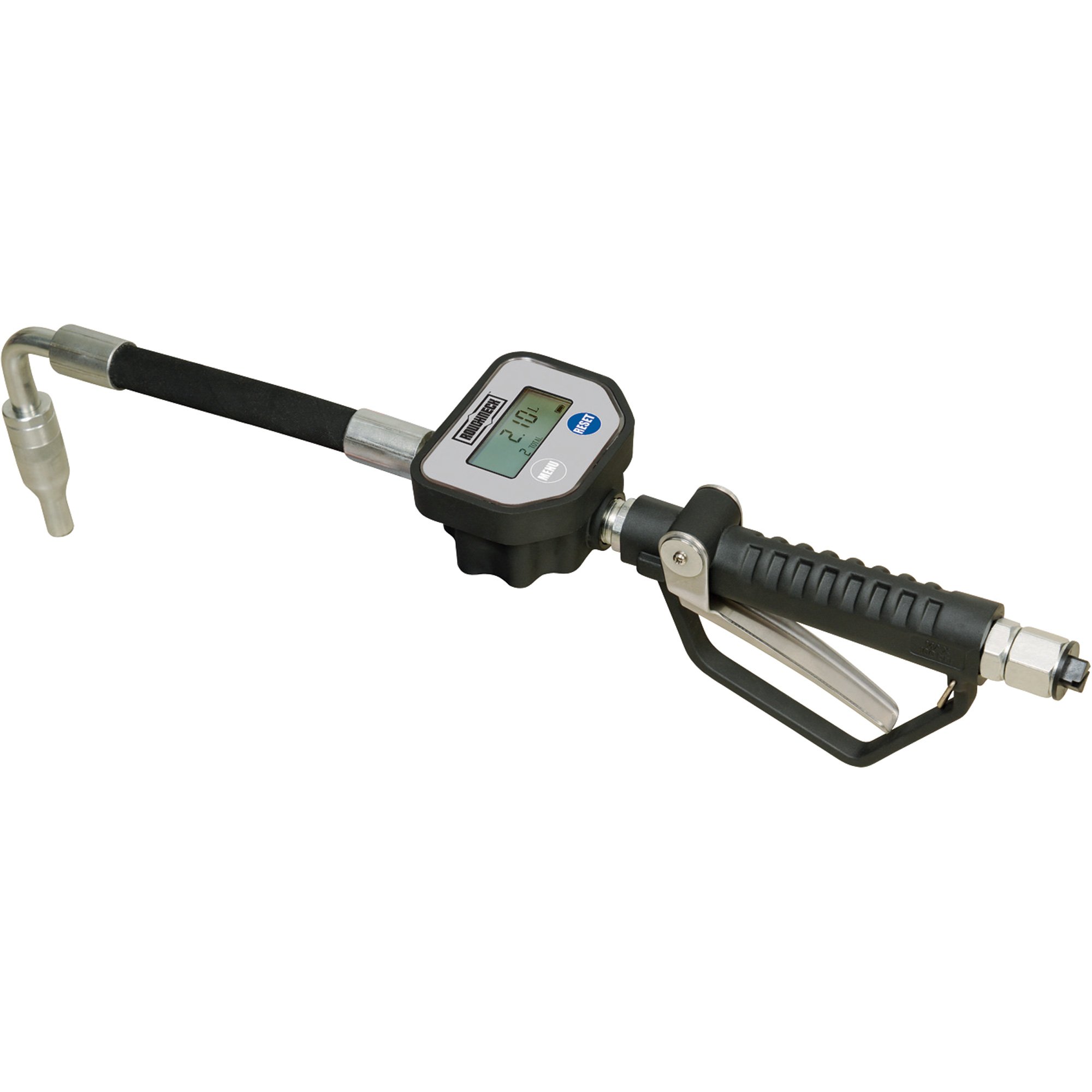

Please see replacement item# 83741. Roughneck Digital Oil Flow Meter — 1500 PSI. 0.9-9.2 GPM

Item# 28481
Please see replacement item# 83741. Roughneck Digital Oil Flow Meter — 1500 PSI. 0.9-9.2 GPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Please see replacement item# 83741. Roughneck Digital Oil Flow Meter — 1500 PSI. 0.9-9.2 GPM

Click or Tap image to Zoom

  • Easy-to-read 5-digit LCD display with resettable dispensing totals
  • Comfortable, wide grip handle
  • 7–1500 PSI pressure range
  • 0.3–9.2 GPM fluid range
  • 1/2 in. inlet connection

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Roughneck® Digital Oil Control Valve Meter handles motor oil, gear oil, ATF and more. The meter can be adjusted to dispense liters, gallons, pints and quarts with accuracy to ±0.5% with a repeatability of ±0.5% at calibrated flow rate. Operates on one 3.6V battery (included).

What's Included

  • (1) Control valve meter
  • (1) 3V battery

Downloads

Product Manual

Features + Benefits

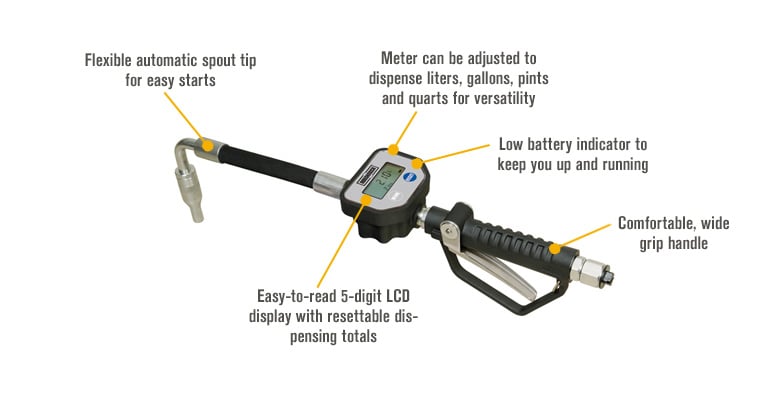

  • Easy-to-read 5-digit LCD display with resettable dispensing totals
  • Comfortable, wide grip handle
  • 7–1500 PSI pressure range
  • 0.3–9.2 GPM fluid range
  • 1/2 in. inlet connection
  • Meter can be adjusted to dispense liters, gallons, pints and quarts for versatility
  • 140°F max. temperature
  • Flexible automatic spout tip for easy starts
  • Low battery indicator to keep you up and running

Key Specs

AttributeSpecification

item#

28481

Brand

Roughneck

Manufacturer's Warranty

12 months limited parts / No labor

Ship Weight

4.6 LB

Min. Flow Rate

0.3 GPM
AttributeSpecification

Max. Flow Rate

9.2 GPM

Max. PSI

1,500

Operating PSI

1,500

Inlet Port

1/2 in. NPT

Max. Temperature

140 °F

Reviews

Questions & Answers

25 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. will this unit handle mineral oil

    1. Yes

      Helpful?

    2. This meter can handle general hydrocarbon mineral oil.

      Helpful?

  2. how do you shut off display

    1. You can't.

      Helpful?

    2. This oil control valve meter has a display that's always on until the battery is discharged. When the battery is nearing discharge, a low-power indicator will flash on the LCD display.

      Helpful?

  3. Will this meter work with item#360582?

    1 answer

    1. The meter will work with the GPI pump, #360582.

      Helpful?

  4. Are there different nozzle options available for purchase for this unit?

    I would like to also have a straight nozzle

    1 answer

    1. A straight nozzle option for this flow meter is not available.

      Helpful?

  5. can this be used to measure water amounts?

    1 answer

    1. This is not for use with water.

      Helpful?

  6. will this meter work with your roughneck #42611

    1 answer

    1. This meter will not work with the Roughneck Pneumatic Oil Dispenser, item #42611.

      Helpful?

  7. How often does this device need to be calibrated and what is the best method?

    1 answer

    1. This meter doesn't have a recommended calibration schedule. You would calibrate it when it gives an incorrect reading.

      Use the following procedure for entering the correction factor directly.
      1) Wait for the control valve to go to standby.
      2) Press the “MENU” key. Keep it pressed until the digit flashes in Zone 1. Press the “RESET” key to choose the right digit from 0 to 9. Press the “MENU” key to go the next digit so that the Actual Value can be input.
      3) Make sure the correction factor is right and then press the “MENU” key. Keep it pressed until calibration is finished and the factor is saved. The control valve will then return to standby.

      Modify the correction factor in field.
      1) Press the “RESET” for 1 second, Zone 1 displays “0.00”.
      2) Start dispensing into a measuring glass.
      3) Stop dispensing when over 5 liters of volume is reached, then check the actual dispensed value. The volume that is displayed on the LCD is the Display Value, not the Actual Value.
      4) Press the “MENU” key. Keep it pressed until the digit flashes in Zone 1. Then press the RESET key to choose the right digit from 0 to 9. Press the “MENU” key to go the next digit so that the Actual Value can be input.
      5) Make sure the Actual Value is input right and then press the “MENU” key. Keep it pressed until calibration is finished and the factor is saved. The meter will then return to standby.

      Helpful?

  8. This product will be on my service truck, is this product weather proof?

    1 answer

    1. The Roughneck Digital Oil Control Valve Meter cannot have the control valves exposed to direct sunlight or rain. It would need to be stored in a dry place with good ventilation away from excessive heat, humidity and sunlight.

      Helpful?

  9. Can this be used on antifreeze?

    1 answer

    1. This meter cannot handle antifreeze.

      Helpful?

  10. can the vale meter item # 28481 be installed on your item #109094 oil pump kit?

    1 answer

    1. This meter could be used on the oil pump kit #109094.

      Helpful?

Warranty

Manufacturer's Warranty

12 months limited parts / No labor
