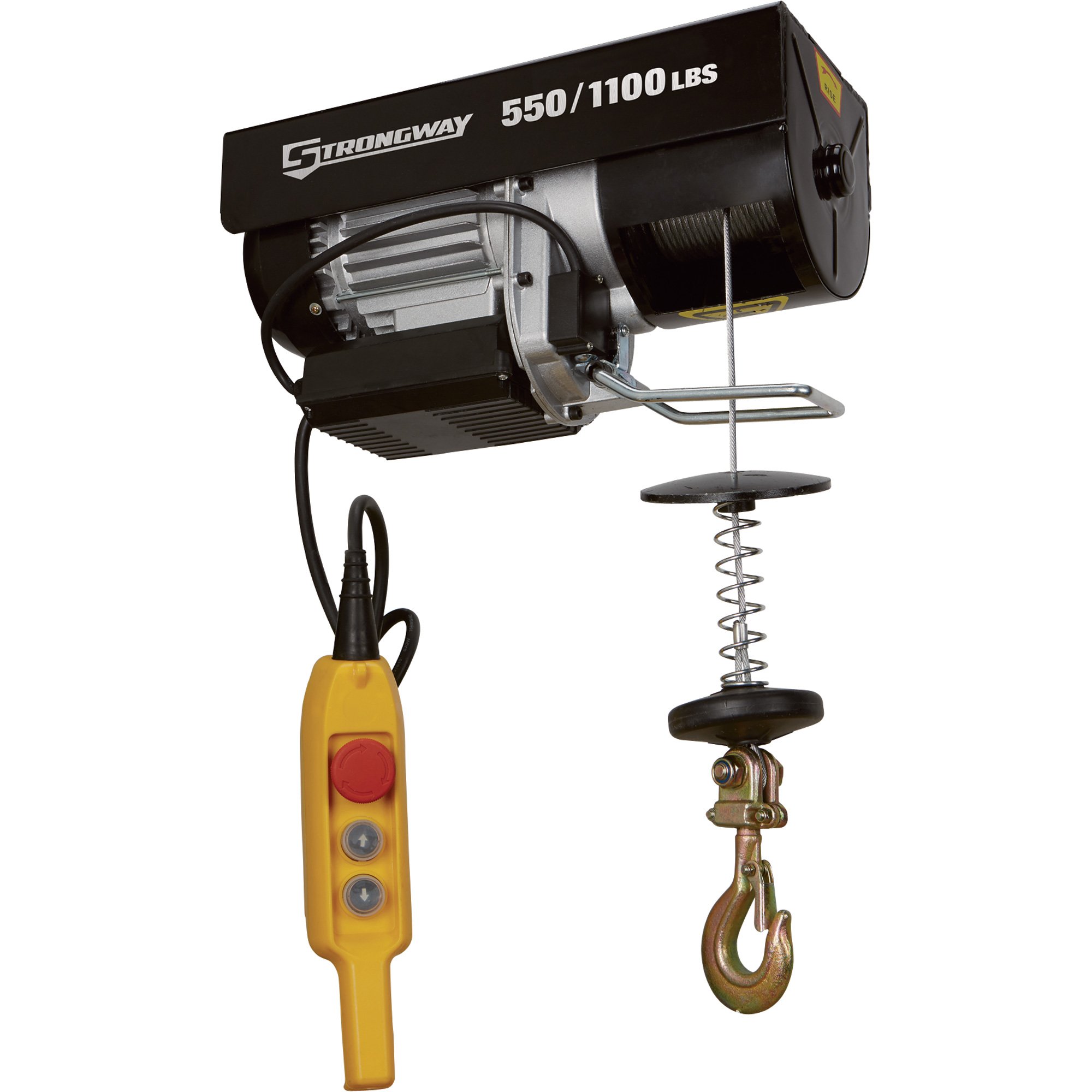

Please see replacement Item# 58923. Strongway Electric Cable Hoist — 550-Lb./1,100-Lb. Capacity

Item# 48305
Please see replacement Item# 58923. Strongway Electric Cable Hoist — 550-Lb./1,100-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Please see replacement Item# 58923. Strongway Electric Cable Hoist — 550-Lb./1,100-Lb. Capacity

Click or Tap image to Zoom

  •  Powerful 110V, 1 3/4HP motor leads to longer 10 min. duty cycles at 20%
  • Lifts loads up to 40 ft. at speeds up to 33 FPM with a single line, or 20ft. with speeds up to 16 1/2 FPM with a double line
  • Cable drum cover and spring shock function keep things safe
  • Outer pulley hook hanger provides convenient, easy access
  • 360° swivel hook allows you to rotate the hook to attach or remove items easily from any angle

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Strongway™ Electric Cable Hoist is a rugged, efficient 110V electric cable hoist that makes lifting easy. Lifts up to 550 lbs. with a single line, or 1,100 lbs. with a double line. Includes 40ft.L x 0.16in. dia. cable.

What's Included

  • (1) Electric hoist
  • (1) Set of mounting hardware

Downloads

Product Manual

Features + Benefits

  •  Powerful 110V, 1 3/4HP motor leads to longer 10 min. duty cycles at 20%
  • Lifts loads up to 40 ft. at speeds up to 33 FPM with a single line, or 20ft. with speeds up to 16 1/2 FPM with a double line
  • Cable drum cover and spring shock function keep things safe
  • Outer pulley hook hanger provides convenient, easy access
  • 360° swivel hook allows you to rotate the hook to attach or remove items easily from any angle
  • Heavy-duty 3-button operating control

Key Specs

AttributeSpecification

item#

48305

Brand

Strongway

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

47.0 LB

Amps

12

Single Line Lift Capacity

550 lb

Double Line Lift Capacity

1,100 lb

Single Line Lift Height

40 ft
AttributeSpecification

Double Line Lift Height

20 ft

Single Line Lift Speed

33 ft./min.

Double Line Lift Speed

16.5 ft./min.

Cable Length

40 ft

Cable Diameter

0.16 in

Duty Cycle

10 min

Horsepower

1.75 HP

Reviews

Questions & Answers

Questions

1–10 of 13 Questions
Sort by:

  1. snatch block,

    was wondering if the strongway,550/1100 hoist comes with a snatch block for doubling the lifting capacity.

    1 answer

    1. This cable hoist does not include a snatch block. Click the link below to view a compatible snatch block.

      Helpful?

  2. What are the physical dimensions, WxHxL?

    1 answer

    1. The Strongway Electric Cable Hoist measures 6-3/8" wide by 9-1/8" high by 16-1/4" long.

      Helpful?

  3. Can the speed be varied between 1 to 16 1/2 feet per minute?

    1 answer

    1. The speed for this Strongway electric cable hoist is not adjustable. The speed of the line will depend on the weight of the load it is lifting.

      Helpful?

  4. Can the remote cable be replaced in order to make it longer?

    1 answer

    1. Replacing the cable on this Strongway electric cable hoist is not recommended as it could cause damage to the product or harm to the consumer and would void the warranty. You would need to get a complete control switch assembly which we do not offer in different lengths at this time.

      Helpful?

  5. Can this be hung from a Hook on a gantry crane? the gantry has a chain block on it.

    1 answer

    1. The Strongway Electric Cable Hoist includes brackets to be mounted over a beam. This hoist can not hang from a hook.

      Helpful?

  6. is this varible speed

    1 answer

    1. This unit does not have a variable speed feature. This unit will lift at different speeds depending on single or double line use and the weight of the load it is lifting. Single line lift speed is up to 33 feet per minute and double line lift speed is up to 16-1/2 feet per minute.

      Helpful?

  7. How is a double line used? To go from 500 to 1,000 lbs?

    1 answer

    1. To set up double line on the hoist, the cable needs to go through a snatch block. Then, attach the cable hook to the frame of the hoist, located at the opposite side that the cable feeds from.

      Helpful?

  8. What temperature range will this withstand?

    I need this for my shop at home. It is not heated during the winter unless I am in the shop. The winters in Maryland can get pretty cold. I saw at least one hoist on the Northern Tool site that could not be stored or used below freezing, which is ridiculous!

    1 answer

    1. This Strongway Electric Cable Hoist has a working temperature range of 14℉~104℉.

      Helpful?

  9. Can it be mounted in an open tractor shed

    My tractor shed is dry, but it is open on all sides meaning it can be damp on wet days. Can this hoist handle that kind of dampness?

    1 answer

    1. The Strongway Electric Cable Hoist can only be used indoors in dry conditions. Use of this in damp conditions can cause the hoist to malfunction and would void warranty.

      Helpful?

  10. How much head room is required?

    I am trying to understand how high the hook will be from the ground when mounted on a beam 10" above ground level.

    1 answer

    1. The unit measures 22-3/4" from the base of the mounting plate to the bottom of the hook. This would give you approximately 8' of working area if this unit is mounted 10' above the ground.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
