This engine is imported from Japan.

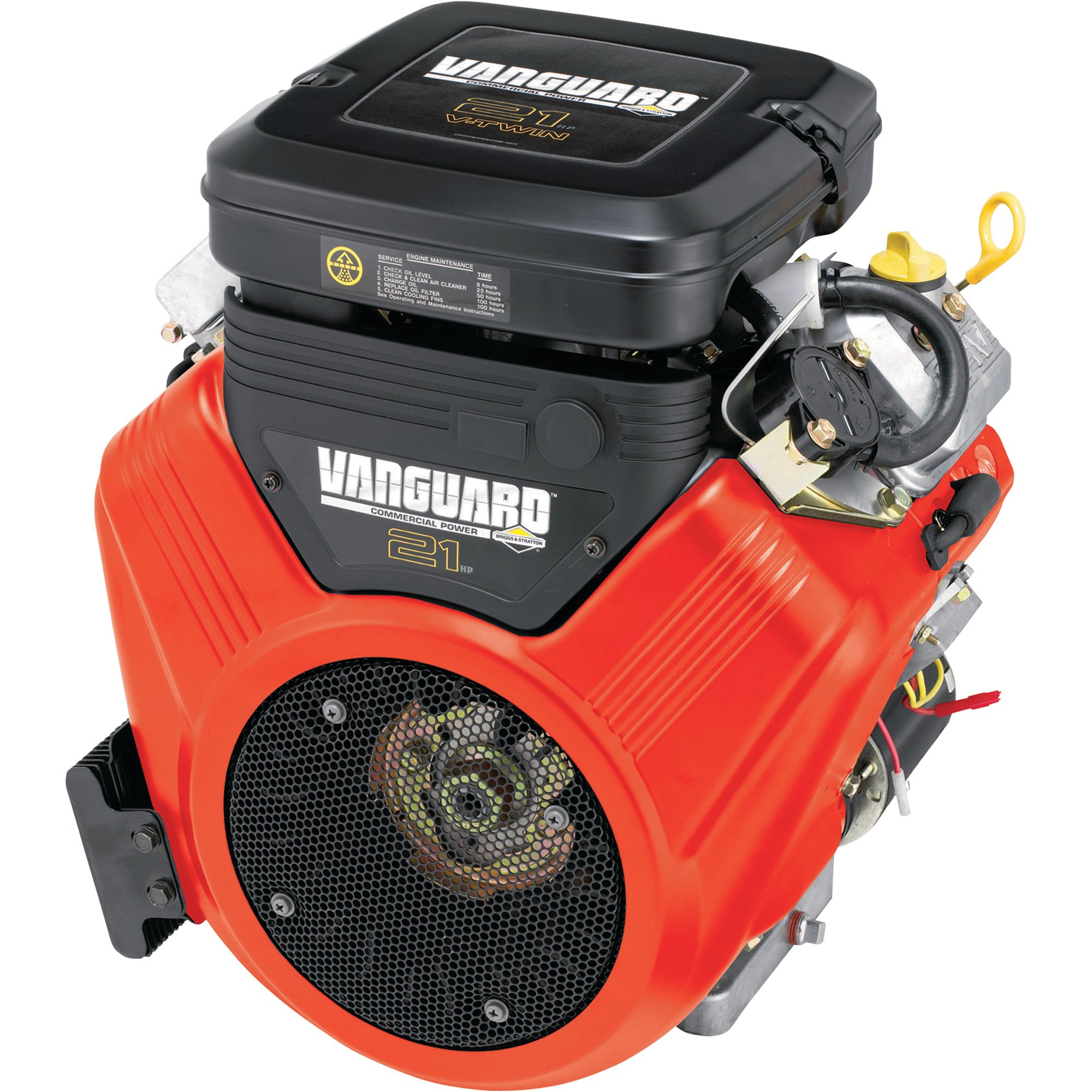

Please See Replacement Item# 103803. Briggs & Stratton Vanguard V-Twin Horizontal Engine with Electric Start — 627cc, 1in. x 2 29/32in. Shaft, Model# 385447-3075-G1
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Starter panel assembly
- Dual oil drain
- Premium sintered iron cylinder sleeves for improved heat transfer, lower oil consumption and longer engine life
- Full-length replaceable valve guides and seals extend valve life and lower oil consumption
See full description
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Briggs & Stratton Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Please See Replacement Item# 103803. Briggs & Stratton Vanguard V-Twin Horizontal Engine with Electric Start — 627cc, 1in. x 2 29/32in. Shaft, Model# 385447-3075-G1
Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2
Honda Engines, HONDA 120CC OHV 6:1 ENGINE, Engine Displacement 118 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 3/4 in, Model# GX120T3XHX2
NorthStar c180 Horizontal OHV Engine with Recoil Start, 179cc, 3/4in. x 2-7/16in. Shaft
Engine Displacement
Same
627 cc
118 cc
118 cc
179 cc
Engine Type
Same
Vanguard V-Twin OHV
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
OHV
Shaft Diameter
Same
1
3/4 in
3/4 in
3/4 in
Start Type
Same
Electric w/recoil backup
Recoil
Recoil
Recoil
Shaft Keyway
Same
1/4
0.18 in
0.25 in
1-51/64 in
PTO Height
Same
5 1/4
4.17 in
4.17 in
4.17 in
Cylinders (qty.)
Same
2
1
1
1
Cylinder Bore
Same
Cast Iron
Cast Iron
Cast Iron
2.56
Fuel Tank
Same
Not included
-
-
Yes
Low Oil Alert
Same
Yes
Yes
Yes
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counterclockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Mechanical
Centrifugal Mechanical
Centrifugal Mechanical
Yes
Ignition System
Same
Electronic
Electronic
Electronic
Transitorical Configuration
Carburetor
Same
Float
Float
Float
Carburated
Lubrication System
Same
Full pressure
Splash
Splash
Splash
Bearing Type
Same
Ball
-
-
Ball
Cooling System
Same
Air cooled
Air
Air
Air
Air Cleaner Type
Same
Dual element
Dual Element
Dual Element
Foam+paper
Choke Control
Same
Manual, remote
Manual
Manual
Manual
Throttle Control
Same
Adjustable for a constant speed operation, manual friction, remote
Remote
Remote
Adjustable
Charging System Amps
Same
16
-
-
No
Muffler Included
Same
No
Yes
Yes
Yes
Shaft Length
Same
-
2.43 in
2.09 in
2.43 in
Net Torque
Same
-
5.4 ft-lbs.
5.4 ft-lbs.
9.5 ft-lbs.
Crankshaft
Same
-
Q-type
H-type
SAE J609EXT3 Straight Key W/shaft Dia.: 19.050mm (0.750in.) - Nominal
Net Power Output
Same
-
3.5 HP
3.5 HP
3.7 HP
Compression Ratio
Same
-
8.5:1
8.5:1
8.5:1
Fuel Tank Capacity
Same
-
2.1 qt
2.1 qt
3.49 qt
Oil Capacity
Same
-
0.59 qt
0.59 qt
0.58 qt
Low Oil Shutdown
Same
-
Yes
Yes
Yes
Auto Compression Release
Same
-
Yes
Yes
Yes
Bore
Same
-
2.4 in
2.4 in
2.55 in
Stroke
Same
-
1.7 in
1.7 in
2.125 in
Shaft Diameter Metric
Same
-
-
-
19.05 mm
Shaft Length Metric
Same
-
-
-
61.7 mm
Bolt Circle
Same
-
-
-
3.625 in
Mounting Base Length
Same
-
-
-
6.378 in
Mounting Base Width
Same
-
-
-
3.15 in
