Please See New Item# 75710.

Item# 47501
Please See New Item# 75710.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Please See New Item# 75710.

Click or Tap image to Zoom

  • 5 HP, 230V single-phase 3,450 RPM electric motor
  • Delivers 15.5 CFM @ 90 PSI; 17 CFM @ 40 PSI
  • Cast iron oil-lubricated 3-cylinder single-stage pump
  • Copper-finned inter- and after-coolers for heat dissipation and less moisture
  • Pump runs at 1,180 RPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

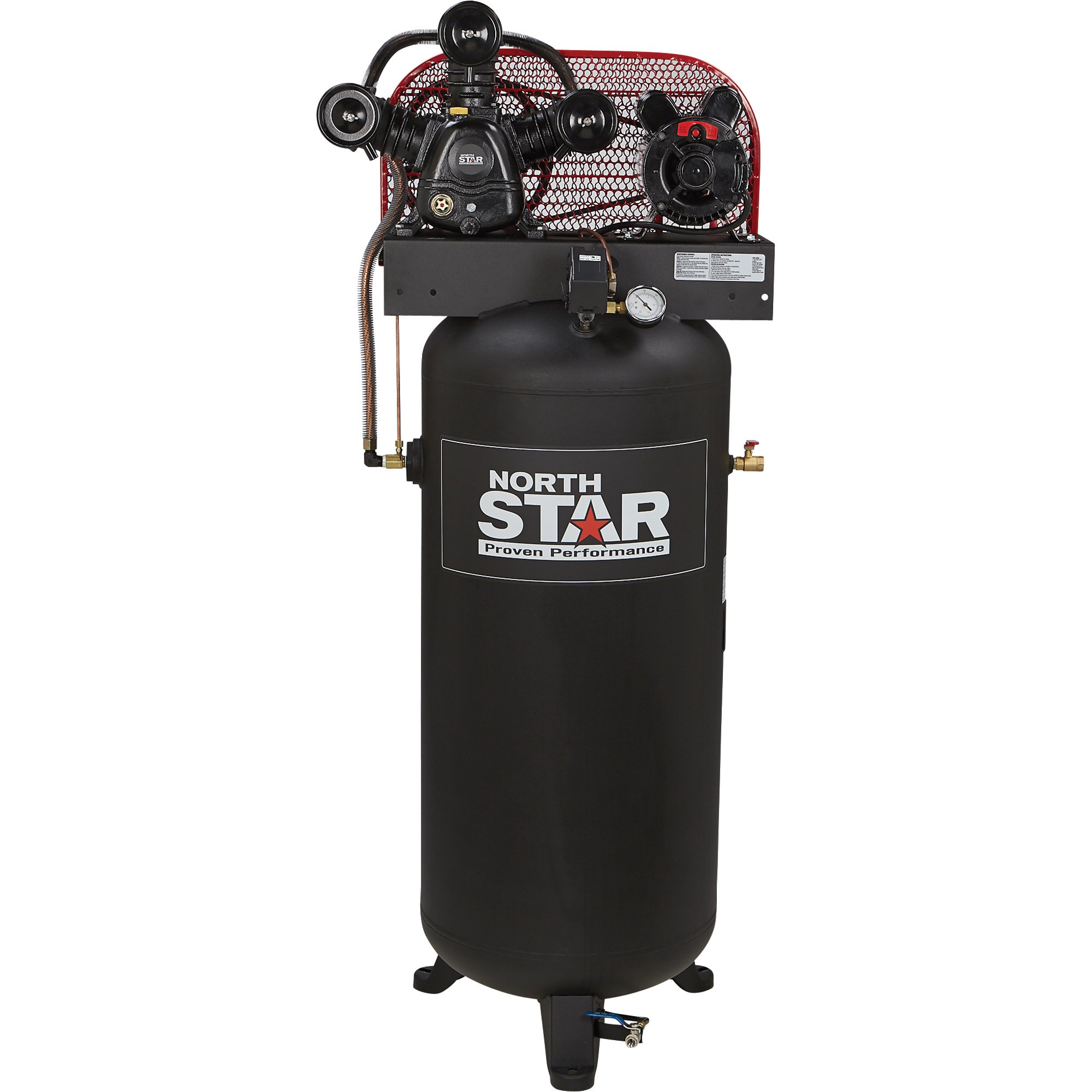

NorthStar® heavy-duty 5 HP, 60-gallon electric commercial air compressor is built with a cast iron belt-driven oil-lubricated 3-cylinder single-stage pump to run quietly, prevent heat transfer between cylinders and deliver long pump life. Copper finned inter- and after-coolers provide good heat dissipation and less moisture. Ball bearings on each side of crankshaft for smooth running and durability, providing 20,000-hour bearing life. Powered by a 5 HP, 230V electric motor. High-quality compressor also features a paper element filter, heat-resistant alloy steel reed valves, cast iron crankshaft, metal belt guard, oil sight gauge and ASME-certified 60-gallon vertical tank.

What's Included

  • (1) 5 HP, 60-gallon vertical electric air compressor

Downloads

Product Manual

Features + Benefits

  • 5 HP, 230V single-phase 3,450 RPM electric motor
  • Delivers 15.5 CFM @ 90 PSI; 17 CFM @ 40 PSI
  • Cast iron oil-lubricated 3-cylinder single-stage pump
  • Copper-finned inter- and after-coolers for heat dissipation and less moisture
  • Pump runs at 1,180 RPM
  • ASME-certified 60-gallon vertical tank has gate valve to allow downstream air to be shut off
  • Ball bearings on each side of crankshaft for smooth running and durability
  • Heavy-duty paper element filter keeps cylinder heads clean
  • Reed valves are made of heat-resistant alloy steel from ASSAB, specifically designed for maximum efficiency
  • 20,000-hour bearing life
  • Triple-ringed piston for low oil consumption and longer head life
  • Durable alloy rods
  • Spheroidal graphite cast iron crankshafts for maximum strength
  • Durable metal belt guard won't break
  • Oil sight gauge for easy visual oil checks
  • 1/2in. air outlet
  • 135 max. PSI
  • 1/4in. ball valve drain with 3in. lever can be piped to sewers
  • Ball valve connects to bottom of tank with extension hose for easy access
  • 1/4in. ball valve drain with 3in. lever can be piped to sewers
  • Remote style ball valve drain connects to bottom of tank with extension hose for easy access

Key Specs

AttributeSpecification

item#

47501

Brand

NorthStar

Manufacturer's Warranty

4 Yr Consumer/2 Yr Commercial

Ship Weight

266.0 LB

Air Tank Size

60 Gal

Volts

230

CFM at 90 PSI

15.5

Motor Phase

1

Stage

1

Horsepower

5 HP

Max. PSI

135
AttributeSpecification

Amps

30

Duty Cycle

70 %

Motor RPM

3,450

Pump Life

20,000 hr

Pump Material

Cast Iron

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

17

Noise Level

83 dB

Oil Required

Yes

Dimensions L x W x H (in.)

22 x 31 x 68 in

Reviews

Questions & Answers

43 Reviews This action will navigate to reviews.

Questions

1–10 of 23 Questions
Sort by:

  1. Can it be transported laying down in the back of a pick up

    1. No it has oil in the compressor

      Helpful?

    2. This compressor should be transported standing upright mounted to a pallet and strapped securely to prevent movement.

      Helpful?

  2. Does this compressor come with oil in it or do you need to buy oil immediately bofore using it?

    1. It comes with oil installed in the pump

      Helpful?

    2. This Northstar Electric Air Compressor does come with oil in the pump. It is recommended before operation to check the sight glass to verify the pump has enough oil for ideal operation. The pump on this unit uses SAE30 non-detergent pump oil, and has a capacity of 23.7 ounces.

      Helpful?

  3. Does compressor come with oil and filters

    1 answer
    Originally posted on "NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank"

    1. This air compressor is shipped with synthetic oil and filters. We do offer the start-up kit, item 84504, for maintenance.

      Helpful?

  4. What is the diameter of the tank? I want to make sure it fits the intended location. Thanks!

    1 answer
    Originally posted on "NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank"

    1. The diameter of the tank is 20".

      Helpful?

  5. Is the 15,000 hour pump life correct?

    1 answer
    Originally posted on "NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank"

    1. The pump life is determined by the bearing life rating of the pumps main bearings. This specific unit is rated at 15,000 hours. All other components of the pump are replaceable such as the pistons, connecting rods, piston rings, valves, etc.

      Helpful?

  6. Does this unit have a magnetic start?  It would be helpful if this was in the specs

    1 answer
    Originally posted on "NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank"

    1. This compressor will have a start capacitor. This is listed in the product manual on page 30. The manual can be found on this item's specifications page below the Product Summary and What's Included sections.

      Helpful?

  7. Will this run off a 6000 watt generator with a 240v 30 amp outlet?

    1 answer
    Originally posted on "NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank"

    1. This compressor will draw 22A on 230V electricity. In order to run this from a generator, it will require approximately 35,997 Watts at start-up and 5,060 running Watts.

      Helpful?

  8. Will this compressor run on a 30 amp breaker?

    1 answer
    Originally posted on "NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank"

    1. The compressor would run on a 30 amp breaker.

      Helpful?

  9. What size bolt/floor anchors are needed to mount this to my concrete floor?

    1 answer
    Originally posted on "NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank"

    1. This air compressor would use 3/8" lag screws to bolt to the concrete floor. They require a torque of 7-10 foot pounds (9.5-13.5Nm).

      Helpful?

  10. What country are the motor and pump manufactured

    1 answer
    Originally posted on "NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank"

    1. This air compressor is manufactured to our specifications. The pump is manufactured in China and the motor is assembled in China with multiple sources for the parts.

      Helpful?
