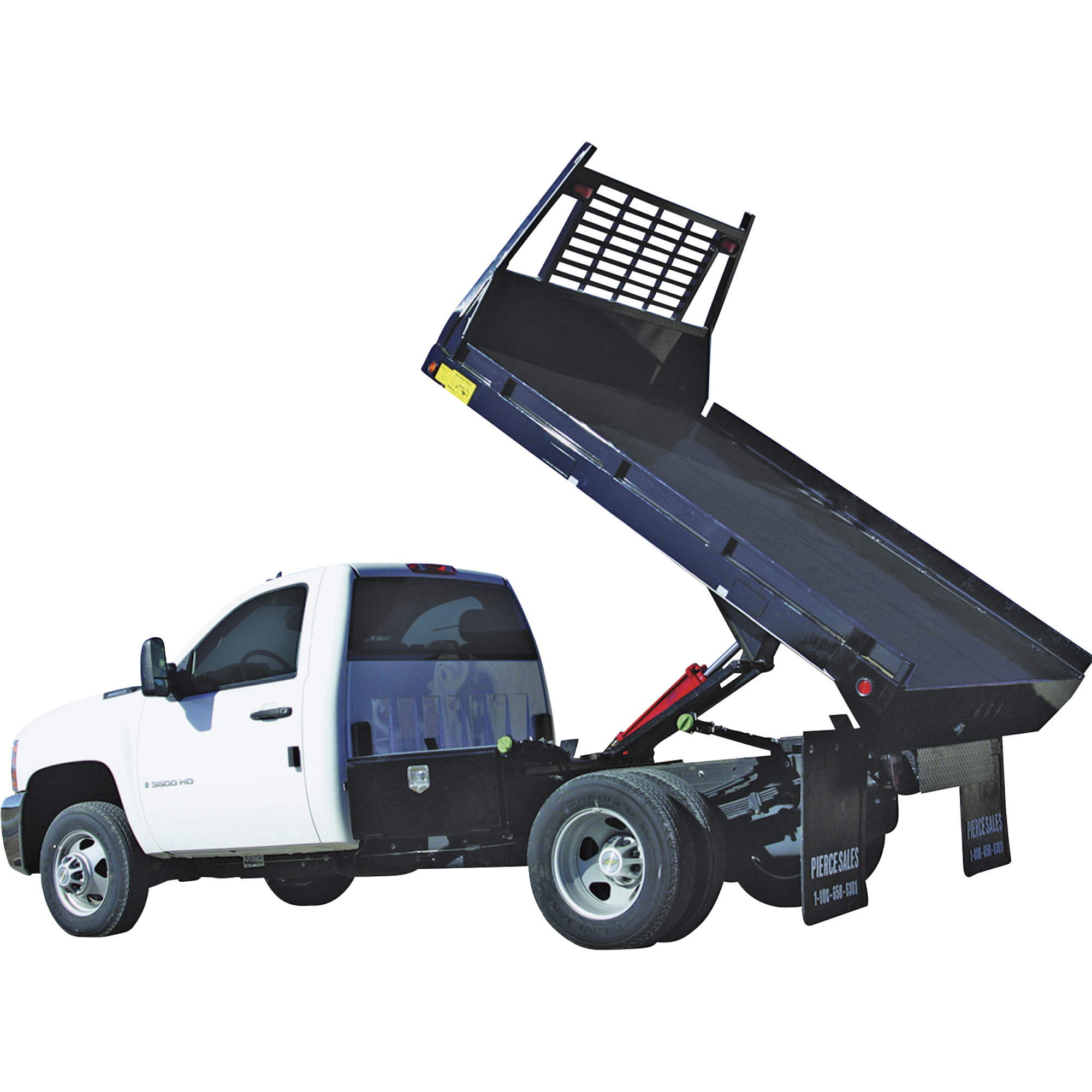

Pierce Dump Hoist Kit — 7.5-Ton, 15000-Lb. Capacity, 12ft. Max Bed Size, 45° Dump Angle, Model# DKMKPD

Item# 3309025
Pierce Dump Hoist Kit — 7.5-Ton, 15000-Lb. Capacity, 12ft. Max Bed Size, 45° Dump Angle, Model# DKMKPD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Pierce Dump Hoist Kit — 7.5-Ton, 15000-Lb. Capacity, 12ft. Max Bed Size, 45° Dump Angle, Model# DKMKPD

Click or Tap image to Zoom

$2429.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • For Flatbed Truck Size: 8ft.-12ft.
  • Load Capacity: 7.5 Tons

See full description

Complete Your Solution

  • Pierce Dump Hoist Kit — 7.5-Ton, 15000-Lb. Capacity, 12ft. Max Bed Size, 45° Dump Angle, Model# DKMKPD
  • Pierce Arrow Waterproof 2-Function Wireless Control, Model# PS002
  • Weather Guard 11.2-Oz. Extreme-Duty PVC Tarp, Charcoal Gray, 10ft. x 12ft., Model# TRP-10x12PVC-WG
Price for all three:

$2799.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

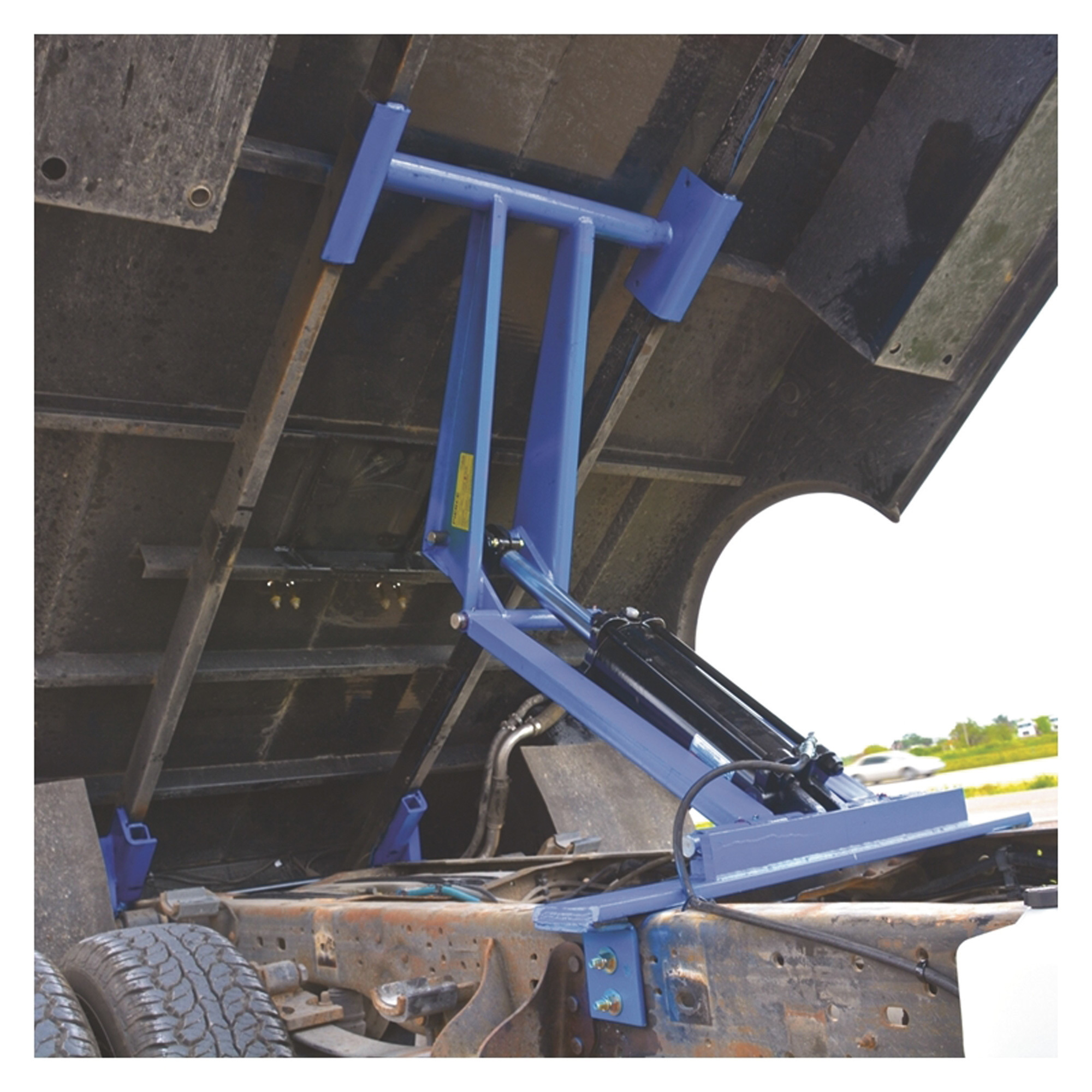

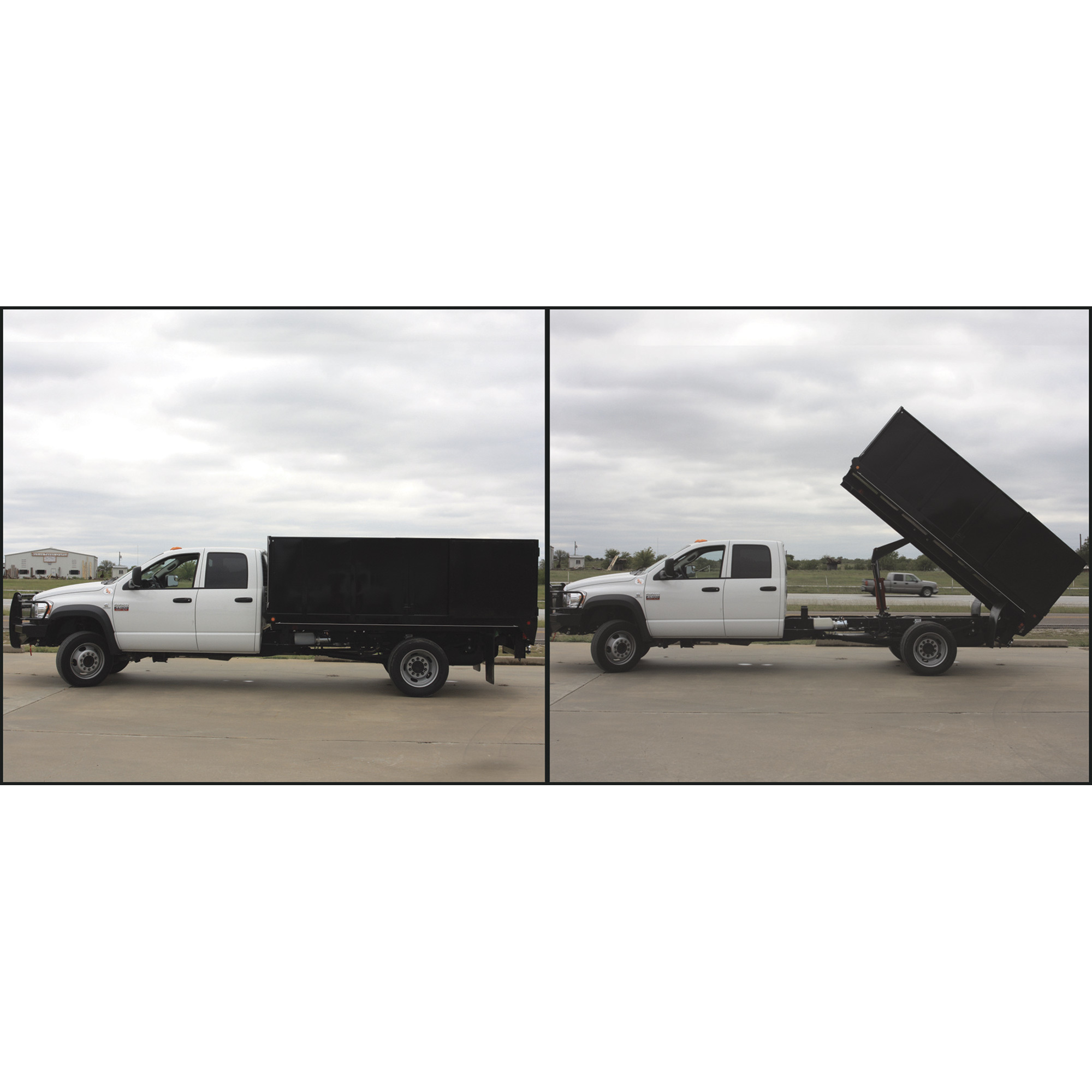

Makes unloading faster. Lifts trucks flat bed to 45° dumping position in 30 to 45 seconds. Stop lifting and lowering in any position; cab-mounted switch. Installs on truck or trailer with flat, straight frame. Items 3309025 and 3309022 have heavier duty scissor and cylinder than item 3309021 to increase capacity.

What's Included

    (1) Scissor assembly (pre-assembled) (1) Hydraulic cylinder (1) Bucher 12V power up/power down hydraulic pump (1) 2-button universal remote with 20 ft cord (1) 200 amp breaker (1) Welding cable - black, 20 ft (1) Welding cable - red, 20 ft (1) Hydraulic hose - 5 ft (1) Hydraulic hose - 7 ft (1) Scissor top (2) Scissor arms (1) Crossmember (1) Shaft A - 9.25 in (1) Shaft B - 15 in (1) Shaft C - 21.5 in (1) Driver side frame hinge (1) Passenger side frame hinge (2) Sill supports (1) Pump bracket (1) Instruction manual

Downloads

Product Manual

Features + Benefits

  • For Flatbed Truck Size: 8ft.-12ft.
  • Load Capacity: 7.5 Tons

Key Specs

AttributeSpecification

item#

3309025

Brand

Pierce

Manufacturer's Warranty

2 year limited warranty

Ship Weight

500.0 LB
AttributeSpecification

Capacity

15,000 lb

Max. Bed Size

12 ft

Angle

45 °

Works With

Flat Bed

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 19 Questions
Sort by:

  1. Is the flatbed included in the package?

    1 answer

    1. The flatbed is not included in the package. This is just the kit to turn your flatbed truck into a hoist lift truck.

      Helpful?

  2. What is the electrical draw of this pump?

    1 answer

    1. The amp draw under load will range from 150-175 amps. A 200 amp breaker is supplied from the manufacturer with the kit.

      Helpful?

  3. What if the hitch is integrated with the flatbed? I can't recall if the goose neck ball is part of the flat bed or not but, if it's not, would the goose neck ball still be useable?

    1 answer

    1. If the hitch is integrated with the flatbed, you would loose your ability for towing. If it is not a part of the flatbed and is an after market hitch, it may still be usable for towing with the hoist kit, but would need to be moved up.

      Helpful?

  4. Does this kit come with the hydraulic oil reservoir?

    1 answer

    1. A hydraulic reservoir is included and connected to the hydraulic pump.

      Helpful?

  5. Can you add a wireless controller

    1 answer

    1. The wireless controller which can be used with this hoist kit is item 60718.

      Helpful?

  6. What diameter is the cylinder and length .

    1 answer

    1. The cylinder's closed pin center is 40.25" long. The outside diameter is 6". It has a 5" bore with a 14" stroke.

      Helpful?

  7. why can't i use 7.5 ton kit on a 9' flatbed

    1 answer

    1. You can install this on a 9' flat frame truck. Generally a truck with a 9' bed would not have a 7.5 ton capacity. Northern Tool also has a 5 ton hoist kit. The item number is 3309021 (see below).

      Helpful?

  8. i am wanting to build a dump trailer. would this kit work for a custom project like that. is there a video of this kit being installed.

    1 answer

    1. The Pierce Arrow Truck Hoist Kit is intended for a truck with a 12' - 14' bed. Any other type of applications would void the warranty.

      Helpful?

  9. Does it come with rear end hinges for back of flatbed?

    Could you list of items in the kit?

    1 answer

    1. This flatbed truck hoist kit includes the hinges. It also includes the lift, power unit and controler, It does not include the flat bed.

      Helpful?

  10. What are the specs of the pump? PSI, GMP? HP?

    Do you sell just the pump? if so what size are the ports and where can i find it on the website? Thanks

    1 answer

    1. You would want to contact the manufacturer to purchase the pump. Depending on the flow the pump is capable of 1.5 GPM at 1750 PSI with a maximum PSI of 2000. There is no horse power rate given.
