BendPak Mobile Lift System — 72,000-Lb. Capacity, Set of 4, Model# PCL-18B-Hight Voltage

Item# 6763404
BendPak Mobile Lift System — 72,000-Lb. Capacity, Set of 4, Model# PCL-18B-Hight Voltage

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Mobile Lift System — 72,000-Lb. Capacity, Set of 4, Model# PCL-18B-Hight Voltage

Click or Tap image to Zoom

$60,395.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • SINGLE, PAIR or TEAM operation
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

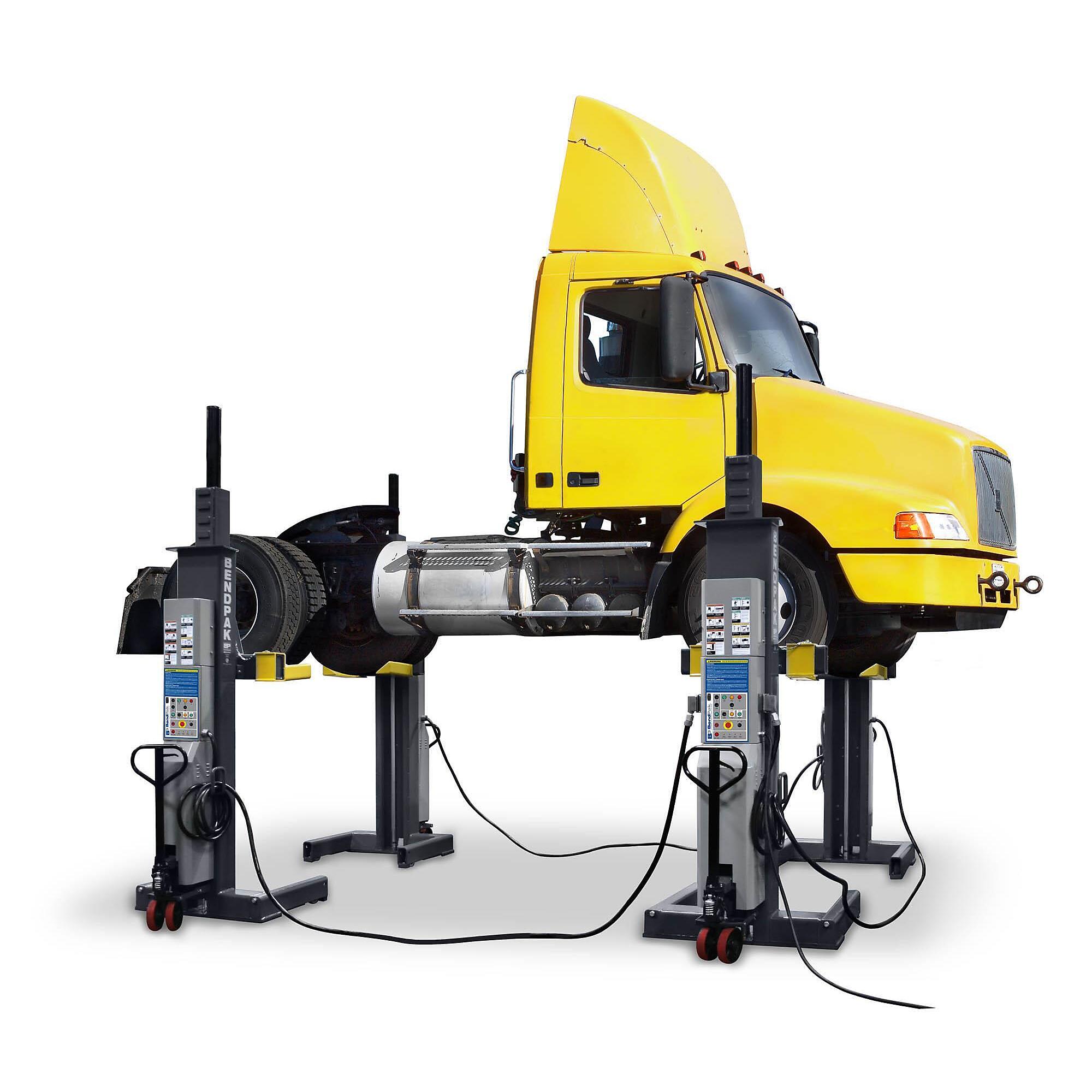

"This PCL-18B mobile column lift system comes in a set of 4. When combined, the system lifts up to 72,000 lbs. Ideal for two-axle vehicles. Sets of 2, 6 and 8 are also available. Set of 4 Mobile Column Lifts With a full set of mobile column lifts, you'll lift vehicles up to 72,000 lbs. This weight class encompasses most heavy-duty and commercial semi-trucks. If you need more lifting power, upgrade to a set of 6 or double your capability with a set of 8. For a frame-engaging adapter, check out the PCL-18B cross beam. This handy tool allows you to safely remove tires and perform full wheel service on your vehicle."

What's Included

    (4) 4 Mobile Column

Features + Benefits

  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • SINGLE, PAIR or TEAM operation
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
  • Simple operation, long service life and minimum maintenance

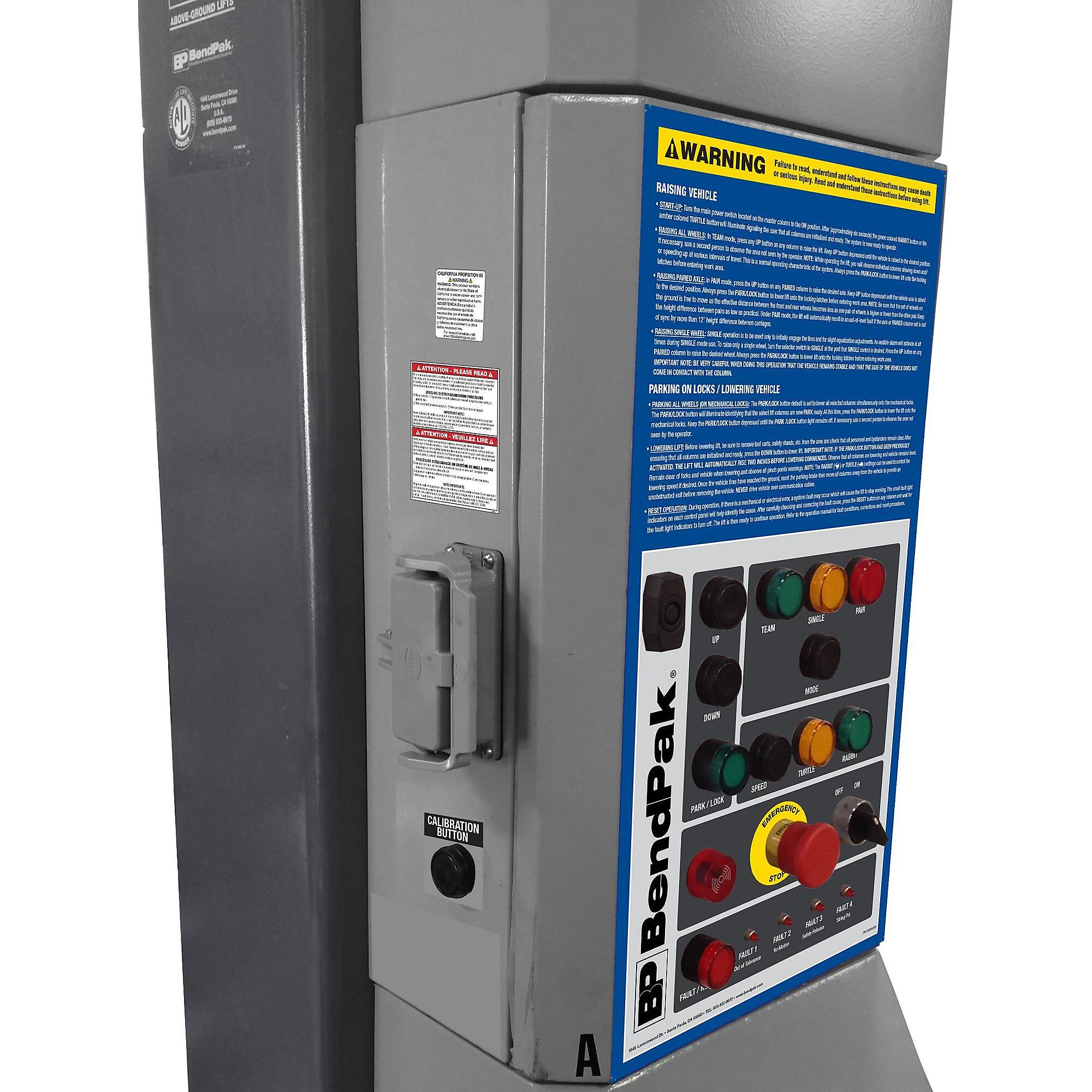

  • Intuitive controls allow the lift to be fully programmed and controlled from any column

Key Specs

AttributeSpecification

item#

6763404

Brand

BendPak

Manufacturer's Warranty

3 year limited warranty

Ship Weight

5744.0 LB

Capacity

72,000 lb

Max. Rise

6 ft

Horsepower

3 HP

Motor Phase

Three-phase
AttributeSpecification

Volts

230V/460V

Lock Spacing

4 in

Locking Position (qty.)

13

Time of Full Rise

85 sec.

Material

Steel

Product Weight

5544.0000 lb

Dimensions L x W x H (in.)

46.0 x 46.0 x 146.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
