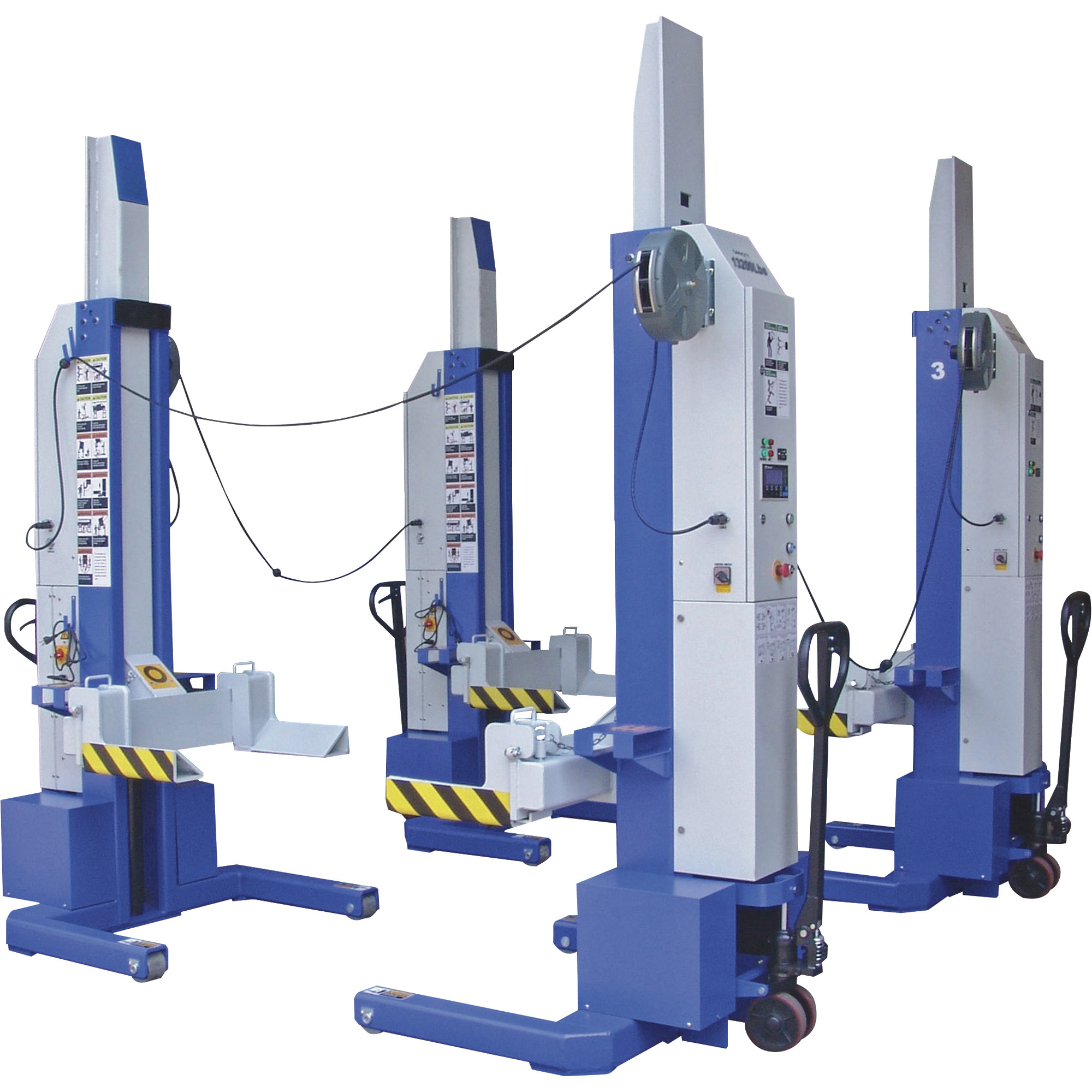

Ideal Mobile Column Lifts, 4-Pc. Set, 52,800-Lb. Capacity, 24 Volt, Model# MSC-13K-B-452

Item# 99239
Ideal Mobile Column Lifts, 4-Pc. Set, 52,800-Lb. Capacity, 24 Volt, Model# MSC-13K-B-452

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ideal Mobile Column Lifts, 4-Pc. Set, 52,800-Lb. Capacity, 24 Volt, Model# MSC-13K-B-452

Click or Tap image to Zoom

$38,400.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Easy-to-use master controller provides individual or paired synchronized operation
  • Adjustable lifting forks accommodate wide range of wheels
  • Easily positioned with pallet jack style wheel
  • Heavy-duty hydraulic system
  • Large carriage bearings provide durable, fast and easy lifting

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

These Ideal Mobile Column Lifts are high-quality, heavy-duty units that provide the highest safety assurance. They will pick up the heaviest vehicles and use only minimal space when not in use. Each column is capable of lifting 13,200 lbs. Siemens PLC and Electro-Optical encoder provide continuous synchronization of columns. This unit comes with the latest technology pre-installed. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday-Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 4-column mobile lift set

Downloads

Product Manual

Features + Benefits

  • Easy-to-use master controller provides individual or paired synchronized operation
  • Adjustable lifting forks accommodate wide range of wheels
  • Easily positioned with pallet jack style wheel
  • Heavy-duty hydraulic system
  • Large carriage bearings provide durable, fast and easy lifting

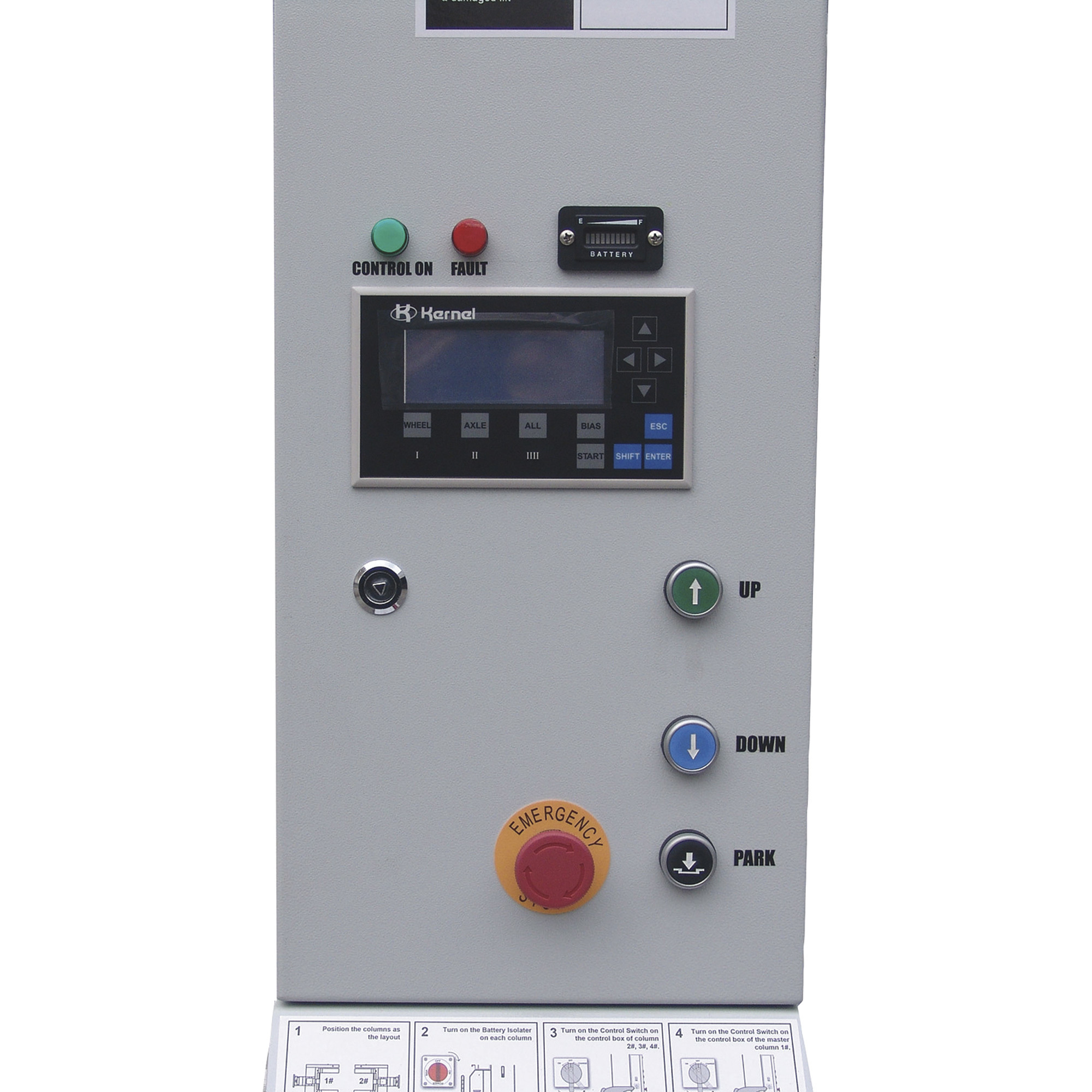

  • LCD screen with keyboard offers easy-to-read visuals of settings and lifting height
  • Independent mechanical locking system
  • Emergency switch on each column provides highest safety assurance
  • Item too large for lift gate; requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

99239

Brand

iDEAL by Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1210.0 LB

Capacity

52,000 lb
AttributeSpecification

Max. Rise

12.95 ft

Horsepower

2 HP

Motor Phase

Single-phase

Volts

24

Locking Position (qty.)

18

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. is there fork lift pockets so they can be moved easily from ground level onto a trailer?

    1 answer

    1. There is a fork lift pocket on each side of the columns.

      Helpful?

  2. What thickness of flooring is recommended for these

    1 answer

    1. The concrete surface must be with strength of 3000 PSI (20Mpa) at least and minimum thickness of 120 MM (4.7") and a slope gradient < 12 MM/M.

      Helpful?

  3. Can this be chained with the 26,400# 2 pc set for a six piece on a single control?

    1 answer

    1. The mobile column lift offers 2,4 and 6 column options. The lift capacity per column is 13,200 pounds. The Siemens PLC and electro-optical encoder provide continuous synchronization of all of the columns.

      Helpful?

  4. I have recently purchased these and i am needing to know what batteries are recommended for these units.

    1 answer

    1. The battery required will be a 12 VDC deep cycle 120 AMP/HR 350-500 CCA. The battery dimensions will be 13" L x 7" W x 12"H. Two batteries are required per column.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
