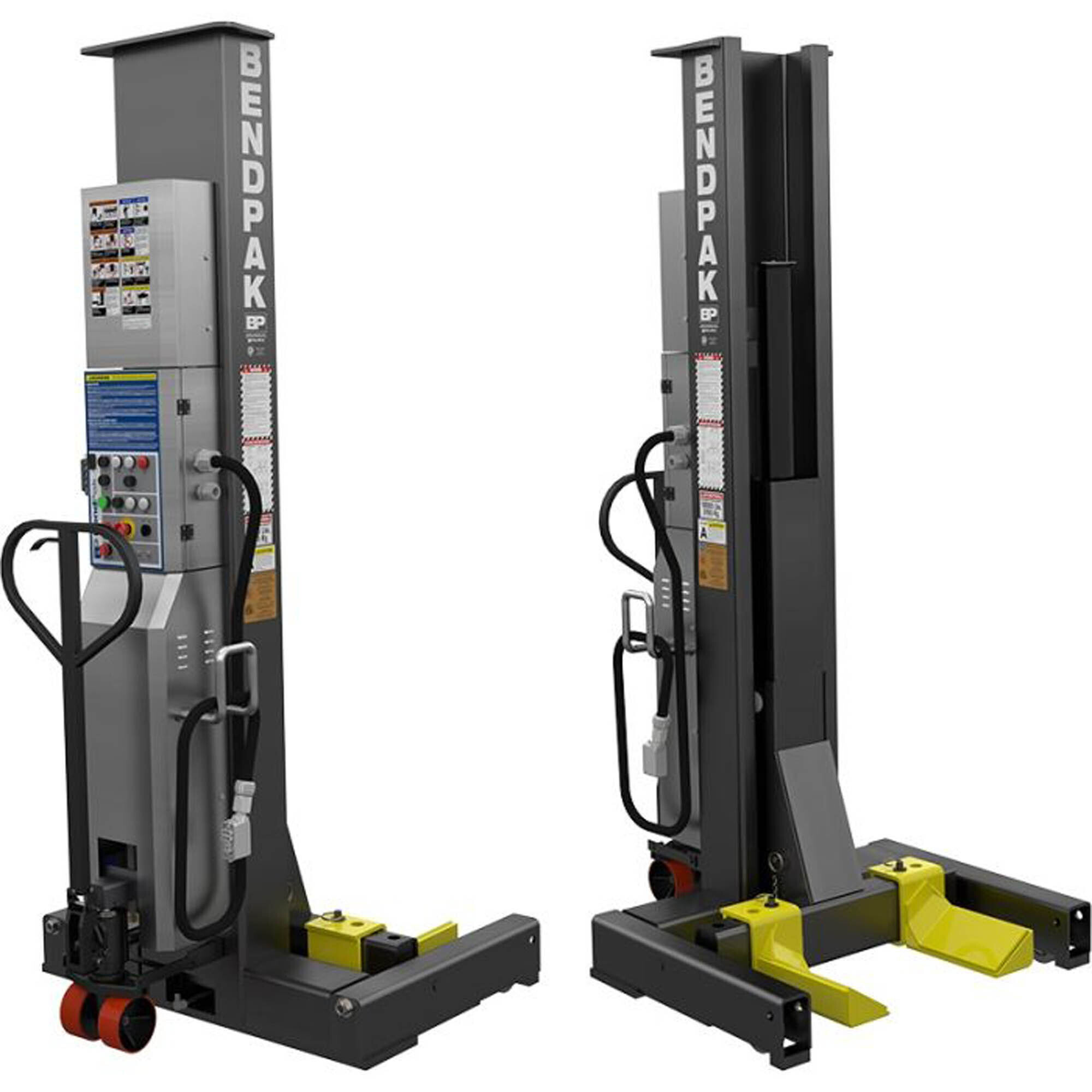

BendPak Mobile Column Lift System — 36,000-Lb. Capacity, Set of 2, Model# PCL-18B-Hight Voltage

Item# 6763383
BendPak Mobile Column Lift System — 36,000-Lb. Capacity, Set of 2, Model# PCL-18B-Hight Voltage

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Mobile Column Lift System — 36,000-Lb. Capacity, Set of 2, Model# PCL-18B-Hight Voltage

Click or Tap image to Zoom

$31,495.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • SINGLE, PAIR or TEAM operation
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

"This PCL-18B mobile column lift system comes in a set of 2. When combined, the system lifts up to 36,000 lbs. A set of 2 is the perfect way to expand your lifting capabilities on vehicles with three or four axles. Sets of 4, 6 and 8 are available. Set of 2 Mobile Column Lifts With a pair (2) of mobile column lifts, you can add to your existing fleet and expand your lifting capabilities to include larger semi-trucks and heavy-duty vehicles. A minimum of 4 mobile column lifts must be used to lift a vehicle, and heavier vehicles require 6 or 8. This 2-set is a great way to gradually upgrade into the 6 or 8-lift range, offering up to 144,000 lbs. with a full set. Do not attempt to lift half of a vehicle (the front or back only) with only 2 mobile lifts. Vehicles must be raised on an even plane at all times."

What's Included

    (2) 2 Mobile Column

Features + Benefits

  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • SINGLE, PAIR or TEAM operation
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
  • Simple operation, long service life and minimum maintenance

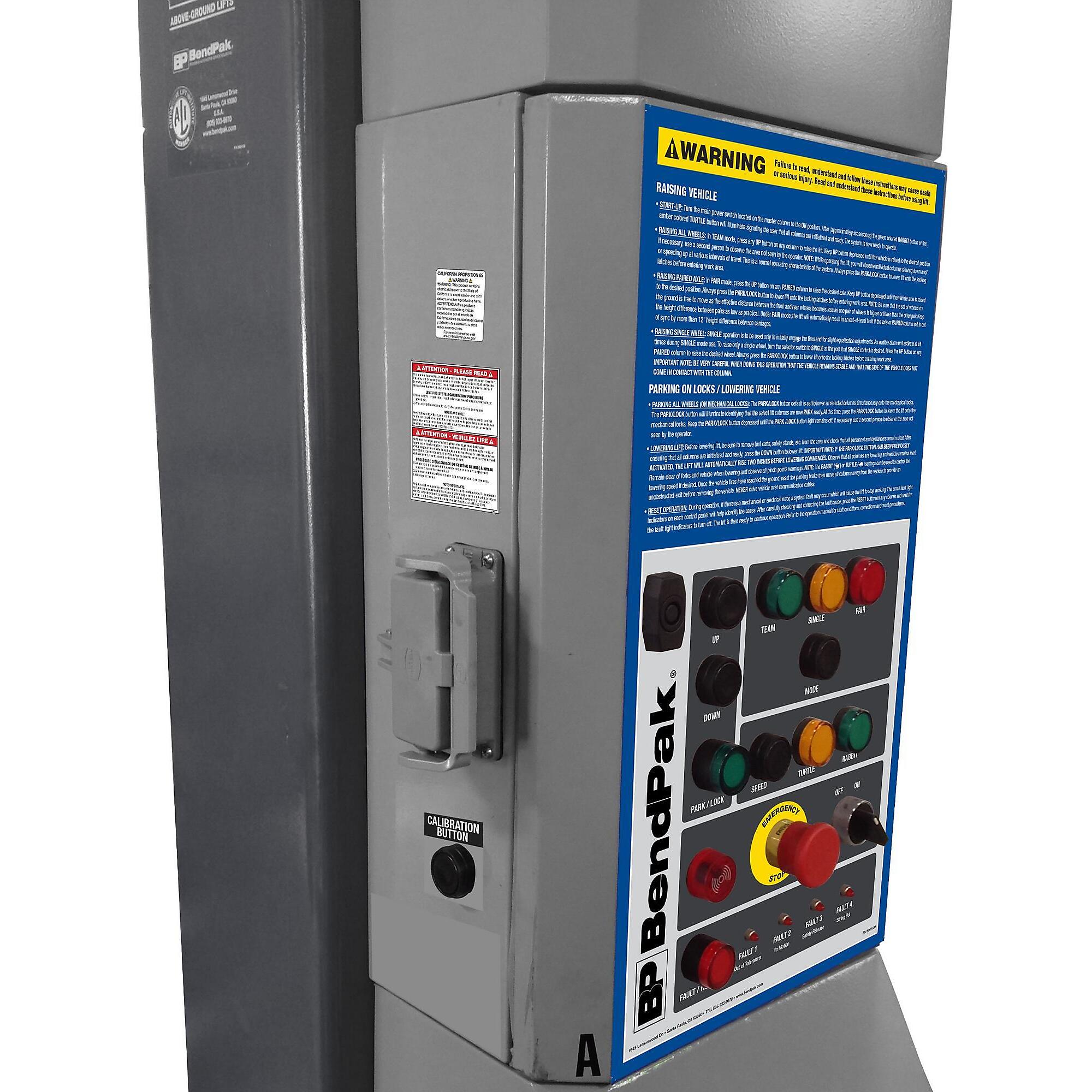

  • Intuitive controls allow the lift to be fully programmed and controlled from any column

Key Specs

AttributeSpecification

item#

6763383

Brand

BendPak

Manufacturer's Warranty

3 year limited warranty

Ship Weight

2872.0 LB

Capacity

36,000 lb

Max. Rise

6 ft

Horsepower

3 HP

Motor Phase

Three-phase
AttributeSpecification

Volts

230V/460V

Lock Spacing

4 in

Locking Position (qty.)

13

Time of Full Rise

85 sec.

Material

Steel

Product Weight

2772.0000 lb

Dimensions L x W x H (in.)

46.0 x 46.0 x 146.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty

Compare with Most Popular in Single-Post Lifts

See All Single-Post Lifts

See All BendPak Single-Post Lifts
