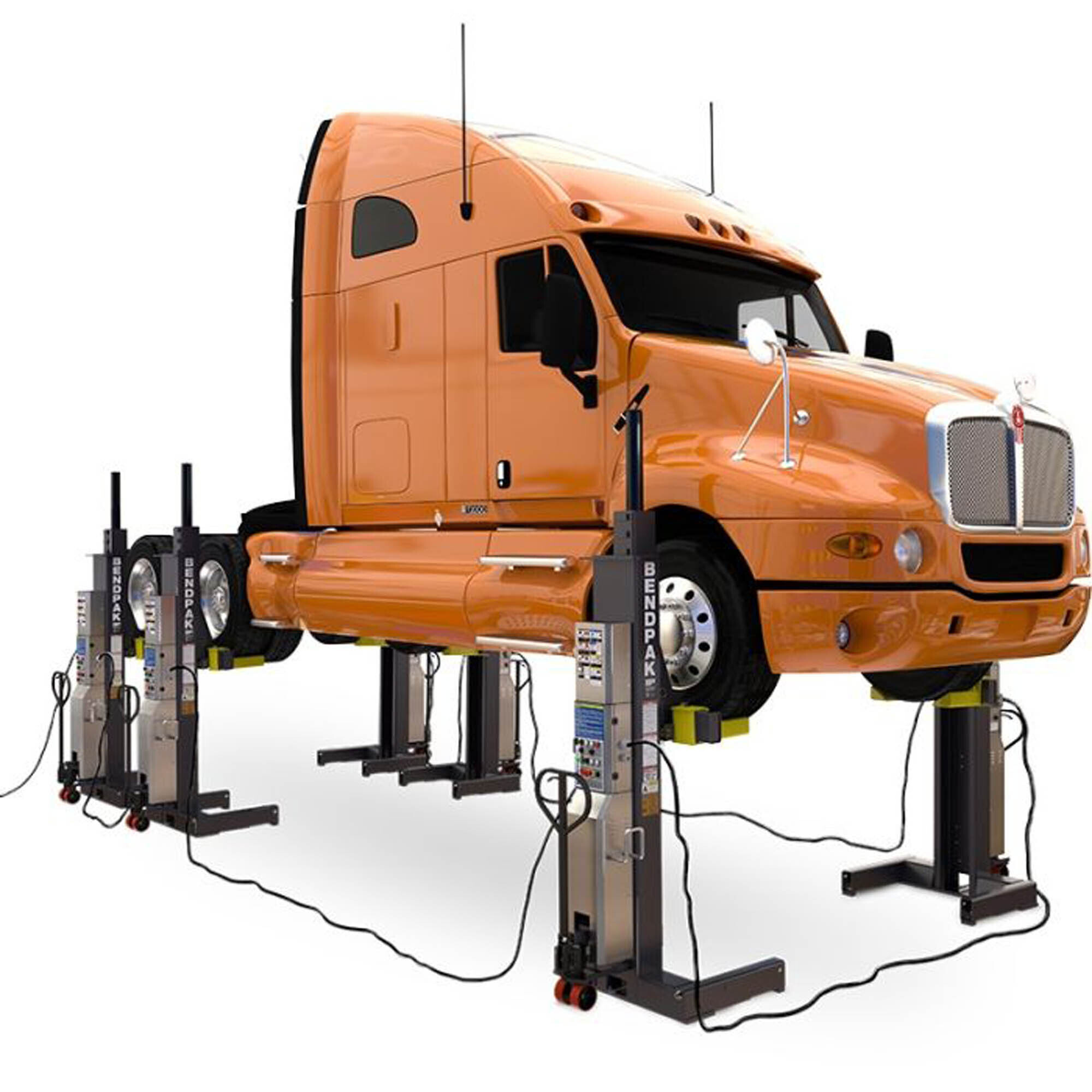

BendPak Mobile Lift System — 108,000-Lb. Capacity, Set of 6, Model# PCL-18B-Hight Voltage

Item# 6763375
BendPak Mobile Lift System — 108,000-Lb. Capacity, Set of 6, Model# PCL-18B-Hight Voltage

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Mobile Lift System — 108,000-Lb. Capacity, Set of 6, Model# PCL-18B-Hight Voltage

Click or Tap image to Zoom

$93,095.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • SINGLE, PAIR or TEAM operation
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

"This PCL-18B mobile column lift system comes in a set of 6. When combined, the system lifts up to 108,000 lbs. Ideal for three-axle vehicles. Sets of 2, 4 and 8 are available. Set of 6 Mobile Column Lifts With 6 mobile column lifts in a single setup, you have the ability to lift up to 108,000 lbs. Despite so much lifting power, each column is easy to stow away in minutes flat after the vehicle is lowered. Safety and user control is paramount, so all lifts will be connected via a single control panel and can be stopped simultaneously with the push of a button."

What's Included

    (6) 6 Mobile Column

Features + Benefits

  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • SINGLE, PAIR or TEAM operation
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
  • Simple operation, long service life and minimum maintenance

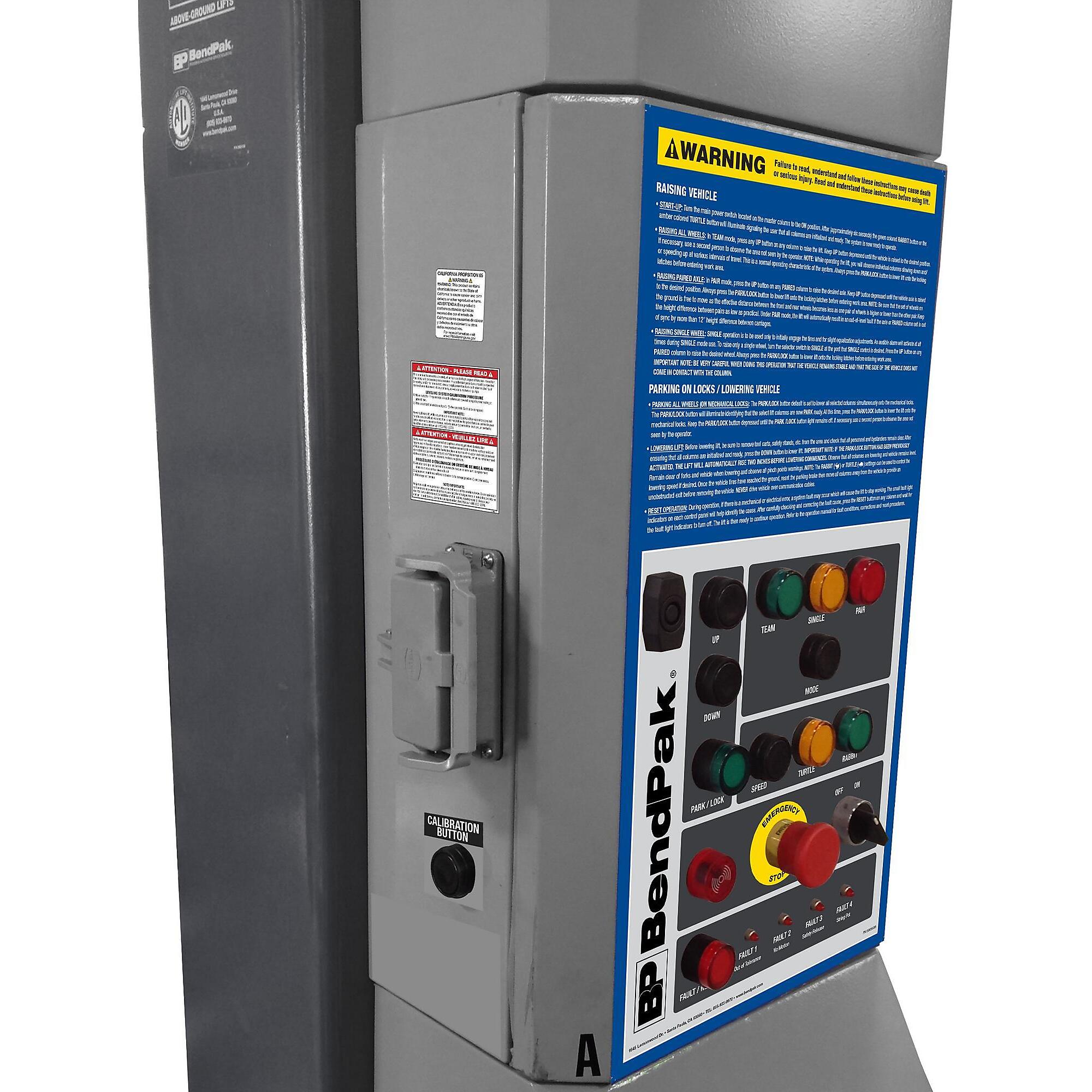

  • Intuitive controls allow the lift to be fully programmed and controlled from any column

Key Specs

AttributeSpecification

item#

6763375

Brand

BendPak

Manufacturer's Warranty

3 year limited warranty

Ship Weight

8616.0 LB

Capacity

108,000 lb

Max. Rise

6 ft

Horsepower

3 HP

Motor Phase

Three-phase
AttributeSpecification

Volts

230V/460V

Lock Spacing

4 in

Locking Position (qty.)

13

Time of Full Rise

85 sec.

Material

Steel

Product Weight

8316.0000 lb

Dimensions L x W x H (in.)

46.0 x 46.0 x 146.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
