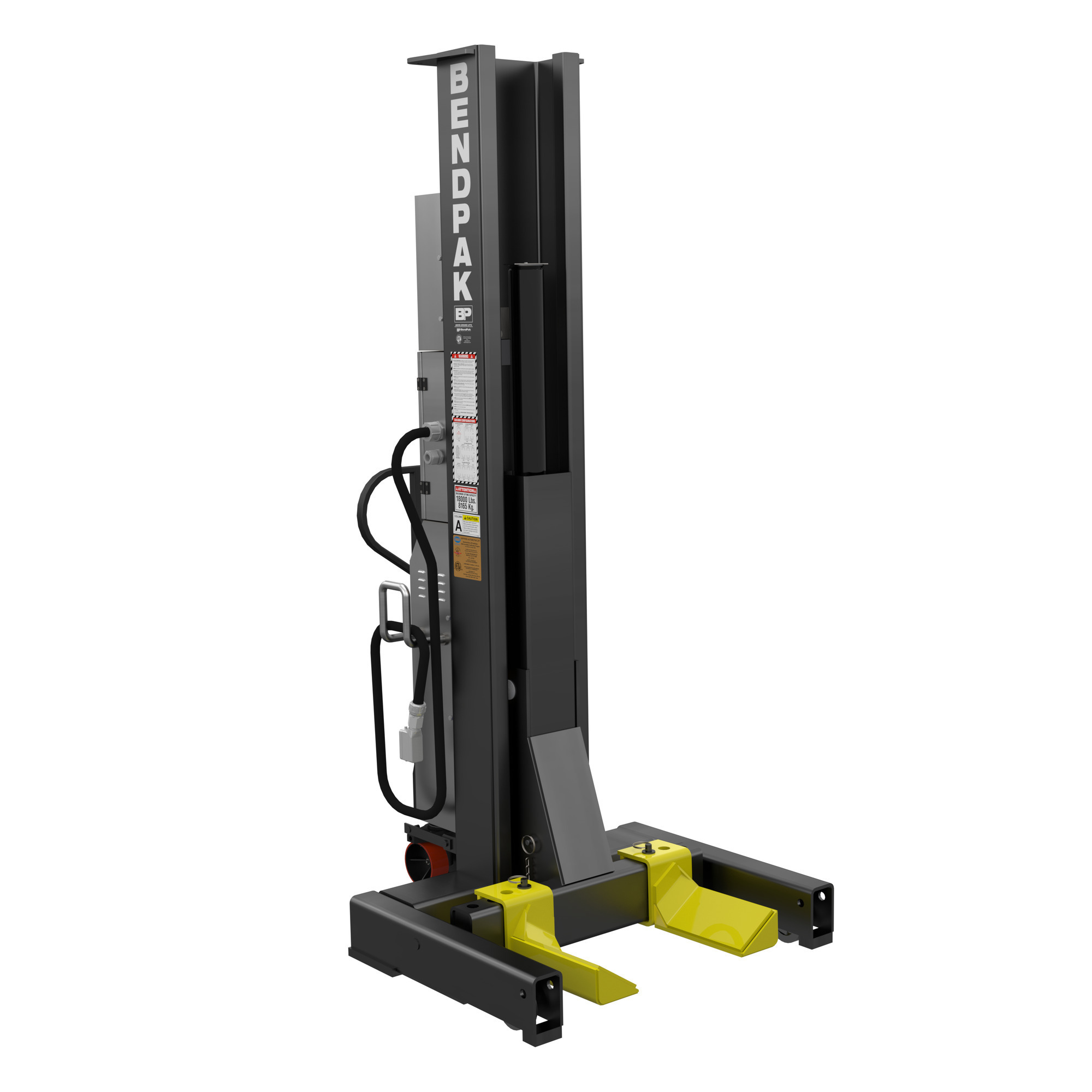

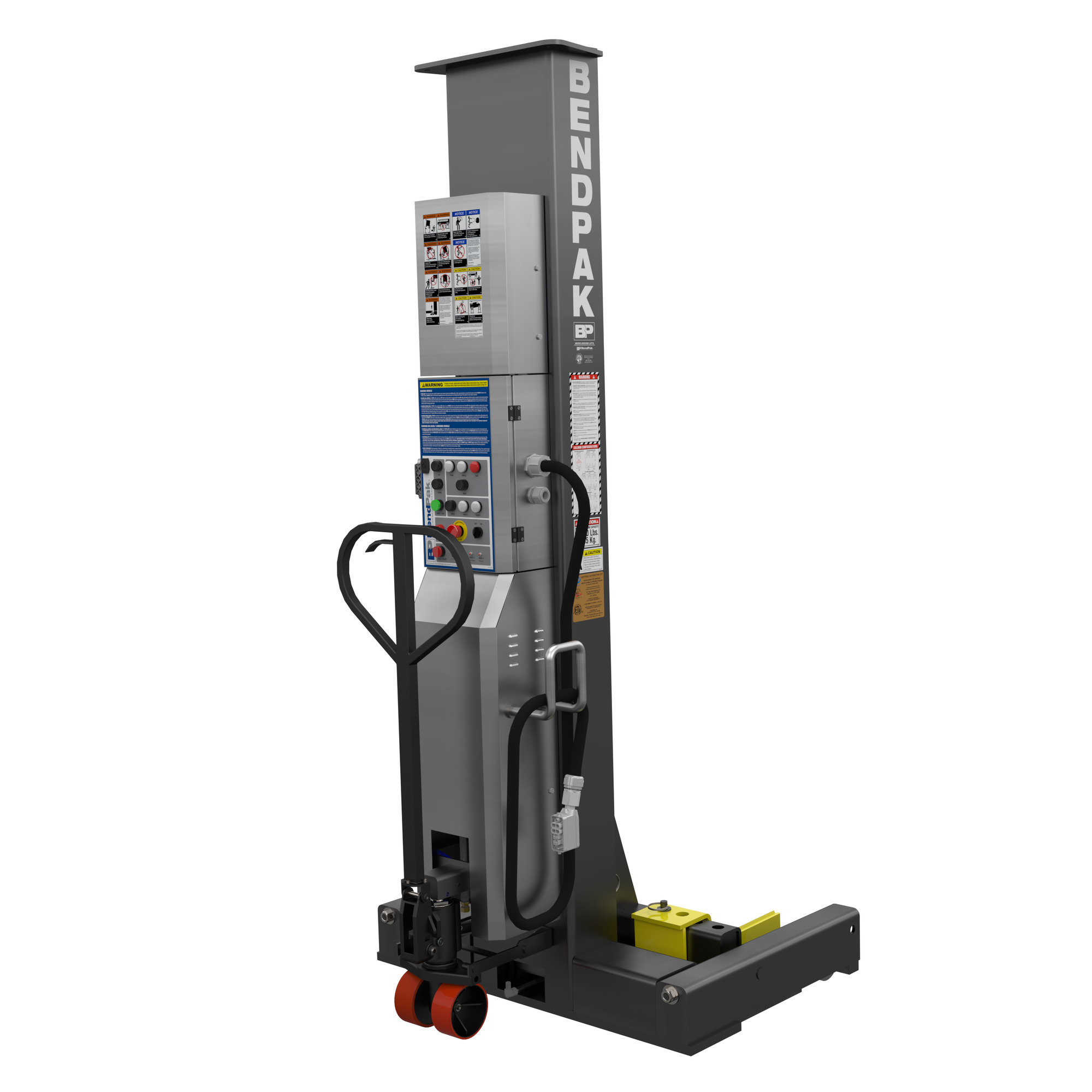

BendPak, Mobile Column Lift System Set of 2 Capacity 36000 lb, Max. Rise 6 ft, Horsepower 4 HP, Model# PCL-18B-Low_Voltage

Item# 6478021
BendPak, Mobile Column Lift System Set of 2 Capacity 36000 lb, Max. Rise 6 ft, Horsepower 4 HP, Model# PCL-18B-Low_Voltage

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak, Mobile Column Lift System Set of 2 Capacity 36000 lb, Max. Rise 6 ft, Horsepower 4 HP, Model# PCL-18B-Low_Voltage

Click or Tap image to Zoom

$31,495.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • 208-240V, 3-phase main power system - optional voltages available upon request
  • Forklift Required
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

36,000-lb. Capacity / Mobile Lift System / 208-230-190V, 50-60 Hz / 3 Ph / Set of 2 This PCL-18B mobile column lift system comes in a set of 2. When combined, the system lifts up to 36,000 lbs. A set of 2 is the perfect way to expand your lifting capabilities on vehicles with three or four axles. Sets of 4, 6 and 8 are available. Set of 2 Mobile Column Lifts With a pair (2) of mobile column lifts, you can add to your existing fleet and expand your lifting capabilities to include larger semi-trucks and heavy-duty vehicles. A minimum of 4 mobile column lifts must be used to lift a vehicle, and heavier vehicles require 6 or 8. This 2-set is a great way to gradually upgrade into the 6 or 8-lift range, offering up to 144,000 lbs. with a full set. Do not attempt to lift half of a vehicle (the front or back only) with only 2 mobile lifts. Vehicles must be raised on an even plane at all times.

What's Included

    (2) 2-Column Lift Set

Downloads

Product Manual

Features + Benefits

  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • 208-240V, 3-phase main power system - optional voltages available upon request
  • Forklift Required
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
  • Simple operation, long service life and minimum maintenance
  • Intuitive controls allow the lift to be fully programmed and controlled from any column
  • Control systems feature 24-volt safety circuitry
  • The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace
  • Smart electronics feature self-diagnostics and self-calibration functions
  • Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
  • Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
  • Two-speed lowering option - turtle or rabbit speed settings
  • Each column is equipped with a warning light and audible alarm for critical warning alerts
  • Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
  • Separate key lock enclosure on each column
  • Electronics are multi-fuse protected

Key Specs

AttributeSpecification

item#

6478021

Brand

BendPak

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1436.0 LB

Capacity

36,000 lb

Max. Rise

6 ft

Horsepower

4 HP

Motor Phase

Three-phase
AttributeSpecification

Volts

230V/3-phase

Lock Spacing

4 in

Locking Position (qty.)

13

Time of Full Rise

85 sec.

Material

Steel

Product Weight

1396.0000 lb

Dimensions L x W x H (in.)

46.0 x 45.75 x 101.25 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

3 year limited warranty
