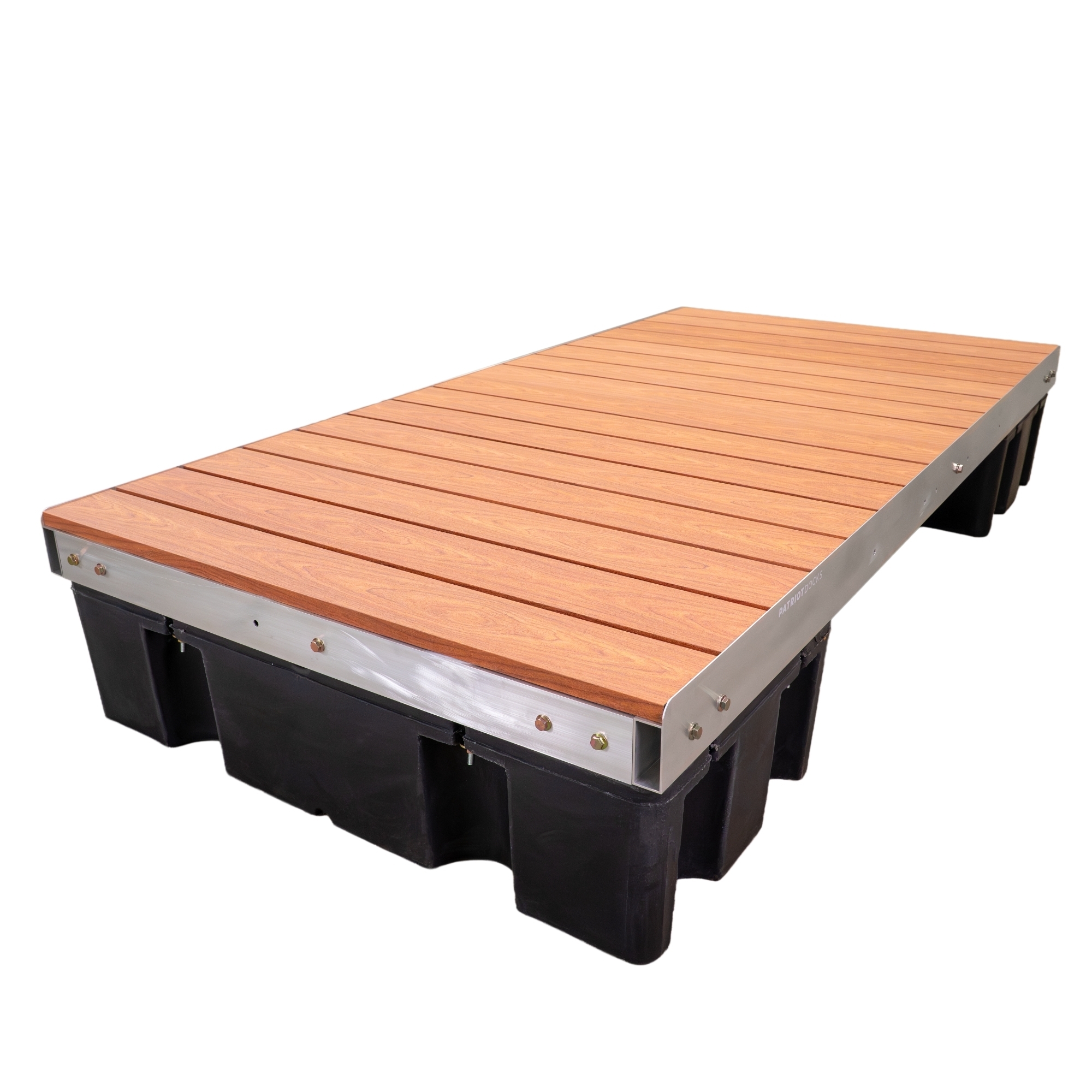

Patriot Docks Low-Profile Floating Dock Section with Brown Aluminum Decking

Item# 5111252
1 Pieces
Patriot Docks Low-Profile Floating Dock Section with Brown Aluminum Decking

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Patriot Docks Low-Profile Floating Dock Section with Brown Aluminum Decking

Click or Tap image to Zoom

$1450.56

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Modular floating dock section designed to extend existing dock systems
  • Allows creation of custom dock layouts including T-shapes, L-shapes, and swim platforms
  • Compatible with Patriot Docks Low-Profile Standard Floating Dock systems
  • Marine-grade 6061-T6 aluminum frame provides lightweight strength and corrosion resistance

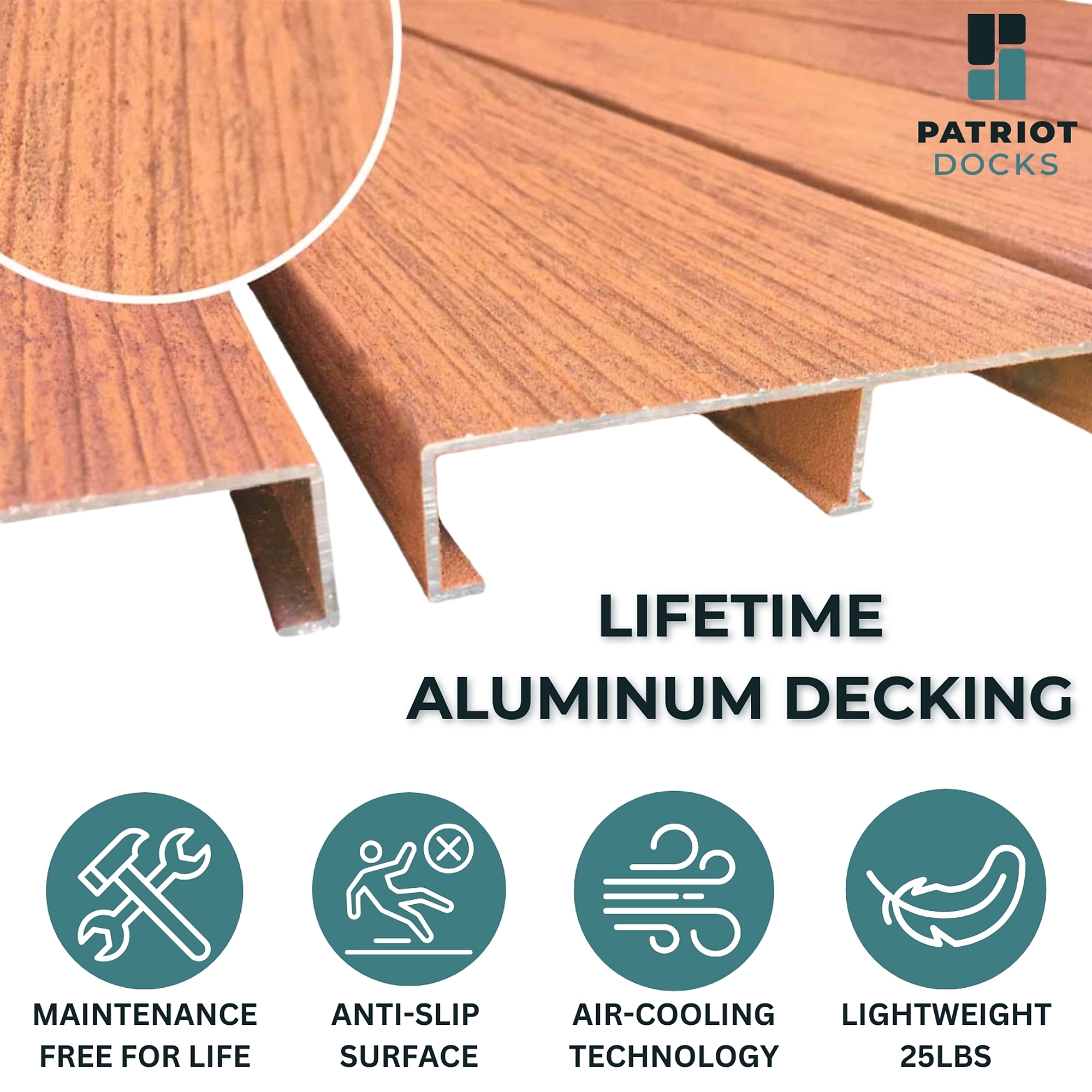

  • Aluminum decking provides durable, low-maintenance performance with powder-coated wood-grain finish options

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Patriot Docks Low-Profile Standard Floating Dock Section is designed to expand existing floating dock systems or create fully customized dock layouts for residential and recreational waterfront applications. Built as a modular add-on section, this floating dock component allows users to extend dock length, increase usable platform space, or configure custom layouts such as straight runs, T-shapes, L-shapes, swim platforms, and side extensions. Compatible with Patriot Docks Low-Profile Standard Floating Dock systems, this section connects seamlessly to existing dock layouts. Constructed from marine-grade 6061-T6 aluminum, the low-profile dock frame provides lightweight strength, corrosion resistance, and reliable freshwater durability. Foam-filled dock floats deliver dependable flotation while maintaining a stable walking surface in changing water conditions. The low-profile design positions the dock closer to the water surface for improved accessibility to swimming, kayaks, paddleboards, and recreational water activities. Available decking options include gray or tan polypropylene, gray or brown aluminum, and untreated Red Western Cedar to match existing dock systems and waterfront preferences. The drop-in decking panel system simplifies assembly while allowing easier panel removal for future maintenance, upgrades, or dock reconfiguration. Modular construction allows dock layouts to evolve over time as waterfront needs change. Ideal for extending floating dock systems, creating custom waterfront layouts, or adding additional dock space, the Patriot Docks Low-Profile Standard Floating Dock Section combines modular flexibility, dependable flotation performance, and corrosion-resistant aluminum construction for long-term waterfront use.

What's Included

    (7) Includes: (1) 4x8 low profile tubular frame; (2) 48x24x12 rectangular floats; (2) float mounting bracket set; (2) 4x4 deck panels

Features + Benefits

  • Modular floating dock section designed to extend existing dock systems
  • Allows creation of custom dock layouts including T-shapes, L-shapes, and swim platforms
  • Compatible with Patriot Docks Low-Profile Standard Floating Dock systems
  • Marine-grade 6061-T6 aluminum frame provides lightweight strength and corrosion resistance
  • Aluminum decking provides durable, low-maintenance performance with powder-coated wood-grain finish options

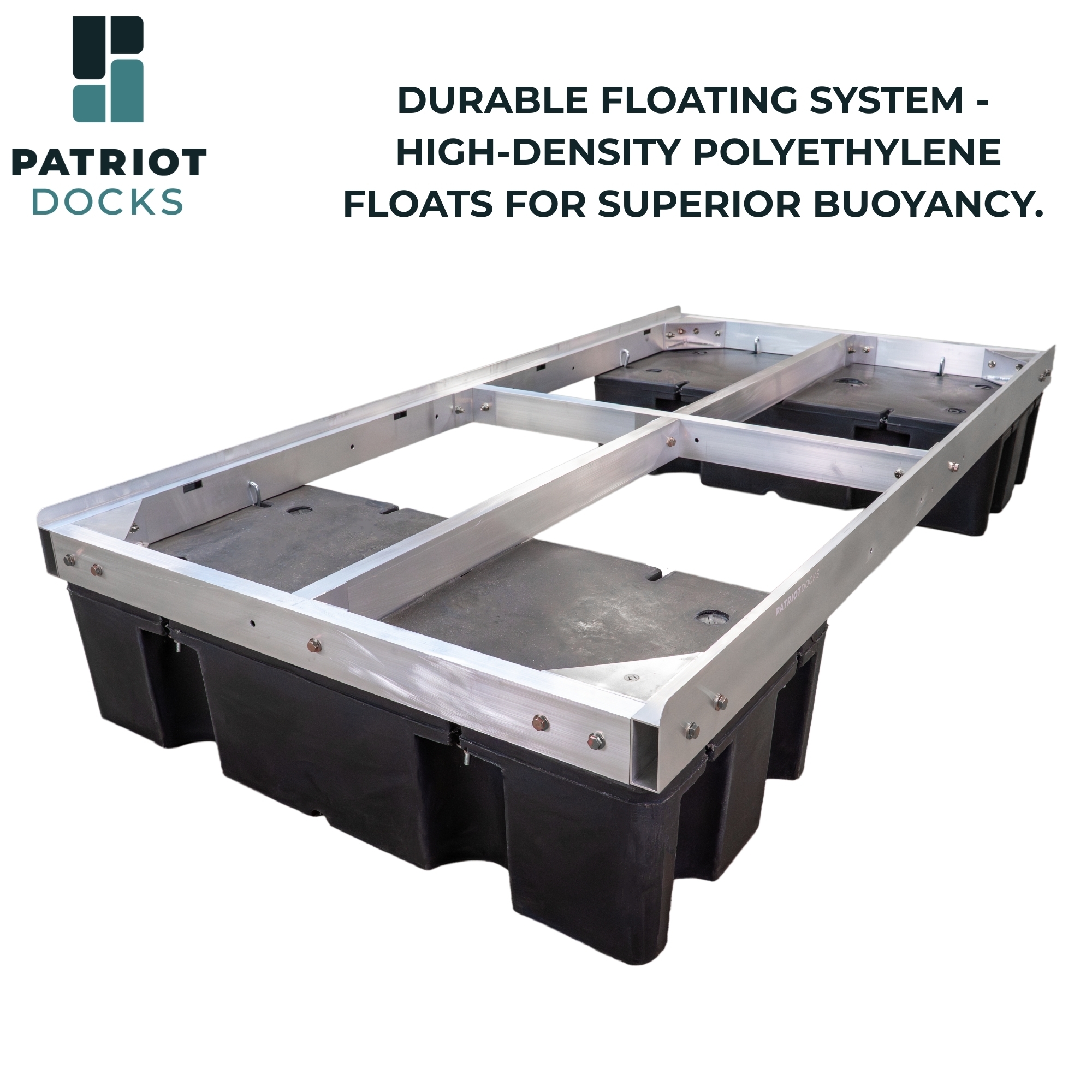

  • Foam-filled dock floats provide dependable flotation performance

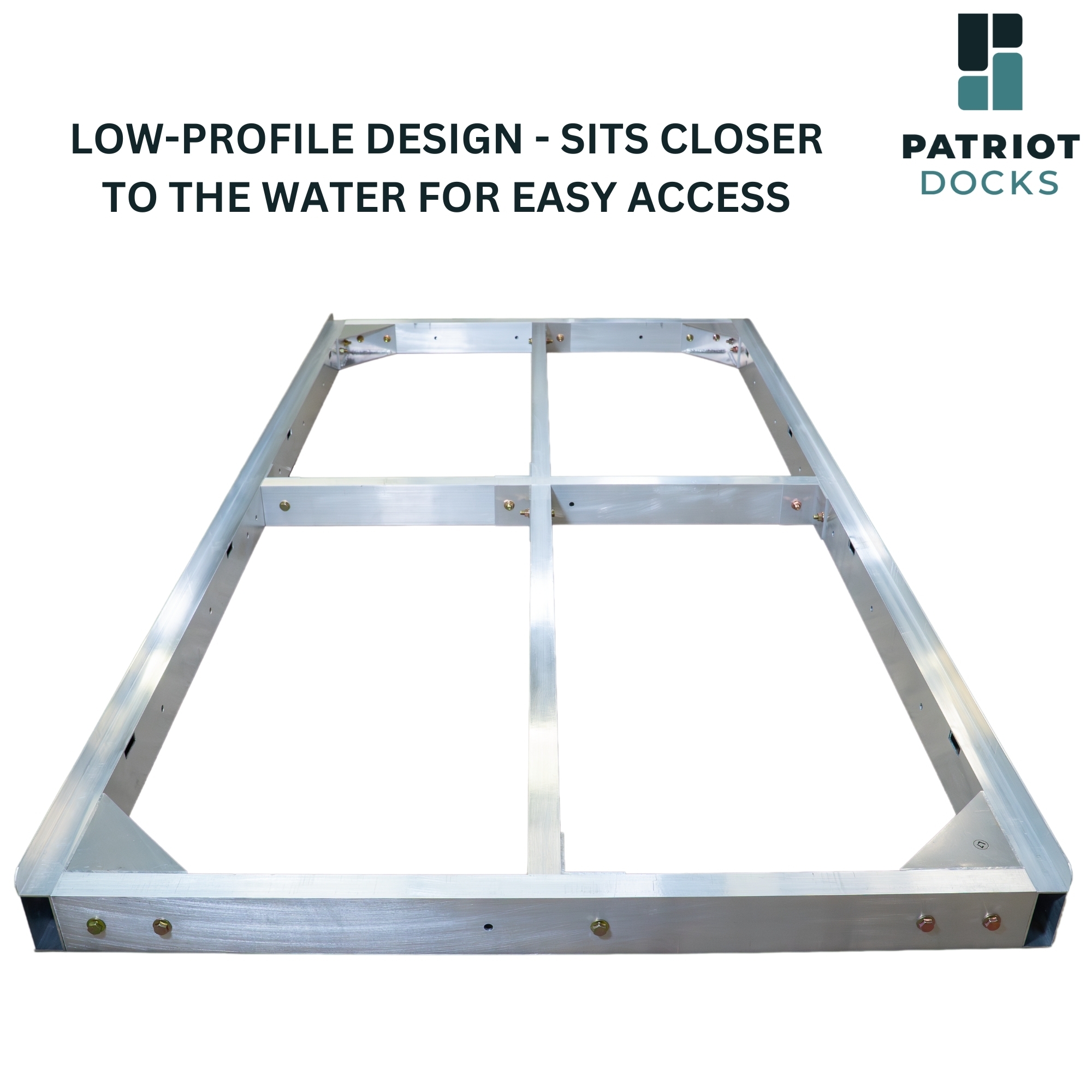

  • Low-profile design improves water access for swimming and paddlecraft
  • Modular construction allows future dock expansion and reconfiguration
  • Designed for residential lakefront and recreational waterfront applications

Key Specs

AttributeSpecification

item#

5111252

Brand

Patriot Docks

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

175.0 LB

Product Type

Floating Dock System

Pieces (qty.)

1

Length

96 in
AttributeSpecification

Width

48 in

Height

16 in

Material Type

Aluminum

Color

Silver

Weather Resistant

Yes

Product Weight

175.0000 lb

Dimensions L x W x H (in.)

96.0 x 48.0 x 16.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. Each 4x8 dock has two floats.  Just want to confirm the 4x8 will hold up to 800 lbs.  (400 per float). Thanks

    1 answer

    1. This platform has a buoyancy rating up to 800 lbs. with the included two floats. That means it will hold up to 800 lbs. evenly distributed before sinking. An additional float, item 5112141, can be added for an additional 400 lbs. of buoyancy.

      Helpful?

  2. Can you moor a boat to the dock once it's secured?

    1 answer

    1. You may tie the boat to the floating dock once the dock is properly secured. Make sure that the boat is secured. The dock will rise and fall along with the boat. No extra slack is generally needed.

      Helpful?

  3. if necessary can I get another float and put in the middle section of this dock?

    1 answer

    1. An additional float, item 5112141, can be added to increase the buoyancy of the dock.

      Helpful?

  4. Specifications say 16” height. When in the water and no load, how high out of water would the deck top be?

    1 answer

    1. The dock frame and decking would sit approximately 4.5 inches above the water.

      Helpful?

  5. Can a ladder and an anchor be attached to this so it can be used as a free-floating swim raft?

    1 answer

    1. These dock floats are not designed to be used in that application. The manufacturer would not recommend this.

      Helpful?

  6. what is the total weight of the 96/48 dock. Shipping info indicates 175lb's but the brochure say's 45lb. Which one is correct

    1 answer

    1. The total weight of the 96" x 48" section is 246 pounds according to the manufacturer.

      Helpful?

  7. What is the life expectancy for freshwater installation left in year round?

    1 answer

    1. The floating platforms can last 20 to 30 years.

      Helpful?

  8. as far as the floats underneath. How are they secured to the frame or do they just snap in underneath . This would then look like a three piece set up or are the floats screwed or bolted to the framing. How can I get the installatio chart to see how hard

    1 answer

    1. The dock floats are installed to the frame using the included J bolts, washers and nuts. Installation instructions are included with the dock system. The instructions can also be downloaded from the manufacture's web site.

      Helpful?

  9. Are the aluminum side panels strong enough to hold dock chain  to a pylon?

    1 answer

    1. This can vary per application. It is the installer's responsibility to make sure the entire dock system is safely secured.

      Helpful?

  10. Is there a way to tie 3 of these platforms together to make a 24 foot dock? If so, does extra hardware need to be purchased?

    1 answer

    1. Multiple platforms can be connected together. A dock hinge is recommended when connecting multiple floating platforms together so they are able to articulate independently. Please contact the manufacturer directly for price and availability.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
