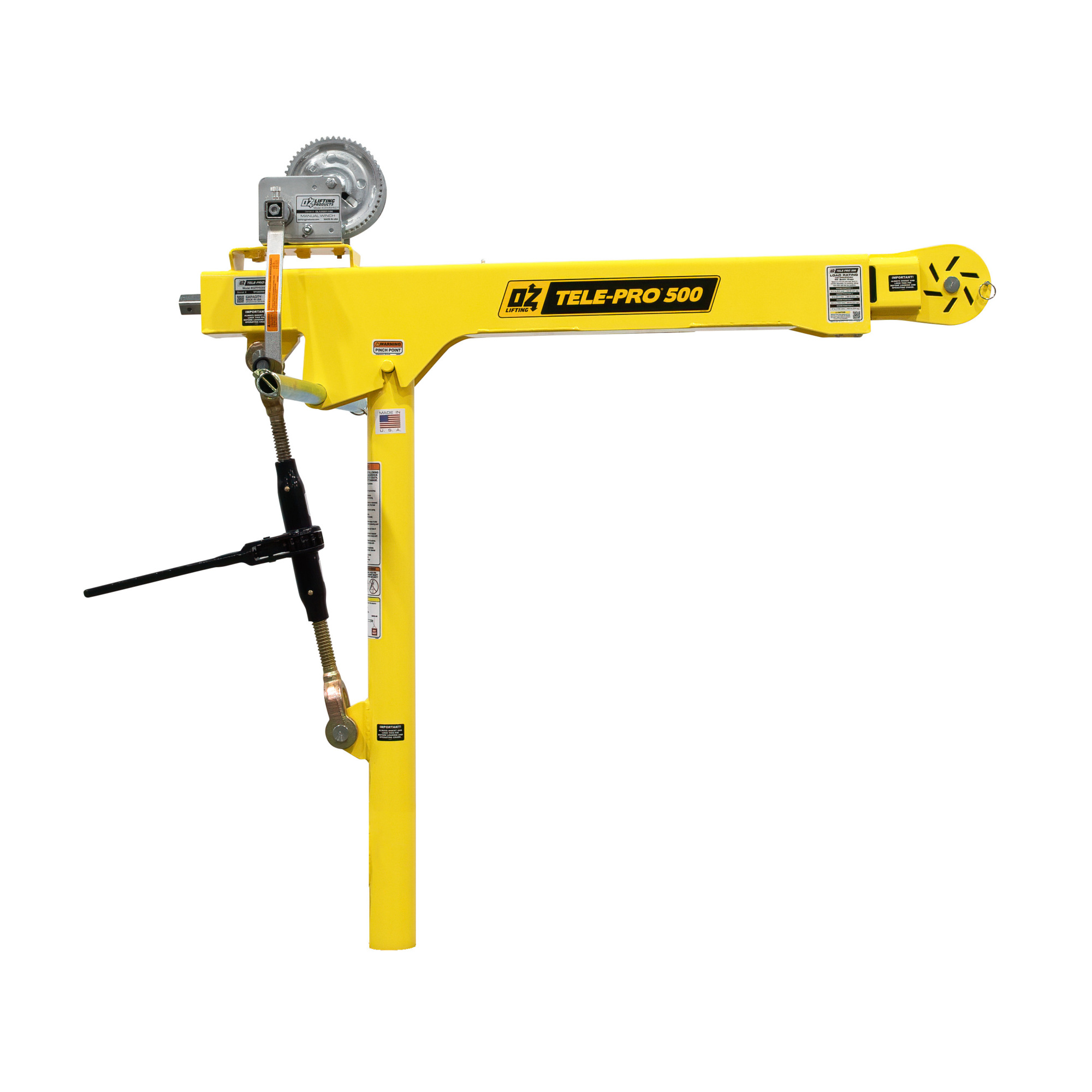

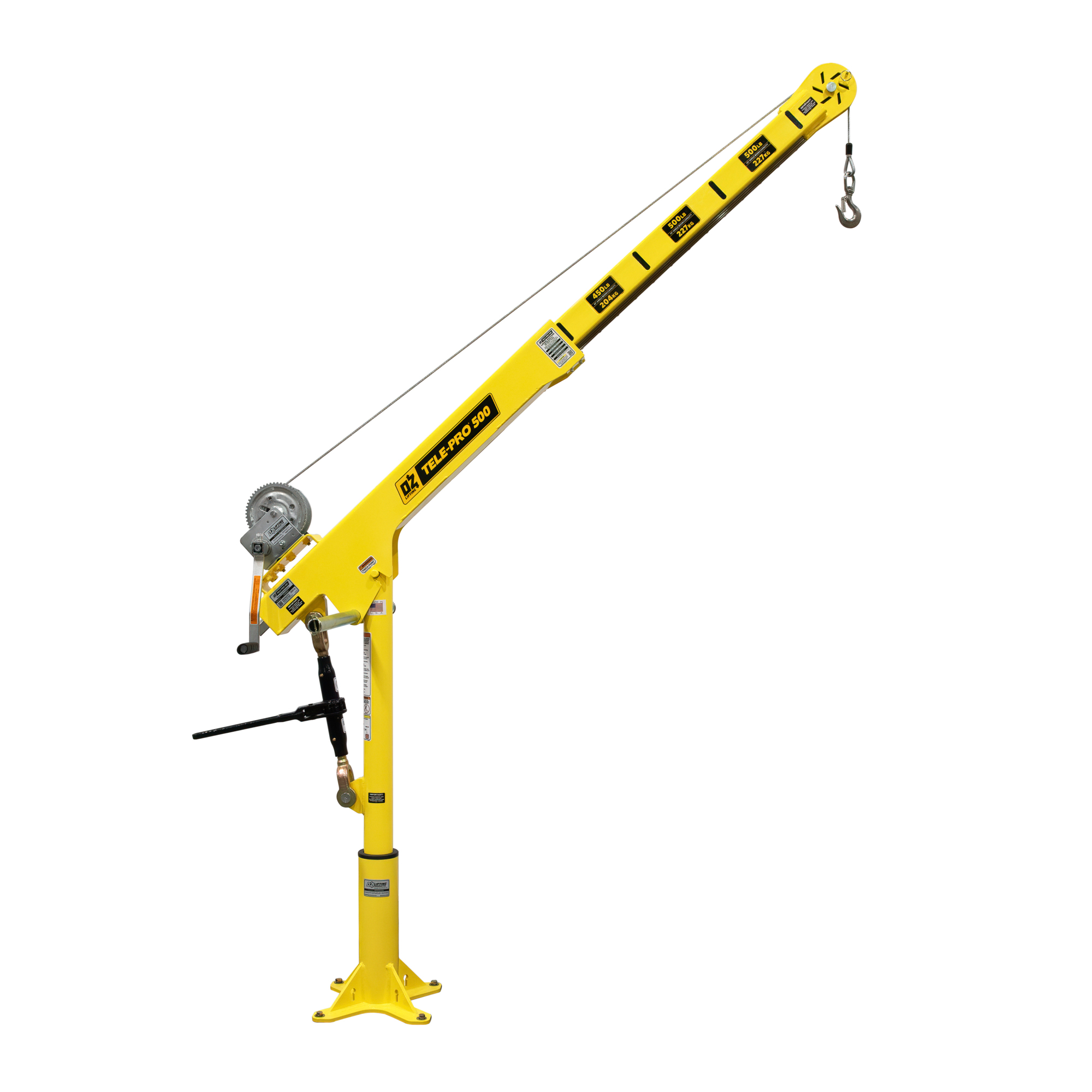

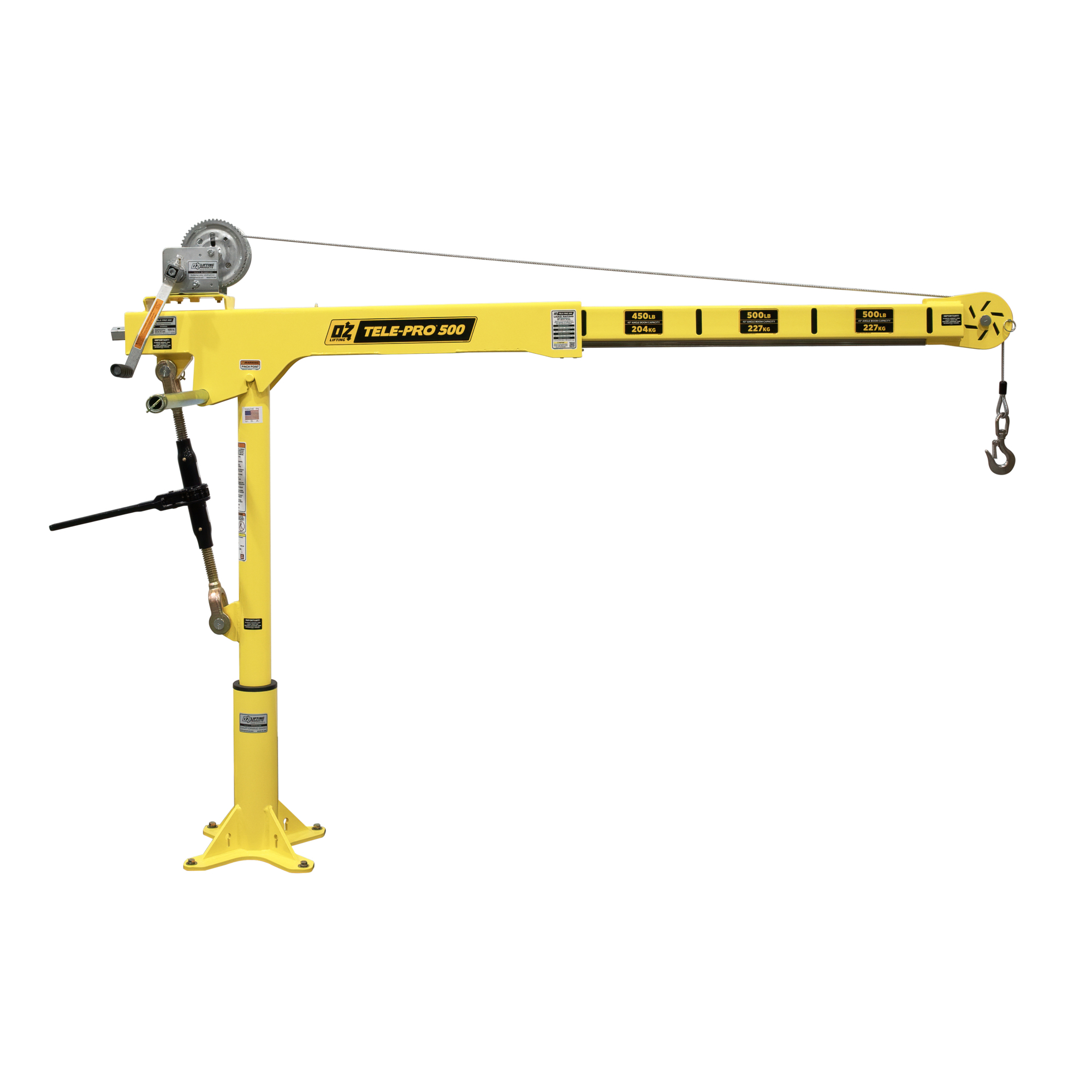

OZ Lifting Products Tele-Pro Davit Crane,500Lb. Capacity, 57.25 Height, Model# OZTP500DAV

Name: OZ Lifting Products Tele-Pro Davit Crane,500Lb. Capacity, 57.25 Height, Model# OZTP500DAV
Brand: OZ Lifting Products
SKU: 105228

Item# 105228

Click or Tap image to Zoom

$1949.99

Quantity

Save to List

Shipping:
Factory shipped
Heavy/large item. Lift gate service available.
Store Pickup:
Not available - online only

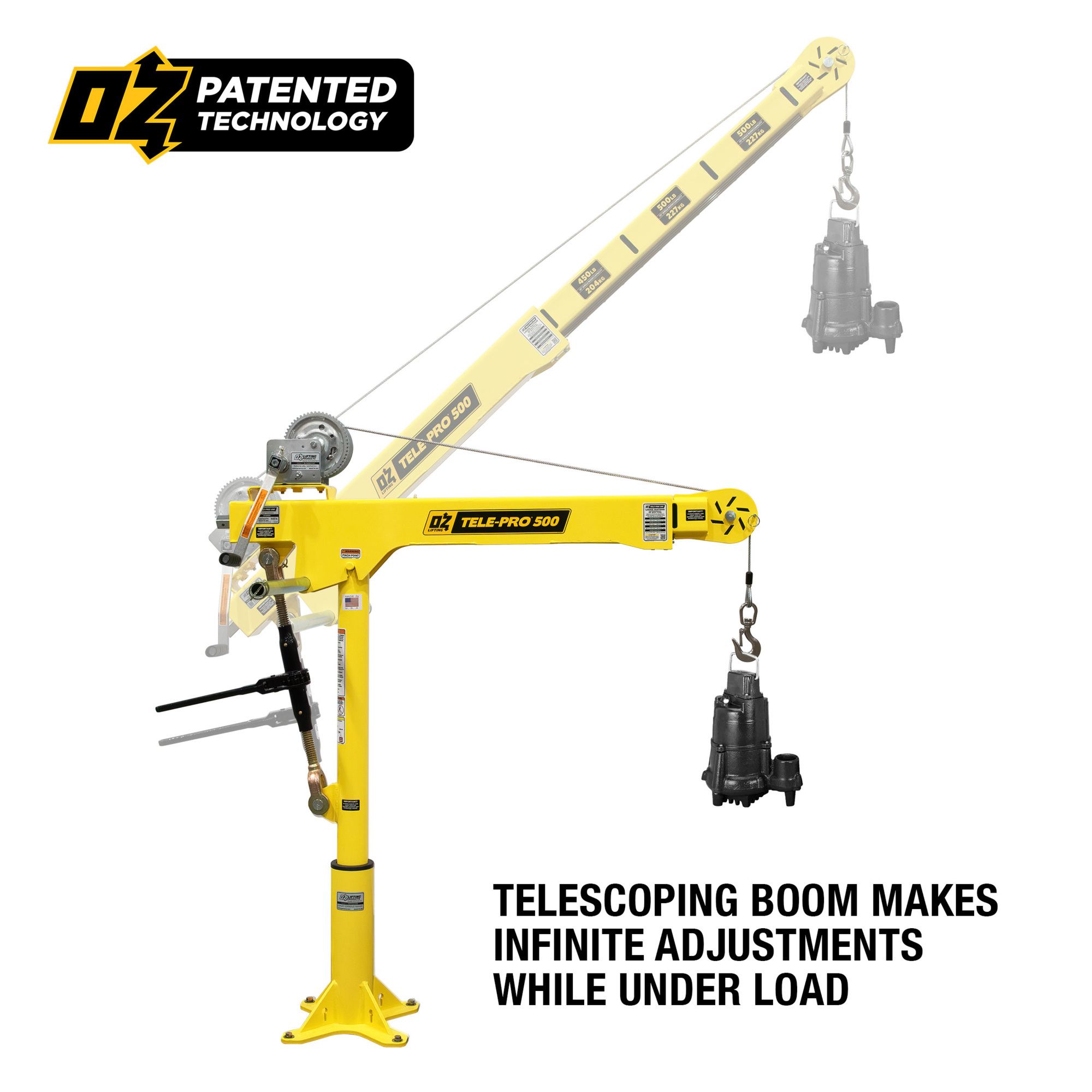

Telescoping boom adjustment while under load
Ratchet screw jack adjusts boom under load
360° rotation of crane on sleeve bearing
DIN-Rated hand winch equipped standard with a load holding weatherproof Weston brake and drill drive adapter

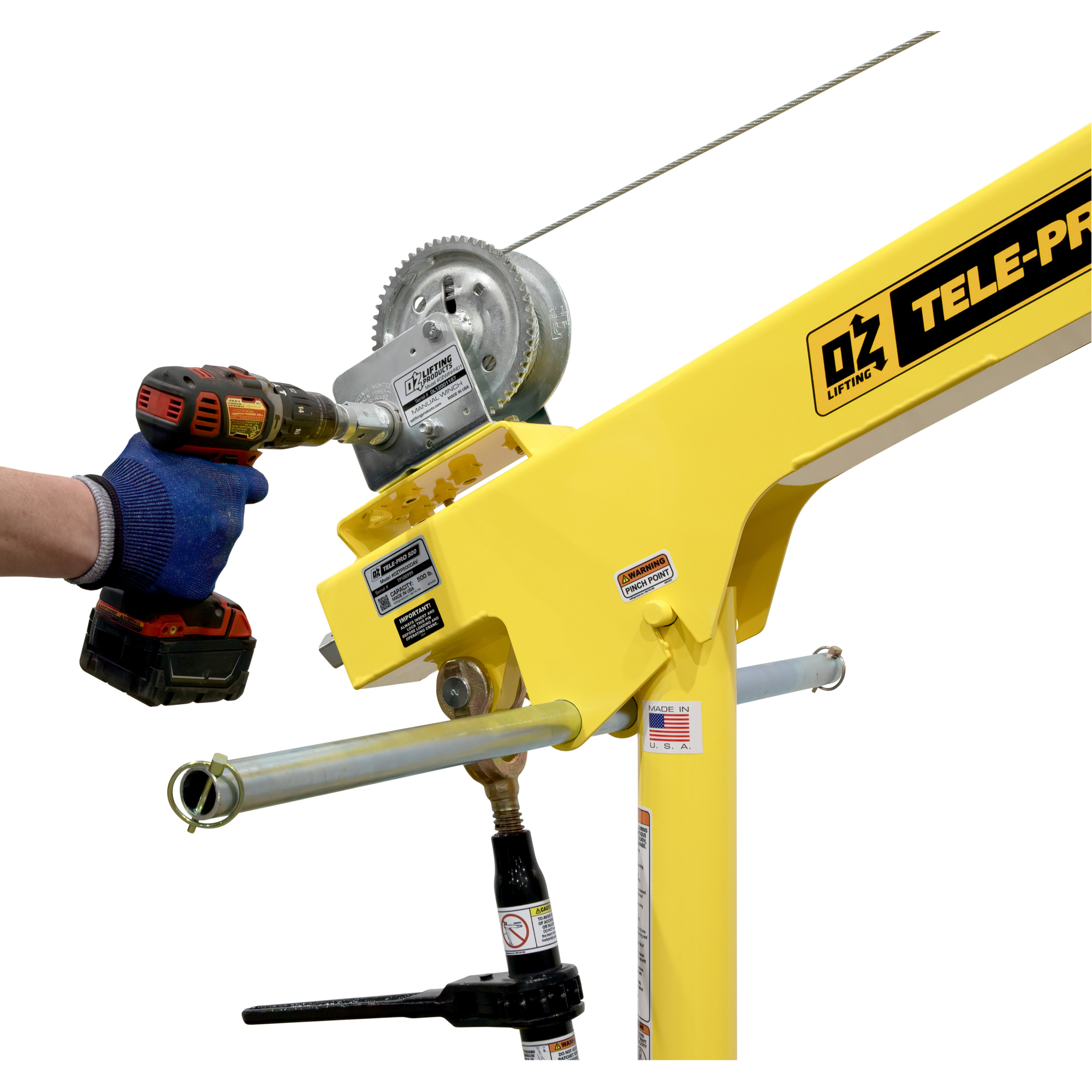

Quick connect winch handle with power drill adapter included

See full description

Complete Your Solution

Price for all four:

$2203.16

Frequently Bought Together

This Item: OZ Lifting Products Tele-Pro Davit Crane,500Lb. Capacity, 57.25 Height, Model# OZTP500DAV$1949.99
Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811$3.19
OZ Lifting Products Roller Bag for Davit Cranes, Model# OZRB1$134.99
OZ Lifting Products Headache Ball for OZ Davit Cranes, 10-Lb., Model# OZHB10$114.99

Product Summary

The Tele-Pro® Davit Crane features a 500 lb capacity and includes a manual carbon fiber winch with a drill drive adapter. This versatile crane offers unmatched precision and control, thanks to its patented telescoping boom, which allows for exact adjustments under load. With multiple capacity options, 360-degree rotation, and easy no-tool assembly, the Tele-Pro® is the ultimate solution for demanding lifting tasks.

What's Included

(1) Davit crane

Downloads

Product Manual

Additional Product Info

Features + Benefits

Telescoping boom adjustment while under load
Ratchet screw jack adjusts boom under load
360° rotation of crane on sleeve bearing
DIN-Rated hand winch equipped standard with a load holding weatherproof Weston brake and drill drive adapter
Quick connect winch handle with power drill adapter included
Smart Latch technology at boom/mast connection
Corrosion-resistant zinc-plate finish
Headache Ball (OZHB10) available and sold separately
Carrying case (OZRB1) available and sold separately
Manual and Electric Winch options available, model#s OZTP500DAV-ACW and OZTP500DAV-DCW (Item#s 105424 and 105425, sold separately)
Mounting Bases available and sold separately, Socket Base, model# OZPED2-TP (Item# 105207, sold separately), Pedestal Base, model# OZSOC2-TP (Item# 105200, sold separately) and Wall Mount Base, model# OZWALL2-TP (Item# 105429)
Wire rope assemblies available: Item#s 105164 and 105212 (sold separately)

Key Specs

Attribute	Specification
item#	105228
Brand	OZ Lifting Products
Manufacturer's Warranty	2 year limited warranty
Ship Weight	182.0 LB
Max. Capacity	500 lb
Min. Lift	12 in
Max. Lift	960 in

Attribute	Specification
Min. Boom Length	24 in
Max. Boom Length	66 in
Manual or Electric	Manual
Column Diameter	2.88 in
Material	Carbon Steel
Product Weight	350 lb

Reviews

Questions & Answers

Questions

5 years ago

What size wire rope should be used with this crane? Does it come with wire rope and if it does what is the length?

1 answer
1. ProductExpert6

  5 years ago

  The wire rope is not included with this crane. It would use 3/16" x 80 foot cable, see item #105164. The bases are also sold separately, see item #105200 for a pedestal base, item #105207 for a socket type base and item #105429 for a wall mount base.

  Helpful?
