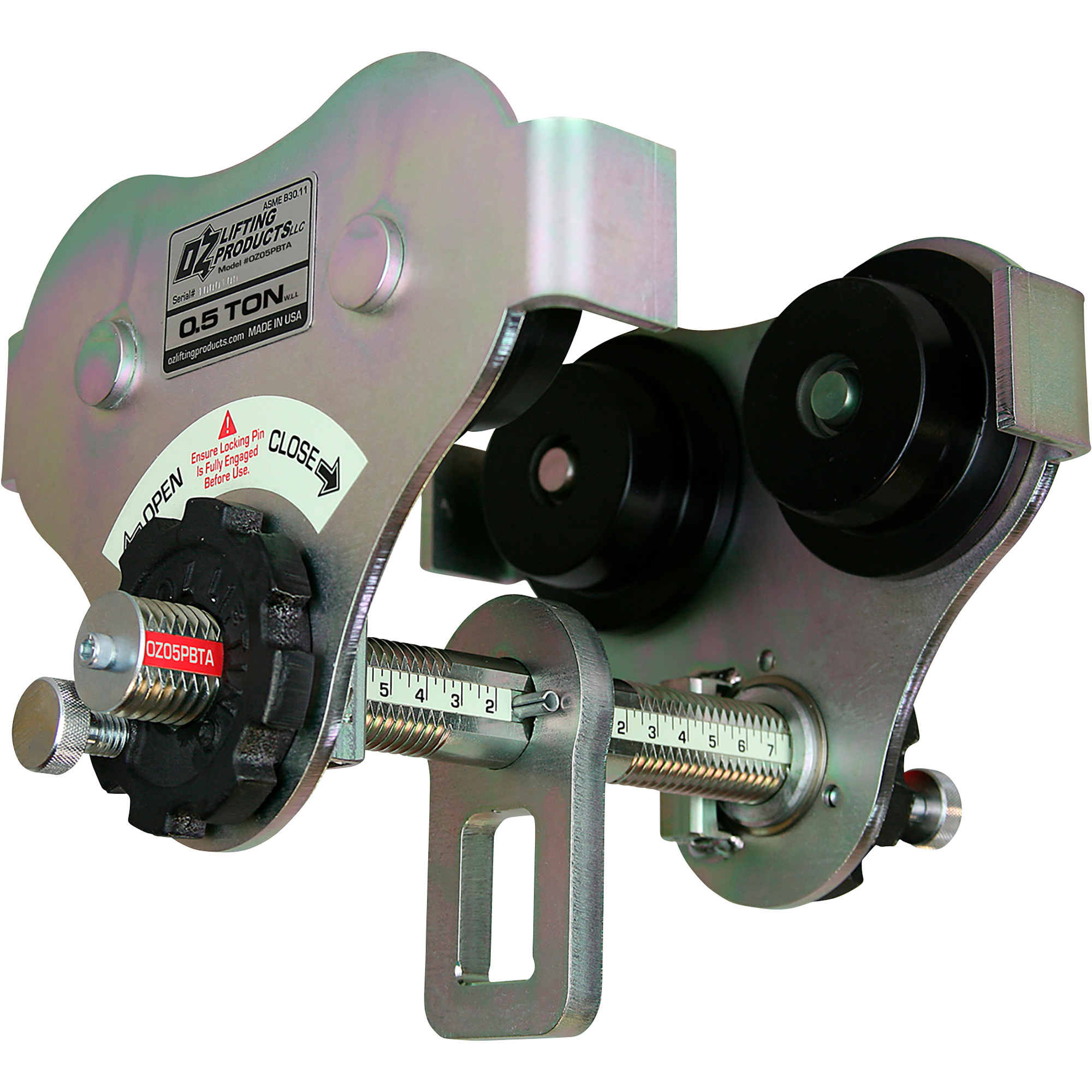

OZ Lifting Products Push Beam Trolley, 1000-Lb. Capacity, 12in. Rod, Model# OZ05PBTA-12

Item# 105456
"OZ Lifting Products Push Beam Trolley, 1000-Lb. Capacity, 12in. Rod, Model# OZ05PBTA-12"
OZ Lifting Products Push Beam Trolley, 1000-Lb. Capacity, 12in. Rod, Model# OZ05PBTA-12

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products Push Beam Trolley, 1000-Lb. Capacity, 12in. Rod, Model# OZ05PBTA-12

Click or Tap image to Zoom

$519.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Can be quickly installed or removed anywhere along I, S or W Beam
  • One of the fastest adjusting trollies requiring no tools to install
  • Lightweight robust construction
  • ROHS compliant zinc-plated finish
  • Glow-in-the-dark decals

See full description

Complete Your Solution

  • OZ Lifting Products Push Beam Trolley, 1000-Lb. Capacity, 12in. Rod, Model# OZ05PBTA-12
  • OZ Lifting Products Electric Chain Hoist, 1000-Lb. Capacity, 20ft. Lift, Model# OZ1000EC

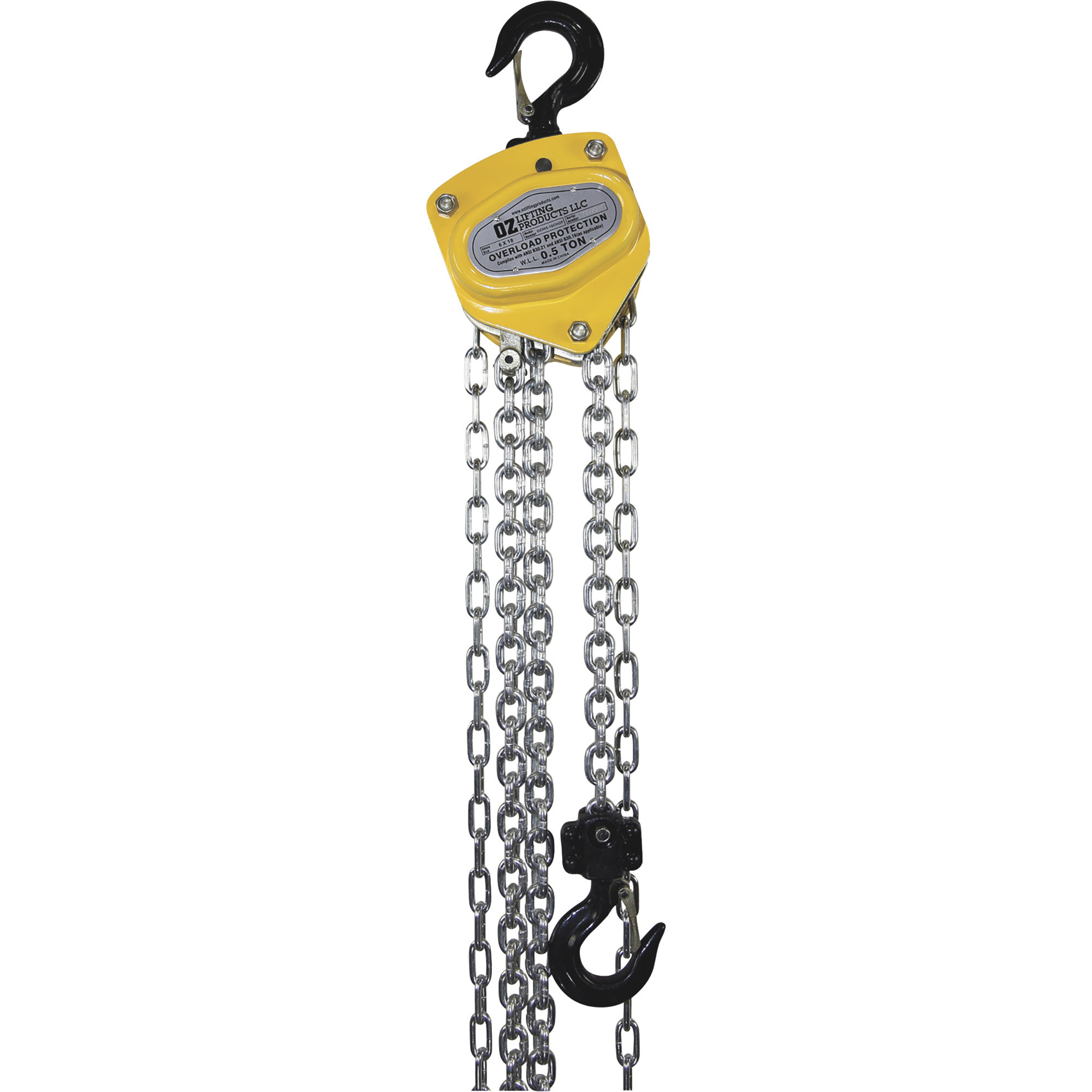

  • OZ Lifting Products Premium Manual Chain Hoist, 1/2-Ton Capacity, 20ft. Lift, Model# OZ005-20CHOP
Price for all three:

$2293.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The OZ Lifting Products Push Beam Trolley is a patented design industrial-grade unit that meets demanding lifting applications. This lightweight and robust push beam trolley is one of the fastest adjusting trollies requiring no tools to install. It fits most I, S and W-Beams with up to 12in. flange width and features Timken sealed bearings on the trolley wheels and durable zinc-plated finish for added protection. It also features glow-in-the-dark decals. This unit includes side plates, to protect the trolley wheels when not in use, and anti-drop plates. Each unit includes an ID tag for identification and an individual test certificate and serial number for traceability. Meets ASME B30.17 standards.

What's Included

    (1) Push beam trolley

Downloads

Product Manual

Features + Benefits

  • Can be quickly installed or removed anywhere along I, S or W Beam
  • One of the fastest adjusting trollies requiring no tools to install
  • Lightweight robust construction
  • ROHS compliant zinc-plated finish
  • Glow-in-the-dark decals
  • Fits most I, S, and W-Beams with up to 12in. flange width
  • Precision ball bearing trolley wheels
  • Side plates protect trolley wheels
  • Anti-drop plates
  • Individual test certificate and serial number
  • Adjustable flange width up to 12"

Key Specs

AttributeSpecification

item#

105456

Brand

OZ Lifting Products

Manufacturer's Warranty

10 year limited warranty

Ship Weight

19.0 LB

Style

Manual Trolley

Capacity

1,000 lb

Adjustable

Yes

Geared

No
AttributeSpecification

Min. Flange Width

2.52 in

Max. Flange Width

12 in

Min. Radius Curve

33 in

Wheel Diameter

2.38 in

OSHA Approved

No

ANSI Certified

Yes

Product Weight

17.0000 lb

Dimensions L x W x H (in.)

8.3 x 16.25 x 8.5 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

10 year limited warranty
