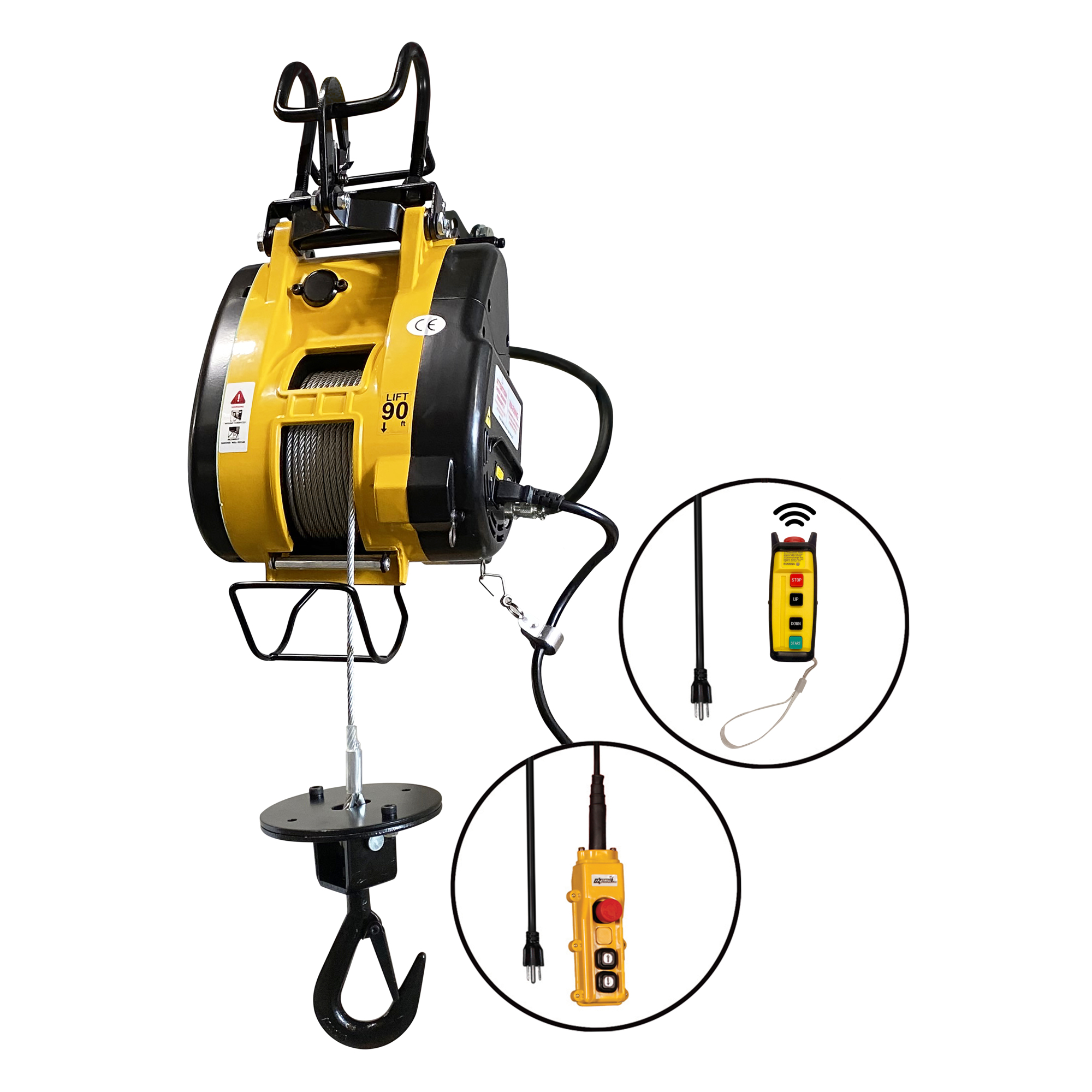

OZ Lifting Products, 500 lbs. Electric Builders Hoist, Capacity 500 lb, Lift Height 90 ft, Model# OBHW500

Item# 6471372
OZ Lifting Products, 500 lbs. Electric Builders Hoist, Capacity 500 lb, Lift Height 90 ft, Model# OBHW500

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products, 500 lbs. Electric Builders Hoist, Capacity 500 lb, Lift Height 90 ft, Model# OBHW500

Click or Tap image to Zoom

$1779.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Lightweight and compact design for convenient mounting
  • Automatic shut-off when rope reaches limit arm
  • Dynamic and mechanical brake provides instant, safe braking
  • Upper and lower limit switches for additional safety
  • Sensor arm for motor shut-off to prevent reverse winding

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Experience the ultimate in lifting convenience with the Electric Builder’s Hoist by OZ Lifting Products. Offering a 500 lb lifting capacity, this versatile hoist can be controlled via a wired pendant or an intuitive wireless remote, allowing for flexibility and ease of use. Its 2 1/2 hp motor ensures powerful and reliable performance, while the 360-degree swivel hook provides maximum maneuverability. Designed with a compact footprint and featuring a dynamic braking system, the OBHW500 guarantees smooth and secure operation. Enhanced with upper and lower limit switches for added safety, this hoist is perfect for industrial applications and operates seamlessly on a standard 115V power source. CE and FCC certifications further affirm its exceptional quality and safety.

What's Included

    (1) Electric Wire Rope Hoist

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Lightweight and compact design for convenient mounting
  • Automatic shut-off when rope reaches limit arm
  • Dynamic and mechanical brake provides instant, safe braking
  • Upper and lower limit switches for additional safety
  • Sensor arm for motor shut-off to prevent reverse winding
  • Galvanized wire rope with 360-degree weighted swivel hook includes safety latch
  • Quick-release pendant and power cords
  • Standard 115V power source-compatible
  • Individual serial number and test certificate
  • Choose between a standard corded pendant (OBH) for easy operation or a wireless remote (OBHW) for added versatility and freedom of movement

Key Specs

AttributeSpecification

item#

6471372

Brand

OZ Lifting Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

58.0 LB

Capacity

500 lb

Lift Height

90 ft

Lift Speed

75 ft./min.

Duty Cycle

0 %

Volts

115

Brake Type

Weston

Control Type

Push Button
AttributeSpecification

Chain Bag Included

No

Required Head Room

27 in

Watts

1,300

Lift Chain Diameter (SAE)

0 in

Lift Chain Diameter

0 mm

Motor Output

17.5

Thermal Overload Protection

No

Hoist Classification

H3

Dimensions L x W x H (in.)

22.0 x 12.0 x 20.0 in

Product Weight

58.0000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
