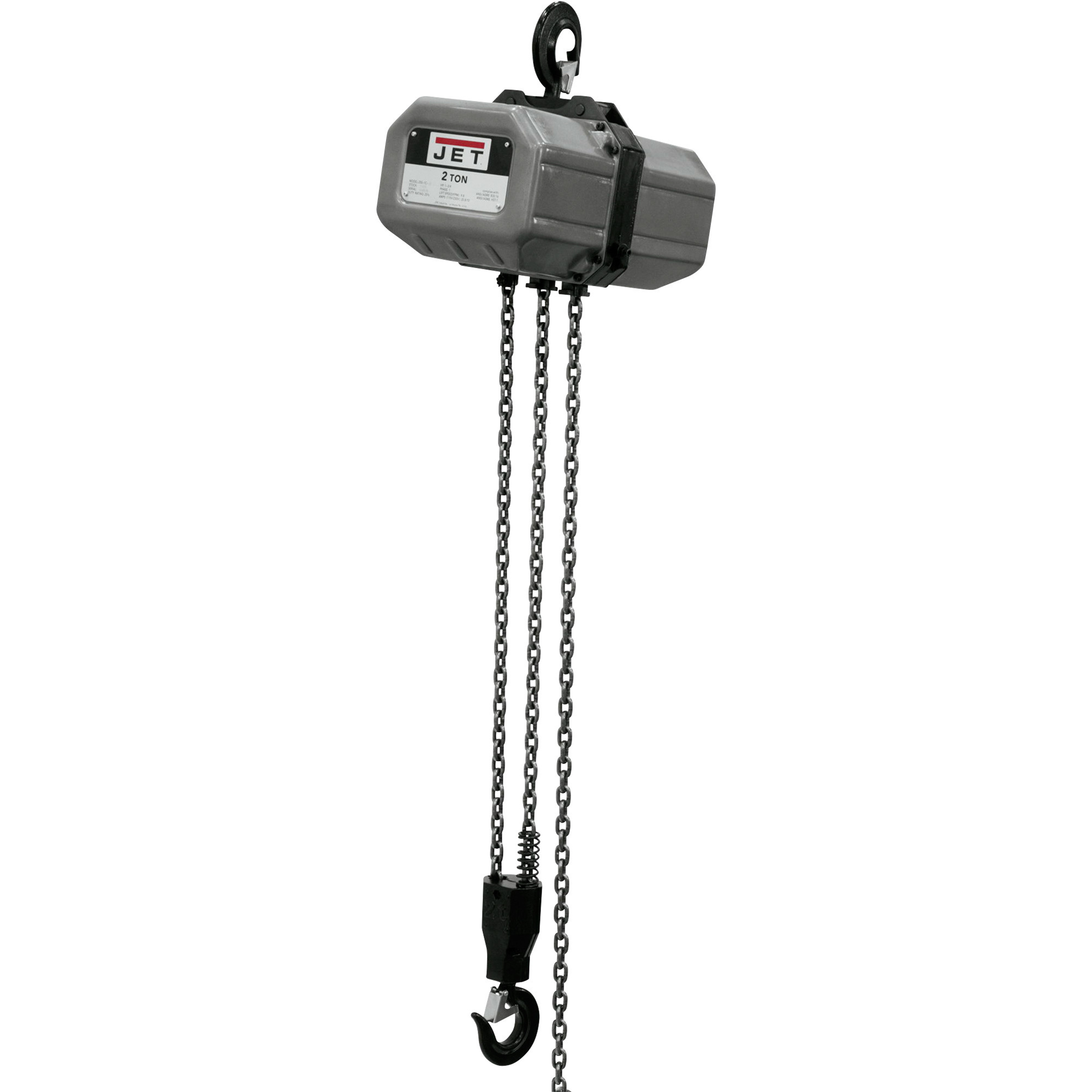

JET Electric Chain Hoist, 2-Ton Capacity, 20ft. Lift, 1 Phase, Model# 2SS-1C-20

Item# 142251
"JET Electric Chain Hoist, 2-Ton Capacity, 20ft. Lift, 1 Phase, Model# 2SS-1C-20"
JET Electric Chain Hoist, 2-Ton Capacity, 20ft. Lift, 1 Phase, Model# 2SS-1C-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Electric Chain Hoist, 2-Ton Capacity, 20ft. Lift, 1 Phase, Model# 2SS-1C-20

Click or Tap image to Zoom

$4530.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 18ft. push bottom control length
  • Overload protection utilizes a slip clutch design to prevent the hoist from lifting damaging loads above its rated capacity
  • Thermal overload protection protects the hoist from overheating in low voltage settings
  • DC Electro Magnetic Brake provides an industry proven safety feature that secures the load even if power is interrupted
  • Upper and lower limiting switches increase safety by preventing the load chain from over traveling

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Electric Chain Hoist, 2-Ton Capacity, 20ft. Lift, 1 Phase, Model# 2SS-1C-20
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • Ironton Manual Push Trolley, 4400-Lb. Capacity, Adjustable for 3-1/5in.–8in. I-Beams
Price for all four:

$4645.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET electric chain hoist combines safety and durability to operate in commercial and industrial applications. This JET electric hoist is certified to 125% of the rated load capacity and complies with OSHA regulations. 1 3/4 Horse Power, Headroom at 28.14in. and duty cycle of 25%.

What's Included

    (1) JET 2-ton electric chain hoist

Downloads

Product Manual

Features + Benefits

  • 18ft. push bottom control length
  • Overload protection utilizes a slip clutch design to prevent the hoist from lifting damaging loads above its rated capacity
  • Thermal overload protection protects the hoist from overheating in low voltage settings
  • DC Electro Magnetic Brake provides an industry proven safety feature that secures the load even if power is interrupted
  • Upper and lower limiting switches increase safety by preventing the load chain from over traveling
  • Maintenance-free sealed gear train incorporates a sealed oil bath that eliminates upkeep
  • Control Pendant 24V pushbutton controller with cable strain relief system for durability and reliability in commercial settings - Hardened Grade 80 Load Chain - provides extra durability lifting heavy loads - All Steel Construction - Fully enclosed, all

Key Specs

AttributeSpecification

item#

142251

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

209.0 LB

Capacity

4,000 lb

Lift Height

20 ft

Lift Speed

9.8 ft./min.

Duty Cycle

25 %
AttributeSpecification

Volts

115/230

Brake Type

Magnetic

Control Type

Lever

Chain Bag Included

Yes

Required Head Room

28.12 in

Lift Chain Diameter (SAE)

5/16 in

Motor Output

1.75

Thermal Overload Protection

Yes

Reviews

Questions & Answers

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

24 months parts/24months labor
