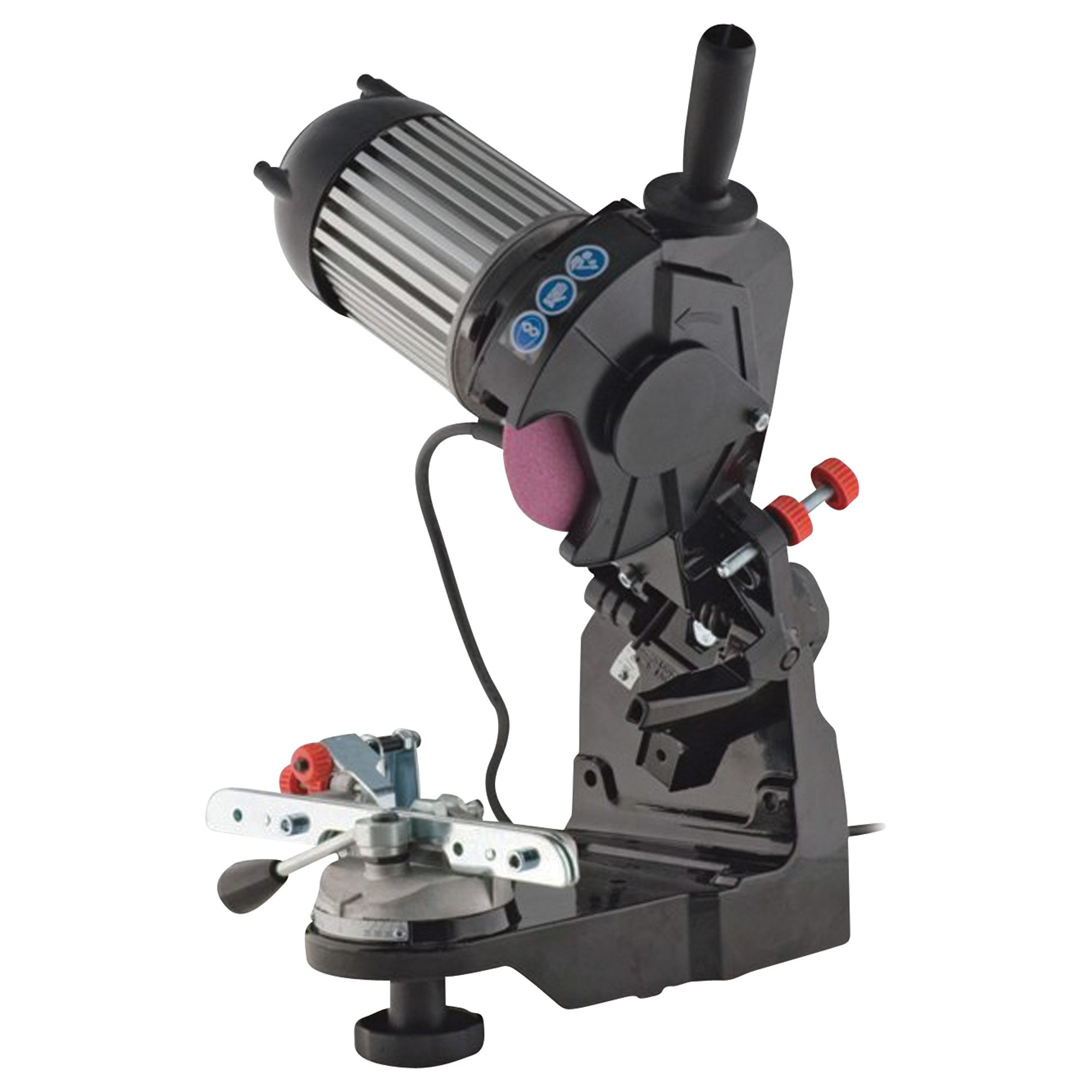

Oregon Bench-Mount Chain Grinder, Model# 510A

Item# 701416
"Oregon Bench-Mount Chain Grinder, Model# 510A"
Oregon Bench-Mount Chain Grinder, Model# 510A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Oregon Bench-Mount Chain Grinder, Model# 510A

Click or Tap image to Zoom

  • 3400 RPM, 3/8 HP direct drive motor provides enough power for daily heavy-duty grinding
  • Versatile bench chain grinder is excellent choice for those who sharpen saw chains on a regular basis
  • Safety shield prevents injury
  • Variable motor grind angle
  • Durable, long-lasting cast aluminum chassis

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This versatile Oregon Bench-Mount Chain Grinder is an excellent choice for those who sharpen saw chains on a regular basis. Sharpens 1/4in., 0.325in., 3/8in. and .404in. pitch chains.

What's Included

  • (1) Chain grinder
  • (3) Grinding wheels
  • (1) Wheel dressing brick
  • (1) Depth gauge, wheel contour and chain pitch template

Downloads

Product Manual
Additional Product Info Additional Product Info2

Features + Benefits

  • 3400 RPM, 3/8 HP direct drive motor provides enough power for daily heavy-duty grinding
  • Versatile bench chain grinder is excellent choice for those who sharpen saw chains on a regular basis
  • Safety shield prevents injury
  • Variable motor grind angle
  • Durable, long-lasting cast aluminum chassis
  • One-way motor rotation for greater operator safety
  • Large motor fan and durable T-shaped cooling fins for excellent temperature regulation
  • Easy-to-use controls to make precise adjustments
  • Securely held chain parts to reduce risk of operator injury Tripod stand sold separately, Item# 39717
  • Standard chain vise attachment fits 1/4in., 0.325in., 3/8in. and 0.404in. chains
  • 1/8in. vitrified grinding wheel sharpens 1/4in., 0.325in. (except 20 series) and 3/8in. (91 series only) pitch chains
  • 3/16in. vitrified grinding wheel sharpens 0.325in. (20 and 95 series only), 3/8in. (except 91 series) and 0.404in. pitch chains
  • 1/4in. vitrified grinding wheel sharpens 1/2in. pitch chains and sets depth gauges

Key Specs

AttributeSpecification

item#

701416

Brand

Oregon

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

17.4 LB

Product Type

Sharpener/Grinder

Max. RPM

3400

Chain Pitch

Combination

Volts

120
AttributeSpecification

Watts

300 W

Bore Diameter

7/8 in

Motor

60 Hz

Wheel Diameter

5-3/4 in

Arbor Size

7/8 in

Bolt Hole Shape

Round

Wheel Included

Yes

Assembly Required

Yes

Reviews

Questions & Answers

19 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Does it change angles for different chains? thks

    1. Yes. The grinder head tilts to different angles, and the chain vise rotates to different angles.

      The vise on this grinder does not tilt (+/-10 degrees) like some do for a 'down angle' that some users want.

      Helpful?

    2. Yes.

      Helpful?

    3. yes, different settings for almost every different chain out there. Owners manual will explain it.

      Helpful?

    4. It changes angles for just about any chain made. It has adjustments at the top and the cut angle at the bottom.

      Helpful?

    5. The Oregon bench chain grinder Model # 510A has bed tilt, full angle side to side, and head angle tilt,
      To sharpen different size chains you would change the grinding wheel ( Includes 1/8in., 3/16in and 1/4in. grinding wheels)

      Helpful?

  2. how do I know what size sharpening wheels to order

    1. The book that is sent with the sharpener and the chain size for your saw will give you the answer. If it is a .325 or .375 or larger tooth size the book will give you the answer.

      Helpful?

    2. Different size (pitch) chain requires different size wheels. This grinder should include both 1/8" thick and 3/16" thick wheels of the correct diameter to sharpen most chainsaw chain.

      The instruction manual should have a chart telling you which grinding wheel to use with which chain. This information is often printed on the package that the chain came with, in the chainsaw instruction manual, or can be found on the chain manufacturer's website (oregon, STIHL, etc.)

      Helpful?

    3. It depends on the chain you are using. See Below

      1/8in. vitrified grinding wheel sharpens 1/4in., 0.325in. (except 20 series) and 3/8in. (91 series only) pitch chains

      3/16in. vitrified grinding wheel sharpens 0.325in. (20 and 95 series only), 3/8in. (except 91 series) and 0.404in. pitch chains

      1/4in. vitrified grinding wheel sharpens 1/2in. pitch chains and sets depth gauges

      Helpful?

    4. The wheel needed will be determined by the series and pitch of your chain, attached is a explanation of what wheels are available and what size and pitch they work on.

      Helpful?

  3. Does the motor reverse so both cutters can be sharpened from the inside out?

    1. No this grinder is only one direction. It only rotates to push away the debris from you.

      Helpful?

    2. Not the one I got from Northern Tools.

      Helpful?

    3. no , only rotates counter clockwise

      Helpful?

    4. No, the motor for the Bench Chain Grinder #510A is not reversible.

      Helpful?

  4. Do you have to remove the chain from the bar to sharpen the chain or can you keep the chain on the bar?

    1. Yes you will need to remove the chain from your saw to use this sharpener.

      Helpful?

    2. Yes. This grinder sharpens chains off of the saw.

      Helpful?

    3. For this Oregon Bench-Mount Chain Grinder, you would remove the chain from the bar before sharpening the chain.

      Helpful?

  5. Does this unit have a light?

    Model 510A sold by some sources says it has a built in light. Does this one?

    1. No, this unit does not have a light.

      Helpful?

    2. No it doesn't. The next model up has one but it costs $100 more.

      Helpful?

    3. The grinder is not designed with a light. Oregon does offer two grinders designed with a light. The item numbers are 193070 and 28558.

      Helpful?

  6. INSTRUCTION MANUAL

    DOES ITEM COME WITH HOW TO OPERATE MANUAL ?

    1. Mine did.

      Helpful?

    2. Yes I beleive it does, if yours doesn't you can look up the info online. But overall you simply plug in, turn several different knobs to make it match up the cut of your chain, then work every other tooth at 30 degrees, then turn the chain around and work the other teeth at the other 30 degree mark.

      Helpful?

    3. The grinder will come with a instruction manual.

      Helpful?

  7. Oregon Bench-Mount Chain Grinder, Model# 510A will this sharpin carbide chains?

    1. Yes, but you will need a diamond wheel to do so.

      Helpful?

    2. This unit will sharpen carbide chains however a diamond infused stone would be needed to do so. Unfortunately we do not stock this item at this time.

      Helpful?

  8. Will the model 510A grind the depth gauges on the saw chain

    1. yes, it explains it in the owners manual.

      Helpful?

    2. Yes, the Oregon Model #510A will grind the depth gauges on the saw chain.

      Helpful?
