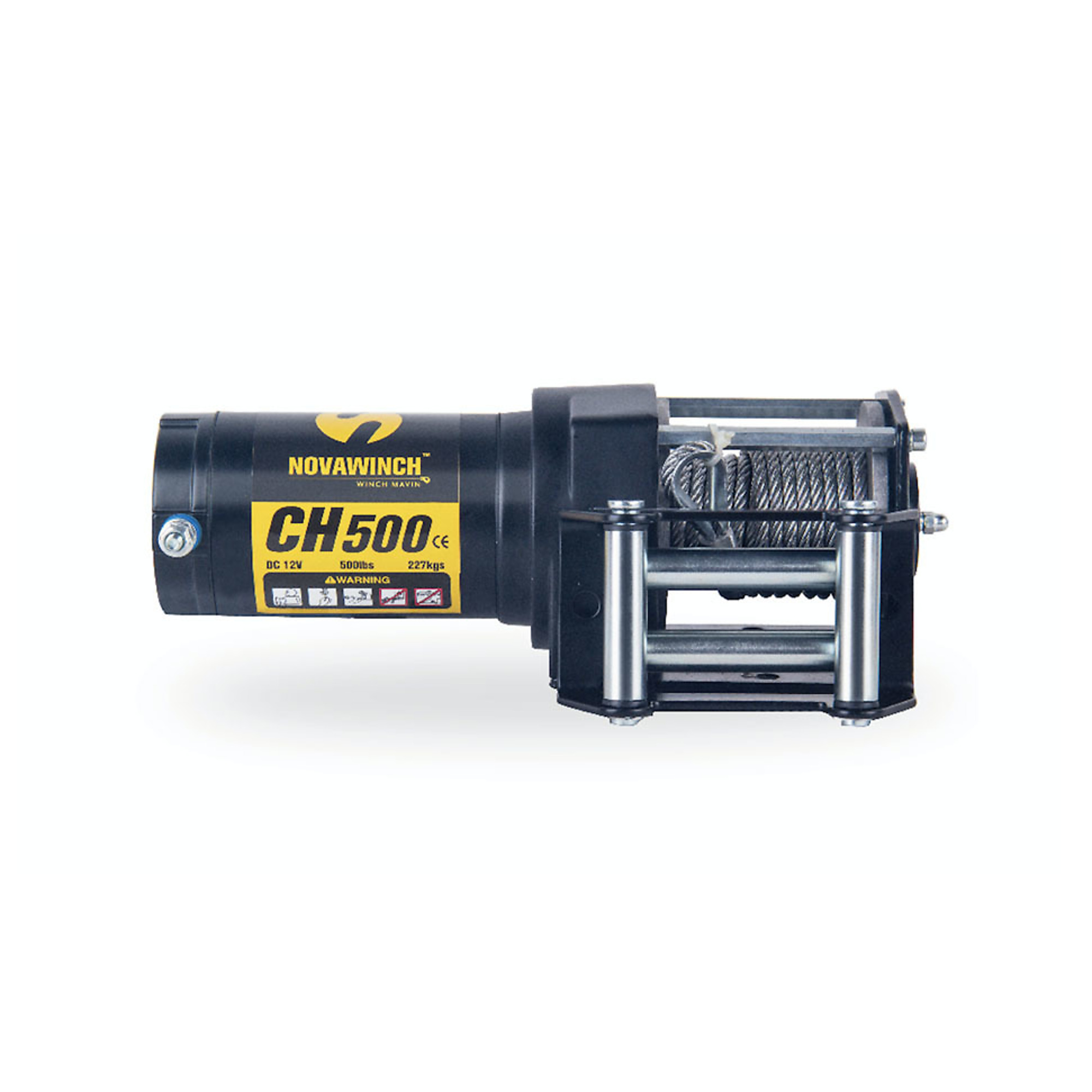

Novawinch, Utility 12V DC Powered Hoist, Capacity (Line Pull) 500 lb, Volts 12, Max. Amps 32, Model# 701001068770

Item# 5689257
Novawinch, Utility 12V DC Powered Hoist, Capacity (Line Pull) 500 lb, Volts 12, Max. Amps 32, Model# 701001068770

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Novawinch, Utility 12V DC Powered Hoist, Capacity (Line Pull) 500 lb, Volts 12, Max. Amps 32, Model# 701001068770

Click or Tap image to Zoom

  • 500 lb.rated line pull hoist for verticle and horizontal lifting
  • Fully sealed design for added protection against extreme weather and use.
  • Fast line speed of 11.2 fpm at no load and 8.2 fpm at full load
  • X15.7 feet of high-quality 3/16" Wire Rope rope
  • 9 feet of wired switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Nocawinch 500 lb 12V wire rope hoist

What's Included

    (1) CH 500 lb. 12V Hoist with wire rope

Features + Benefits

  • 500 lb.rated line pull hoist for verticle and horizontal lifting
  • Fully sealed design for added protection against extreme weather and use.
  • Fast line speed of 11.2 fpm at no load and 8.2 fpm at full load
  • X15.7 feet of high-quality 3/16" Wire Rope rope
  • 9 feet of wired switch
  • Automatic Load Holding Brake
  • Heavy Duty Roller Fairlead
  • 12V DC,.53 HP permanent magnet Motor
  • Standard mounting harware included

Key Specs

AttributeSpecification

item#

5689257

Brand

Novawinch

Manufacturer's Warranty

3 year limited warranty

Ship Weight

19.8 LB

Horsepower

0.53 HP

Capacity (Line Pull)

500 lb

Gear Type

Planetary

Line Speed

8.2 ft./min.

Gear Ratio

153:01:00

Rope Length

15.7 ft
AttributeSpecification

Rope Diameter

3/16 in

Rope Material

Galvanized Steel

Brake Type

Self-Locking

Remote

Yes

Remote Cord Length

9 ft

Automatic Load Holding

Yes

Freespooling

No

Fairlead Type

Roller

Underwater Use

No

Reviews

Questions & Answers

Questions

1–6 of 6 Questions
Sort by:

  1. Can the fairlead be positioned on the other side. Looking to mount to a hoist, but the boom when parked it is tight to a right side wall, then I swing the boom counter clockwise for use.

    1 answer

    1. Using the fairlead off the back would not be advisable as the cable would spool off the top of the drum, rather than the bottom.

      Helpful?

  2. Can you change out the rope to a longer one?

    1 answer

    1. The winch will come with a 3/16" 15.7 foot wire rope. It is unable to have a longer rope replaced on the winch.

      Helpful?

  3. Does this have a safety cutoff in the event its not pulling freely?

    1 answer

    1. The CH500 is designed to pull to the winch/hoist max capacity. It is recommended from the manufacturer to add a 30 amp circuit breaker to the positive lead from the battery.

      Helpful?

  4. what are the dimensions of the unit

    1 answer

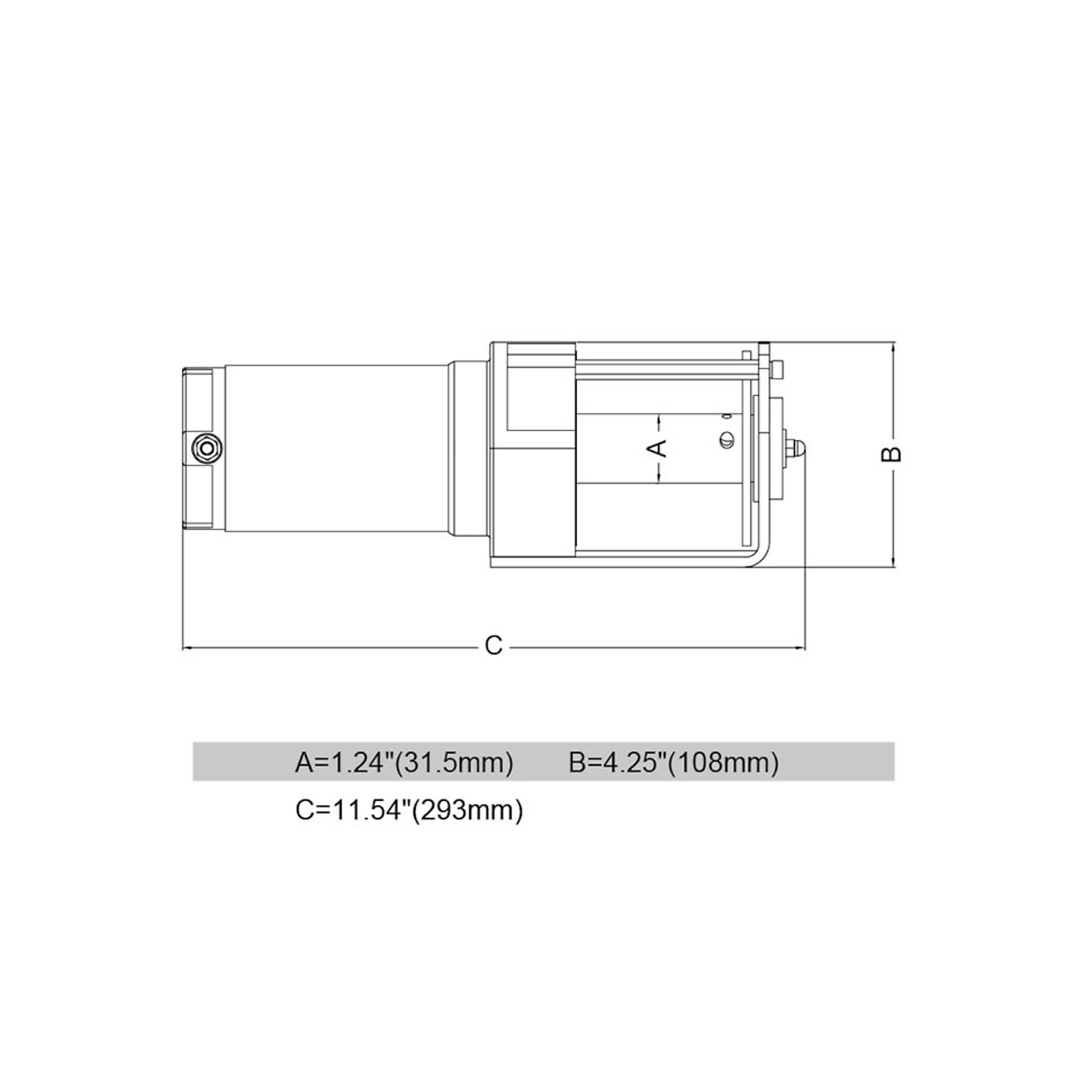

    1. The dimensions on the hoist are 11.81" (300 MM) L x 3.93" (100 MM) W x 4.25" (108 MM) H.

      Helpful?

  5. What are the power requirements in amps?

    1 answer

    1. The winch would draw a maximum of 32 amps.

      Helpful?

  6. What type of controller comes with this, it mentions a 9' controller/cord but no image is provided. Also can this be ordered with synthetic rope and is there a Hass fairlead available?

    1 answer

    1. This winch includes a pendent remote control with two buttons for IN and Out. At this time, we do not offer this winch with a synthetic rope option. It is equipped with a 4-way roller fairlead.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
