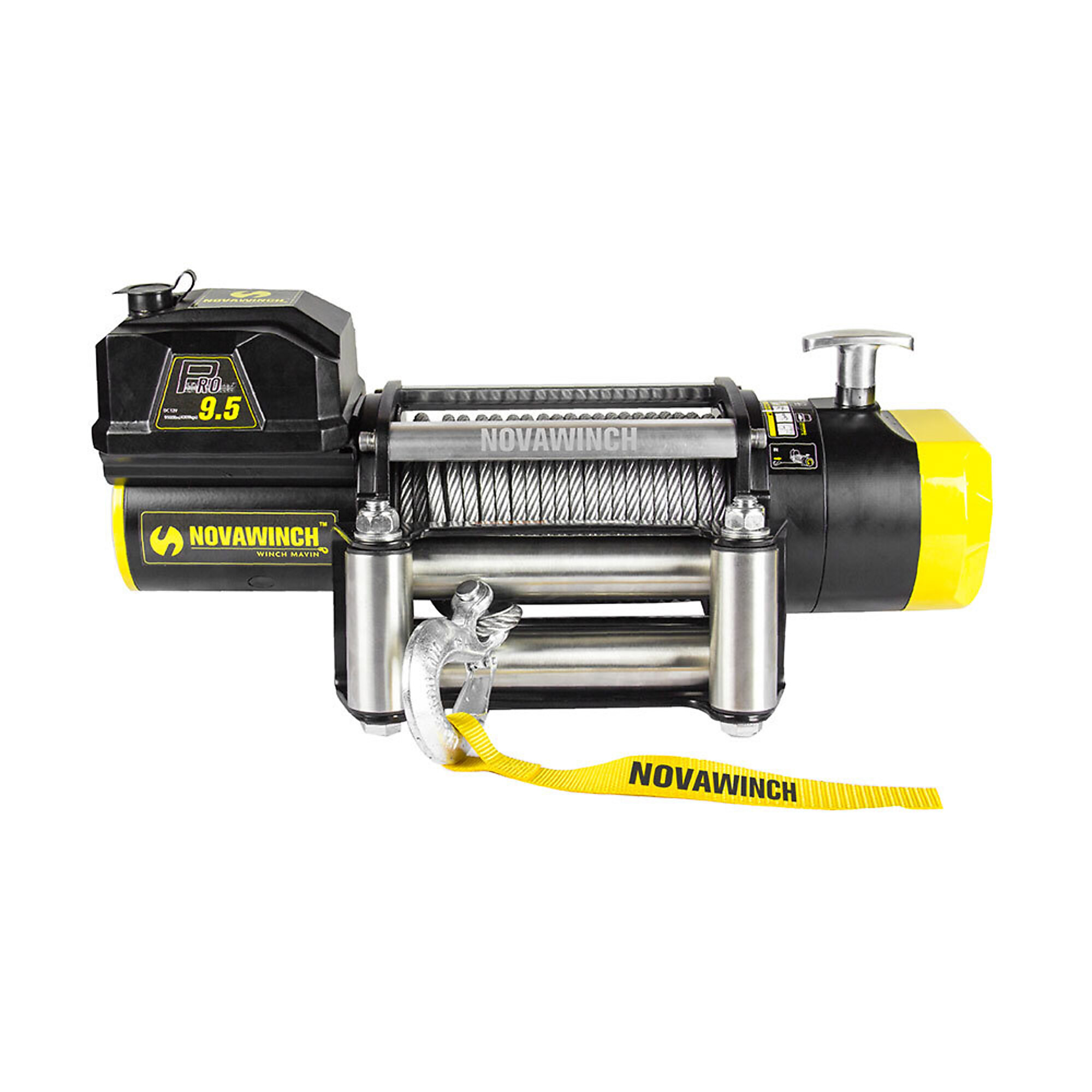

Novawinch, PRO Series Truck/Trailer 12V DC Powered Winch, Capacity (Line Pull) 9500 lb, Volts 12 Max. Amps 360 Model# 701001068581

Item# 5297405
Novawinch, PRO Series Truck/Trailer 12V DC Powered Winch, Capacity (Line Pull) 9500 lb, Volts 12 Max. Amps 360 Model# 701001068581

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Novawinch, PRO Series Truck/Trailer 12V DC Powered Winch, Capacity (Line Pull) 9500 lb, Volts 12 Max. Amps 360 Model# 701001068581

Click or Tap image to Zoom

$669.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 9500 lb. pulling capacity for off-road vehicle recovery, trailer use, plus other horizontal pulling.
  • IP68 rated for added protection against extreme weather and use.  Fully sealed design.
  • Fast line speed of 52.5 fpm at no load and 4.3 fpm at full load
  • 85.3 feet of high-quality 3/8' wire rope
  • 12.7 feet of wired remote with IP68 rating

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Novawinch Pro 9500 lb. wire rope winch is the next evolution of the perfect off-road winch. we've refined this winch to perfection. From confidence-inspiring fast line speeds to low amp draw and a best-in-class mechanical brake, this is the top-of-the-line winch without the high price. Five things to know about this winch: 1. It's fast. Sealed 6.0 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw. 2. Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry. 3. IP68 rated sealing keeps elements out and winch running. 5. Made to last: SUS304 stainless steel hardware on winch body and roller fairlead, 2 aluminum tie bars for rigidity and 45 degree clocking freespool for tricky mounts.

What's Included

    (1) PRO 9500 lb. 12V winch with wire rope

Features + Benefits

  • 9500 lb. pulling capacity for off-road vehicle recovery, trailer use, plus other horizontal pulling.
  • IP68 rated for added protection against extreme weather and use.  Fully sealed design.
  • Fast line speed of 52.5 fpm at no load and 4.3 fpm at full load
  • 85.3 feet of high-quality 3/8' wire rope
  • 12.7 feet of wired remote with IP68 rating
  • Automatic Load Holding Disc Brake
  • Heavy Duty Roller Fairlead
  • High Torque 12V DC, 6 HP Series Wound Motor, Chosen for large copper windings for faster cooling
  • Standard mounting harware included
  • Works with Novawinch Duo Wirreless remote

Key Specs

AttributeSpecification

item#

5297405

Brand

Novawinch

Manufacturer's Warranty

3 year limited warranty

Ship Weight

94.8 LB

Horsepower

6 HP

Capacity (Line Pull)

9,500 lb

Volts

12

Max. Amps

360

Application

Truck

Gear Type

Planetary

Line Speed

4.3 ft./min.

Gear Ratio

171:01:00

Rope Length

85 ft
AttributeSpecification

Rope Diameter

3/8 in

Rope Material

Galvanized Steel

Brake Type

Disc

Remote

Yes

Remote Cord Length

12.7 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Roller

Underwater Use

No

Mounting Hardware Included

Yes

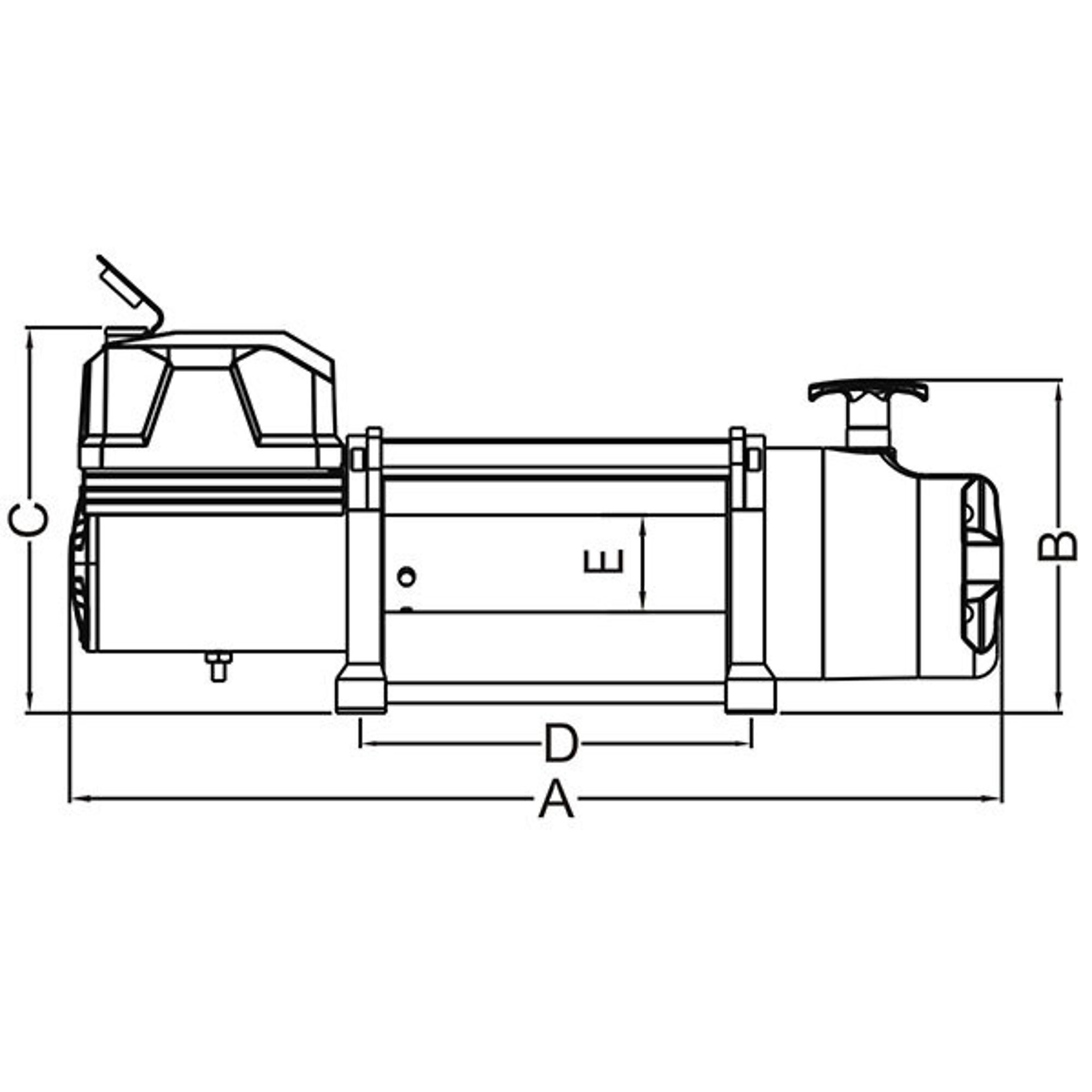

Dimensions L x W x H (in.)

23.86 x 6.77 x 9.84 in

Product Weight

88.2000 lb

Reviews

Questions & Answers

Questions

  1. How long can this winch run at full load, half load and empty?

    1 answer

    1. The manufacturer does not offer ratings on winch run times as this can vary depending on battery condition and size.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
