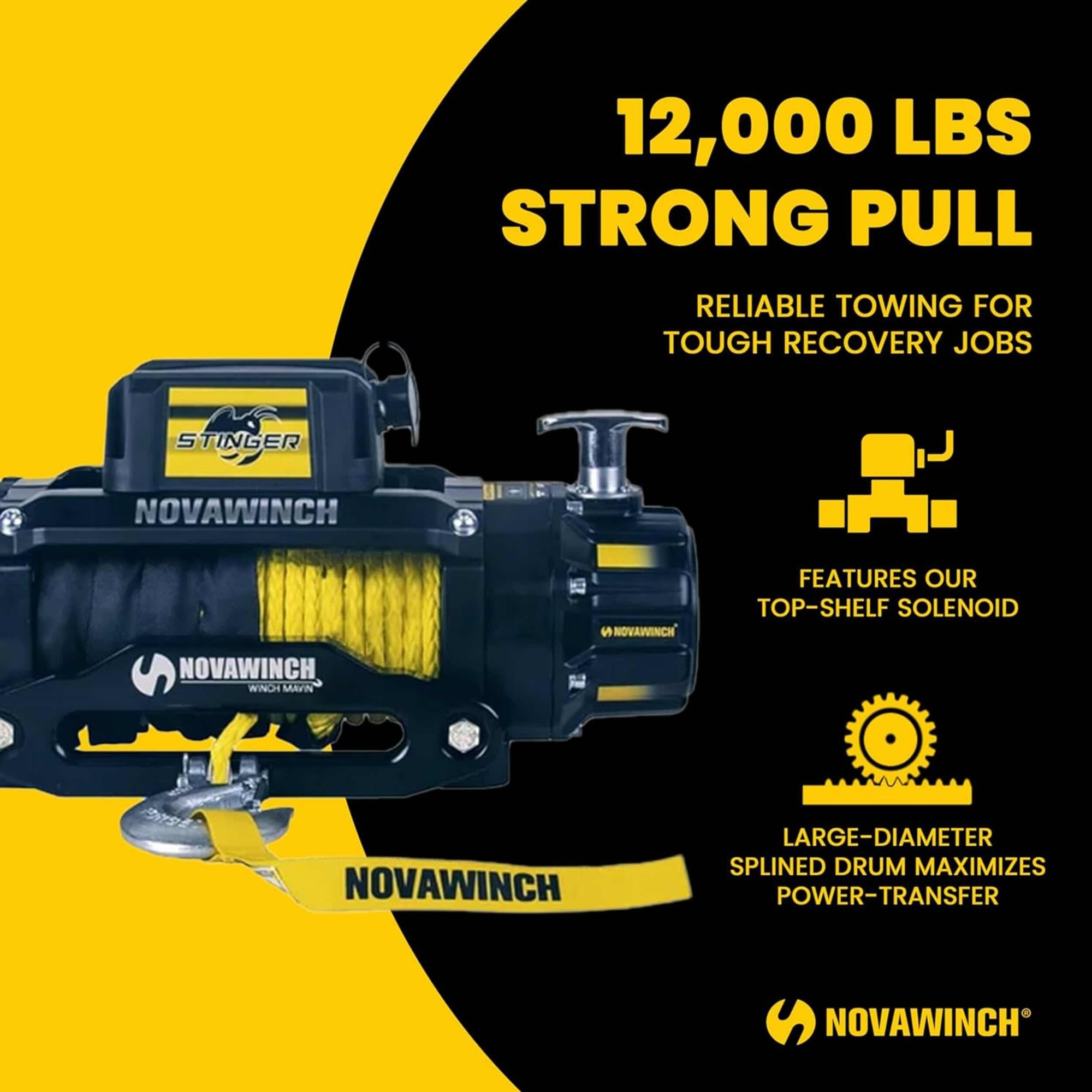

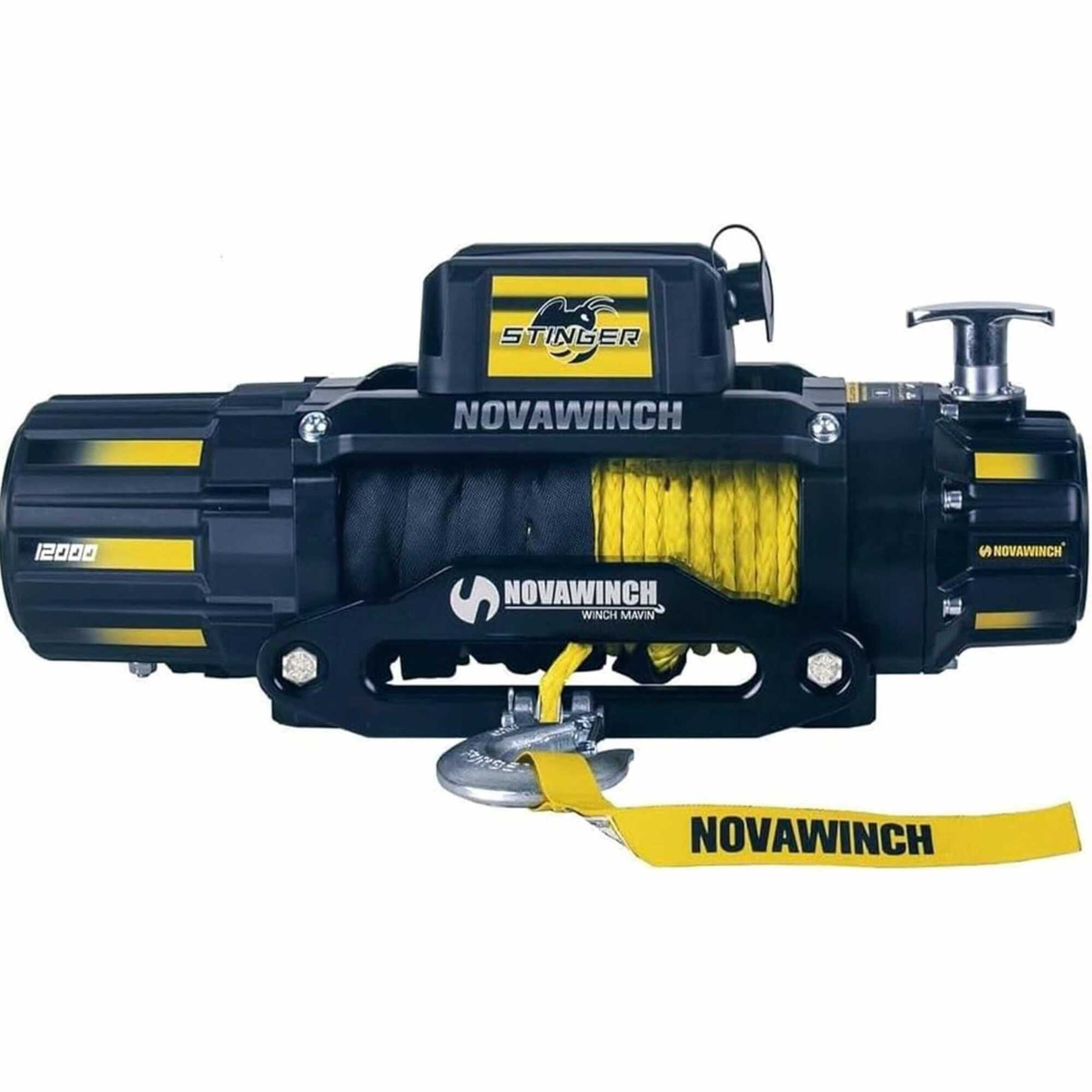

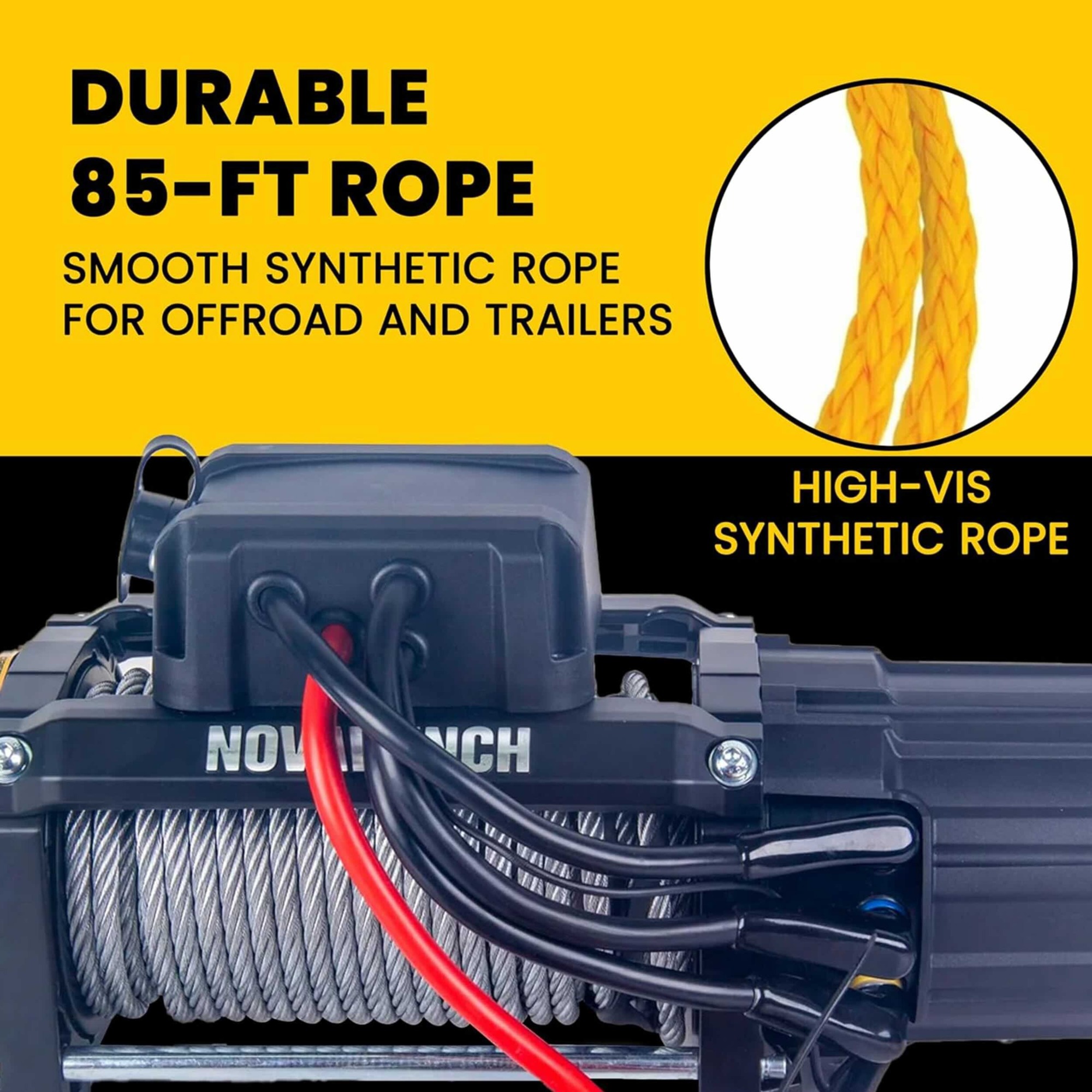

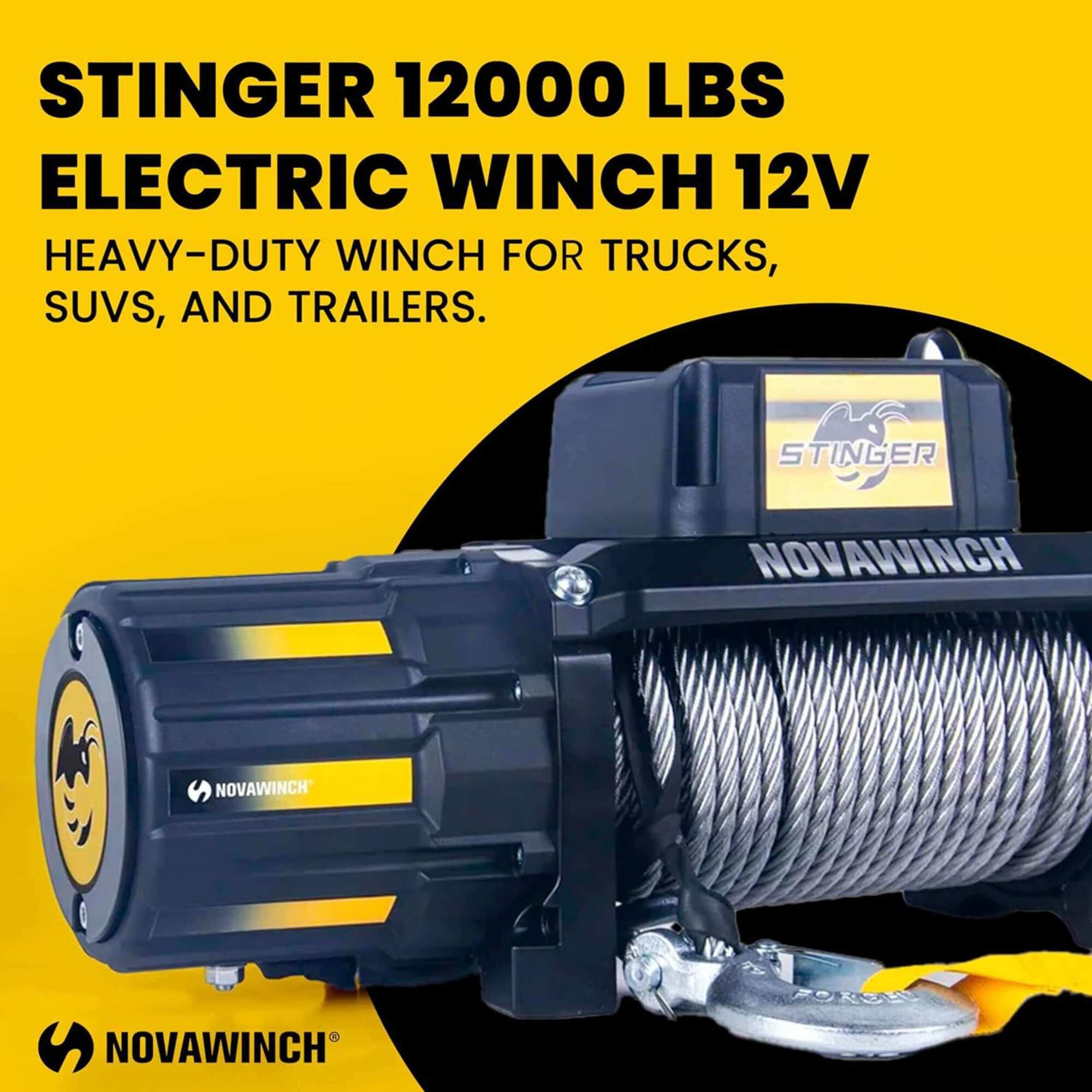

Novawinch Stinger 12 Volt DC Powered Truck Winch — 12000 lb Capacity, 85ft. Synthetic Rope, Model# 701001068892

Item# 7345010
Novawinch Stinger 12 Volt DC Powered Truck Winch — 12000 lb Capacity, 85ft. Synthetic Rope, Model# 701001068892

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Novawinch Stinger 12 Volt DC Powered Truck Winch — 12000 lb Capacity, 85ft. Synthetic Rope, Model# 701001068892

Click or Tap image to Zoom

$649.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Stinger 12,000 lb with 85ft.of 3/8 in.Synthetic rope

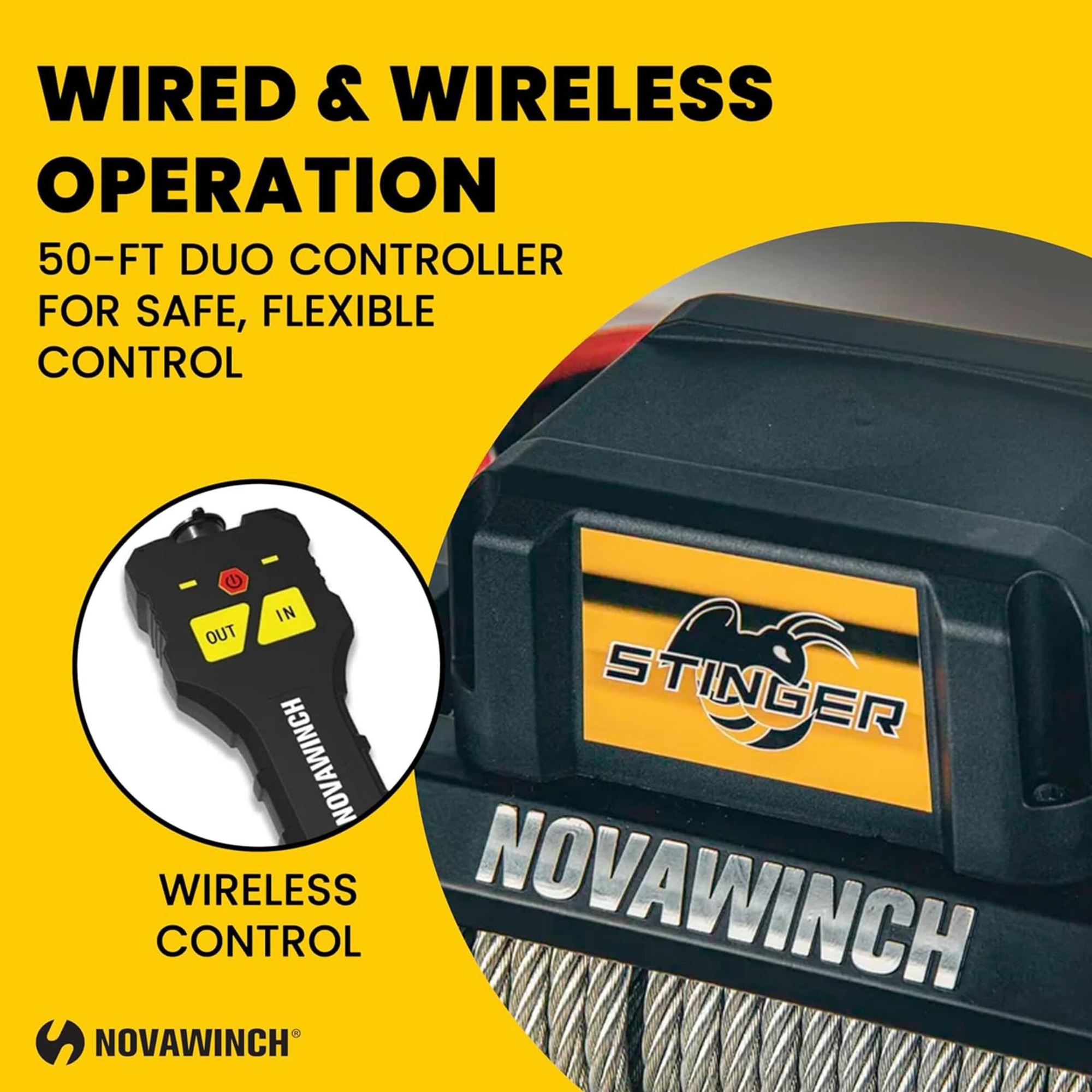

  • Wireless and Wired DUO Remote with a range of 50 ft
  • 29.5 ft /minute no-load line speed for rapid revcovery and more time on the trail
  • Built to IP68 rating for dustproof and waterproof protection
  • Hardened cut-steel planetary gears for longer life

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Novawinch Stinger Synthetic rope winch is built from better parts for demanding owners of Trucks, Jeeps and SUVs. . This winch has a motor built with fatter copper windings for extreme cooling that pulls longer at faster line speeds. Includes over 85ft. of UHMW (ultra-high molecular weight) rope, a wireless remote and a mil-spec hook.

What's Included

    (1) Winch w/ Synthetic Rope (1) Duo Wireless Remote (1) Aluminum Hawse (1) Hook (1) Set of Mounting Hardware

Features + Benefits

  • Stinger 12,000 lb with 85ft.of 3/8 in.Synthetic rope
  • Wireless and Wired DUO Remote with a range of 50 ft
  • 29.5 ft /minute no-load line speed for rapid revcovery and more time on the trail
  • Built to IP68 rating for dustproof and waterproof protection
  • Hardened cut-steel planetary gears for longer life
  • Automatic Load Holding Brake
  • Automatic brake keeps tension under load
  • Premium electronics with fault protection to protect your investment
  • Relocatable control pack, machined tie bars and stainless-steel hardware

Key Specs

AttributeSpecification

item#

7345010

Brand

Novawinch

Manufacturer's Warranty

3 year limited warranty

Ship Weight

70.0 LB

Horsepower

7 HP

Capacity (Line Pull)

12,000 lb

Volts

12

Max. Amps

420

Application

Multiple

Gear Type

Planetary

Line Speed

29.5 ft./min.

Gear Ratio

196:01:00

Rope Length

85 ft
AttributeSpecification

Rope Diameter

3/8 in

Rope Material

Synthetic Fiber

Brake Type

Automatic

Remote

Yes

Remote Cord Length

12 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Hawse

Underwater Use

No

Mounting Hardware Included

Yes

Dimensions L x W x H (in.)

21.3 x 6.5 x 9.05 in

Product Weight

68.0000 lb

Reviews

Questions & Answers

Questions

  1. What is the speed under full load vs half load etc..?

    1 answer

    1. The first layer holds 17.7 ft of cable and has a weight capacity of 12,000 lbs. This provides the highest pulling capacity but the least amount of cable.
      The second layer holds 40.4 ft of cable and has a weight capacity of 9,563 lbs. It provides more cable length while reducing the pulling capacity.
      The third layer holds 66.9 ft of cable and has a weight capacity of 7,949 lbs. The increased cable length comes with a further decrease in pulling capacity.
      The fourth layer holds 85.3 ft of cable and has a weight capacity of 6,801 lbs. It holds the most cable but provides the lowest pulling capacity.
