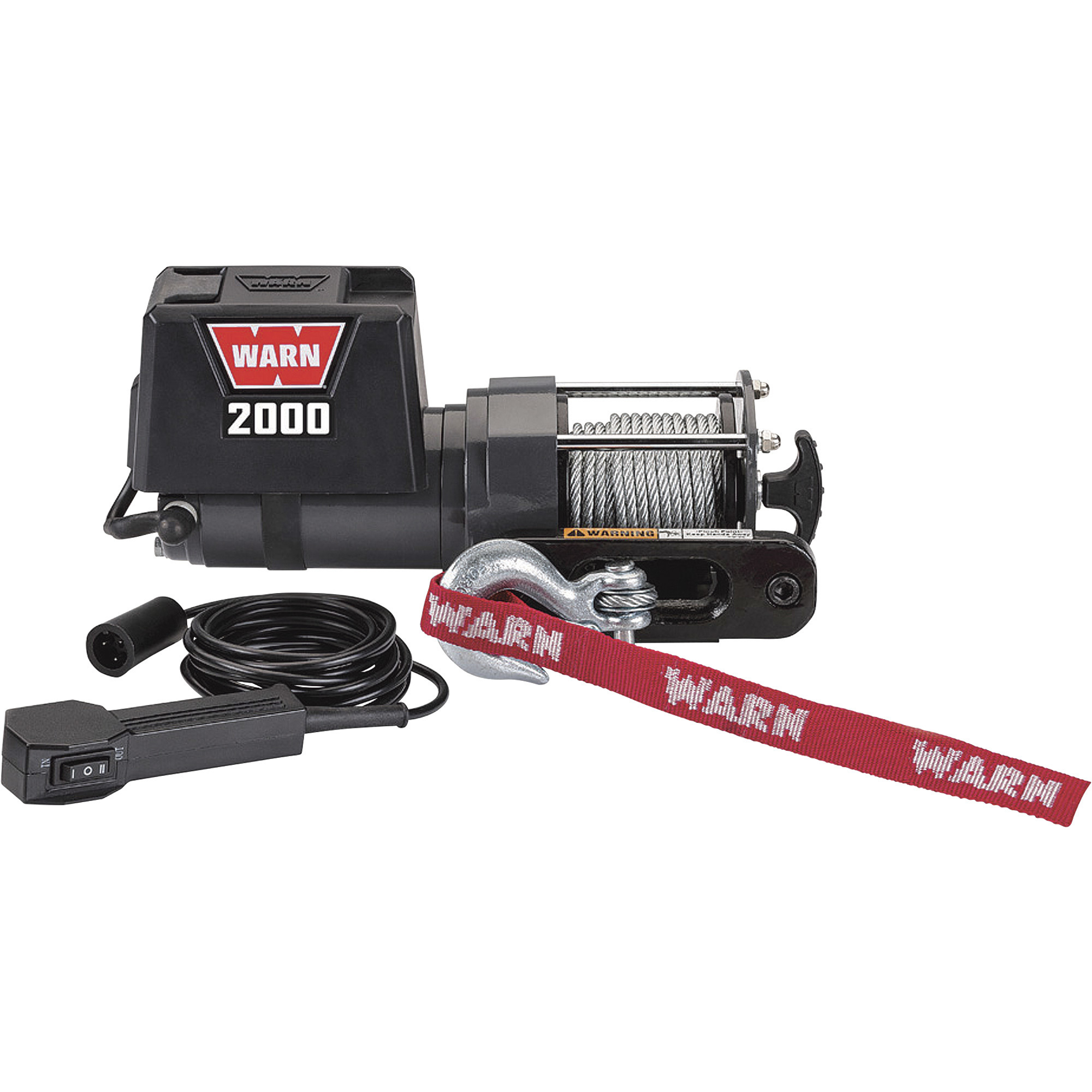

WARN 12 Volt DC Powered Electric Utility Winch, 2000-Lb. Capacity, Galvanized Steel Rope, Model# 92000

Item# 44190
WARN 12 Volt DC Powered Electric Utility Winch, 2000-Lb. Capacity, Galvanized Steel Rope, Model# 92000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WARN 12 Volt DC Powered Electric Utility Winch, 2000-Lb. Capacity, Galvanized Steel Rope, Model# 92000

Click or Tap image to Zoom

$156.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 2000-lb. single line pulling capacity
  • 12V DC, 1.6 HP permanent magnet motor
  • 35ft.L x 3/16in. dia. galvanized steel wire rope with latched hook
  • 4.2 FPM full load drawing/80 Amps
  • 7.2 FPM no load drawing/6.7 Amps

See full description

Complete Your Solution

  • WARN 12 Volt DC Powered Electric Utility Winch, 2000-Lb. Capacity, Galvanized Steel Rope, Model# 92000
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
Price for all two:

$175.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This WARN® compact utility winch is a dynamo for smaller jobs. It is built to handle lighter loads up to 2000 lbs. An efficient 1.6 HP motor requires minimal amp draw. The winch is loaded with features like a pull and turn freespooling clutch, split ring gear train, self-braking transmission and handheld remote for safe, precise operation.

What's Included

    (1) WARN 12 Volt DC Powered Electric Utility Winch

Features + Benefits

  • 2000-lb. single line pulling capacity
  • 12V DC, 1.6 HP permanent magnet motor
  • 35ft.L x 3/16in. dia. galvanized steel wire rope with latched hook
  • 4.2 FPM full load drawing/80 Amps
  • 7.2 FPM no load drawing/6.7 Amps
  • Pendant remote control for operation from up to 12ft. away
  • Self-braking transmission promotes safety
  • Includes Hawse fairlead and mounting hardware

Key Specs

AttributeSpecification

item#

44190

Brand

WARN

Manufacturer's Warranty

1 year limited warranty

Ship Weight

21.0 LB

Horsepower

1.6 HP

Capacity (Line Pull)

2,000 lb

Gear Type

Other

Line Speed

7.2 ft./min.

Gear Ratio

153:1
AttributeSpecification

Rope Length

35 ft

Rope Diameter

3/16 in

Rope Material

Galvanized Steel

Brake Type

Transmission

Remote

Yes

Remote Cord Length

12 ft

Freespooling

Yes

Fairlead Type

Hawse

Reviews

Questions & Answers

43 Reviews This action will navigate to reviews.

Questions

1–10 of 30 Questions
Sort by:

  1. Can I mount this in the front of my p/u bed and connect to the truck battery with my 20' jumper cables?

    I need to pull my riding lawnmower and a 300# wheelchair up ramps and into the p/u bed

    1. Yep. I am using a set of super heavy duty jumper cables with terminal ends installed. This way I can remove the 2x12x3' mounting base strapped to cargo d-rings and take advantage of a portable unit.

      Helpful?

    2. Yes. You could do that.

      Helpful?

    3. This winch can be mounted in the bed of a pickup. Jumper cables can be used as long as the cables are hard wired to the winch.

      Helpful?

  2. Add to cable length?

    I plan on mounthing to rear of my trailer hitch and connect to battery. So I need to add several feet to battery leads. Any recommendations on doing this, ie splicing in 12' more feet.

    1. I had the same problem, to solve I put a deep cell battery mounted to my trailer in a box fused it and now I can use the winch with the need for my truck being there, I also use a small solar cell to keep battery charged.

      Helpful?

    2. I have to other winches and I used 4/0 welding cable.
      they have worked just fine.. its not the length of the cable but the size..

      Helpful?

    3. It is not recommended to modify this winch in any way; doing so would void the warranty.

      Helpful?

  3. Can use with rechargeable battery?

    I have a 48 volt utility cart with six 8 volt batteries and no additional voltage regulator. Can this winch be used with only 8 volts or with a 12 Volt rechargeable battery to raise a 100# snow plow? If so, how many amps would the battery need to deliver for this light load?

    1. Do not use the winch with only 8 volts, under voltage = over amperage. You will be fine as long as you use an 12 volt automotive battery. I am using a battery that is rated for a 1/2 ton pickup truck because that is what I had sitting around my shop, and I have had no problems at all. I believe you could get away with using a smaller car battery if you had too, but I would get the larger truck battery just to be safe. Good luck...

      Helpful?

    2. The WARN Utility Winch operates on 12 volt only and at full load requires 80 amps.

      Helpful?

  4. Is this winch suitable for mounting on the front of a vehicle?

    1. I would think that you would be wanting a larger winch if you intend to use it to pull you out of mud ect.i would look into a 3ton or a 6 ton winch as it would be more suitable for that app.

      Helpful?

    2. This winch would require extra mounting hardware to mount on the front of a vehicle.

      Helpful?

  5. Can the load be POWERED OUT as well as IN?

    1. Yes, the control has both in and out positions.

      Helpful?

    2. According to the manufacturer, this winch does have power out capability.

      Helpful?

  6. Can I run this on a 12v ATV battery if mounted to the front of ATV?

    1 answer

    1. An ATV's 12V battery can power a WARN 2,000 lb winch for short pulls. However, since the winch draws 80 amps, you will need heavy-gauge wiring along with an 80–125 amp fuse. It's also essential to have a sturdy mount. Ideally, you should consider using a deep-cycle or dual-battery setup. To prevent overheating and battery failure, run the engine at a higher idle and limit the duration of the pulls.

      Helpful?

  7. is it rain proof

    1 answer

    1. The winch is not rain proof. It is intended for outdoor applications and will have weather resistant construction.

      Helpful?

  8. Will this pull vertically. Looking to pull our water well?

    1 answer

    1. This utility winch is not designed for lifting. A hoist like item 4584189 or 4584162 would be better for the application.

      Helpful?

  9. Where is this winch made?

    1 answer

    1. The winch is manufactured in China.

      Helpful?

  10. Can this actually pull a car up a trailer ramp like shown in the picture?

    1 answer

    1. The winch can be used to pull a car onto a trailer with a ramp so long as the car does not exceed the pulling capacity.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Slings

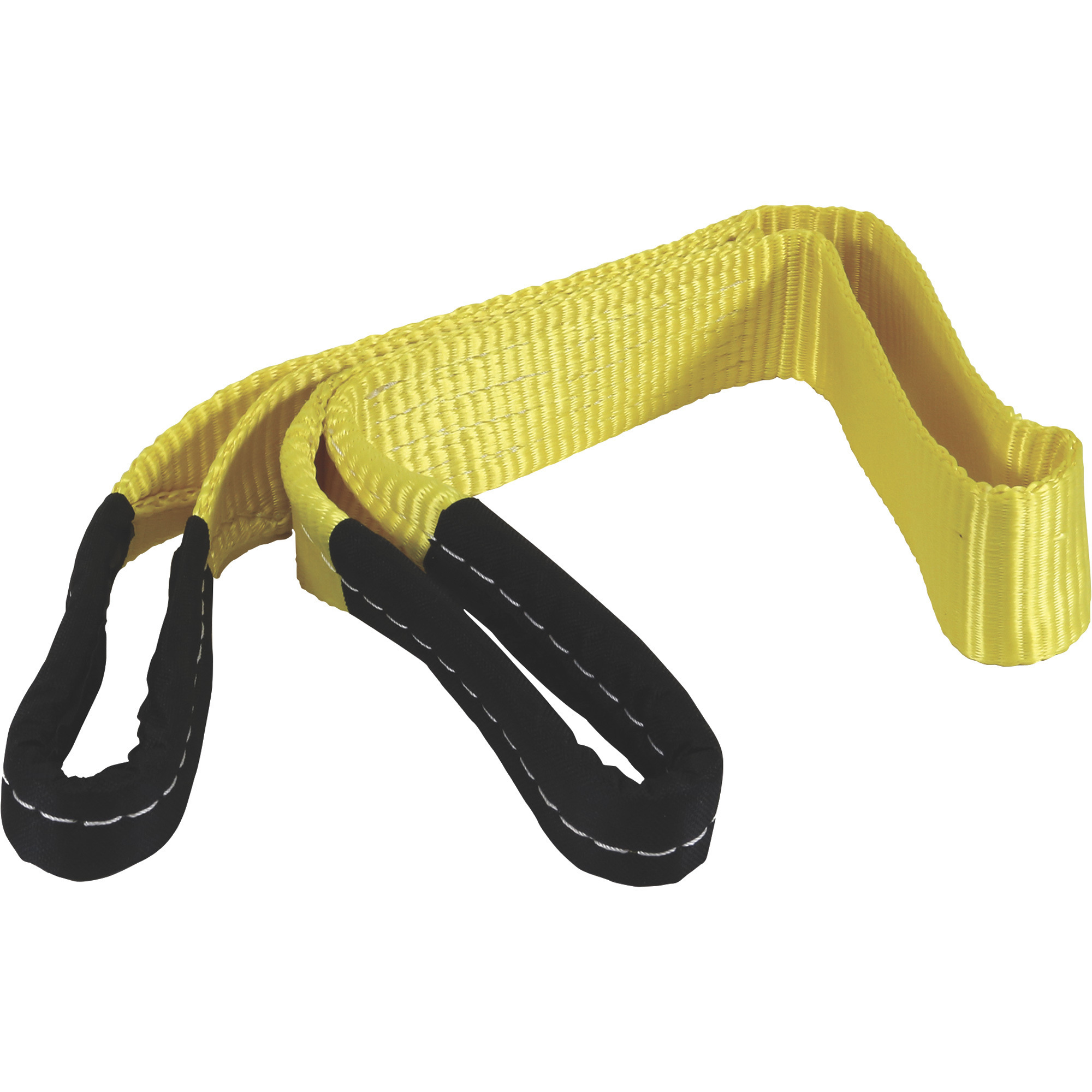

SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
