Novawinch, Fenix ATV 12V DC Powered Winch, Capacity (Line Pull) 3500 lb, Volts 12 Max. Amps 260 Model# 701001068817

Item# 5297481
Novawinch, Fenix ATV 12V DC Powered Winch, Capacity (Line Pull) 3500 lb, Volts 12 Max. Amps 260 Model# 701001068817

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Novawinch, Fenix ATV 12V DC Powered Winch, Capacity (Line Pull) 3500 lb, Volts 12 Max. Amps 260 Model# 701001068817

Click or Tap image to Zoom

$374.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3500 lb. pulling capacity for ATV vehicle recovery, trailer use, plus other horizontal pulling.
  • IP68 rated for added protection against extreme weather and use.  Fully sealed design.
  • Fast line speed of 24 fpm at no load and 10.2 fpm at full load
  • 50 feet of high-quality 3/16" synthetic rope
  • 10 feet of wired remote with IP68 rating

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

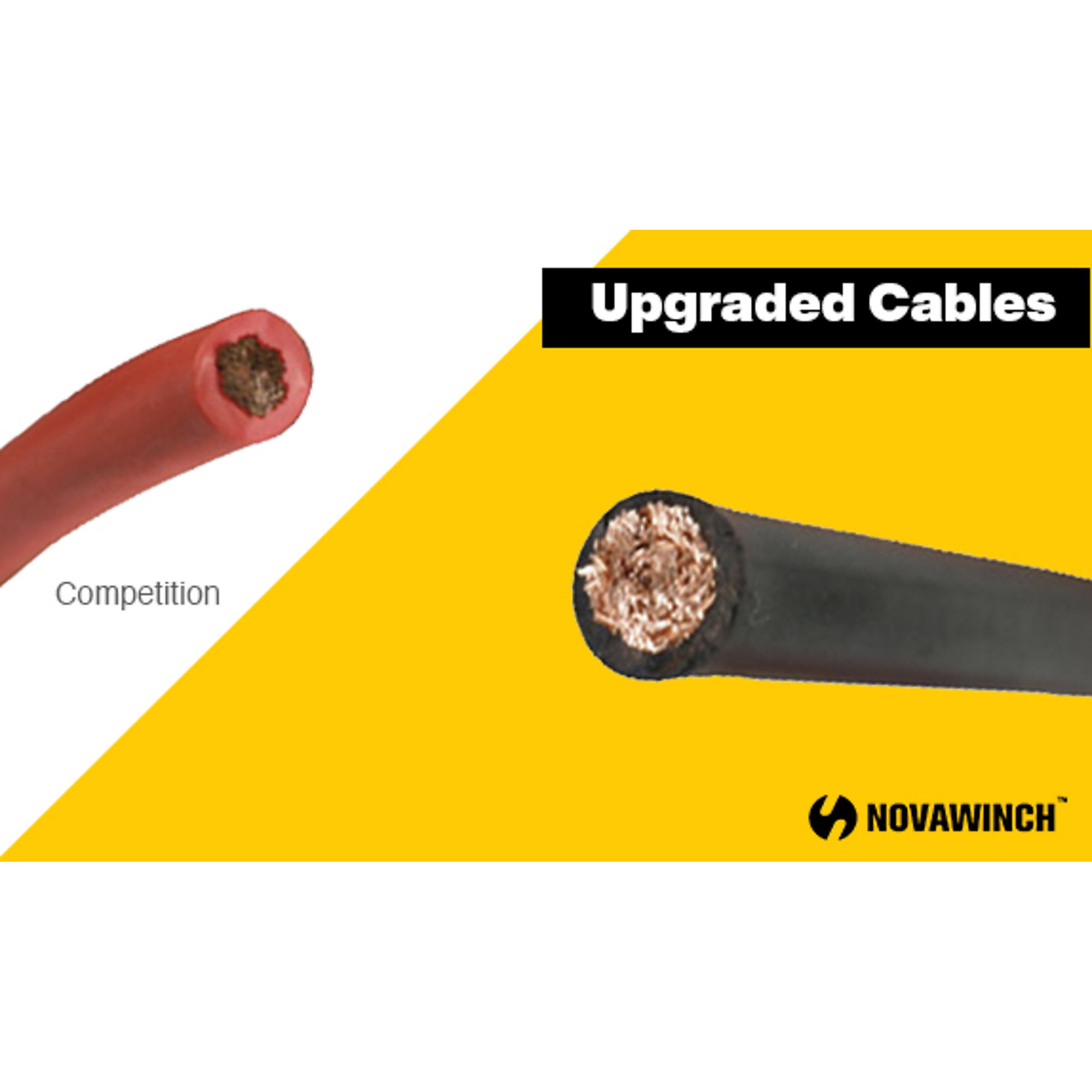

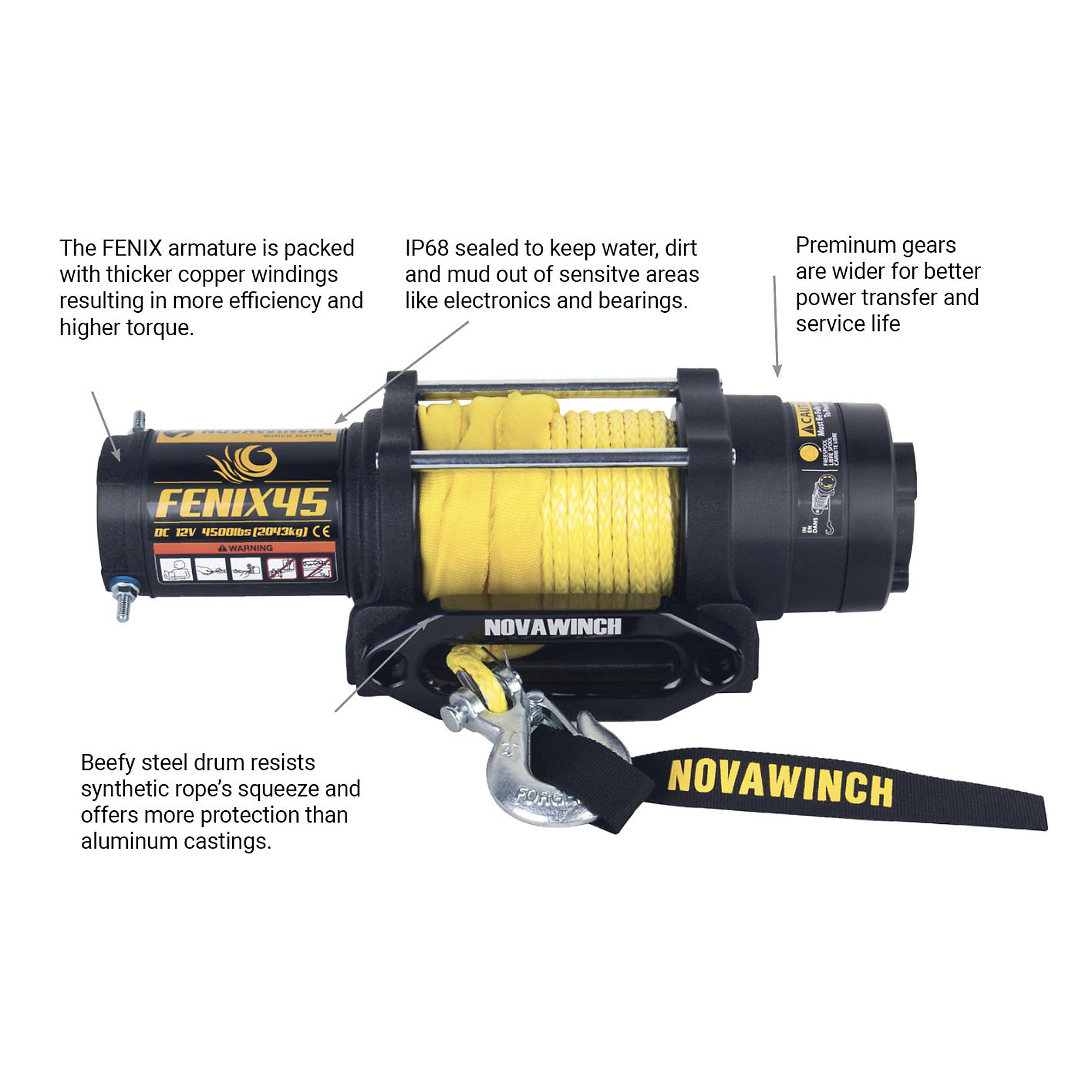

NOVAWINCH FENIX 3500 lb synthetic rope ATV winch is built to be the no-holds-barred best winch in powersports. Usingextreme tested, top-shelf parts that you can rely on, we built a winch that will put a smile on your face time and time again. Motors drive it all and the difference is obvious. The FENIX armature is packed with thicker copper windings resulting in more efficiency that we turn into higher torque. Rolling on sealed cartridge bearings, the FENIX is an industry-leading powerhouse. Beefy where it counts. Our gears are wider than the competition! Wider gears for better engagement leads to more Secure and efficient power transfer and longer service life. The FENIX features a massively oversized spline. Top-rated IP68 sealing combats water, dirt, and dust ingress while sealed in-line fuse protection keeps your rig from dangerous electrical events. We also build our own electrical cables leaving nothing to chance. Tested using color-changing paste, we insure every seal is up to the challenge.

What's Included

    (1) Fenix 3500 lb. 12V winch with synthetic rope

Features + Benefits

  • 3500 lb. pulling capacity for ATV vehicle recovery, trailer use, plus other horizontal pulling.
  • IP68 rated for added protection against extreme weather and use.  Fully sealed design.
  • Fast line speed of 24 fpm at no load and 10.2 fpm at full load
  • 50 feet of high-quality 3/16" synthetic rope
  • 10 feet of wired remote with IP68 rating
  • Automatic Load Holding Brake
  • Heavy Duty Aluminum Hawse

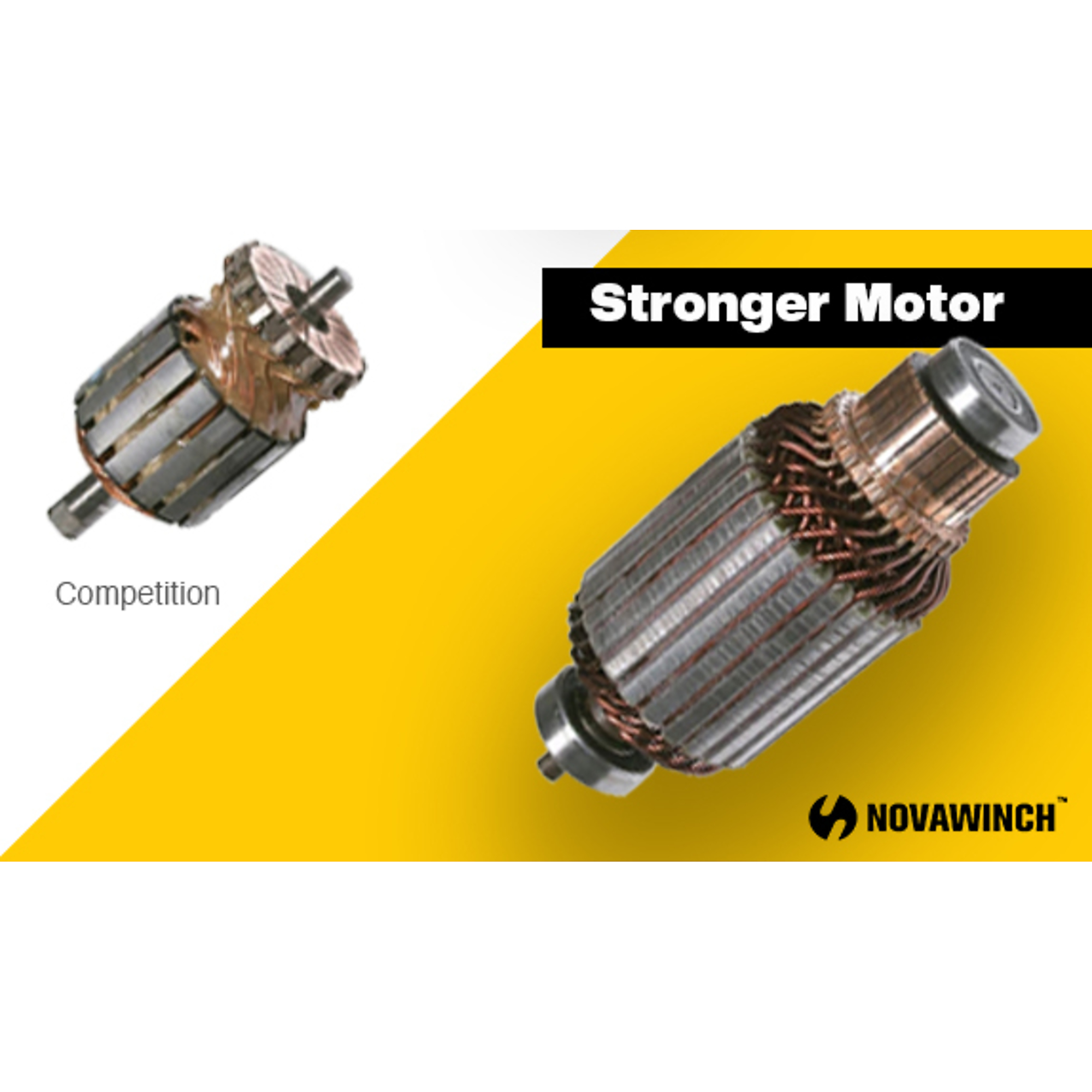

  • High Torque 12V DC,4.1 HP permanent magnet Motor, Chosen for large copper windings for faster cooling
  • Standard mounting harware included
  • Works with Novawinch Duo Wirreless remote

Key Specs

AttributeSpecification

item#

5297481

Brand

Novawinch

Manufacturer's Warranty

3 year limited warranty

Ship Weight

28.2 LB

Horsepower

4.1 HP

Capacity (Line Pull)

3,500 lb

Volts

12

Max. Amps

260

Application

ATV

Gear Type

Planetary

Line Speed

10.2 ft./min.

Gear Ratio

140:01:00

Rope Length

50 ft
AttributeSpecification

Rope Diameter

3/16 in

Rope Material

Synthetic Fiber

Brake Type

Automatic

Remote

Yes

Remote Cord Length

9.85 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Hawse

Underwater Use

No

Mounting Hardware Included

Yes

Dimensions L x W x H (in.)

13.5 x 4.53 x 4.84 in

Product Weight

24.9000 lb

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
