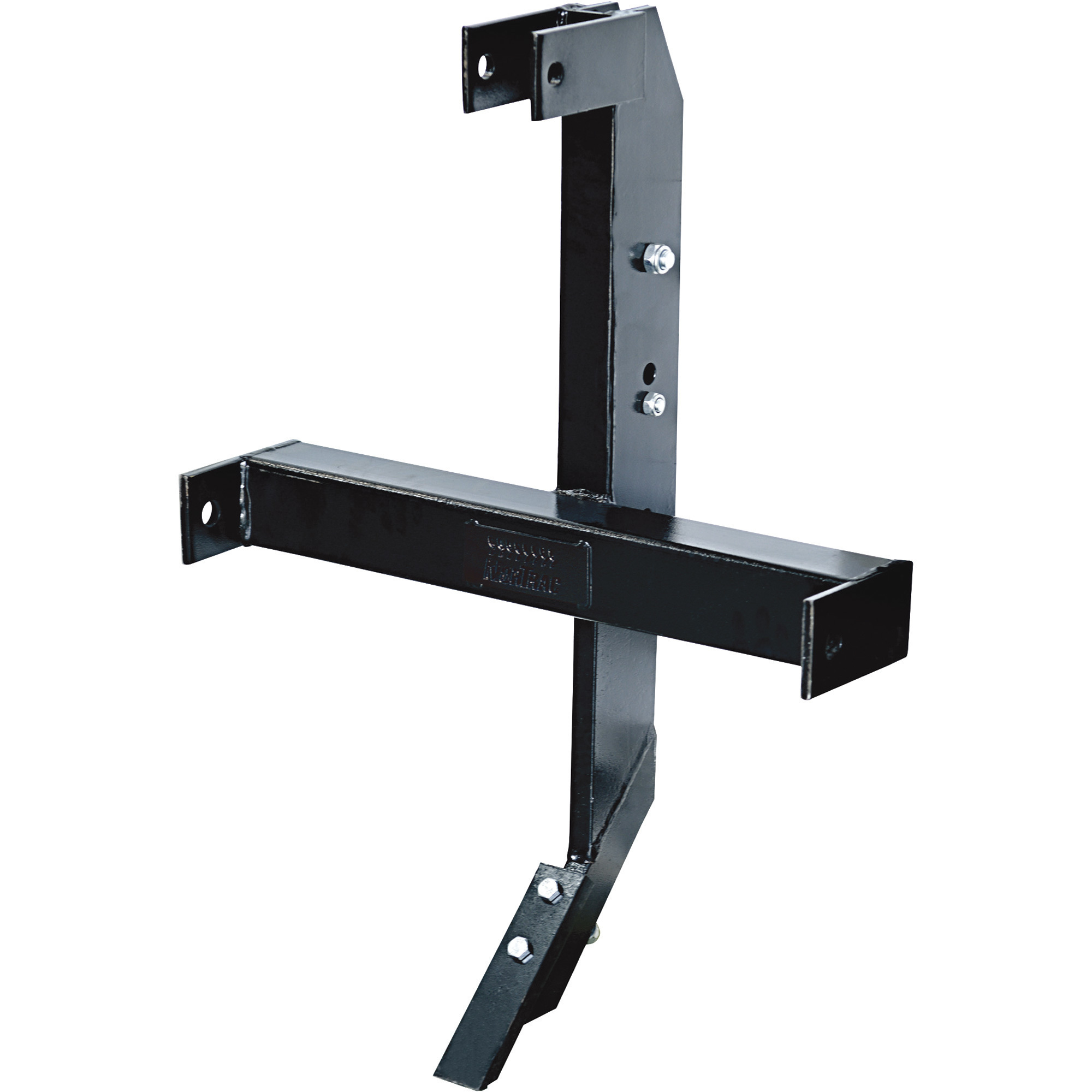

NorTrac Subsoiler, 3-Point Hitch

Item# 51463
NorTrac Subsoiler — 3-Point Hitch
NorTrac Subsoiler, 3-Point Hitch

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Subsoiler, 3-Point Hitch

Click or Tap image to Zoom

  • 35in.L x 24 7/8in.W
  • Center beam is 2 1/8in. thick
  • Shorter beam is 3in. squared
  • 2in. working width
  • Hammertone coating offers a durable protective finish

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorTrac® Subsoiler has a solid steel beam backbone and a forged, heat-treated reversible ripper tooth, making it the tool you need for ripping sod and loosening compacted soil for better plant growth and production. Ripping depth can be adjusted up to a 14in. maximum.

What's Included

    (1) Subsoiler

Downloads

Product Manual

Features + Benefits

  • 35in.L x 24 7/8in.W
  • Center beam is 2 1/8in. thick
  • Shorter beam is 3in. squared
  • 2in. working width
  • Hammertone coating offers a durable protective finish
  • 3-pt. hitch with Category 1 hitch pin

Key Specs

AttributeSpecification

item#

51463

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

79.0 LB

Product Type

Subsoiler
AttributeSpecification

Category

Category 1

Blades (qty.)

1

Hitch Type

3-Point

Max. Horsepower

50

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

1–10 of 15 Questions
Sort by:

  1. Is this Cat 0 or Cat 1?

    The product is advertised as Category 1, but the Q&A notes that it has 3/4" holes for the lower link pins. That would indicate Cat 0 pins. Is it Cat 0 or Cat 1?

    1. It's Cat 1. I have a limited Cat 1 hitch and it fit perfectly. This means proper cat 1 pins but reduced ground clearance. The upper position on the subsoiler worked perfectly.

      Helpful?

    2. This Subsoiler is a category 1.

      Helpful?

  2. Does it have a shear bolt?

    Does it have a shear bolt?

    1. No

      Helpful?

    2. This product does not have a shear bolt.

      Helpful?

  3. Rock removal in soil

    Would this be helpful and strong enough in removing rocks on a horse trail instead of buying a complete backhoe attachment? (NorTrac Sub soiler.)

    What is cost of replacement teeth?

    1. This subsoiler is designed to loosen compacted soil. It is not designed to remove or break rocks. When being used as designed, rocks can be dislodged from the compacted soil. Replacement tooth part
      NOR514634 is available through our sister company Jack's Small Engines. Please visit www.Jackssmallengines.com for pricing and availability.

      Helpful?

    2. That is not the normal use but I have used one to remove chunks of concrete and didn't have any issues at all. I mounted the shank backwards and backed the into the concrete while lifting the hitch to roll the concrete out of the ground. For the price it is well worth trying.

      Helpful?

  4. Does it run off my 3 point. How deep will it dig

    1 answer

    1. This requires a 3 point connection. The depth this unit will dig depends on the size of subcompact tractor and the 3 point hitch depth control setting. This has a maximum depth of 14".

      Helpful?

  5. Do they make other tips for this. .((shovel for ditching ,)??

    1 answer

    1. Other tips are not available for this subsoiler.

      Helpful?

  6. What is the recommended part number for the lift (not top) pins?

    1 answer

    1. Replacement hitch/lift pins part #NOR5146311 and can be ordered through our sister company Jack's Small Engines. Please visit www.jackssmallengines.com for pricing and availability.

      Helpful?

  7. Is this quick hitch compatible

    1 answer

    1. This subsoiler is compatible with a Category 1, 3-point quick hitch.

      Helpful?

  8. It looks like there are 2 sets of holes for the shank. Can it be adjusted or is there only one setting for the shank?

    1 answer

    1. The other holes shown in the main frame are available to adjust the height of the shank.

      Helpful?

  9. Is there a pipe laying attachment for this subsoiler ?

    1 answer

    1. A pipe laying attachment is not available for this subsoiler.

      Helpful?

  10. Where is this manufactured?

    1 answer

    1. This item is manufactured in China.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
