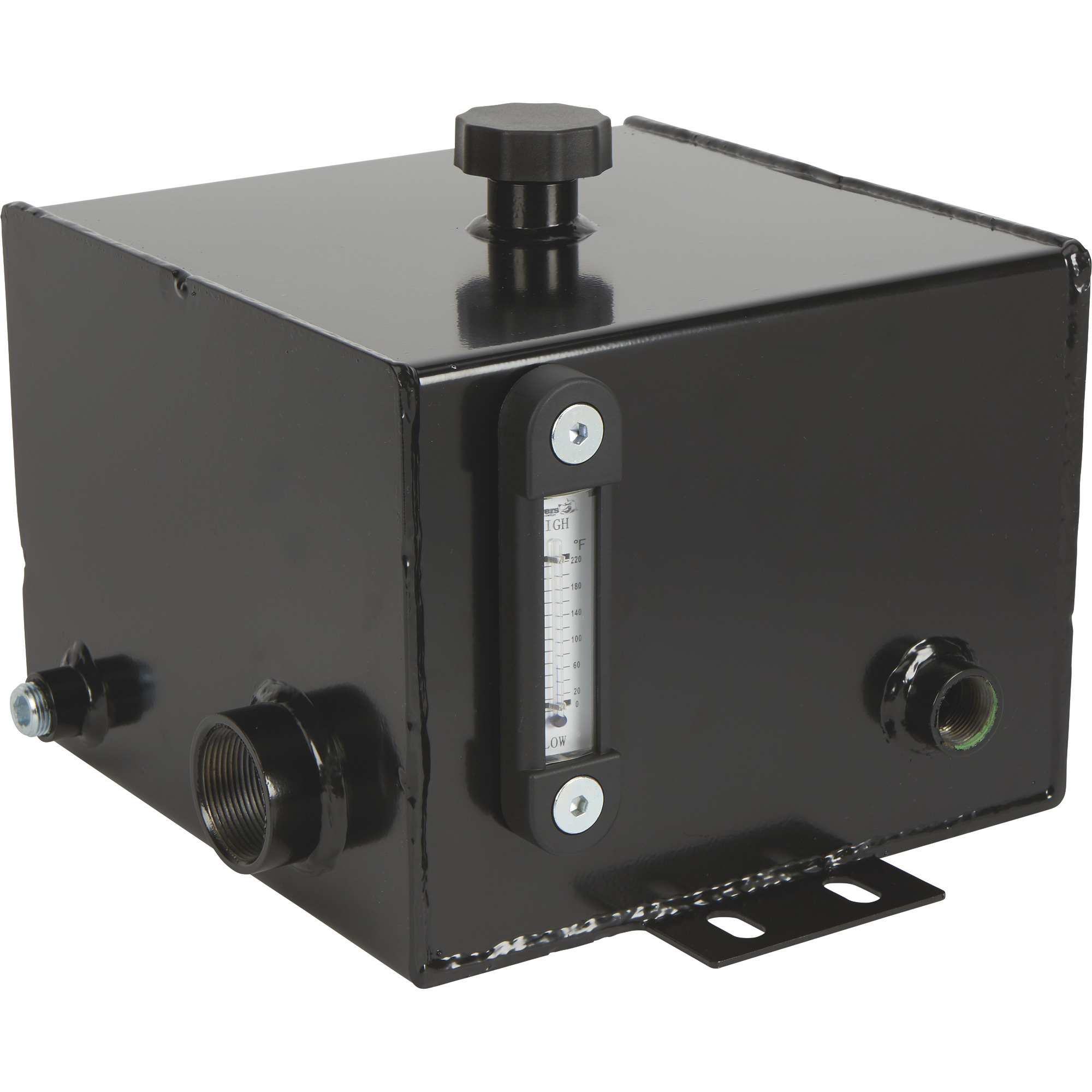

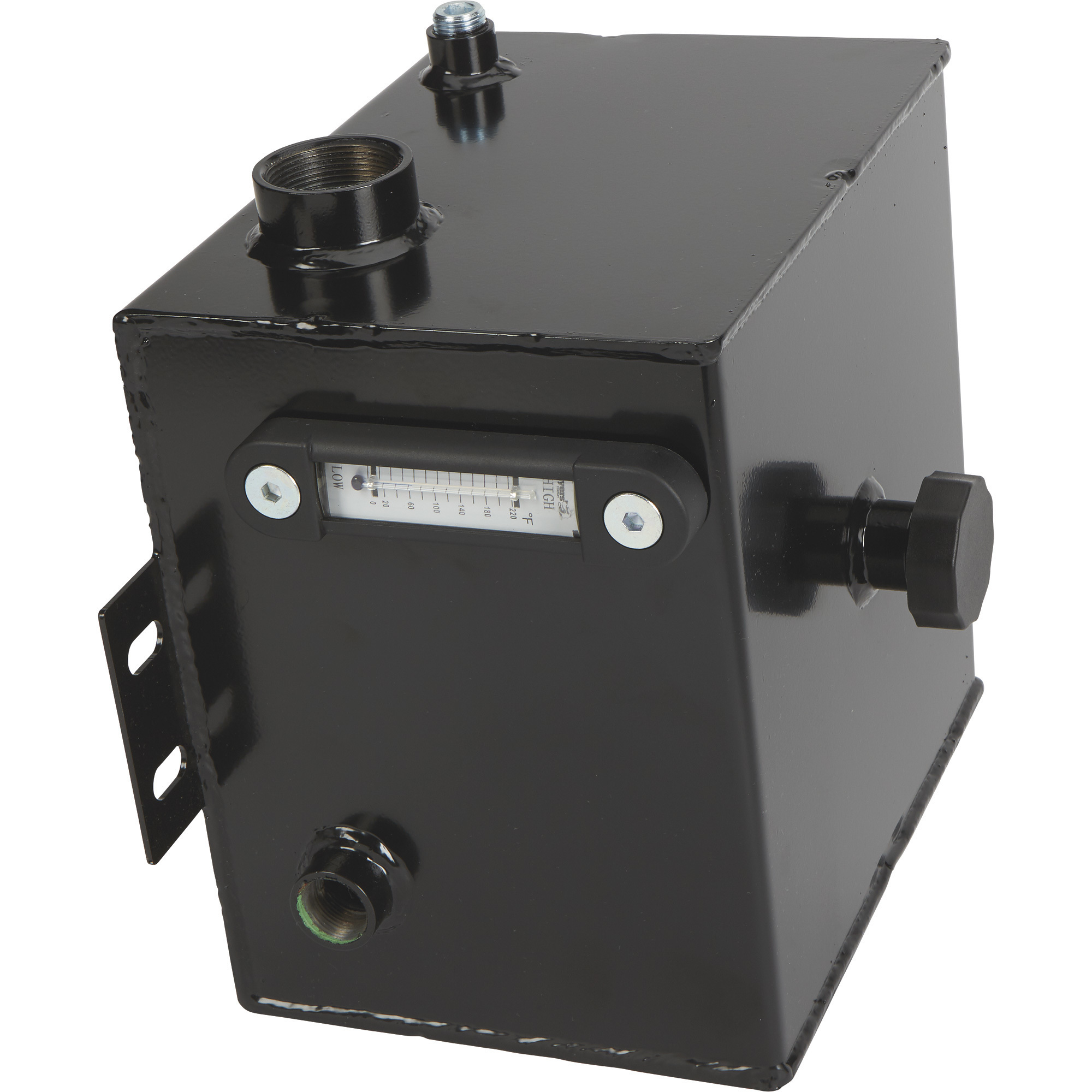

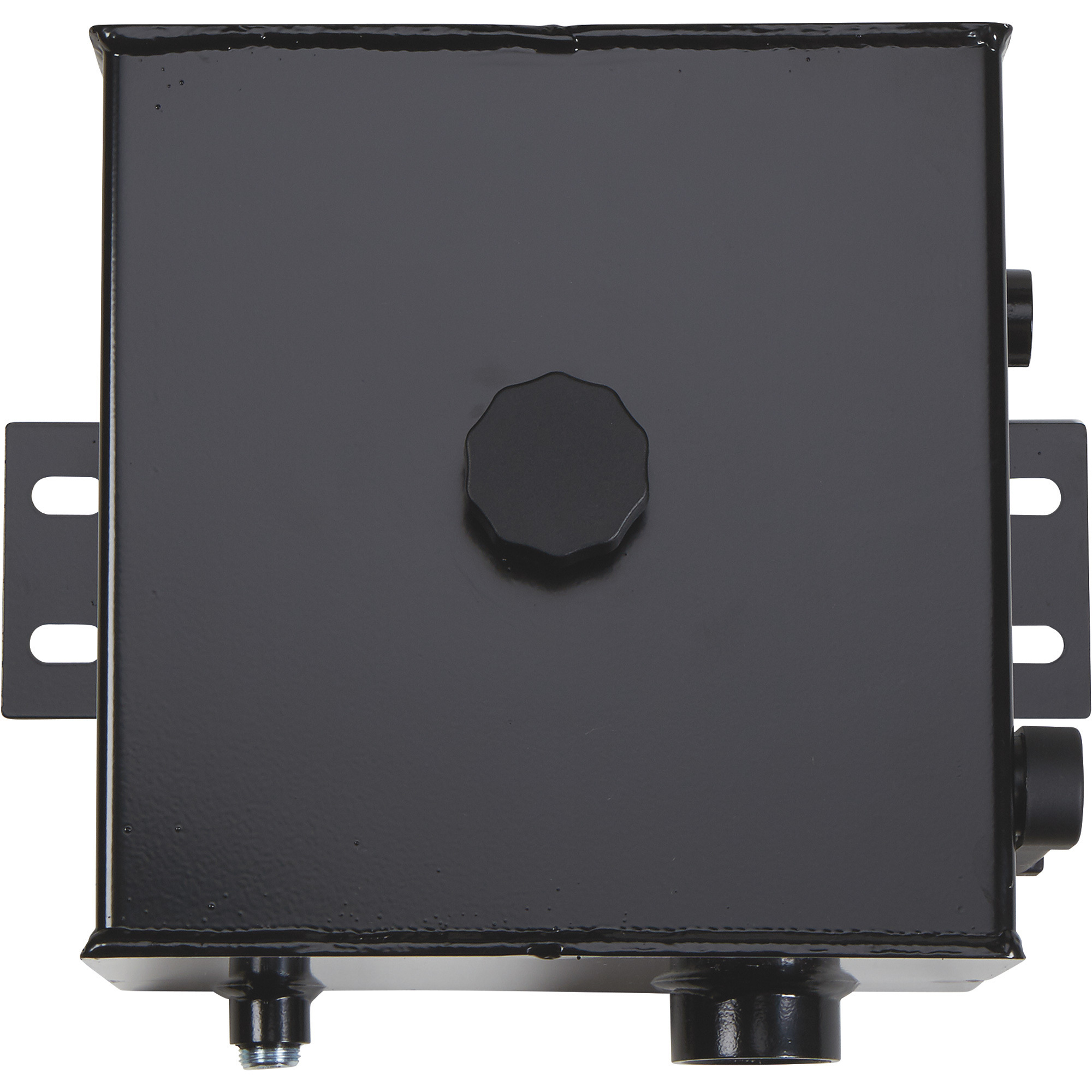

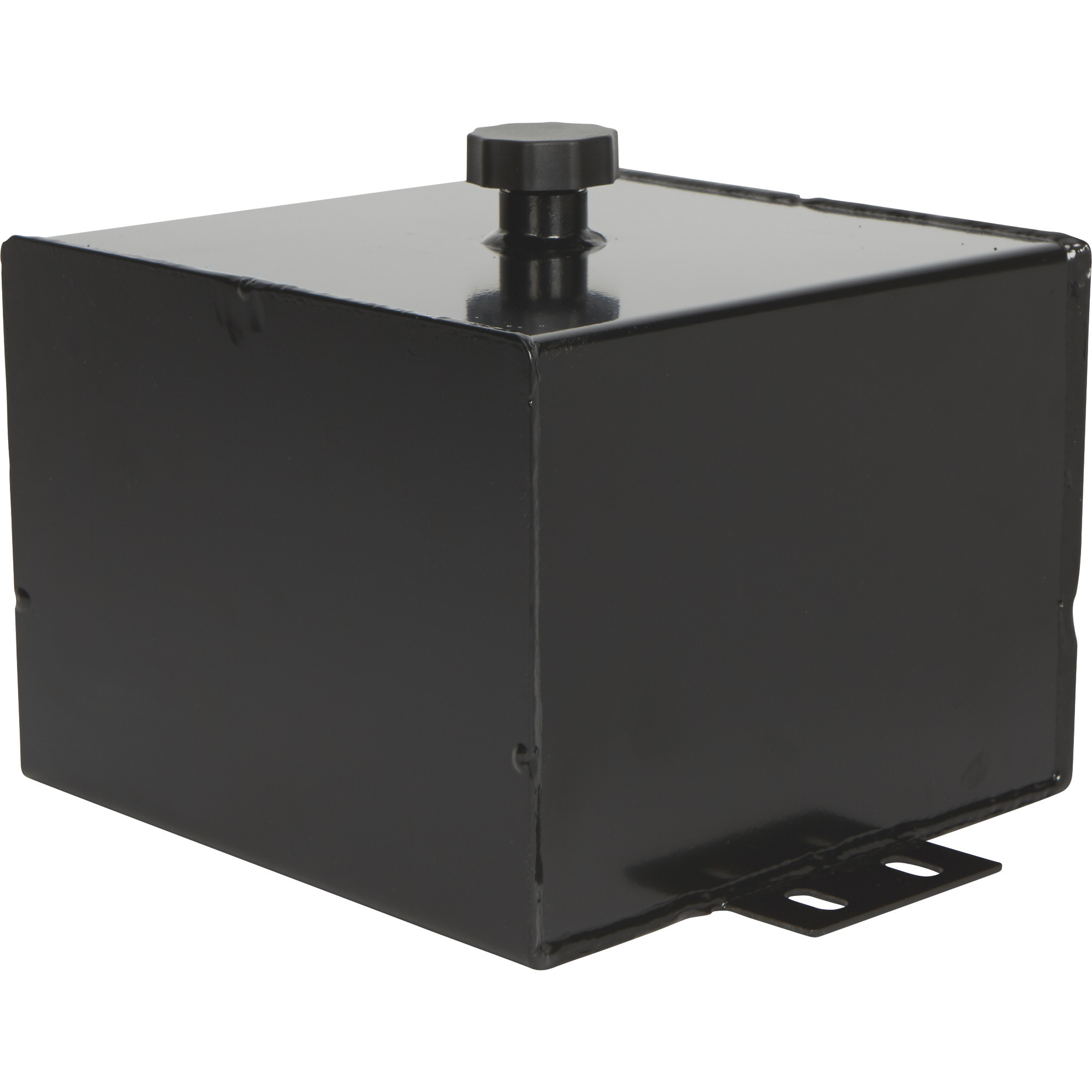

NorTrac Steel Hydraulic Fluid Reservoir, 3-Gal. Capacity

Item# 4051101
"NorTrac Steel Hydraulic Fluid Reservoir, 3-Gal. Capacity"
NorTrac Steel Hydraulic Fluid Reservoir, 3-Gal. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Steel Hydraulic Fluid Reservoir, 3-Gal. Capacity

Click or Tap image to Zoom

$179.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Sight level fluid gauge with thermometer allows you to monitor fluid levels and temperature of hydraulic fluid
  • Magnetic drain plug and threaded breather cap with 40 micron filter help to prevent oil contamination, which can lengthen the life of your hydraulic equipment
  • Sturdy welded-on 2in. o.c. mounting brackets with 4-bolt mount
  • Can be used with compatible suction strainer Item# 56983 (sold separately)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

This NorTrac® Steel Hydraulic Fluid Reservoir features sturdy 12-gauge grade 50 HRPO steel welded construction. The tank is 100% leak-tested and finished in a durable black powder-coat paint. 3-gal. capacity with 1 1/2in. suction port and 3/4in. return port. Measures 11.3in.L x 11.3in.W x 8.46in.H.

What's Included

    (1) Hydraulic fluid tank

Downloads

Product Manual

Features + Benefits

  • Sight level fluid gauge with thermometer allows you to monitor fluid levels and temperature of hydraulic fluid
  • Magnetic drain plug and threaded breather cap with 40 micron filter help to prevent oil contamination, which can lengthen the life of your hydraulic equipment
  • Sturdy welded-on 2in. o.c. mounting brackets with 4-bolt mount
  • Can be used with compatible suction strainer Item# 56983 (sold separately)

Key Specs

AttributeSpecification

item#

4051101

Brand

NorTrac

Ship Weight

22.2 LB

Capacity

3 Gal

Suction Port Size

1-1/2 in
AttributeSpecification

Return Port Size

3/4 in

Material

Steel

Product Weight

lb

Dimensions L x W x H (in.)

11.3 x 11.3 x 8.46 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What material are the seals and gaskets in this tank made of?

    1 answer

    1. The seal/gasket in the hydraulic fill gauge is made of NBR with a durometer of 60-70.

      Helpful?

  2. Is the 8-15/32" height to the top of the fill cap? Or to the side of the tank?

    1 answer

    1. The overall height including the breather cap is 9.78". The height to the top of the tank is 8.46".

      Helpful?

  3. Can this unit hold liquids in excess of 220 degrees?

    1 answer

    1. To help eliminate damage to seals and reduced life of the hydraulic fluid/oil, the maximum hydraulic fluid temperature should be no higher than 180 degrees Fahrenheit. In the event a malfunction occurs or a blockage creates high fluid temperatures this tank is able to handle up to 220 degrees Fahrenheit, as indicated on the thermometer.

      Helpful?

  4. Will this reservoir tank work on a log splitter?

    1 answer

    1. This reservoir can be used on a log splitter.

      Helpful?
