NorTrac Steel Hydraulic Fluid Reservoir, 7-Gal. Capacity

Item# 4051121
"NorTrac Steel Hydraulic Fluid Reservoir, 7-Gal. Capacity"
NorTrac Steel Hydraulic Fluid Reservoir, 7-Gal. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Steel Hydraulic Fluid Reservoir, 7-Gal. Capacity

Click or Tap image to Zoom

$219.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only

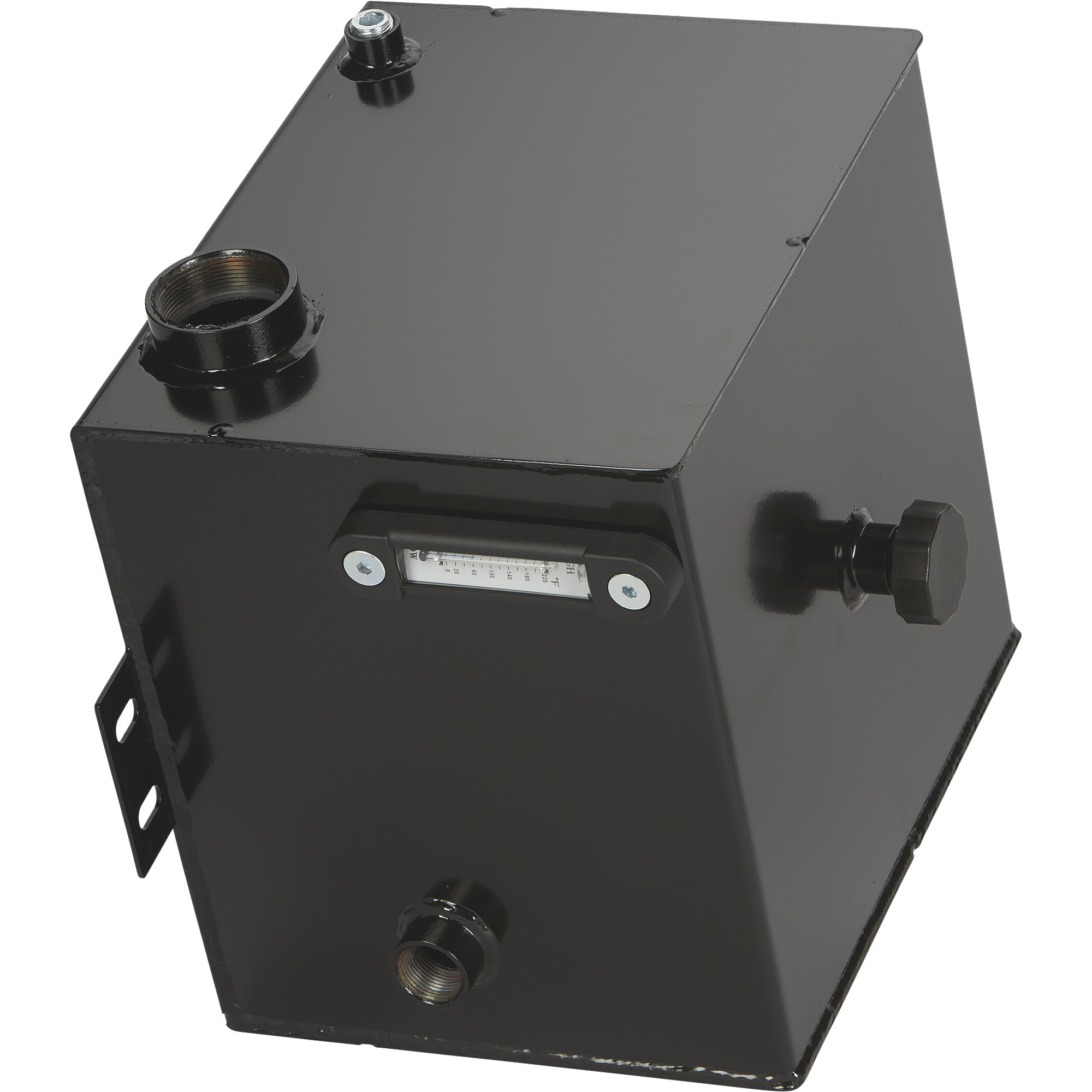

  • Sight level fluid gauge with thermometer allows you to monitor fluid level and temperature of hydraulic fluid
  • Magnetic drain plug and threaded breather cap with 40 micron filter help to prevent oil contamination, which can lengthen the life of your hydraulic equipment
  • Sturdy welded-on 2in. o.c. mounting brackets with 4-bolt mount
  • Can be used with compatible suction strainer Item# 778639 (sold separately)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

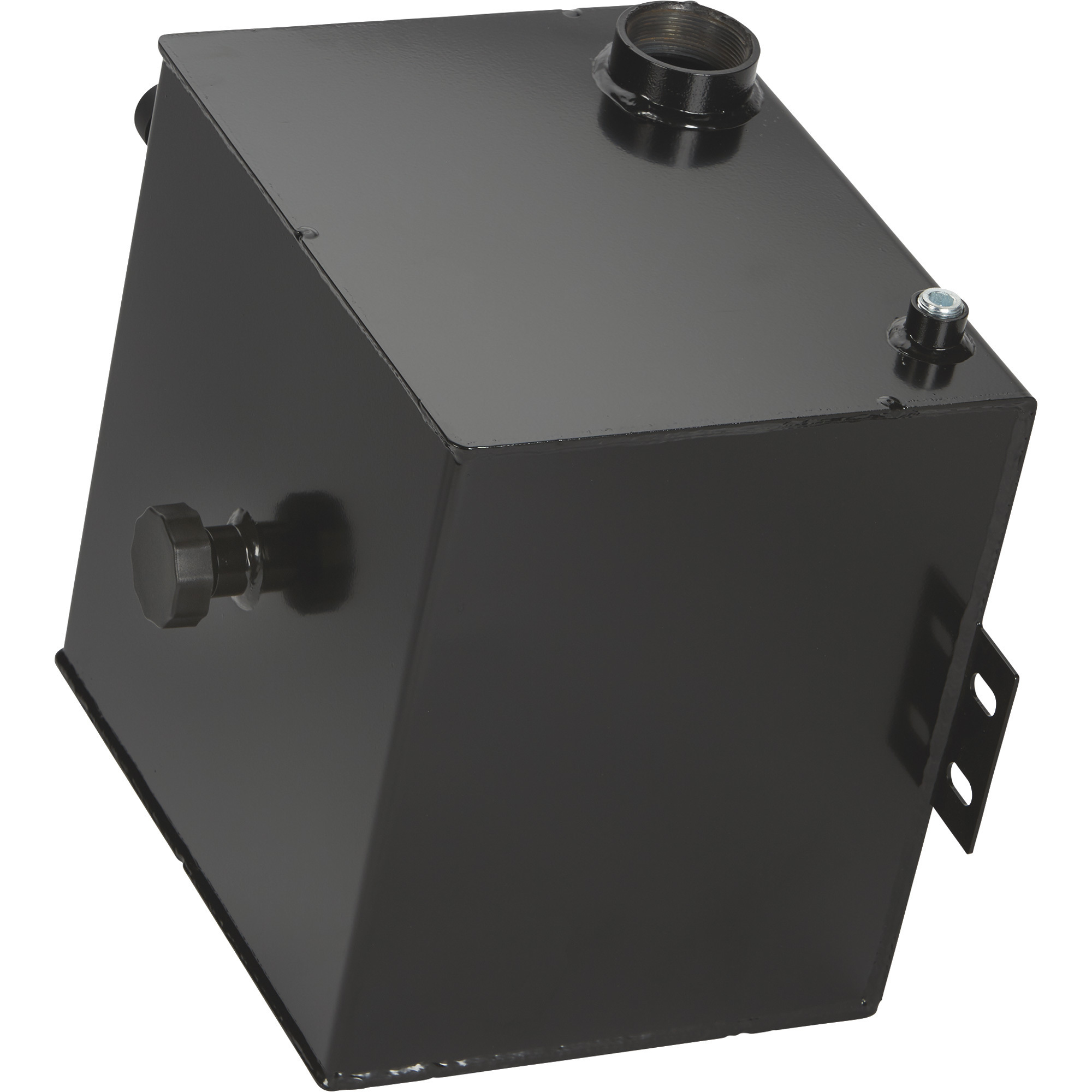

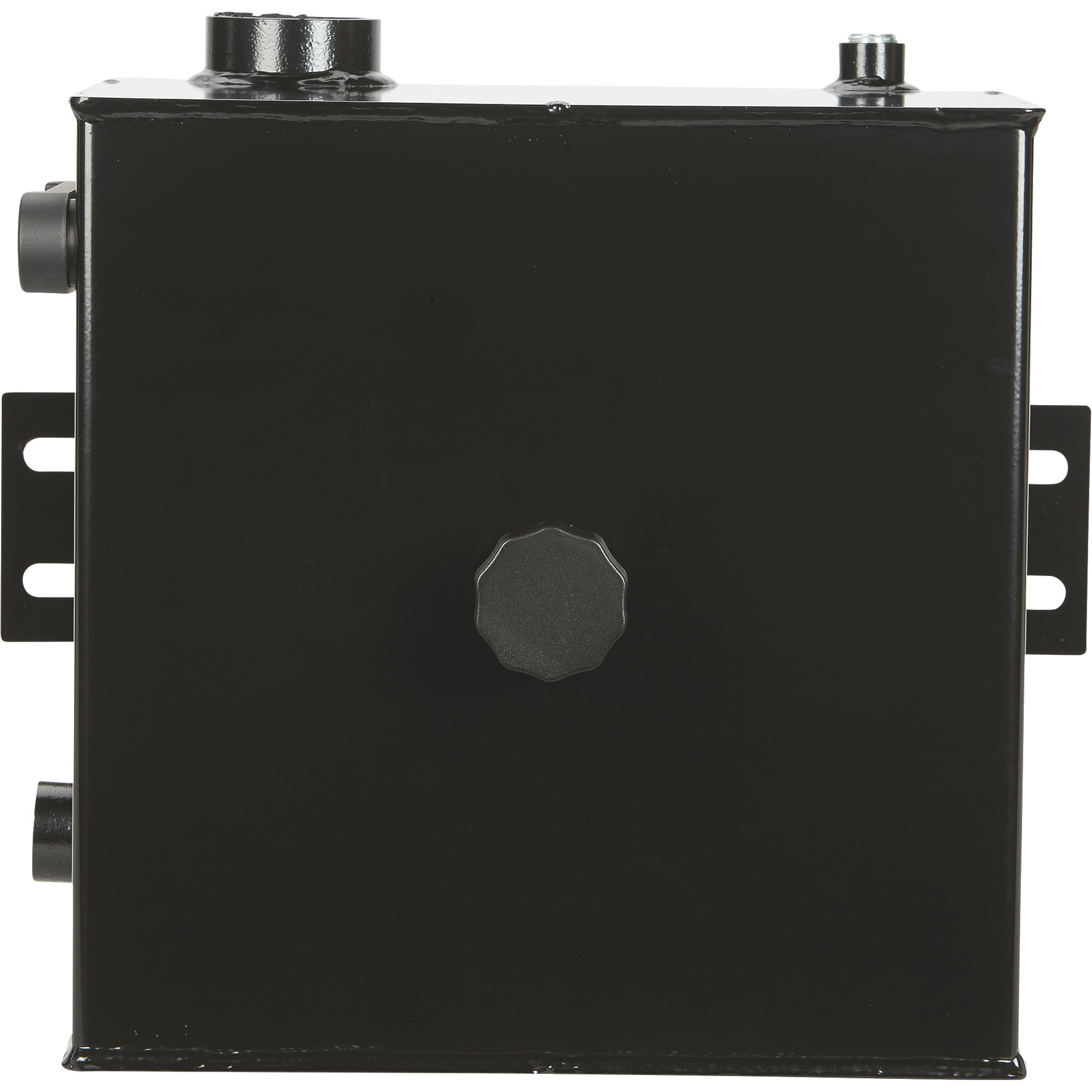

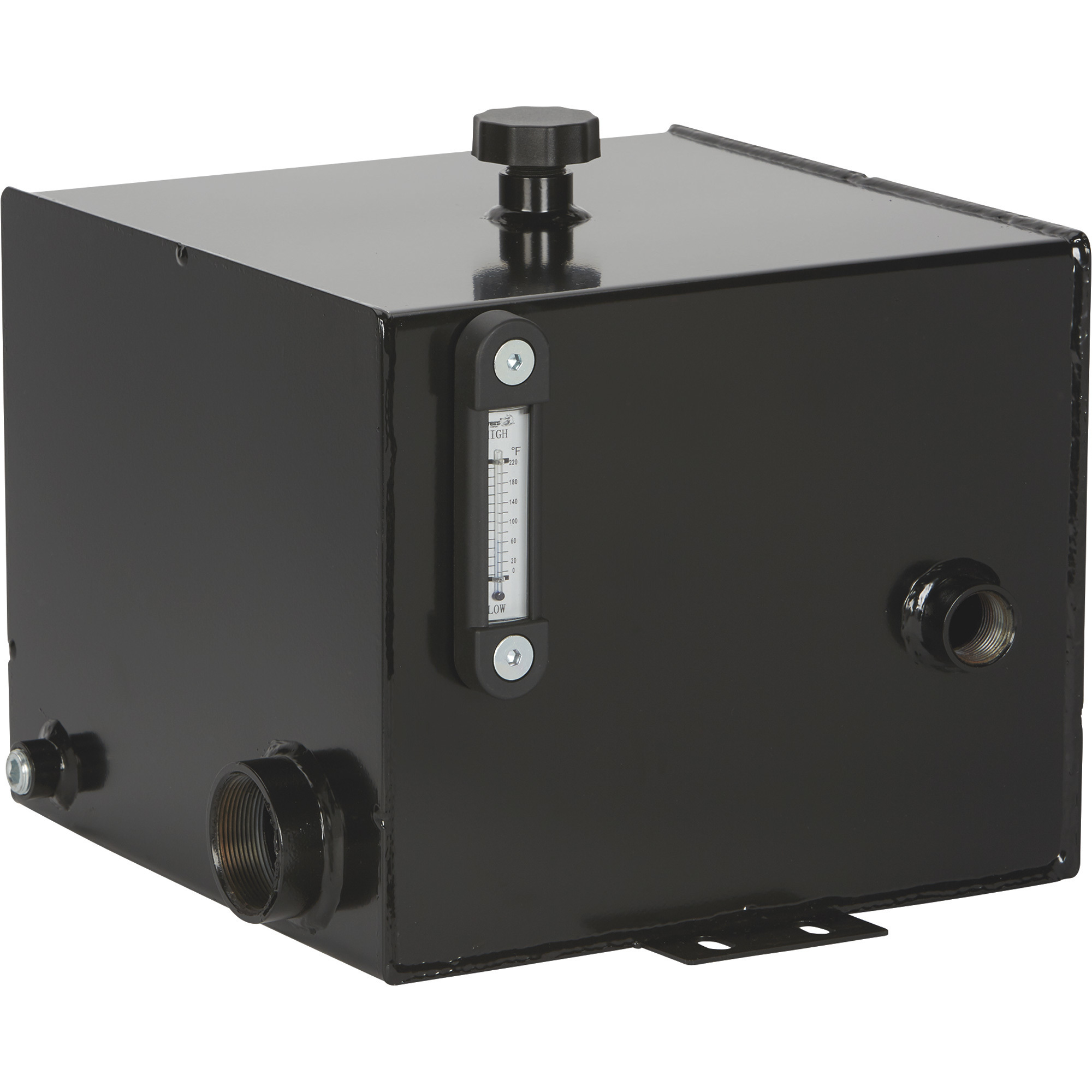

This NorTrac® Steel Hydraulic Fluid Reservoir features sturdy 12-gauge grade 50 HRPO steel welded construction. The tank is 100% leak-tested and finished in a durable black powder-coat paint. 7-gal. capacity with 2in. suction port and 1in. return port. Measures 13.98in.L x 13.98in.W x 11.46in.H.

What's Included

    (1) Hydraulic fluid tank

Downloads

Product Manual

Features + Benefits

  • Sight level fluid gauge with thermometer allows you to monitor fluid level and temperature of hydraulic fluid
  • Magnetic drain plug and threaded breather cap with 40 micron filter help to prevent oil contamination, which can lengthen the life of your hydraulic equipment
  • Sturdy welded-on 2in. o.c. mounting brackets with 4-bolt mount
  • Can be used with compatible suction strainer Item# 778639 (sold separately)

Key Specs

AttributeSpecification

item#

4051121

Brand

NorTrac

Ship Weight

34.4 LB

Capacity

7 Gal

Suction Port Size

2 in
AttributeSpecification

Return Port Size

1 in

Material

Steel

Product Weight

lb

Dimensions L x W x H (in.)

13.96 x 13.96 x 11.46 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Hi. Is there a CAD model for this part? Thank you

    1 answer

    1. At this time, we are unable to offer a CAD model for this part.

      Helpful?

  2. what size fitting goes in suction

    1 answer

    1. The suction port size is 2" FNPT (female national pipe thread).

      Helpful?

  3. Does the height measurement include the fill neck/ cap ?

    1 answer

    1. The height including the fill neck and cap is 12.65".

      Helpful?

  4. Does this tank have an internal baffle?

    1 answer

    1. There is no internal baffle in the tank. The tank design is two pieces of sheet metal each bent to make three sides of the tank. The first piece of sheet meal is the bottom, front and back. The second piece of sheet metal is the top, left and right side. The four couplings are then welded onto the sheet meal pieces.

      Helpful?

  5. Will this take a working pressure of 20 psi

    1 answer

    1. This tank is not able to be pressurized and is not a sealed design. This tank also has a breather cap that houses the 40 micro filter so it is not a sealed cap.

      Helpful?

  6. Is the 7 gallon capacity the amount of fluid this tank is designed to hold or the total volume inside the tank?

    1 answer

    1. The amount of fluid this tank is capable of holding is 7 gallons.

      Helpful?
