NorTrac Quick-Hitch Bushing Set

Item# 508700
Top SellerClearance

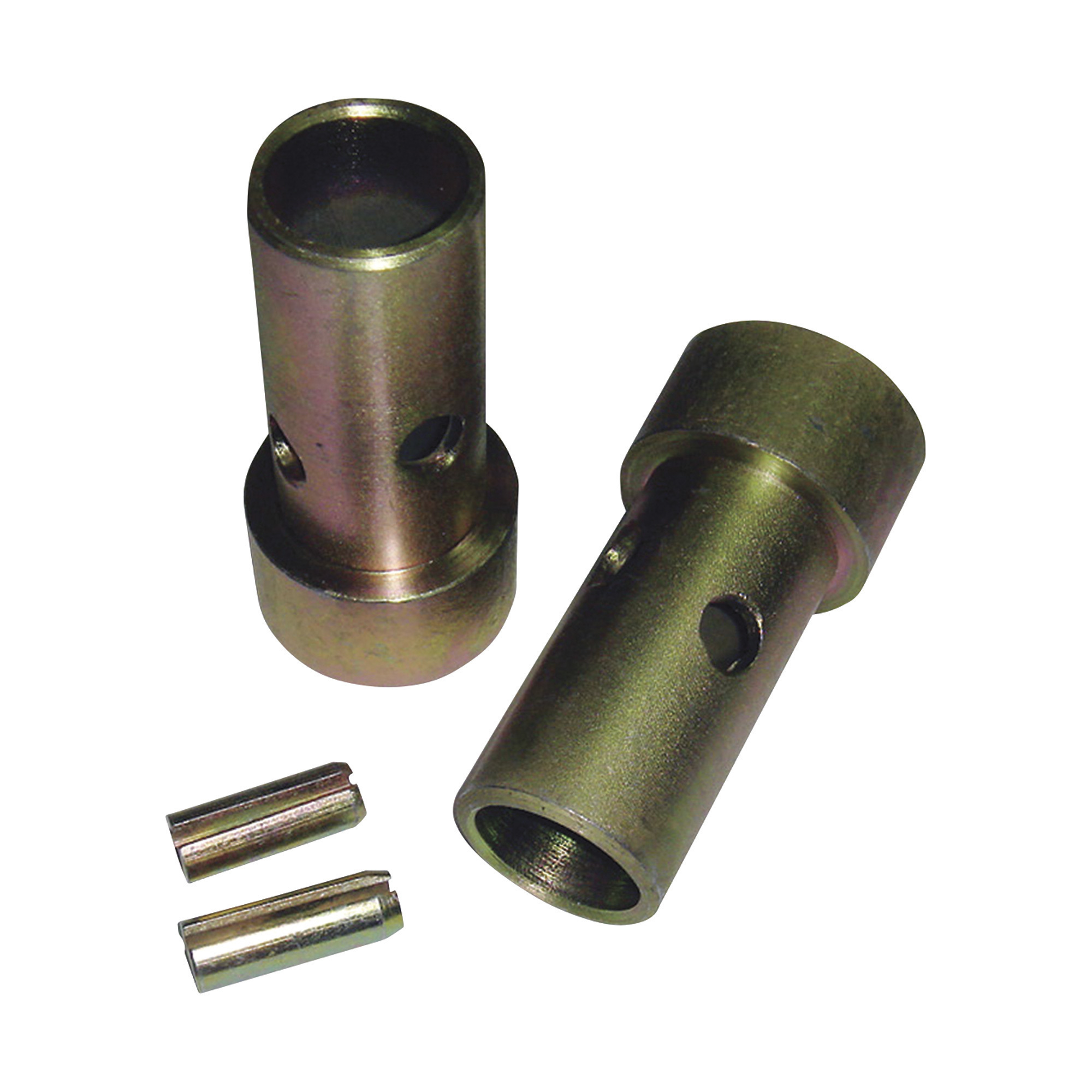

NorTrac Quick-Hitch Bushing Set

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Quick-Hitch Bushing Set

Click or Tap image to Zoom

$12.99
Reg $24.99Save $12.00

Order today to get this price.

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Medium carbon steel construction
  • Measurements: I.D. 7/8in.; O.D. 1 7/16in.; Length 4in.; Cap height 2in.
  • Category 0 (Must purchase NorTrac Quick Hitch Bushing Set # 508700 to fit Category 1 implements)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Designed for use with 3-pt. quick-hitches. 4in.L x 7/8in. inside dia.

What's Included

    (1) Bushing set

Features + Benefits

  • Medium carbon steel construction
  • Measurements: I.D. 7/8in.; O.D. 1 7/16in.; Length 4in.; Cap height 2in.
  • Category 0 (Must purchase NorTrac Quick Hitch Bushing Set # 508700 to fit Category 1 implements)

Key Specs

AttributeSpecification

item#

508700

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.12 LB
AttributeSpecification

Product Type

3-Point Hitch Adapters

For Use With

3-pt. Quick-hitches

Product Weight

lb

Dimensions L x W x H (in.)

4.0 x 1.43 x 2.0 in

Reviews

Questions & Answers

70 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Is an adaptor not recommended for the top link since they come in pairs? Play doesn't matter there?

    1. I like to keep play and work separate. For quick hitch compatible implements, I use Cat 1 to Cat 2 (3/4" ID, 1" OD) top link bushings. (A section of 1" pipe works in a pinch.) For implements that are not compatible, I purchased a quick hitch adapter bracket that installs in place of the top hook.

      Helpful?

    2. No, the top pin is standard. The quick hitch hook just slides under it. On some implements with limited space, I have to use the top link adjustment to catch the pin by hand, and then shorten the top link up again, but on many implements I just back up and hook up and never get off the tractor

      Helpful?

    3. The NorTrac Quick-Hitch Bushing Set will not require an adapter for the top link.

      Helpful?

  2. The slotted roll pins appear to be 1/2" in diameter. They appear too big for the list arm pins on my implement. Have any suggestions?

    It is possible that a 7/16" diameter roll pin would work.

    1. The fit is supposed to be extremely tight, so the pins are the correct size.

      Helpful?

    2. The roll pins are 1/2" in diameter and can be driven into a smaller hole with a hammer.

      Helpful?

    3. They fit tight and I had to use my shop hammer to put them in.

      Helpful?

  3. How many in a set? 1 bushing and pin or 2 bushings with pins.

    1. Two bushing and two pins. For both sides.

      Helpful?

    2. Each unit includes a pair of bushings with roll pins to secure them.

      Helpful?

    3. The NorTrac Quick-Hitch Bushing Set includes 2 bushings and 2 pins.

      Helpful?

  4. I have category 1 arms on my tractor 3 pt. hitch and I just bought a sickle mower that has category 2 pins - will this allow me to adapt and put the mower pins into my smaller diameter holes?

    1. No, these are for converting the lower pins on the piece of equipment to properly fit into a Cat 1 quick hitch.

      Helpful?

    2. This bushing set will not adapt/attach a category 2 implement to a category 1 hitch. The bushing set will make attaching your implements to a quick hitch easier and also provides a snug fit to minimize implement movement.

      Helpful?

    3. No.

      Helpful?

  5. how do you install this item?

    1. You would slide these over the two lower Cat 1 hitch pins, line up the holes in the bushing and hitch pin and drive the roll pins through until they are flush.
      Smaller end would go on first.

      Helpful?

    2. The roll pins that come with these are super strong. Get a pair of vise grips and slightly clamp/squeeze one end (so it's smaller in diameter). Then tap the pin in the bushing, but not all the way through. Remove the vise grips, then slide the bushing on the pins on your implement. Line up the hole with the roll pin, then tap the roll pin with a hammer until it's flush with the bushing body. It only takes minutes to install these.

      Helpful?

    3. The NorTrac Quick-Hitch Bushing Set will install over the lower hitch pins of your category 1 implement. This will make attaching the implement easier and will give it a more snug fit, minimizing movement. We recommend a set for each implement you will be using, which will save time when changing between them.

      Helpful?

  6. Why are there two different outside diameters on the bushings?

    Do the wider ends point outwards when installed? Is the goal to have the quick hitch hooks pick up the bushings on the narrower piece?

    1. The larger diameter ends will be on the outside when installed. The quick hitch will pick up the implement by the narrower portion, and the larger diameter portion will help to stabilize sideways movement of the implement.

      Helpful?

    2. You are exactly correct. The wider portion keeps the sideways slop down, while the thinner middle portion actually does the lifting

      Helpful?

  7. Can I purchase the inserts for the bushing

    1 answer

    1. Replacement parts are not available for this item.

      Helpful?

  8. U Shape Bracket Connection?

    My tractor is Cat 1.....and most of my equipment has the U shaped brackets for connection the lower control arms.

    Is the quick hitch designed for this type of set up, if so what type of adapter(s) do I need.

    1 answer

    1. This bushing set is for use with category 1 3-pt. quick-hitches like items 51551 and 12610.

      Helpful?

  9. Will these bushings work with Pat's Category 1 quick hitch? Are they useful with Pat's quick hitch?

    1 answer

    1. The Pat's Premium 3-point quick change hitch for Category 1, item 12610, is made for a 7/8" pin. This NorTrac bushing set has too large of an outside diameter, 1-7/8" on the large end and 1-7/16" on the small end, to work with that hitch.

      Helpful?

  10. Which adjustable draw pin works with the NorTrac Quick Hitch Bushing Set?

    1 answer

    1. The required draw pin is no longer offered by Northern Tool.

      Helpful?
