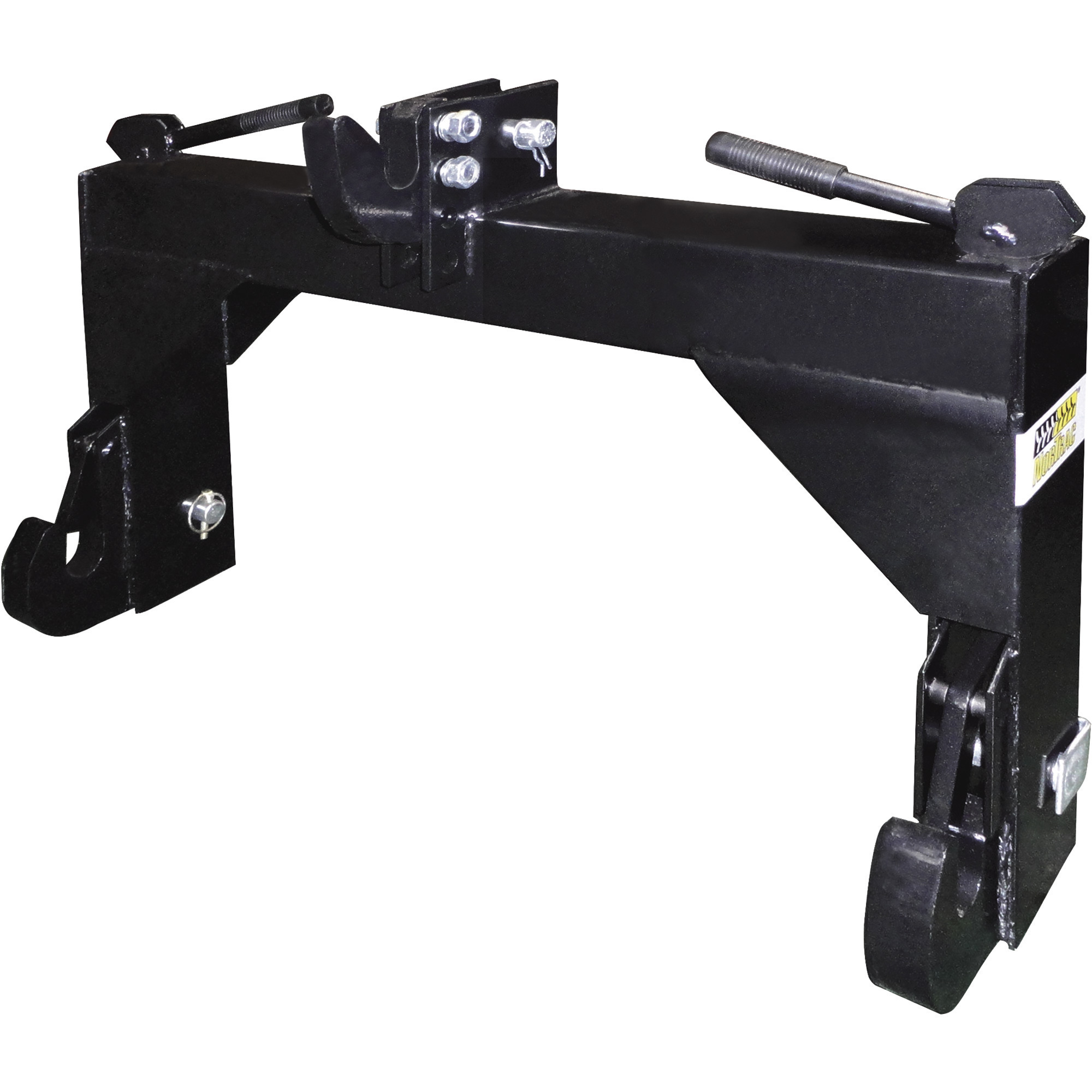

NorTrac 3-Pt. Quick Hitch, 30in.W, Category 1

Item# 51551
Top Seller
NorTrac 3-Pt. Quick Hitch, 30in.W, Category 1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac 3-Pt. Quick Hitch, 30in.W, Category 1

Click or Tap image to Zoom

$209.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 30in.W hitch accepts 2-point arms for compatibility with Category 1 implements
  • (2) spring-loaded handles allow quick implement attachment and release from the tractor seat
  • Recommended for tractors under 50 HP
  • Heavy-duty steel construction for durability
  • Hammertone protective finish resists wear and corrosion

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorTrac 3-Pt. Quick Hitch expands the versatility of your tractor by allowing fast attachment and release of implements without leaving the seat. This Category 1 quick hitch features (2) spring-loaded handles for quick operation and is recommended for use with tractors under 50 HP. Built with heavy-duty steel and a hammertone protective finish, it delivers reliable performance in demanding conditions.

What's Included

    (1) Quick hitch

Downloads

Product Manual

Features + Benefits

  • 30in.W hitch accepts 2-point arms for compatibility with Category 1 implements
  • (2) spring-loaded handles allow quick implement attachment and release from the tractor seat
  • Recommended for tractors under 50 HP
  • Heavy-duty steel construction for durability
  • Hammertone protective finish resists wear and corrosion
  • 880-lb. maximum lift weight

Key Specs

AttributeSpecification

item#

51551

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

70.0 LB
AttributeSpecification

Category

1

Product Type

3-Point Hitch Adapters

Product Weight

lb

Dimensions L x W x H (in.)

30.0 x 8.0 x 24.0 in

Reviews

Questions & Answers

68 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. Does the Quick Attach have any issues with certain Brand Implements ??

    1. Any implement that is "Quick Hitch" ready should fit. It is a standard that implement manufacturers try to build to. If you have questions about fit I would suggest getting the dimensions of the Quick Hitch standard and compare that with what you have. Some adapters are available to make non-standard components fit. Reference to these adapters is in the owners manual.

      Helpful?

    2. As long as the implement is rated for category 1, it would work with this quick hitch.

      Helpful?

  2. Does this hitch work with NorTrac 35XT 35 HP 4WD Tractor with Front End Loader — With Ag. TiresItem# 511225

    1. yes

      Helpful?

    2. This quick hitch is compatible with the NorTrac 35XT tractor, item 511225.

      Helpful?

  3. quick attach

    what is the outside diameter or thickness of the top link hook on the category 1 quick attach( item # 51551) ?

    1. 1 1/4 inch

      Helpful?

    2. The thickness of the top link hook would be 1.18".

      Helpful?

  4. Are bushings required?

    I noticed Norther Tool part number 508700 is bushings for a quick connect. I just ordered this hitch but do I also now need bushings for my implements or can I use without bushings?

    1. you don't have to have bushings, but bushings will provide for less play/noise if you care about that

      Helpful?

    2. Bushings are not required; however, adding bushings, like item 508700, will make attaching the implement easier. The bushings will also give the implement a more snug fit, minimizing movement. We recommend a set for each implement you will be using, as it will save time when switching between implements.

      Helpful?

  5. Can I get replacement parts for the Nor Trac quick hitch

    1 answer

    1. Parts are available through our sister company, Jacks Small Engines. Please contact our sales department at 1.800.221.0516 for assistance with part numbers and ordering instructions.

      Helpful?

  6. What is the weight of the quick hitch?

    1 answer

    1. The weight of this quick hitch is 70 lbs.

      Helpful?

  7. How big is the pin size

    1 answer

    1. This is a category 1 quick hitch. The lower arm pins have a 7/8" diameter and the top link pin has a 3/4" diameter.

      Helpful?

  8. what's the dimension the width (spread) of where  the arm of the tractor goes into? I need a least an inch and three-quarter spread.

    1 answer

    1. This hitch accepts 2-point arms that are 1-9/16" wide.

      Helpful?

  9. can you provide specs on this hitch such as weight capacity and height and with measurements

    1 answer

    1. This quick hitch has a maximum lifting capacity of 880 lbs. The hitch is 30" wide to the outside of the bottom hooks and 27-3/8" wide between the bottom hooks. It measures 24" high from the bottom hooks to the top hook.

      Helpful?

  10. How does this attach to the tractor?

    1 answer

    1. See page 6 of the product manual listed on our website for attaching this quick hitch to your tractor.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
