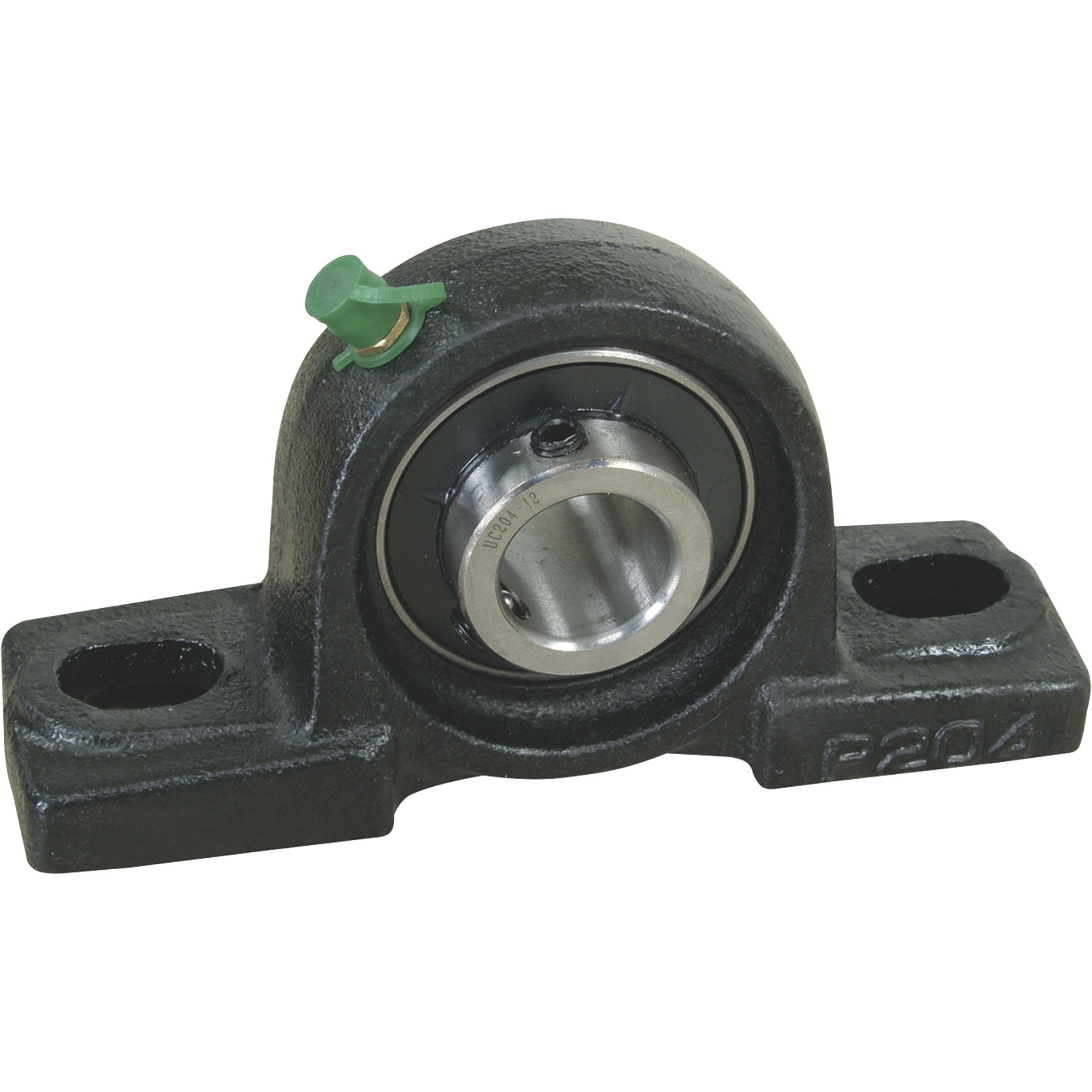

NorTrac Pillow Block Bearing, 2-Bolt Oval Mount, 3/4in.

Item# 189555
"NorTrac Pillow Block Bearing, 2-Bolt Oval Mount, 3/4in."
Top SellerClearance
NorTrac Pillow Block Bearing, 2-Bolt Oval Mount, 3/4in.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Pillow Block Bearing, 2-Bolt Oval Mount, 3/4in.

Click or Tap image to Zoom

$14.99
Reg $19.99Save $5.00

Order today to get this price.

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Dynamic load capacity of 1,388 lbs.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorTrac Pillow Block Bearing features solid cast housing and top-quality advanced seals designed to prevent leakage and keep dirt out of your hydraulic application.

What's Included

    (1) Pillow block bearing

Features + Benefits

  • Dynamic load capacity of 1,388 lbs.

Key Specs

AttributeSpecification

item#

189555

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.43 LB

Bore Diameter

1 in

Bearing Type

Roller

Static Load Capacity

2,213 lb
AttributeSpecification

Dynamic Load Capacity

1,388 lb

Bolt Hole Diameter

3/4 in

Housing Material

Cast Iron

Bolt Hole Shape

Oval

Mount Type

2-bolt

Product Weight

lb

Dimensions L x W x H (in.)

3.75 x 2.66 x 1.5 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. is the boar 3/4" on this item

    1. yes

      Helpful?

    2. YES

      Helpful?

    3. Yes, this has a 3/4" bore.

      Helpful?

  2. Are these pillow blocks self-aligning

    1 answer

    1. This is a J7 model which cannot be self-aligned. An H7 model is self-aligning. At this time, we do not offer the H7 models.

      Helpful?

  3. what is the offset, 90 degrees and is the keyways a 1/4 or 3/16???

    1 answer

    1. The center bushing sticks out .35" from the bearing. This does not have a keyway.

      Helpful?

  4. Is it ball or needle bearing and is it oil or grease?

    1 answer

    1. The pillow block will come with a greased roller bearing.

      Helpful?

  5. Shaft Size

    So if the bore is 3/4, what is the required shaft size? I have a 3/4 steering shaft I need a block bearing for.

    1 answer

    1. This NorTrac pillow block has a 3/4" bore which would accept a 3/4" shaft.

      Helpful?

  6. Used for vertical support?

    I would like to use this pillow block to vertically support a lead screw. Vertical weight ~100 lbs. Is this possible or can these only be used for horizontal support?

    1 answer

    1. The NorTrac Pillow Block are designed for horizontal use only.

      Helpful?

  7. Is this iron or aluminum?

    1 answer

    1. This NorTrac Pillow Block is manufactured with steel.

      Helpful?

  8. What is min/max bolt spacing?

    Item # 189555

    1 answer

    1. The 3/4" NorTrac Pillow Block has a minimum bolt spacing of 2-15/16" and maximum bolt spacing
      is 4-7/16".

      Helpful?

  9. What is the distance from the mounting surface to the center of shaft?

    1 answer

    1. The distance from the mounting surface to the center of the shaft is 1 3/8".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
