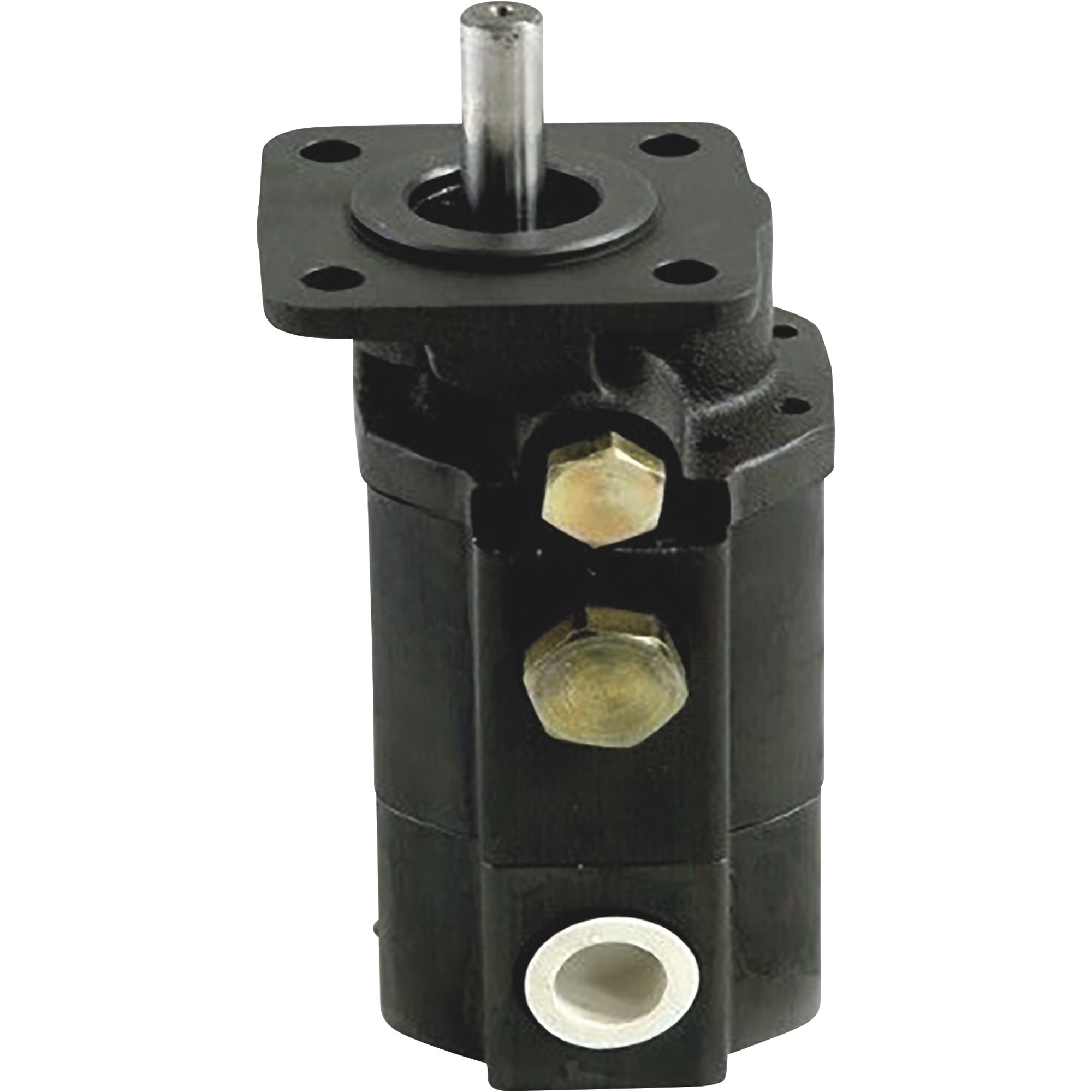

NorTrac Cast Iron/Aluminum Two-Stage High/Low Hydraulic Gear Pump, 13 GPM, 1/2in. Dia. Shaft, Model# CBNA-10.9/2.1

Item# 106970
NorTrac Cast Iron/Aluminum Two-Stage High/Low Hydraulic Gear Pump, 13 GPM, 1/2in. Dia. Shaft, Model# CBNA-10.9/2.1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Cast Iron/Aluminum Two-Stage High/Low Hydraulic Gear Pump, 13 GPM, 1/2in. Dia. Shaft, Model# CBNA-10.9/2.1

Click or Tap image to Zoom

$159.99

  • Shipping:

    Free shipping (lower 48 states)

  • Store Pickup:

    Not available - online only
  • Both large and small displacement pumps work together to provide faster extension at low pressures
  • Small pump works individually at higher pressures to greatly reduce power consumption
  • 1/2in. dia. hardened steel shaft delivers 3,600 rotations per minute
  • Check valve and unload valve for top performance
  • Continuous usage

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorTrac® 13 GPM Cast Iron/Aluminum Two-Stage High/Low Hydraulic Gear Pump is a CBT gear pump that consists of a big displacement, low-pressure pump combined with a small displacement, high-pressure pump. Ideal for log splitters, presses, machine tools, trash or refuse compaction and other applications where general rapid cylinder movement and high pressure is required to complete the work. Clockwise rotation.

What's Included

    (1) Two-stage hydraulic gear pump

Downloads

Product Manual

Features + Benefits

  • Both large and small displacement pumps work together to provide faster extension at low pressures
  • Small pump works individually at higher pressures to greatly reduce power consumption
  • 1/2in. dia. hardened steel shaft delivers 3,600 rotations per minute
  • Check valve and unload valve for top performance
  • Continuous usage
  • 3,000 max. PSI
  • Fast cycle times
  • Low horsepower consumption
  • Rugged cast iron/aluminum construction for long life

Key Specs

AttributeSpecification

item#

106970

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.6 LB

Max. PSI

3,000

Max. Flow Rate

13 GPM

Shaft Diameter

0.5 in
AttributeSpecification

Shaft Type

Keyed

Pump Type

Gear

Stage

Two-Stage

Material

Multiple

Product Weight

lb

Dimensions L x W x H (in.)

6.6 x 5.4 x 3.4 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. What is the inlet and outlet size/type

    1 answer

    1. This pump has a 1" NPT inlet and a 1/2" NPT outlet.

      Helpful?

  2. What is the low gpm? I assume the 13gpm is for the high speed stage, but what gpm does the low speed stage produce?

    1 answer

    1. The second stage can go as low as 2.02 GPM.

      Helpful?

  3. What Hp does this pump require to turn it?

    1 answer

    1. The HP required will depend on how much pressure is needed for the system.

      Helpful?

  4. Is this pump clockwise rotation

    1 answer

    1. This pump rotates clockwise.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
