NorthStar Tow-Behind Trailer Boom/Broadcast/Spot Sprayer, 31-Gallon Capacity, 2.2 GPM, 12 Volt DC

Item# 282785
"NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer, 31 Gallons, 2.2 GPM, 12 Volt DC"
Top SellerOn Sale

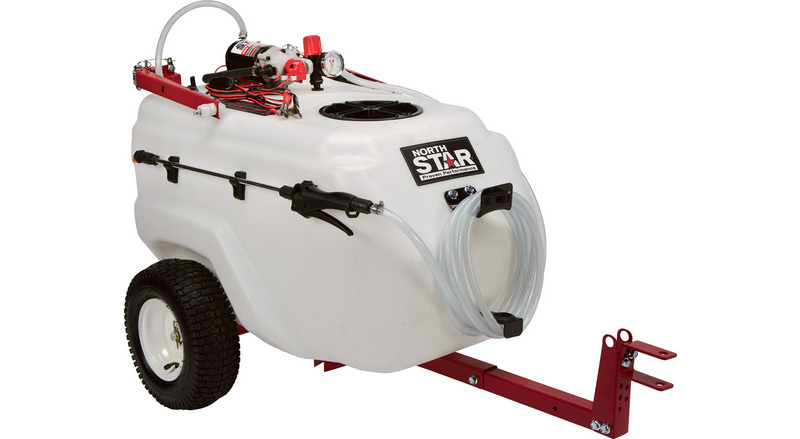

NorthStar Tow-Behind Trailer Boom/Broadcast/Spot Sprayer, 31-Gallon Capacity, 2.2 GPM, 12 Volt DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Tow-Behind Trailer Boom/Broadcast/Spot Sprayer, 31-Gallon Capacity, 2.2 GPM, 12 Volt DC

Click or Tap image to Zoom

$369.99
Reg $499.99Save $130.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Call Store for Availability
  • Broadcast, Boom and Spot Spraying Capability: Supports wide-area broadcast spraying, controlled boom coverage and targeted spot spraying for versatile property maintenance
  • 31-Gallon Tank Capacity: Provides extended spray time with fewer refills for larger lawns, fields and acreage applications
  • 2.2 GPM, 70 PSI, 12V Diaphragm Pump: Delivers reliable flow and consistent spray performance for a variety of spraying applications
  • Broadcast Boom with 120in. Spray Width: Provides wide-area coverage with 80in. effective spray width and 40in. overlap for consistent application results
  • Pressure Regulator with Built-In Agitation: Helps maintain consistent chemical mixture circulation for flowable, wettable powder and emulsified pesticides

See full description

Complete Your Solution

  • NorthStar Tow-Behind Trailer Boom/Broadcast/Spot Sprayer, 31-Gallon Capacity, 2.2 GPM, 12 Volt DC
  • West Chester Protective Gear Men's PVC Coated Work Gloves, Black, Large, Model# 12000-L
Price for all two:

$374.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar Tow-Behind Trailer Boom/Broadcast/Spot Sprayer is designed for efficient and versatile property maintenance across larger areas. With boom, broadcast and spot spraying capabilities, it allows you to cover wide sections of land or target specific weeds and problem areas with 1 system. The 31-gallon tank provides increased capacity to reduce refill frequency, helping you work longer without interruption. Powered by a 2.2 GPM, 12V NorthStar NSQ Series diaphragm pump with DXS-3 Viton valves and Santoprene diaphragm, it delivers up to 70 PSI of consistent flow for even application across lawns, fields and property lines. The tow-behind trailer design makes it easy to connect to ATVs, UTVs or lawn tractors, allowing you to move efficiently across your property. Built for larger jobs and extended use, this sprayer offers a practical balance of capacity, versatility and ease of operation.

What's Included

    (1) NorthStar Tow-Behind Trailer Boom/Broadcast/Spot Sprayer (1) Remote switch

Downloads

Product Manual
Play Item Video

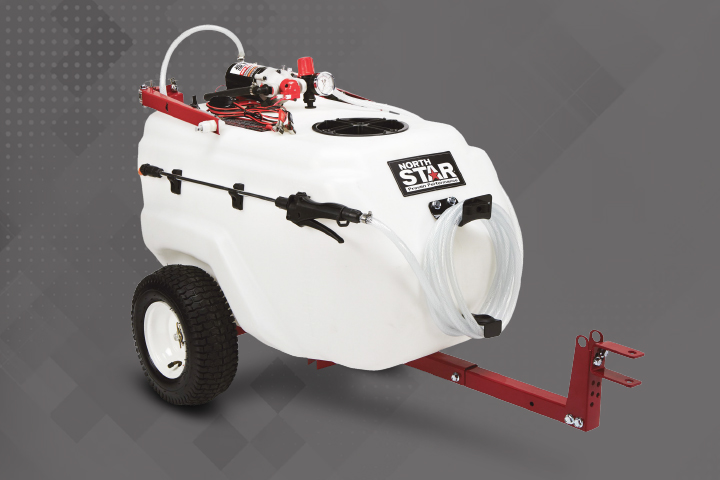

EASY OPERATION AND MAINTENANCE

Equipped with a 15 FOOT CLEAR PVC HOSE for simple chemical flow monitoring and a 7-1/2 INCH DIAMETER TANK LID for hassle-free fills and maintenance

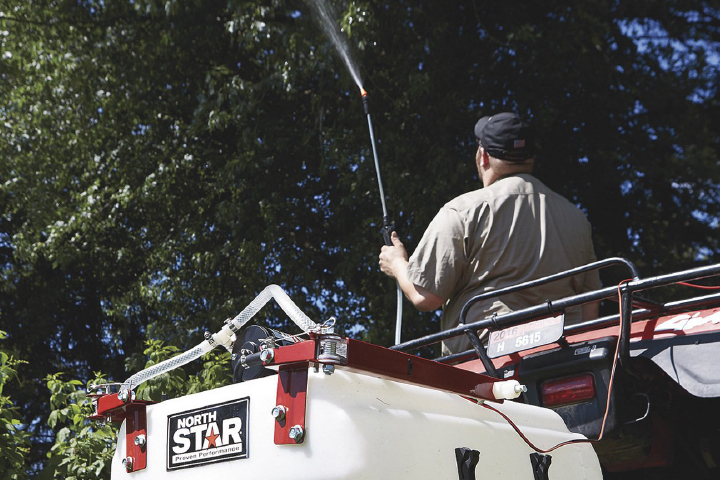

EFFICIENT CHEMICAL APPLICATION

SPOT SPRAY GUN NOZZLE ADJUSTS from cone to stream, capable of reaching 19 FEET VERTICALLY and 30 FEET HORIZONTALLY for targeted application

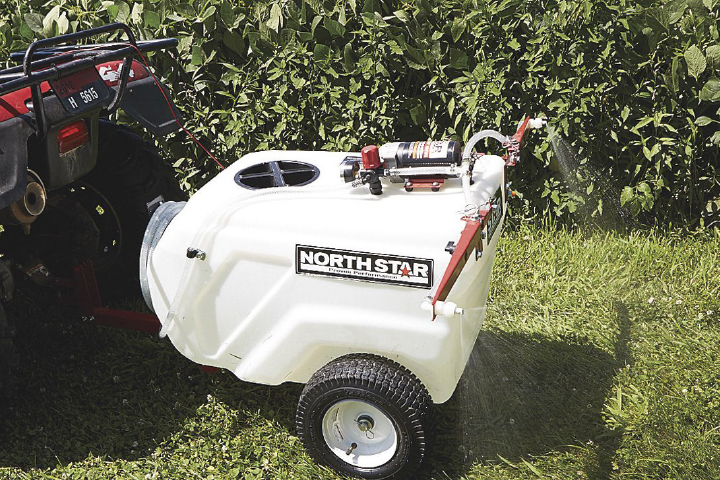

RUGGED CONSTRUCTION

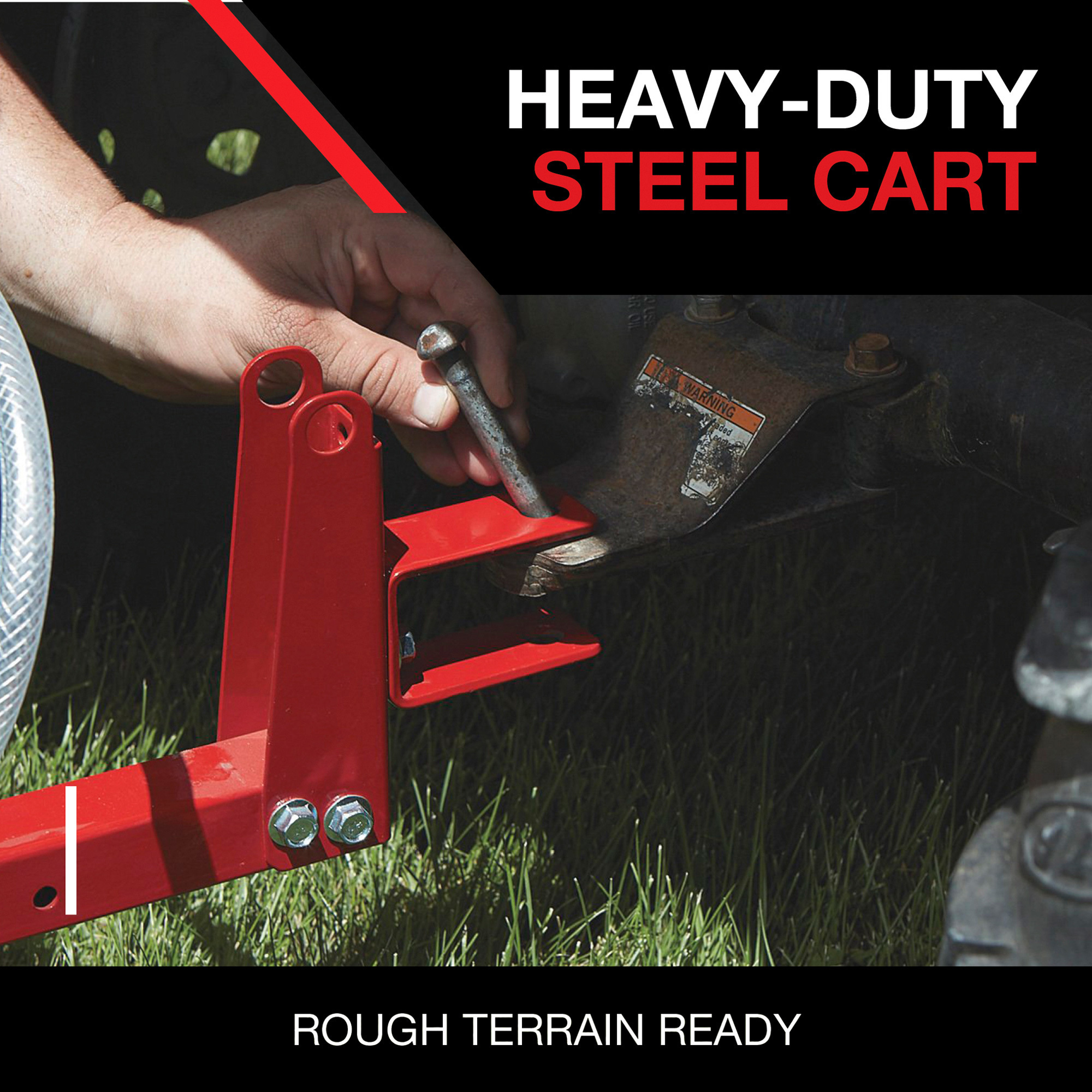

Built with a 100% STEEL CART and COATED for DURABILITY, ensuring it withstands demanding outdoor conditions and heavy use

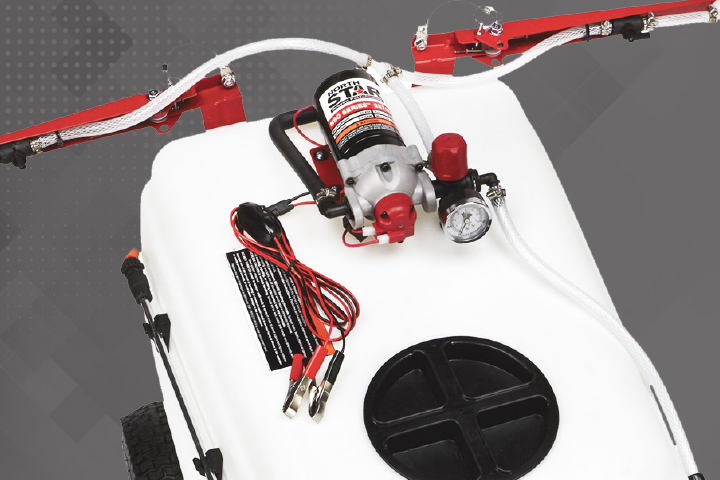

COMPREHENSIVE ACCESSORY PACK

Includes essential accessories such as a PRESSURE GAUGE and a REMOTE SWITCH with battery clamps, enhancing functionality and convenience

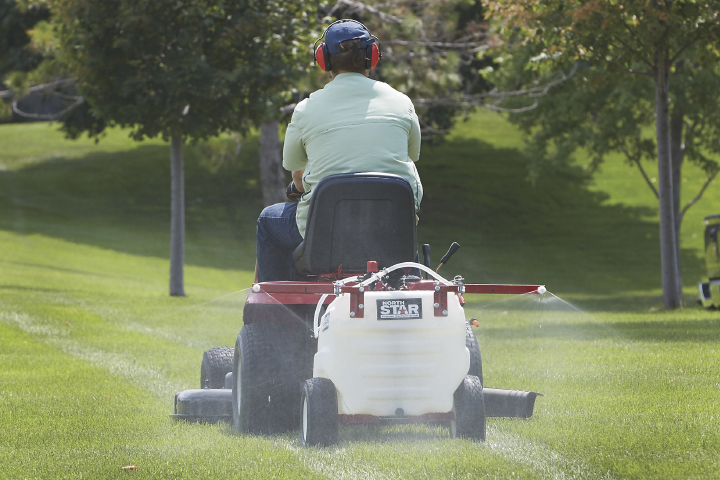

ADAPTABLE AND CONVENIENT

Designed to attach seamlessly to an ATV or GARDEN TRACTOR, featuring an easy-empty tank with bottom drain for quick cleanup

Features + Benefits

  • Broadcast, Boom and Spot Spraying Capability: Supports wide-area broadcast spraying, controlled boom coverage and targeted spot spraying for versatile property maintenance
  • 31-Gallon Tank Capacity: Provides extended spray time with fewer refills for larger lawns, fields and acreage applications
  • 2.2 GPM, 70 PSI, 12V Diaphragm Pump: Delivers reliable flow and consistent spray performance for a variety of spraying applications
  • Broadcast Boom with 120in. Spray Width: Provides wide-area coverage with 80in. effective spray width and 40in. overlap for consistent application results
  • Pressure Regulator with Built-In Agitation: Helps maintain consistent chemical mixture circulation for flowable, wettable powder and emulsified pesticides
  • Adjustable Spray Gun Nozzle: Twist nozzle adjusts from straight stream to hollow cone spray pattern for targeted application control
  • Foldable Breakaway Boom Arms: Boom arms fold for compact storage and feature breakaway protection when contacting obstacles during towing
  • Remote Switch Operation: Includes remote on/off switch with vehicle battery connection for convenient operator control during spraying
  • Integrated Pressure Gauge: Allows operators to monitor system pressure for more accurate spraying performance
  • Wide-Tread Turf Tires: Helps improve maneuverability while reducing turf damage across lawns and uneven terrain
  • Built-In Hose Wrap and Gun Storage: Integrated hose wrap and gun clips help keep spray components organized during transport and storage
  • Suction Strainer Protection: Integrated suction strainer helps prevent debris from entering the pump system for more reliable operation
  • Heavy-Duty Tow-Behind Design: Attaches easily to ATVs, UTVs and lawn tractors for efficient mobility across large outdoor properties

Key Specs

AttributeSpecification

item#

282785

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

54.0 LB

Tank Size

31 Gal

Flow

2.2 GPM

Pressure

70 PSI

Spray Height

19 ft

Broadcast Width

6.6 ft
AttributeSpecification

Horizontal Spray Distance

30 ft

Spray Pattern

Cone, Stream

Spray Gun Type

Spot, Broadcast

Tow Behind Cart Included

Yes

Pump Type

Northstar NSQ Series

Hose Length

180 in

Product Weight

lb

Dimensions L x W x H (in.)

48.0 x 42.0 x 28.5 in

Reviews

Questions & Answers

602 Reviews This action will navigate to reviews.

Questions

1–10 of 130 Questions
Sort by:

  1. How much liquid is left in the bottom when empty?

    My current sprayer leaves several quarts of liquid in the bottom of tank when it thinks it's tank is empty. The pump draws from the side of the tank and is located an inch above the bottom of the tank.

    Where does the pump draw from on this unit?

    1. There is a draw tube with a filter that sits in the bottom rear of the tank. If you adjust the tonque hitch so that the unit is slightly higher in front, there will be virtually no liquid left.

      Helpful?

    2. The pickup tube has a screened fitting that rests on the bottom of the tank (or slightly above depending how far you insert the pickup tube). I've not run mine dry, but I imagine it would leave 1/2" to 1" of liquid in the bottom. The bottom of the tank is shaped so the pickup is very near the lowest point (the lowest point is where the drain is located). I'm guesstimating that less than a quart would be left in the bottom of the tank.

      Helpful?

    3. From the back, in a slight depression. Mine empties the tank completely.

      Helpful?

    4. This one has the pickup in the very center rear. While moving the liquid will be there but if not level and stationary you could have some in the front when the pickup is out of liquid.

      Helpful?

    5. When assembling the unit, you have the ability to set the depth of the draw tube/strainer assembly. I have my strainer touching the bottom of the tank just before the drain port and only have about a quarter of a cup of fluid remaining in the bottom of the tank.

      Helpful?

    6. Almost none!!

      Helpful?

    7. The pump draws from the back of the tank, the tank is set on a slight angle so that there is next to no liquid left in the tank when empty.

      Helpful?

    8. no there is only a very small amount left. The unit once hooked up is at a slight angle and it allows most if not all of the liquid to be used.

      Helpful?

  2. Use with zero turn mower

    I read a Q&A saying it would not work with zero radius turns. Assuming the operator only made gentle turns of say 75° or less and did not reverse, would this unit work ok? I currently use rotary spreaders and aerators on my zero turn with no problems whatsoever

    1. Works fine on my zero turn, just make wide turns. Hitch height is adjustable.

      Helpful?

    2. Yes, I've used it on my ztr many times.

      Helpful?

    3. I used it with my zero turn with no issues. Just don't make a zero turn.

      Helpful?

    4. It is not recommended to be used with a zero turn mower due to the turning radius and the height of the hitch.

      Helpful?

  3. Can the tank/sprayer unit function if removed from trailer?

    If you were to remove the tank and sprayer unit from the trailer, could it still be used without too much difficulty; i.e., mounted in another trailer?

    1. It just needs a 12v supply.

      Helpful?

    2. It could be mounted on another trailer you would need to be able to do some fabracation to make it work.

      Helpful?

    3. The tank can be removed from the trailer and put in another trailer. You would just remove the bolts and bolt it into your trailer.

      Helpful?

  4. Can the boom be made to spray on one side only?

    Can one side boom sprayer nozzle be turned off?

    1. Yes just turn off the side you don't want on with the shutoff valve located on each boom. You can even spin the sprayer valve and adjust the pressure up to push the product out a little bit more too.

      Helpful?

    2. Yes, there are shut-off valves on each boom, so either or both may be opened.

      Helpful?

    3. There is a shut off valve that goes to each boom nozzle so it can be made to spray on one side only.

      Helpful?

  5. How much assembly is required

    Where is this unit made and how much assembly is required?

    1. The unit is unassembled. Assembly takes about 20 to 30 minutes and requires a 1/2" socket wrench and a 1/4" nut driver.

      Helpful?

    2. Complete assmebly is required. It took me about 1.5 hours woth hand tools.

      Helpful?

    3. This NorthStar sprayer is made in China. It will require full assembly. All parts would need to be attached to the frame and tank.

      Helpful?

  6. Can the sprayer be calibrated to control application amounts?

    1. The pressure is adjustable. By adjusting the pressure you can change the application rate. At 35 psi, the 31 gallon hopper will cover about an acre.

      Helpful?

    2. No, application amount would be controlled by your water to chemical mixture ratio and how fast the sprayer is traveling while applying the mixture.

      Helpful?

    3. This tow-behind sprayer can be calibrated to control application amounts using the spray calibration table which is on page 58 of the owner's manual. Click the link in the "Product Summary" section to view the manual.

      Helpful?

  7. By what means does the unit agitate the tank contents?

    The description states:

    •Control system pressure and fluid agitation with regulator and pressure gauge

    But there are no details and the owner's manual was not posted online. Thank you.

    1. The sloshing of the fluids when it is being pulled. Other than that it is mixed when pressurized water is put in the tank.

      Helpful?

    2. It mixes the chemical when water is added & also, shaken up while being towed around.

      Helpful?

    3. This sprayer includes a pressure regulator/agitator (Item #2681032). This pressure regulator/agitator allows the sprayer to agitate the contents. The product manual is now posted.

      Helpful?

  8. Where can I buy a replacement tire?

    1. The replacement wheel, part #791988, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

    2. The wheel is part 791988. This can be ordered with our sales team at 1-800-221-0516.

      Helpful?

  9. Are the wheels the “never flat” variety?

    1. No. They need air. You could put the other wheels on it.

      Helpful?

    2. This is equipped with pneumatic tires.

      Helpful?

  10. ATV

    Is there a standard way, or something that comes to plug into an ATV without attempting to hook it to the battery since its not real accessable

    1. I got a quick-connect 2-prong plug. Hooked one end to the sprayer and other end to a longer wire attached to the battery. You can find one where trailer parts are sold.

      Helpful?

    2. We do offer a remote sprayer switch kit item number 94993. The kit will include a 12 volt male adapter to plug into an automotive lighter or 12 volt power port.

      Helpful?
