NorthStar Self-Priming Semi-Trash Water Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 163cc Honda GX160 Engine

Item# 109173
"NorthStar Self-Priming Semi-Trash Water Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 163cc Honda GX160 Engine"
Top Seller
NorthStar Self-Priming Semi-Trash Water Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 163cc Honda GX160 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Self-Priming Semi-Trash Water Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 163cc Honda GX160 Engine

Click or Tap image to Zoom

$799.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    3 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Multidirectional discharge moves fluids where you want them
  • Strong 23ft. max. suction lift
  • FCD45 cast iron impeller and volute last longer for semi-trash operations
  • Silicon carbide seals are 2x harder, 15% tougher and 50% stronger than common aluminum oxide seals
  • Uses standard NPT threads for attachment flexibility

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Self-Priming Semi-Trash Water Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 163cc Honda GX160 Engine
  • JGB Enterprises Pump Hose Kit, 3in. Dia., 15ft. Suction Hose, 20ft. Discharge Hose, Model# A007-NTEHOSEKIT-3
  • JGB Enterprises Water Pump Discharge Hose, 3in. x 50ft., Model# A008-0486-1650
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT3
Price for all four:

$1172.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

NorthStar's Self-Priming Semi-Trash Water Pump has a quiet and dependable 163cc Honda GX160 engine and silicon carbide mechanical seals that resist corrosion, wear and heat better than a standard seal. The long-lasting, high-end silicon carbide seals that are specially suited for heavy-duty applications such as pumping contaminated and abrasive fluids. FCD45 cast iron impeller and volute reduce vibration and wear on the mechanical seal and engine, allowing them to last longer for semi-trash operations.

What's Included

    (1) Semi-trash pump

Downloads

Product Manual
Play Item Video

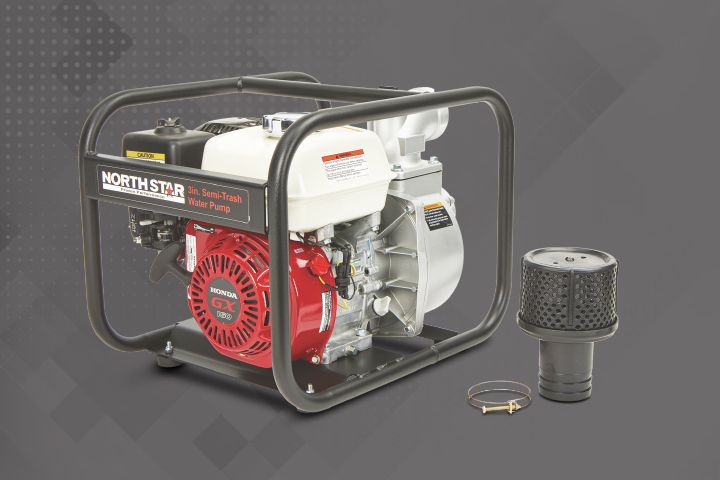

SILICON CARBIDE SEALS

These seals are twice as hard, 15% TOUGHER and 50% STRONGER than common aluminum oxide seals, offering UNMATCHED DURABILITY and performance in demanding environments

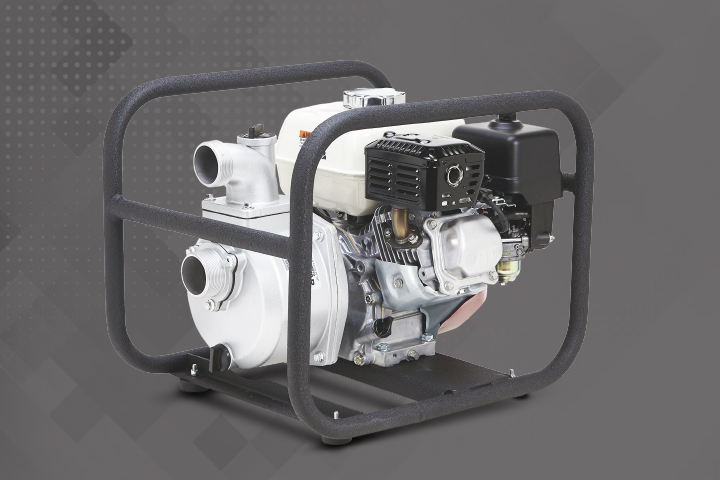

INDUSTRIAL STRENGTH

The ROBUST CONSTRUCTION with a CAST IRON IMPELLER and volute reduces the operational stress on components, thereby extending the pump’s lifespan in SEMI-TRASH APPLICATIONS

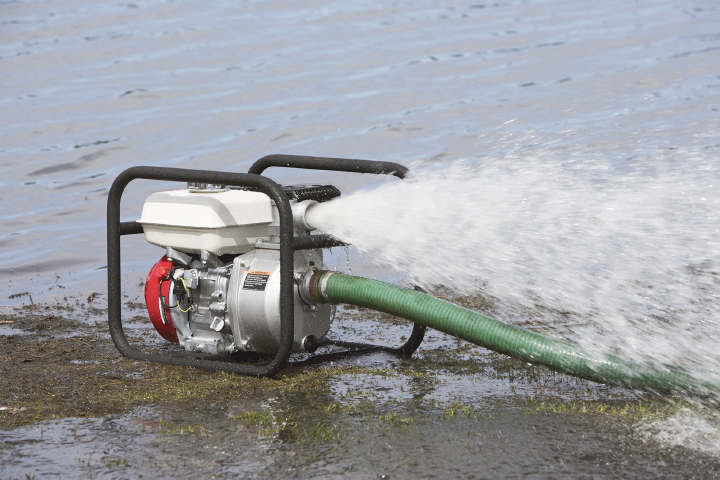

ENGINEERED FOR TOUGH JOBS

The NORTHSTAR 3 INCH SEMI-TRASH WATER PUMP is tailored for challenging conditions, capable of moving large volumes of water with light debris efficiently and reliably

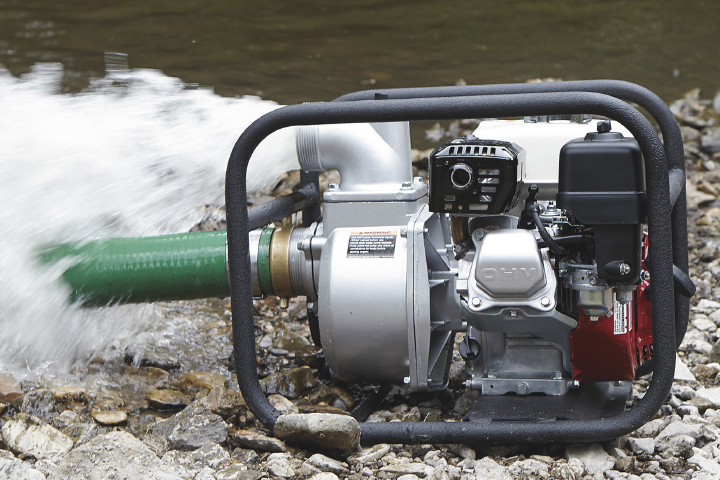

PROTECTIVE DESIGN

The pump is encased in a STEEL ROLL CAGE that provides substantial protection against PHYSICAL IMPACTS and ENVIRONMENTAL CONDITIONS

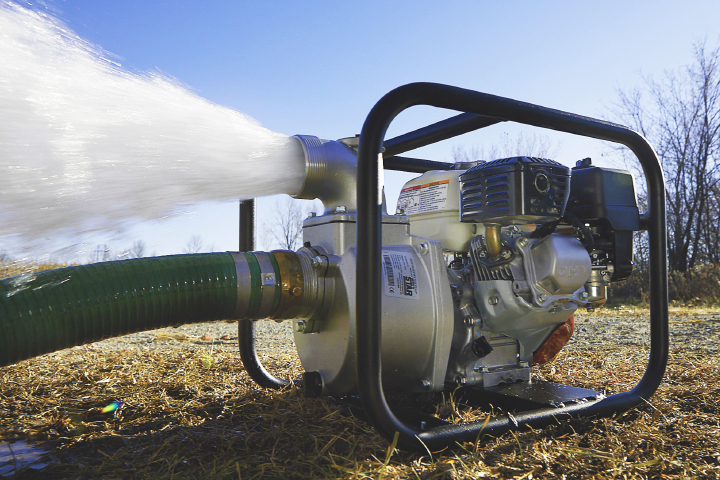

OPERATIONAL VERSATILITY

Its MULTI-DIRECTIONAL DISCHARGE and HIGH-SUCTION LIFT make it highly effective for a variety of uses, from construction sites to emergency water removal

Features + Benefits

  • Multidirectional discharge moves fluids where you want them
  • Strong 23ft. max. suction lift
  • FCD45 cast iron impeller and volute last longer for semi-trash operations
  • Silicon carbide seals are 2x harder, 15% tougher and 50% stronger than common aluminum oxide seals
  • Uses standard NPT threads for attachment flexibility
  • Utilizes a check valve to hold a prime while the pump is not running
  • Fully welded industrial 1in. steel roll cage with durable black wrinkle TGIC polyester electrostatic finish holds up to jobsite abuse
  • Full frame protection
  • All sheet metal parts are cut using a state-of-the-art CO2 laser
  • Includes FREE strainer

Key Specs

AttributeSpecification

item#

109173

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

64.0 LB

Max. Flow

15,850 GPM

Engine Displacement

163 cc

Engine Brand

Honda

Port Size

3 in

Pump Type

Semi-Trash Pump
AttributeSpecification

Self-Priming

Yes

Solids Capacity

0.75 in

Max. PSI

42 PSI

Fuel Tank Capacity

0.82 Gal

Max. Working Temperature

85 °F

Vertical Lift

23 ft

Housing Material

Aluminum

Product Weight

lb

Dimensions L x W x H (in.)

20.375 x 15.875 x 16.125 in

Reviews

Questions & Answers

41 Reviews This action will navigate to reviews.

Questions

1–10 of 26 Questions
Sort by:

  1. Does this pump come with a wheel kit?

    1. No

      Helpful?

    2. No.

      Helpful?

    3. No, a wheel kit is not included with this pump.

      Helpful?

  2. threaded ports

    Are the ports threaded on this unit? if not is it possible to get an adapter that is threaded to attach a cam lock?

    1. yes external threads

      Helpful?

    2. This pump has 3" NPT ports. Listed below are cam lock fittings that will fit this pump.

      Helpful?

  3. Will this unit pump a concrete slurry? What % solids will it handle?

    1. No, the slurry will erode the impeller to quickly. It isn't designed for a thick slurry.

      Helpful?

    2. The NorthStar Semi-Trash Pump will work with clear water and will handle up to 3/4" solids.

      Helpful?

  4. Can the discharge be down sized?

    I have 11/4 inch pipe running to multible sprinklers now.

    1. No, It will cause issues with the pump, too much back pressure will cause it to blow the seals.

      Helpful?

    2. NorthStar does not recommend reducing the inlet or outlet ports. This will create back pressure which can damage the pump itself.

      Helpful?

  5. What is the fuel capacity and how long will it run before refueling is necessary?

    1. Almost 1 gallon of fuel and with two pumps, I average between 2hrs and up to 2 1/2hrs, but never more. It depends on temperature and the amount of head pressure. I pumped water one night and it was in the low 30's and I was averaging 2 1/2hrs, but anything above that, I usually only get 2 1/4hrs out of a completely full tank.

      Helpful?

    2. The fuel capacity of this pump is 3.3 Quarts. It will run for approximately 2 hours on a full tank.

      Helpful?

  6. Whats the difference between a semi-trash Pump and a full trash pump

    We are looking for a trash pump for our fire department to assist residents with flooding problems. We intend to use the pump to pump out basements after flash floods. There is generally water, silt and small gravel associated with he flooding. We are looking at the Northstar 3" semi-trash pump as an economical ansewer for our problem. What are your thoughts?

    1. The size of solids the pump will handle. If you are pumping a lot of muddy dirty water, a full trash pump is your best bet for longevity.

      Helpful?

    2. The difference between a trash and semi-trash pump is the size of solids that are able to pass through the pump. Under the key specs column on the product page the size of solids that a pump can pass will be listed. For example, this pump can move water with solids up to 3/4". Gravel, pebbles, rocks solid clumps of dirt etc would all be considered solids. To draw a comparison our 3" full trash pump item # 106130 can handle solids up to 1 1/4". A strainer can be used to limit the size of solids that are drawn into the pump.
      This item is an excellent choice for the type of job that you are describing. The Honda GX (commercial grade) engine will ensure a long life and great fuel economy. NorthStar products are made from the highest quality components on the market without the high price tag of some of the other name brands.

      Helpful?

  7. need to purchase gasket kit for this pump

    1 answer

    1. Please refer to page 21 of the Product Manual for part numbers. These parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  8. Where can I find pump curve. Is 15,840 gph at zero head?

    1 answer

    1. At this time, we do not have a pump curve available for public display. The flow of 15,840 GPH is at zero head.

      Helpful?

  9. Does this pump have a rebuild kit for the pump side?

    1 answer

    1. Please see page 21 of the Product Manual to find individual parts for the pump side. These parts will be available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  10. can i run this pump dry

    1 answer

    1. It is not recommended to run the pump dry.

      Helpful?
