NorthStar Self-Priming Semi-Trash Water Pump, 4in. Ports, 23,040 GPH, 3/4in. Solids Capacity, 270cc Honda GX270 Engine

Item# 109183
NorthStar Self-Priming Semi-Trash Water Pump, 4in. Ports, 23,040 GPH, 3/4in. Solids Capacity, 270cc Honda GX270 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Self-Priming Semi-Trash Water Pump, 4in. Ports, 23,040 GPH, 3/4in. Solids Capacity, 270cc Honda GX270 Engine

Click or Tap image to Zoom

$1249.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Long-life silicon carbide mechanical seal resists corrosion, wear and heat better than a standard seal
  • Multi-directional discharge
  • 23ft. max. suction lift
  • Cast iron impeller and volute last longer for semi-trash operations
  • Silicon carbide seals are 2x harder, 15% tougher and 50% stronger than common aluminum oxide seals

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Self-Priming Semi-Trash Water Pump, 4in. Ports, 23,040 GPH, 3/4in. Solids Capacity, 270cc Honda GX270 Engine
  • JGB Enterprises Suction Hose, 4in. x 15ft., Model# A007-0649-3516
  • JGB Enterprises Discharge Hose, 4in. x 25ft., Model# A008-0646-1625
  • JGB Enterprises Pump Hose Kit, 4in. Dia., 15ft. Suction Hose, 25ft. Discharge Hose, Model# A007-NTEHOSEKIT-4
Price for all four:

$1873.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

NorthStar's Self-Priming Semi-Trash Water Pump has a quiet and dependable 270cc Honda GX270 engine and silicon carbide mechanical seals that resist corrosion, wear and heat better than a standard seal. The long-lasting high-end silicon carbide seals are specially suited for heavy-duty applications such as pumping contaminated and abrasive fluids. FCD45 cast iron impeller and volute reduce vibration and wear on the mechanical seal and engine, allowing them to last longer for semi-trash operations.

What's Included

    (1) Semi-trash pump

Downloads

Product Manual
Play Item Video

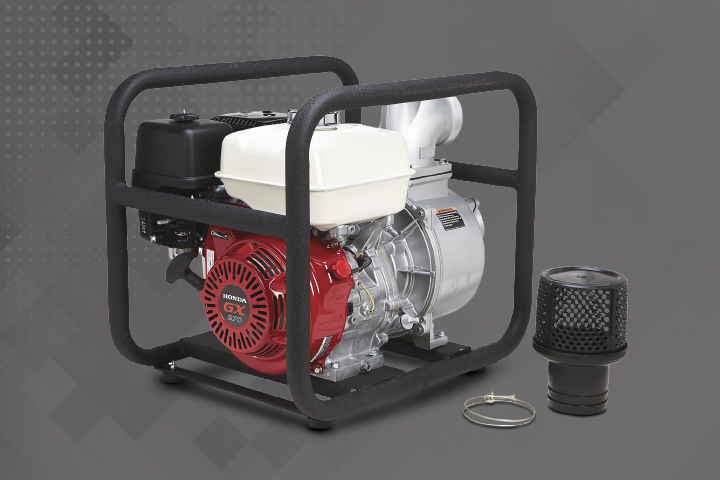

ROBUST MECHANICAL SEALS

SILICON CARBIDE MECHANICAL SEALS offer superior longevity and reliability, particularly suitable for HEAVY-DUTY APPLICATIONS involving abrasive and contaminated fluids

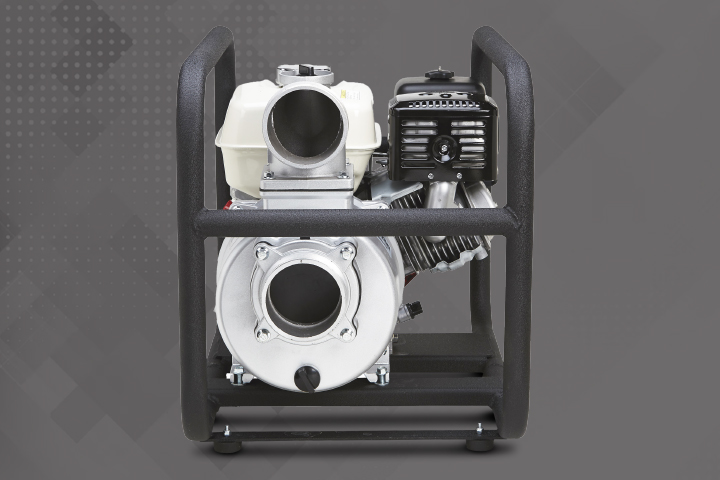

STURDY CONSTRUCTION

With its CAST IRON COMPONENTS and a PROTECTIVE STEEL CAGE, this pump is built to endure the rigors of semi-trash operations and demanding work environments

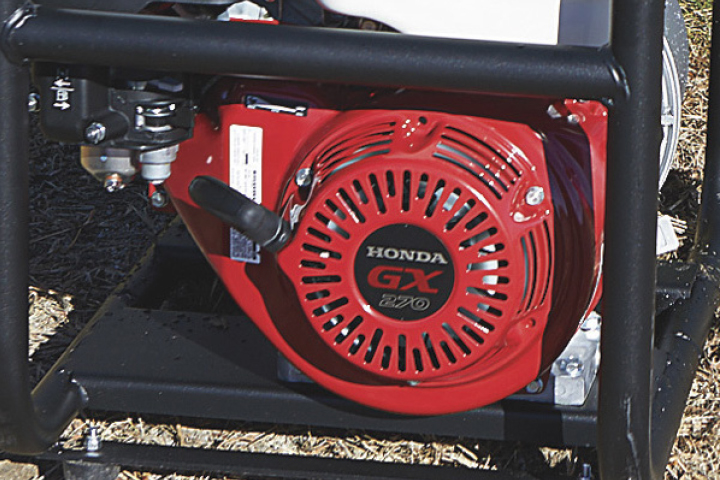

HIGH-CAPACITY ENGINE

The HONDA GX270 ENGINE ensures efficient and effective operation, making it capable of handling large volumes of SEMI-TRASH WATER UNDER TOUGH CONDITIONS

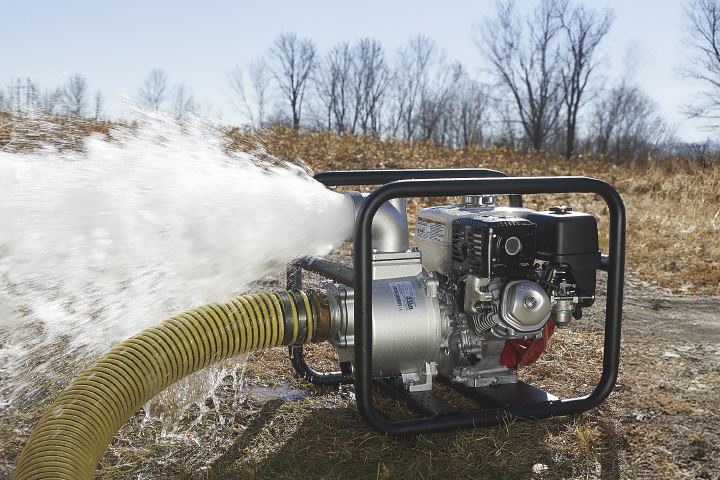

VERSATILE INSTALLATION

Features flexible connection options and a MULTI-DIRECTIONAL DISCHARGE for convenient setup and integration into existing systems

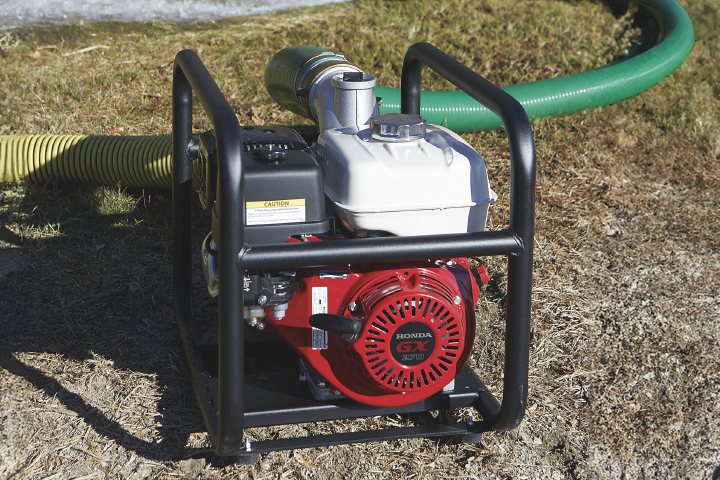

USER-FRIENDLY ACCESSORIES

Comes complete with a FREE STRAINER and PRECISION-CUT SHEET METAL PARTS, enhancing the pump’s functionality and ease of use

Features + Benefits

  • Long-life silicon carbide mechanical seal resists corrosion, wear and heat better than a standard seal
  • Multi-directional discharge
  • 23ft. max. suction lift
  • Cast iron impeller and volute last longer for semi-trash operations
  • Silicon carbide seals are 2x harder, 15% tougher and 50% stronger than common aluminum oxide seals
  • Uses standard NPT threads for attachment flexibility
  • Utilizes a check valve to hold a prime while the pump is not running
  • Fully welded industrial 1-3/8in. steel roll cage with durable black wrinkle TGIC polyester electrostatic finish holds up to jobsite abuse
  • Full frame protection
  • All sheet metal parts are cut using a state of the art CO2 laser
  • Includes FREE strainer

Key Specs

AttributeSpecification

item#

109183

Brand

NorthStar

Manufacturer's Warranty

24 months parts/12months labor

Ship Weight

119.0 LB

Max. Flow

23,040 GPM

Engine Displacement

270 cc

Engine Brand

Honda

Port Size

4 in
AttributeSpecification

Pump Type

Semi-Trash Pump

Self-Priming

Yes

Solids Capacity

0.75 in

Max. PSI

40 PSI

Fuel Tank Capacity

1.4 Gal

Vertical Lift

23 ft

Product Weight

lb

Dimensions L x W x H (in.)

25.0 x 18.0 x 20.75 in

Reviews

Questions & Answers

20 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. Are the inlet and outlet ports male or female NPT?

    1. Both Male

      Helpful?

    2. Both the inlet and outlet ports on this pump are male NPT (national pipe thread).

      Helpful?

  2. Is there an extended run fuel system?

    What is the run time?

    1. The longest I have run the unit is about 4 hours. Still had fuel.

      Helpful?

    2. The run time on the semi-trash pump is approximately 2 hours. We are unable to provide an extended run fuel system in the 4" port pump.

      Helpful?

  3. What is the max head for this pump?

    1 answer

    1. The maximum total head of this pump is 98 feet.

      Helpful?

  4. what is the shaft size of motor or the series

    1 answer

    1. The Honda engine, model GX270UT2XQAG2, features a 3.48" long shaft with a 1" diameter and a 0.25" keyway. For a replacement engine, please see item #44373.

      Helpful?

  5. I can reduce the ports from 4 to 3 inch

    1 answer

    1. We do not recommend reducing the inlet or outlet ports. This will create back pressure which can damage the pump itself.

      Helpful?

  6. I am looking to dredge small pebbles. And rocks out of my Creek bed. To make it deeper, will this pump work?

    1 answer

    1. This pump has a capacity for solids up to 3/4" in diameter. Anything larger could clog and/or damage the pump.

      Helpful?

  7. Hi I need to order parts for this water pump who do I contact?

    1 answer

    1. You would contact Northstar at 1.800.270.0810 for part numbers for the parts you are needing.

      Helpful?

  8. Does this unit come with the suction and discharge hoses?

    1 answer

    1. This NorthStar water pump does not include suction or discharge hoses. We offer a hose kit, item 49620 which can be used with it.

      Helpful?

  9. does this model come with a electric start

    1 answer

    1. At this time, this water pump is not designed with electric start and a kit is not available to upgrade it.
      Currently, we do not offer an equivalent pump with electric start.

      Helpful?

  10. "Utilizes a check valve to hold a prime while the pump is not running" is this built in, or included? If not where do I buy this check valve?

    1 answer

    1. The inlet check valve is included and build into the inlet port.

      Helpful?
