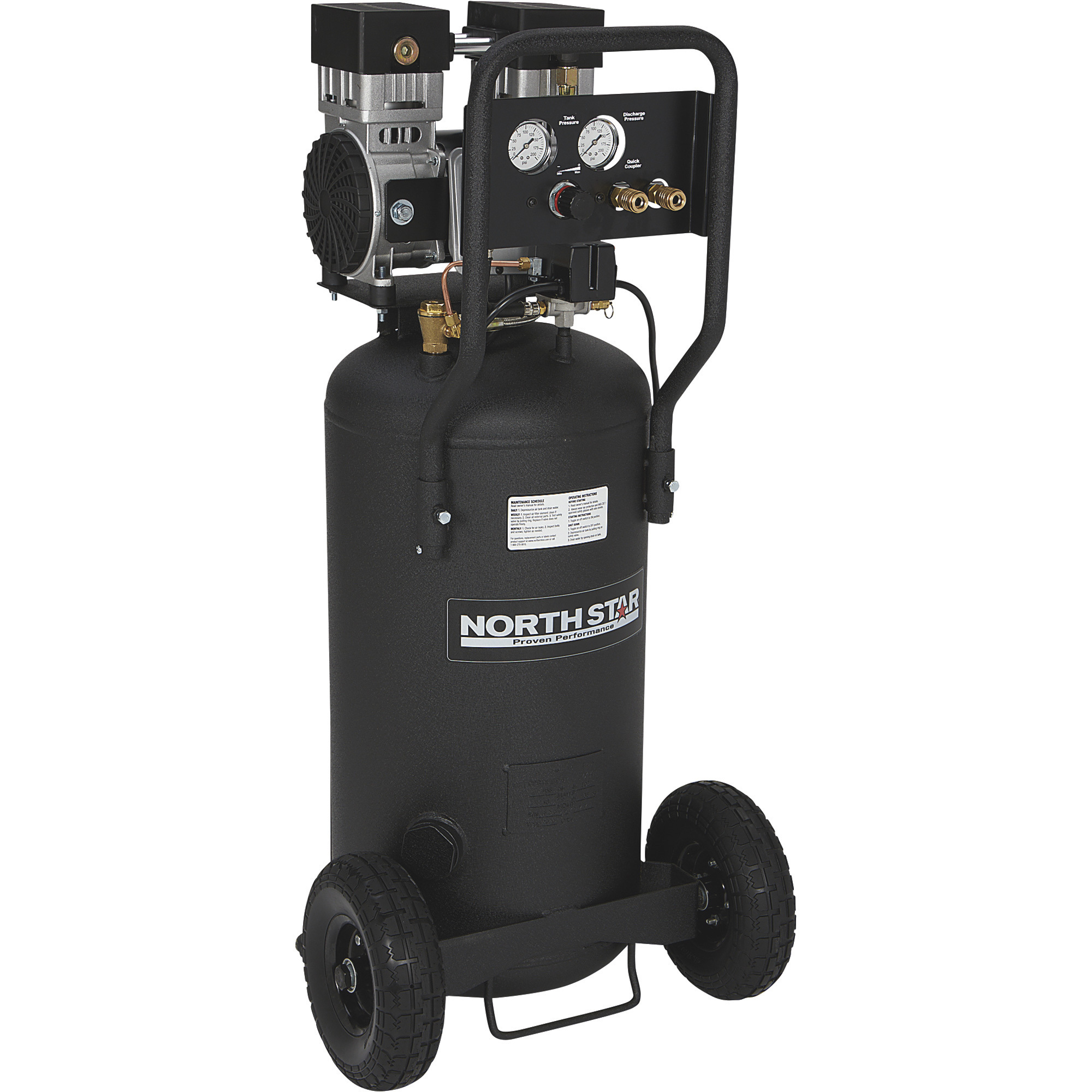

NorthStar Portable Electric Air Compressor, 2 HP, 20-Gallon Vertical Tank, Super-Quiet Operation, Oil-Free Pump, 5.4 CFM @ 90 PSI

Item# 99306
NorthStar Portable Electric Air Compressor, 2 HP, 20-Gallon Vertical Tank, Super-Quiet Operation, Oil-Free Pump, 5.4 CFM @ 90 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Portable Electric Air Compressor, 2 HP, 20-Gallon Vertical Tank, Super-Quiet Operation, Oil-Free Pump, 5.4 CFM @ 90 PSI

Click or Tap image to Zoom

  • 2 HP, 20-gallon portable electric air compressor delivers 5.4 CFM @ 90 PSI; 6.7 CFM @ 40 PSI
  • Oil-free dual piston pump produces cleaner air for tools and maintenance-free operation
  • Compressor runs very quietly at only 70dB
  • 2 HP, 115V, 13.5 Amp, 1750 RPM electric motor has low amp draw for easier starts
  • 10in. non-flat tires and handle provide stable and easy transport on jobsite

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar® 2 HP, 20-Gallon Portable Electric Air Compressor is designed to run very quietly at only 70dB. Features an oil-free dual piston pump that produces cleaner air for tools and maintenance-free operation. 125 PSI working pressure. 70% duty cycle. 2 HP, 115V, 13.5 Amp, 1750 RPM electric motor has low amp draw for easier starts and less electricity required. Two large 2in. pressure gauges allow you to easily monitor the air in the tank and at the outlet. Two 1/4in. quick-connectors allow user to operate two tools at the same time. 20-gallon vertical tank. 10in. non-flat tires and handle provide stable and easy transport of compressor on worksite.

What's Included

    (1) 2 HP, 20-gallon portable electric air compressor with 2 non-flat tires and handle

Downloads

Product Manual

Features + Benefits

  • 2 HP, 20-gallon portable electric air compressor delivers 5.4 CFM @ 90 PSI; 6.7 CFM @ 40 PSI
  • Oil-free dual piston pump produces cleaner air for tools and maintenance-free operation
  • Compressor runs very quietly at only 70dB
  • 2 HP, 115V, 13.5 Amp, 1750 RPM electric motor has low amp draw for easier starts
  • 10in. non-flat tires and handle provide stable and easy transport on jobsite
  • 20-gallon vertical receiver tank
  • Two large 2in. pressure gauges allow you to easily monitor the air in tank and at outlet
  • Two 1/4in. quick-connectors allow user to operate two tools at the same time

Key Specs

AttributeSpecification

item#

99306

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

154.0 LB

Horsepower

2 HP

Air Tank Size

20 Gal

Volts

115

CFM at 90 PSI

5.4

Max. PSI

125

Air Outlets (qty.)

2

Amps

13.5

Duty Cycle

70 %

Motor RPM

1,750

Working Pressure

125 PSI
AttributeSpecification

Pump Life

1,000 hr

Pump Material

Aluminum

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.7

CFM at Max. PSI

4.5

Noise Level

70 dB

Oil Required

No

Tank Fill Time

3.75 min

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

141.0000 lb

Dimensions L x W x H (in.)

21.65 x 21.06 x 44.69 in

Reviews

Questions & Answers

48 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. Can the motor be rewired for 230 volt

    1 answer

    1. This air compressor should not be rewired to 230V. Modifications like this could damage the compressor and would void the warranty.

      Helpful?

  2. Is inside of the tank lined or painted.

    1 answer

    1. The inside of the tank is not lined or painted.

      Helpful?

  3. Can this be transported on its side for 1 hour

    1 answer

    1. This compressor has a oil-free pump so it would be safe to transport it on its side.

      Helpful?

  4. Max psi for compressor?

    1 answer

    1. The max working pressure is 125 PSI.

      Helpful?

  5. Will this unit overheat or will it automatically turn off to cool down?

    1 answer

    1. This has a protectinve breaker located on the pump. An excessive amp draw will result in the breaker tripping to protect the motor and operator.

      Helpful?

  6. Can this compressor be set to maintain 90 psi continuously for its duty cycle by adjusting when it clicks on to refill the tank. I want to use it for a plasma cutter?

    1 answer

    1. If the working pressure of the plasma cutter needs to be 90 PSI, we would suggest adjusting the pressure with the regulator to maintain the discharge pressure at 90 PSI for the cutter. The cut in (95 PSI) and cut off (125 PSI) pressures of the pressure switch should not be changed.

      Helpful?

  7. What is the country of manufacture of the tank, the pump, and the motor?

    1 answer

    1. These components are manufactured in Taiwan.

      Helpful?

  8. will this run a handheld portable blasting gun?

    1 answer

    1. That would depend on the PSI and CFM requirements of the blasting gun. This delivers 5.4 CFM @ 90 PSI and 6.7 CFM @ 40 PSI.

      Helpful?

  9. If this unit has a 70% duty cycle is that. Running for 70% of the time and off for 30%of the time.

    1 answer

    1. The 70% duty cycle would be based on 60 minutes of use. You would be able to run it for 70% of that hour, between 40-45 minutes and then rest it for 15-20 minutes.

      Helpful?

  10. It looks like this unit has 2 small non cleanable air filters. Is this correct? Can the air filters from item # 25653 be installed on this unit? I plan to use the unit in a wood shop that has a lot of dust in the air.

    1 answer

    1. The air compressor will come with two air filters. The filters are cleanable. It is recommended to check the filter weekly. Replace the air filters every 12 months or 1000 hours. The filters from the item number 25653 are not interchangeable. To order replacement filters item number NS53009-P19 please contact our parts department at 800-270-0810.
