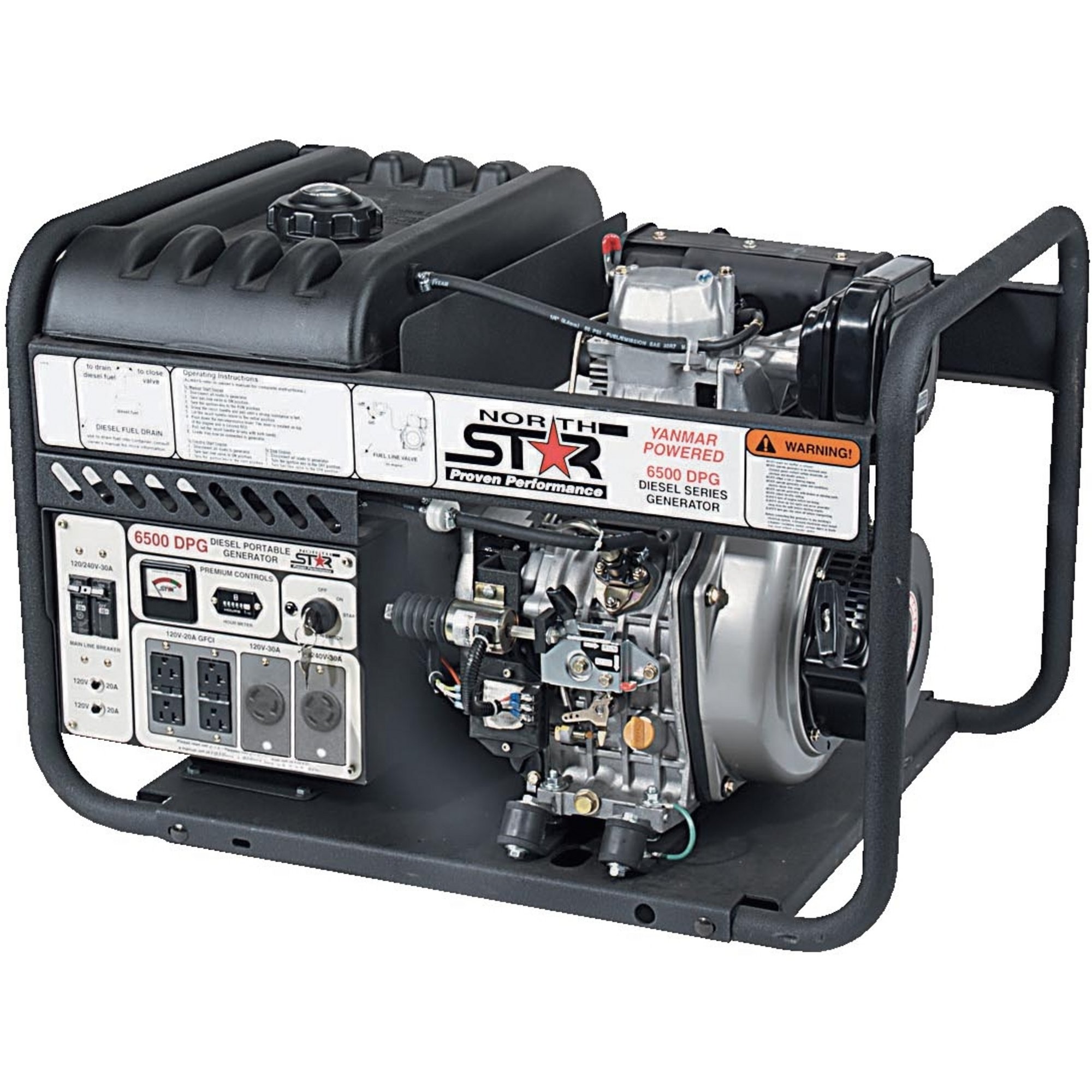

NorthStar Portable Diesel Generator — 6500 Surge Watts, 6120 Rated Watts, Model# 165930

Item# 165930
NorthStar Portable Diesel Generator — 6500 Surge Watts, 6120 Rated Watts, Model# 165930

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Portable Diesel Generator — 6500 Surge Watts, 6120 Rated Watts, Model# 165930

Click or Tap image to Zoom

  • Four 20 Amp 120V GFCI-protected receptacles
  • One 30 Amp 120V locking plug receptacle
  • One 30 Amp 120/240V locking plug receptacle
  • Uses NEMA 5-20R, NEMA L5-30R and NEMA L14-30R plugs
  • Brushless generator heads are proven to be superior in efficiency, performance and lifespan compared to brush-style generator heads

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

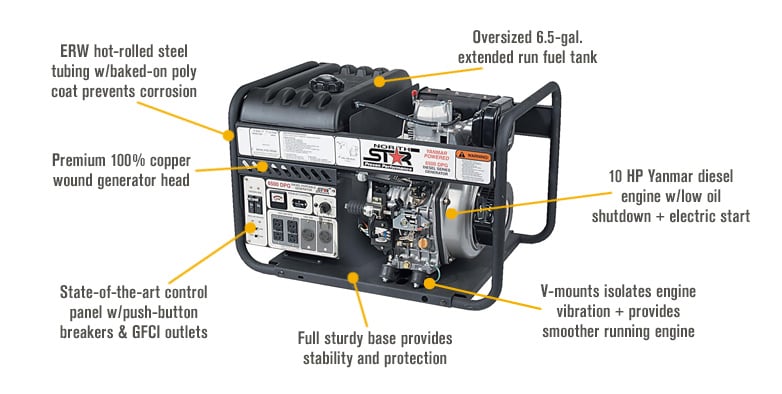

Powerful NorthStar® Generator packs 6500 surge watts and 6120 continuous watts! Reliable, single-phase, 100% copper-wound, brushless generator head for years of long lasting power. Cast iron cylinder sleeve. For years of long-lasting power, this generator uses a reliable, 100% copper-wound brushless generator head. NorthStar's V-mounts are designed to extend life by dampening and isolating engine vibration. The interlocking V-mounts have a rubber isolation mount made with a specially formulated vibration dampening elastomer that provides optimal flexibility and stiffness and interlocking brackets that protect the rubber mounts. This interlocking design allows NorthStar to use softer rubber, resulting in a smooth-running engine. Frame constructed from ERW hot-rolled steel tubing. The solid base provides a strong foundation for the generator and extends life by serving as a barrier between the ground and the generator. This prevents grass, dirt, dust and other debris from being sucked into the engine and the alternator.

What's Included

  • (1) Generator

Downloads

Product Manual

Features + Benefits

  • Four 20 Amp 120V GFCI-protected receptacles
  • One 30 Amp 120V locking plug receptacle
  • One 30 Amp 120/240V locking plug receptacle
  • Uses NEMA 5-20R, NEMA L5-30R and NEMA L14-30R plugs
  • Brushless generator heads are proven to be superior in efficiency, performance and lifespan compared to brush-style generator heads
  • Less than 6% THD for use with power-sensitive equipment
  • Run Time Meter
  • 100% Copper windings
  • Conveniently located control panel
  • Control panel has thermal magnet circuit breaker
  • Baked-on poly coat paint prevents scratches and corrosion
  • Plugs sold separately
  • Optional wheel kit Item# 165916 sold separately
  • Requires battery, not included

Key Specs

AttributeSpecification

item#

165930

Brand

NorthStar

Manufacturer's Warranty

4 Yr Consumer/2 Yr Commercial

Ship Weight

322.0 LB

Surge Watts

6,500

Rated Watts

6,120

Fuel Type

Diesel
AttributeSpecification

Start Type

Electric and Recoil

Battery Required

Yes

Battery Included

No

Low Oil Shutdown

Yes

Horsepower

10

Dimensions L x W x H (in.)

34 x 23 1/4 x 22 1/4

Reviews

Questions & Answers

16 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. I live in a really cool region. Do you know if it have some problem to start when the temperature is around -15 F degree ? Thanks !

    1. Live in Maine, temps this winter dipped into -10 to -20 used reg car battery to start, and while cranks hard and little longer has never failed to start in the 14 years I have had this product.

      Helpful?

    2. It would be hard to start the diesel engine in temperatures below 0. It would be recommended to use some sort of heater such as a magnetic oil heater to warm the fuel for easier starting.

      Helpful?

  2. does this generator have auto idle down when not in use

    1. No

      Helpful?

    2. This generator does not idle down when not in use. The idle is set at 3600 RPMS.

      Helpful?

  3. How many RPMs does the engine turn?

    Diesel engined generators tend to be rated at 1,800 or 3,600 RPM, what is the RPM rating of this Yanmar powered generator?

    1. 3,600

      Helpful?

    2. Our Diesel NorthStar generator with Yanmar engine runs at 3,600 RPM.

      Helpful?

  4. Is this generator manufactured in the USA? If not, in what country is it manufactured?

    1. Japan made Yanmar motor. Generator assembled in USA.

      Helpful?

    2. NorthStar generators are assembled in Faribault MN, from globally sourced components.

      Helpful?

  5. Is a re-jetting kit available for those at higher altitude?

    1 answer

    1. A re-jetting kit is unavailable for this diesel generator. For altitudes over 5,000 feet, a service center will need to make the appropriate adjustments.

      Helpful?

  6. Can I run 120V and 240V at the same time or do I have to switch it over like the previous generator?

    1 answer

    1. You can run both the 120 volt and the 240 volt at the same time. You will need to make sure that you do not go over the 6120 watts it is rated for. Each outlet has it's own breaker and you also, cannot exceed the breakers amperage.

      Helpful?

  7. Will it run on kerosene?

    1 answer

    1. The generator will only run on diesel.

      Helpful?

  8. Does this engine have full-pressure lubrication?

    1 answer

    1. Yes, the Yanmar engine on this generator does have pressurized lubrication.

      Helpful?

  9. Can I use this unit for 30amp 240v only not, 30v 240/120

    will just make an adapter ? so I can plug in to the 30amp 240/120v ?

    1 answer

    1. The receptacle is able to handle both 120 or 240 volts up to 30 amps. If the plug you put into the receptacle is wired for 240(2 hot leads), the generator will automatically put out 240 volts. If the plug is wired for 120(1 hot lead) the unit will automatically put out 120 volt power.

      Helpful?

  10. I know the unit is assembled in Minnesota; where is the generator head manufactured?

    1 answer

    1. The generator head used in this NorthStar Diesel is made in Italy. Ciao.

      Helpful?
