NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 5.5 GPM

Item# 2685562
NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 5.5 GPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 5.5 GPM

Click or Tap image to Zoom

$189.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 100% continuous duty rating with no cool down period required
  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm for reliability, longer life and better priming

See full description

Complete Your Solution

  • NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 5.5 GPM
  • Valley Industries Long-Range Spray Gun - 26in., 25 GPM, 850 PSI, Adjustable Spray Pattern, Model# SG-3200
Price for all two:

$279.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This high-end NorthStar® NSQ Series® 12V On-Demand Sprayer Diaphragm Pump upgrades your sprayer with innovative components and engineering for superior spot or broadcast spraying performance and quick-connect convenience. 100% continuous duty rating with no cool down period required.

What's Included

    (1) Sprayer Diaphragm Pump (1) 3/4in. hose barb fitting (1) 1/2in. male NPT fitting

Downloads

Product Manual
Play Item Video

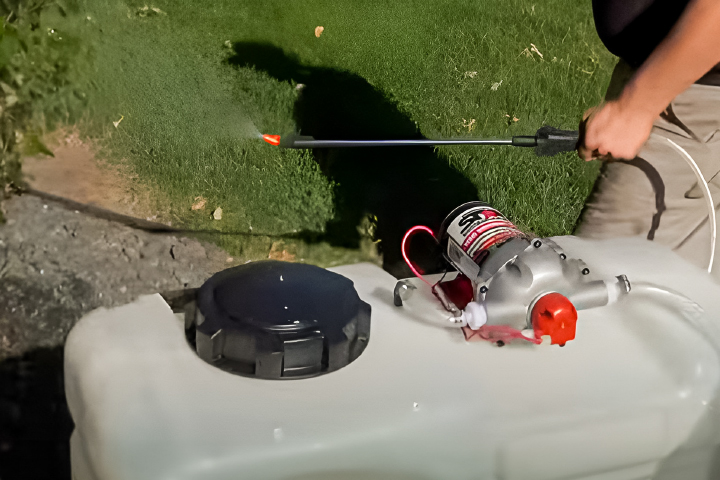

UNINTERRUPTED PERFORMANCE

Discover UNINTERRUPTED SPRAYING EXCELLENCE with the NorthStar’s 100% continuous-duty rating, eliminating the need for cooldowns and boosting efficiency

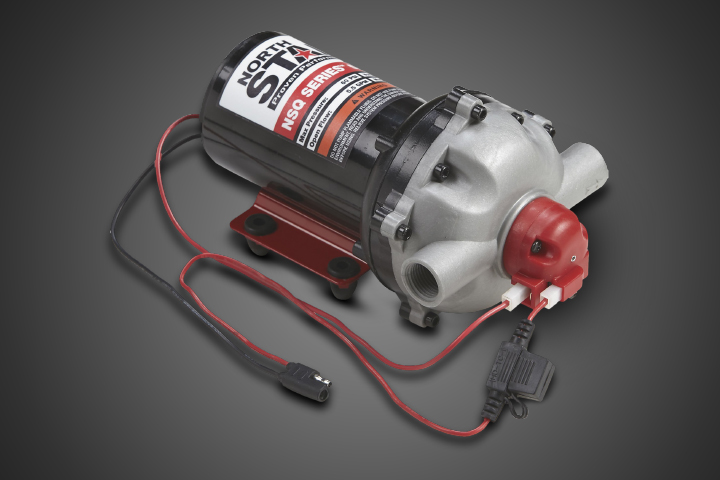

SMART ENERGY USE

Designed with conservation in mind, the pump’s AUTOMATIC SHUTOFF feature ensures your battery’s longevity, making it perfect for EXTENSIVE SPRAYING TASKS

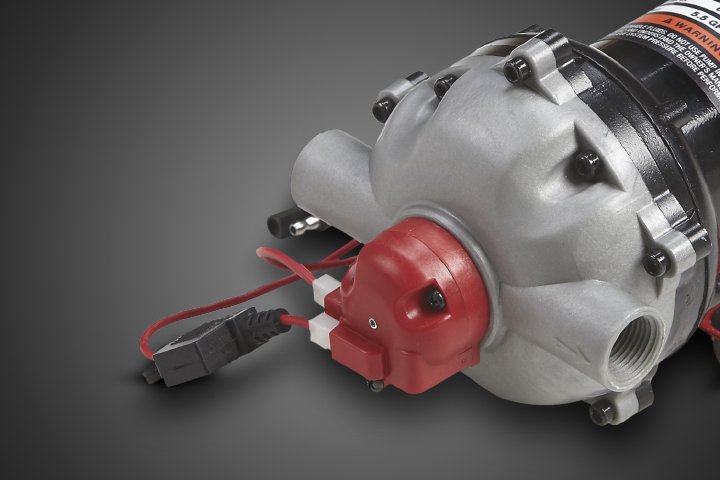

ENGINEERED FOR DURABILITY

Experience the DURABILITY and PERFORMANCE OF PATENTED DXS-3® VALVES paired with a Santoprene™ diaphragm, designed for fast priming and extended service life

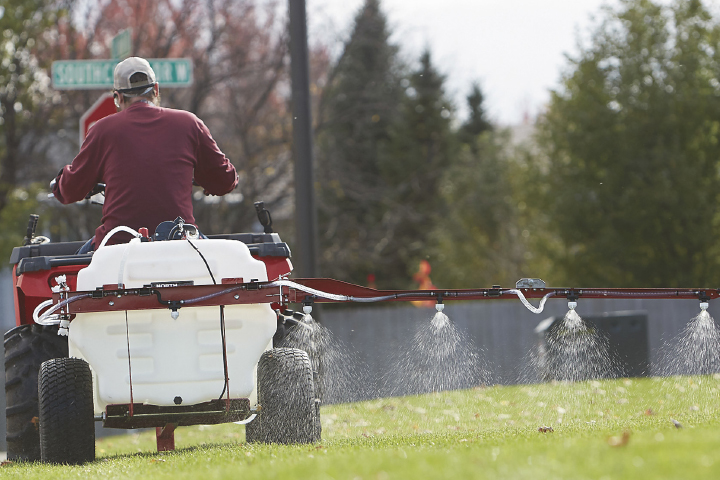

CHEMICAL COMPATIBILITY

Tailored for versatility, this pump is built with fiberglass REINFORCED POLYPROPYLENE and Viton® to withstand harsh chemicals, including Roundup® herbicides


EASE OF USE

Simplify your SPRAYING OPERATIONS WITH EASY-TO-CONNECT PORTS, allowing for quick setup and compatibility with various sprayer brands

Features + Benefits

  • 100% continuous duty rating with no cool down period required
  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm for reliability, longer life and better priming
  • Innovative smooth valve design for faster priming and longer life
  • Fiberglass reinforced polypropylene pump manifold for superior durability and resistance to chemicals
  • Compatible with Roundup® agricultural brand herbicides
  • All components in fluid path have been tested and approved for Roundup use
  • 3/4in. quick-connect ports for easy changes
  • Self-priming up to 12 feet above liquid level
  • Fits all NorthStar sprayers and most other brands (includes 3/4in. hose barb and 1/2in. male NPT fitting)
  • 12 Volts
  • Standard mounting pattern

Key Specs

AttributeSpecification

item#

2685562

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

7.37 LB

Max. PSI

60

Max. Flow Rate

5.5 GPM
AttributeSpecification

Volts

12

Amps

17

Inlet Port

3/4

Outlet Port

3/4

Self-Priming

Yes

Reviews

Questions & Answers

69 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Garden hose

    With this pump have enough power to run water through a 75 ft. garden hose? If I am just getting the water from a 200 gallon water tank.

    1. Yes

      Helpful?

    2. It should pump water that far I was using one to pump water through a half inch hose at 250 ft long work just fine. You may have to let it repressurise with that size hose.

      Helpful?

    3. The NorthStar On-Demand Pump will be able to run water through a 75 foot garden hose.

      Helpful?

  2. Is this pump adjustable?

    1. It depends upon what you mean by adjustable. It is a single speed, single pressure unit. You can adjust flow through the wand.

      Helpful?

    2. The shut-off pressure switch on this pump is preset and factory calibrated. It should not be adjusted. Any adjustment to the pressure switch setting may cause severe overload and/or premature failure. Failures due to adjusting the pressure switch setting are not covered by the pump's warranty.

      Helpful?

  3. does this pump come with the quick connect fittings?

    1. Yes it does but you still have to hardwire it first then you can just plug and play.

      Helpful?

    2. This on-demand diaphragm pump has 3/4" quick-connect ports. It doesn't include the quick-connect fittings for the hose ends. Click the links below to view 3/4" quick-connect fittings.

      Helpful?

  4. will water pass through this pump when it is not running?

    I want to use this pump to initiate a siphon, then allow water to flow through it. If this will not work, can you recommend one that will? Thanks 12v pump 2685562

    1. water should NOT flow when the pump is not running.

      Helpful?

    2. The NorthStar On-Demand pump will stop the flow of water when the demand is ended. We are unable to provide a pump that will allow a flow of this type.

      Helpful?

  5. Is the bolt pattern for mounting the sprayer the same as the 4 GPM pump?

    1 answer

    1. The center to center bolt hole spacing measures 2-1/4" front to back and 3" left to right.

      Helpful?

  6. what is the model number of this pump?

    1 answer

    1. The model number of this pump is 2685562.

      Helpful?

  7. What size tank is required for this pump

    1 answer

    1. A 25 gallon tank or larger is recommended for use with this 5.5 GPM pump; however, a smaller tank or even a bucket can be used, they would just need to be filled more frequently.

      Helpful?

  8. what is the psi

    1 answer

    1. The psi pressure is rated at 60.

      Helpful?

  9. What kind of battery is needed to run the pump consistently? Seems to drain and kill all batteries after a day.

    1 answer

    1. This requires a 12V, 12Ah battery minimum. A larger battery Amp hour rating would be needed if you are looking to get longer run times between charging.

      Helpful?

  10. Why is this pump not rated for water?

    1 answer

    1. This pump can be used for spraying water and water based solutions. It is not rated for transferring drinking water because of the pump materials and the manufacturing process.

      Helpful?
