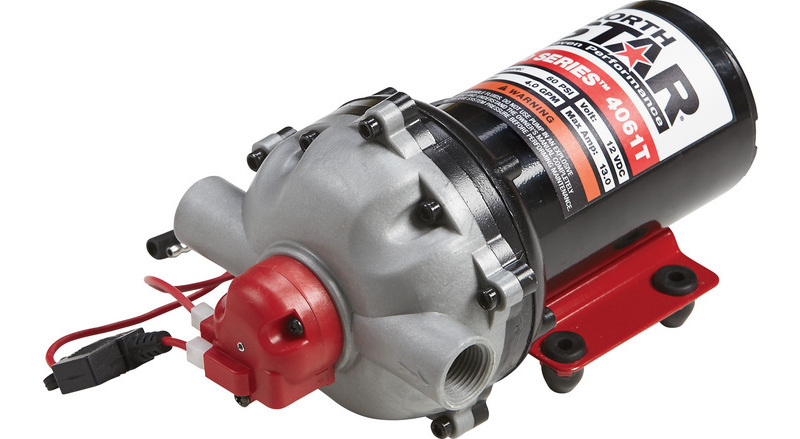

NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump, 4 GPM

Item# 2684061
NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump, 4 GPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump, 4 GPM

Click or Tap image to Zoom

$169.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Automatically turns off when no flow is required to conserve battery power

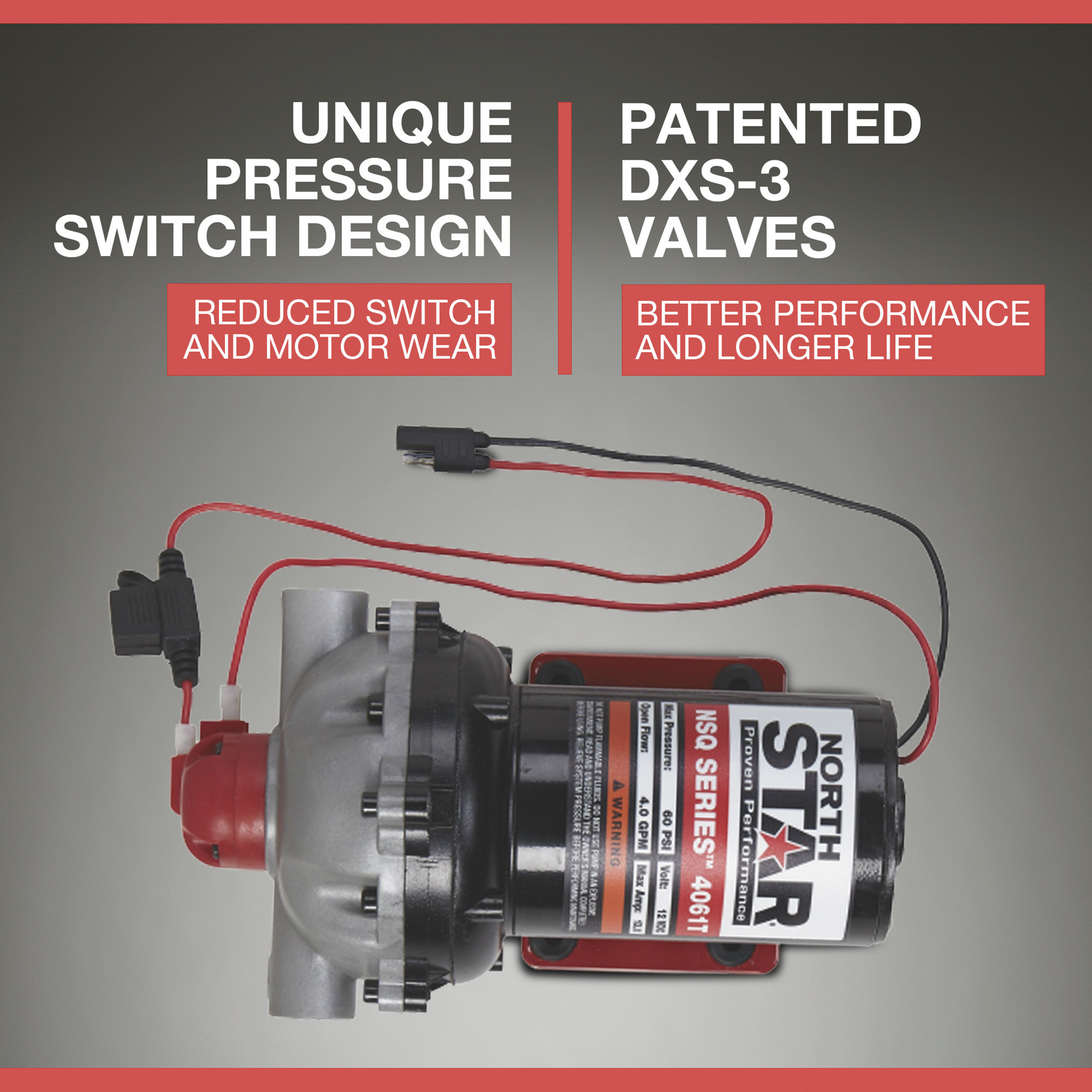

  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm for reliability and longer life
  • Innovative smooth valve design for faster priming and longer life

See full description

Complete Your Solution

  • NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump, 4 GPM
  • Valley Industries Long-Range Spray Gun - 26in., 25 GPM, 850 PSI, Adjustable Spray Pattern, Model# SG-3200
Price for all two:

$259.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar® NSQ Series® 12V On-Demand Sprayer Diaphragm Pump is a premium-quality on-demand diaphragm pump that upgrades your sprayer with innovative components and engineering for superior spot or broadcast spraying performance. 100% continuous duty rating with no cool down period required.

What's Included

    (1) Sprayer diaphragm pump

Downloads

Product Manual
Play Item Video

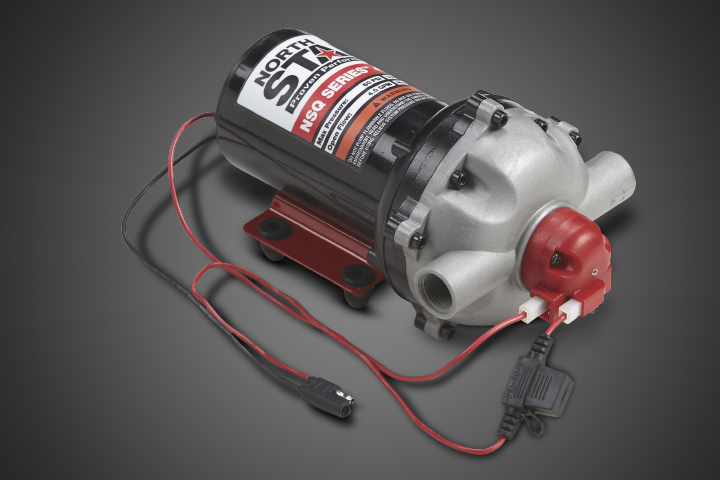

ADVANCED MATERIALS

The patented DXS-3® valves, crafted from CHEMICAL-RESISTANT Viton® and the ROBUST SANTOPRENE™ diaphragm, redefine durability and performance in harsh conditions

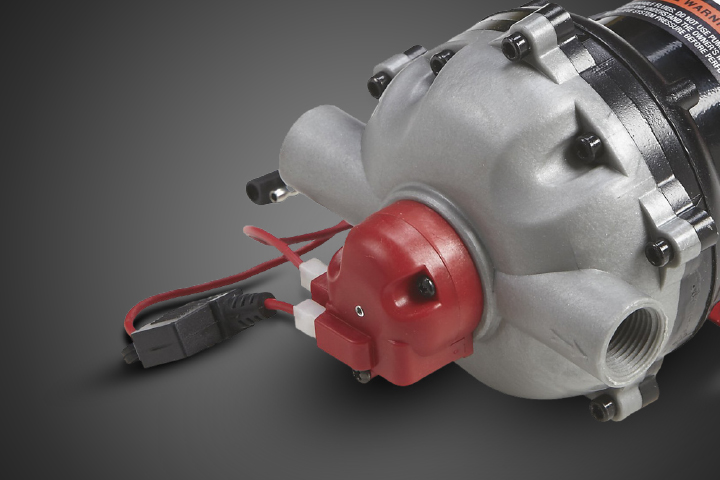

INTELLIGENT DESIGN

Embrace innovation with a pump that conserves energy by automatically shutting off when idle. ENHANCED LONGEVITY and reduced wear are now a reality, thanks to its UNIQUE PRESSURE SWITCH and motor design

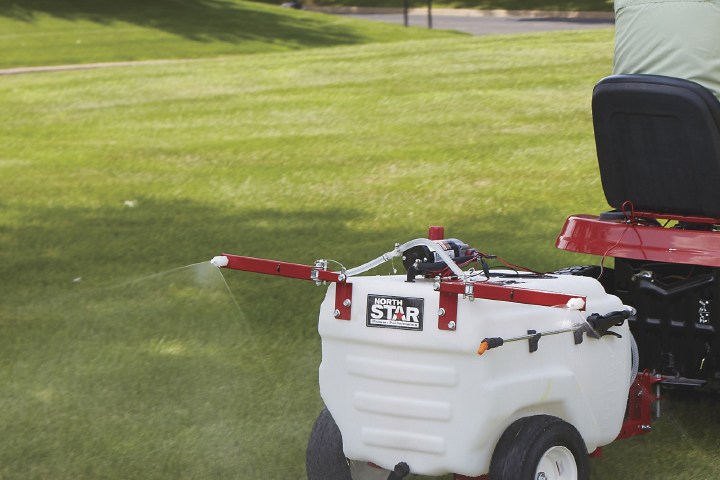

SUPREME DURABILITY

Built with a FIBERGLASS-REINFORCED POLYPROPYLENE manifold, this pump stands challenged in DURABILITY and CHEMICAL RESISTANCE, ensuring a long life of reliable service

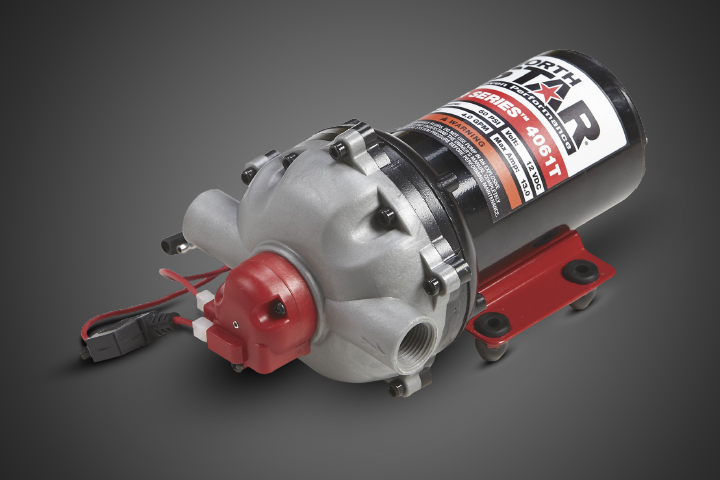

HERBICIDE COMPATIBILITY

Designed with precision for compatibility with Roundup® herbicides, this pump has been rigorously tested to guarantee SAFE and EFFECTIVE APPLICATION, making it a trusted tool for your agricultural needs

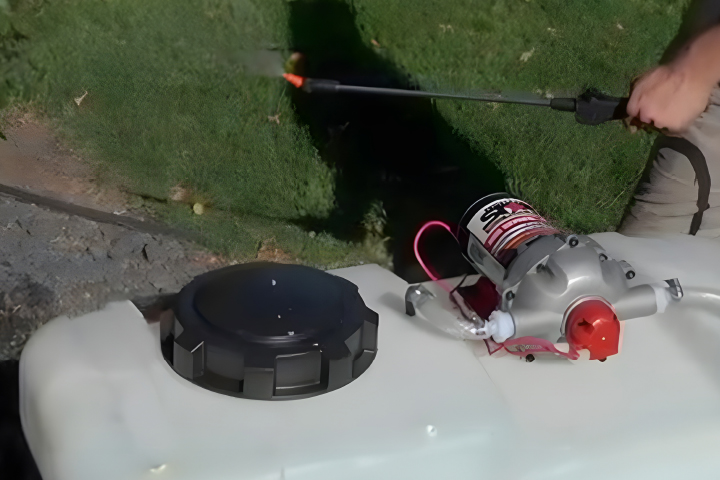

UNPARALLELED ENGINEERING

Discover the EPITOME OF SPRAYING EFFICIENCY with the NorthStar® NSQ Series® Pump, engineered for 100% continuous operation without a pause. A marvel in agricultural technology

Features + Benefits

  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm for reliability and longer life
  • Innovative smooth valve design for faster priming and longer life
  • Fiberglass reinforced polypropylene pump manifold for superior durability and resistance to chemicals
  • Compatible with Roundup® agricultural brand herbicides
  • All components in fluid path have been tested and approved for Roundup use
  • Self-priming up to 12 feet above liquid level
  • 12 Volts
  • Standard mounting pattern
  • Fits all NorthStar sprayers and most other brands

Key Specs

AttributeSpecification

item#

2684061

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

6.35 LB

Max. PSI

60

Max. Flow Rate

4 GPM
AttributeSpecification

Volts

12

Amps

13

Inlet Port

1/2

Outlet Port

1/2

Self-Priming

Yes

Seal Type

Viton

Reviews

Questions & Answers

29 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. What do i need to hook this up to a battery?

    1 answer

    1. To connect the pump to a 12V DC battery, first disconnect the vehicle battery ground wire, then connect the pump’s red wire to the positive (+) battery terminal and the black wire to the negative (-) terminal, and finally reconnect the vehicle battery ground wire.

      Helpful?

  2. Can I use this pump for DEF

    1 answer

    1. This sprayer pump is not rated for use with DEF.

      Helpful?

  3. Will this pump work for a pressure washer that needs 4 gallons a minute?

    1 answer

    1. The water supply coming into the pressure washer should be steady and 20% over the rated flow of your pump. 20% more of 4.0 GPM, is 4.8 GPM. Please view item #2685561. This pump is rated at 5.5 GPM.

      Helpful?

  4. I am replacing the pump on my 22 gal North Star sprayer, The old pump is a NorthStar 2272Q pump, with a quick connect pressure regulator. Is a pressure regulator needed/recommended with this pump? If so, what model regulator should be used with it?

    1 answer

    1. A pressure regulator would be recommended. Please see our item #2681032 for a regulator that will work with this pump.

      Helpful?

  5. Can I use this pump with a chlorine mix ?

    1 answer

    1. This pump will be damaged and warranty voided if used with a chlorine mix.

      Helpful?

  6. What is the flow rate of this pump at 40 psi

    1 answer

    1. This pump provides 4gpm at 40 PSI.

      Helpful?

  7. What is the maximum hose length recommended for this pump

    1 answer

    1. For best performance the longest hose this pump should be used with would be 20 feet.

      Helpful?

  8. Okay to keep powered and the output at 60psi all the time? (always in an "on-demand" setup) Or will the diaphragm/valve fail prematurely?

    I want to leave this in an on demand setup where it is always receiving power and only the pressure switch turns the pump on and off. This means the output will rest at 60psi for very long periods of time.

    Will the pump diaphragm or valve fail prematurely in this type of setup?

    1 answer

    1. This pump should never be used unattended where it could run dry for an extended period of time. The pump can run dry for short periods, but for extended periods will cause damage to the pump.

      Helpful?

  9. can I use this pump in a rv?

    1 answer

    1. This pump can be used in an RV, however, it's not rated for potable or gray water.

      Helpful?

  10. Is the 60 PSI cutout fixed or adjustable?

    1 answer

    1. On the head of the pump there where the pressure switch is there is a fitting that can adjust the pressure down to a lower pressure. You would not be able to adjust it any higher.

      Helpful?
