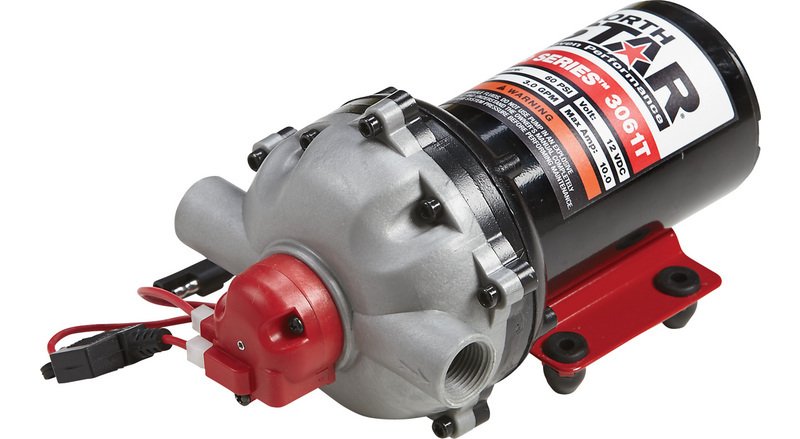

NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump, 3 GPM

Item# 2683061
NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump, 3 GPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump, 3 GPM

Click or Tap image to Zoom

$159.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm for reliability, longer life and better priming
  • Innovative smooth valve design for faster priming and longer life

See full description

Complete Your Solution

  • NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump, 3 GPM
  • NorthStar Replacement Sprayer Pump Head, 1/2in. NPT Ports, 3.0 GPM, 60 PSI, Model# A2683061
  • Valley Industries Long-Range Spray Gun - 26in., 25 GPM, 850 PSI, Adjustable Spray Pattern, Model# SG-3200
Price for all three:

$349.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar® NSQ Series® 12V On-Demand Sprayer Diaphragm Pump is a premium-quality on-demand diaphragm pump that upgrades your sprayer with innovative components and engineering for superior spot or broadcast spraying performance. 100% continuous duty rating with no cool down period required.

What's Included

    (1) Sprayer diaphragm pump

Downloads

Product Manual
Play Item Video

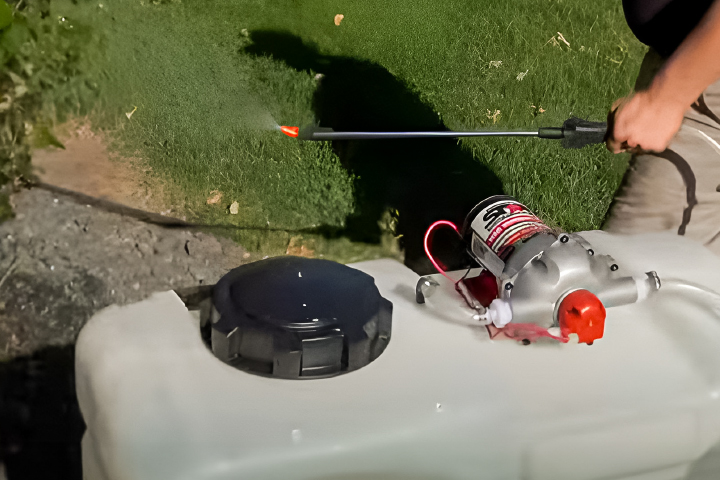

UNMATCHED SPRAYING CAPABILITY

ELEVATE YOUR SPRAYING TASKS with the NorthStar 3.0 GPM PUMP, designed to deliver unparalleled performance without the need for intermittent cooldowns

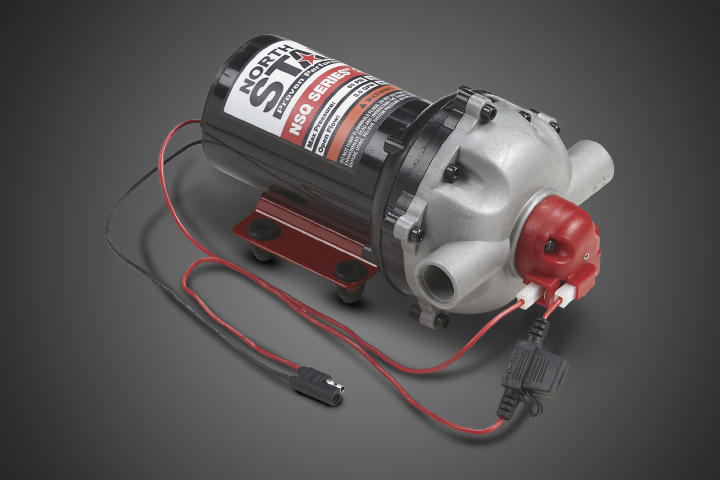

SMART ENERGY USE

Maximize your OPERATIONAL EFFICIENCY with an intelligent pump that conserves power by shutting off automatically when not in use

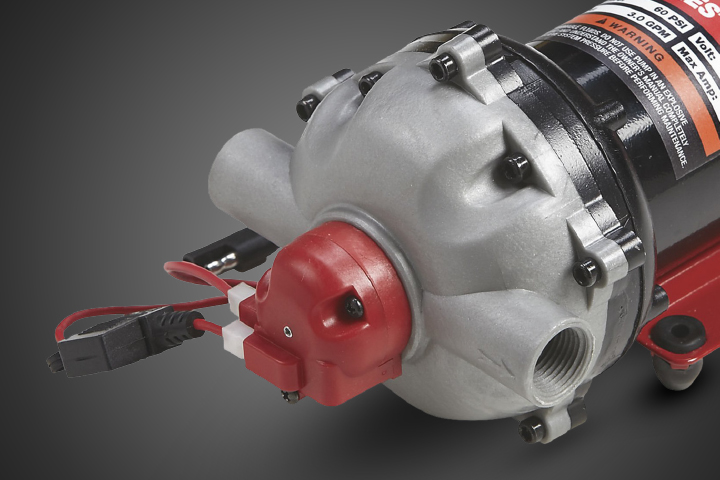

BUILT TO LAST

Experience the reliability of cutting-edge components, including a SANTOPRENE™ DIAPHRAGM and DXS-3® VALVES, crafted for durability and optimal priming

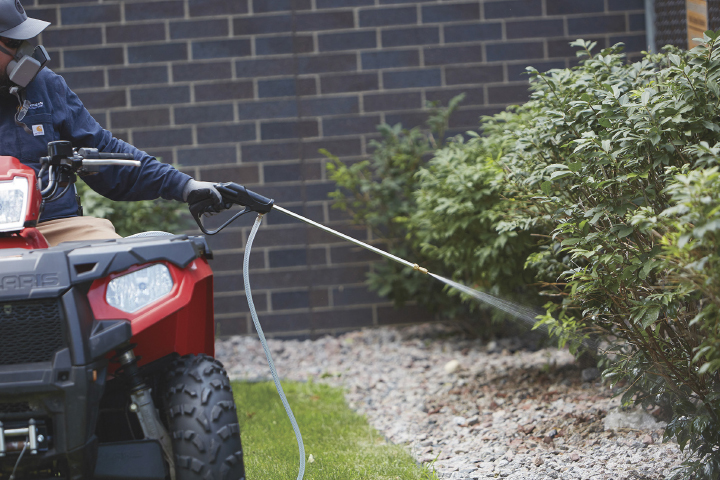

UNPARALLELED ENGINEERING

Discover the EPITOME OF SPRAYING EFFICIENCY with the NorthStar® NSQ Series® Pump, engineered for 100% continuous operation without a pause. A marvel in agricultural technology

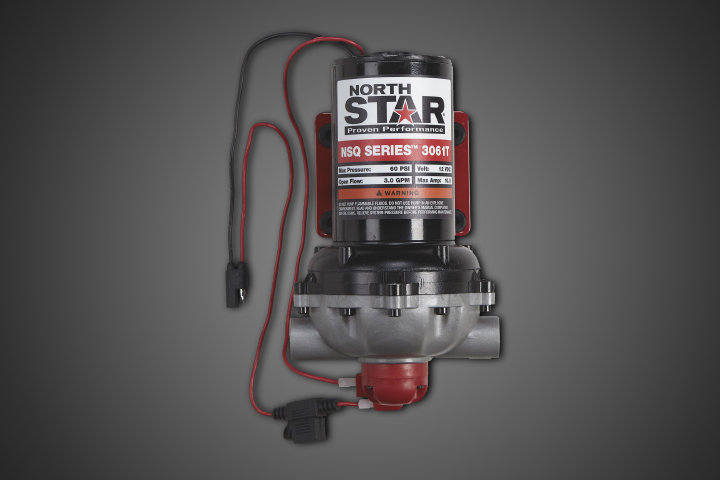

HERBICIDE-READY

With its COMPATIBILITY WITH ROUNDUP® HERBICIDES, this pump is a robust tool for agricultural spraying, tested and approved for use with chemical applications

Features + Benefits

  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm for reliability, longer life and better priming
  • Innovative smooth valve design for faster priming and longer life

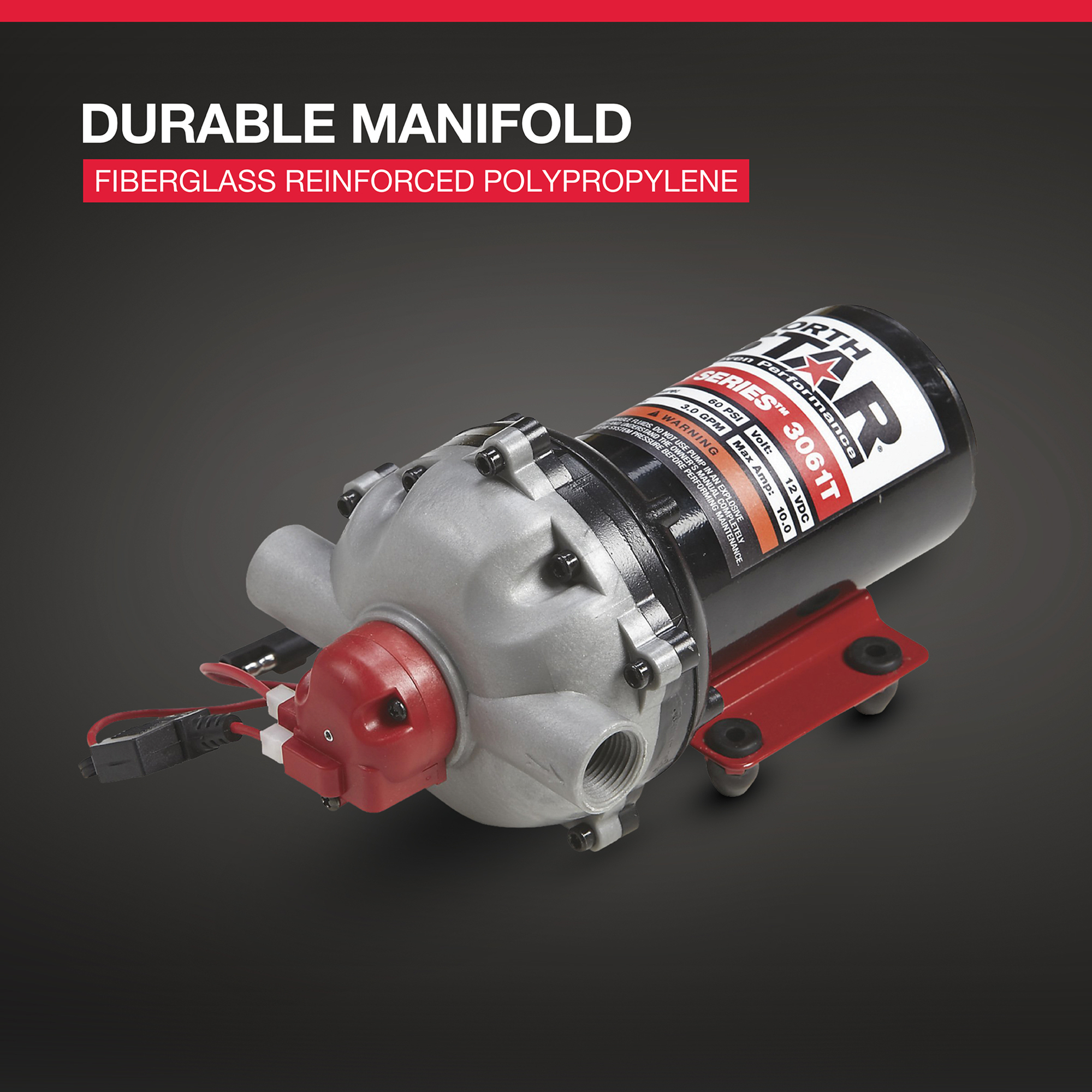

  • Fiberglass reinforced polypropylene pump manifold for superior durability and resistance to chemicals
  • Compatible with Roundup® agricultural brand herbicides
  • All components in fluid path have been tested and approved for Roundup use
  • Self-priming up to 12 feet above liquid level
  • 12 Volts
  • Standard mounting pattern

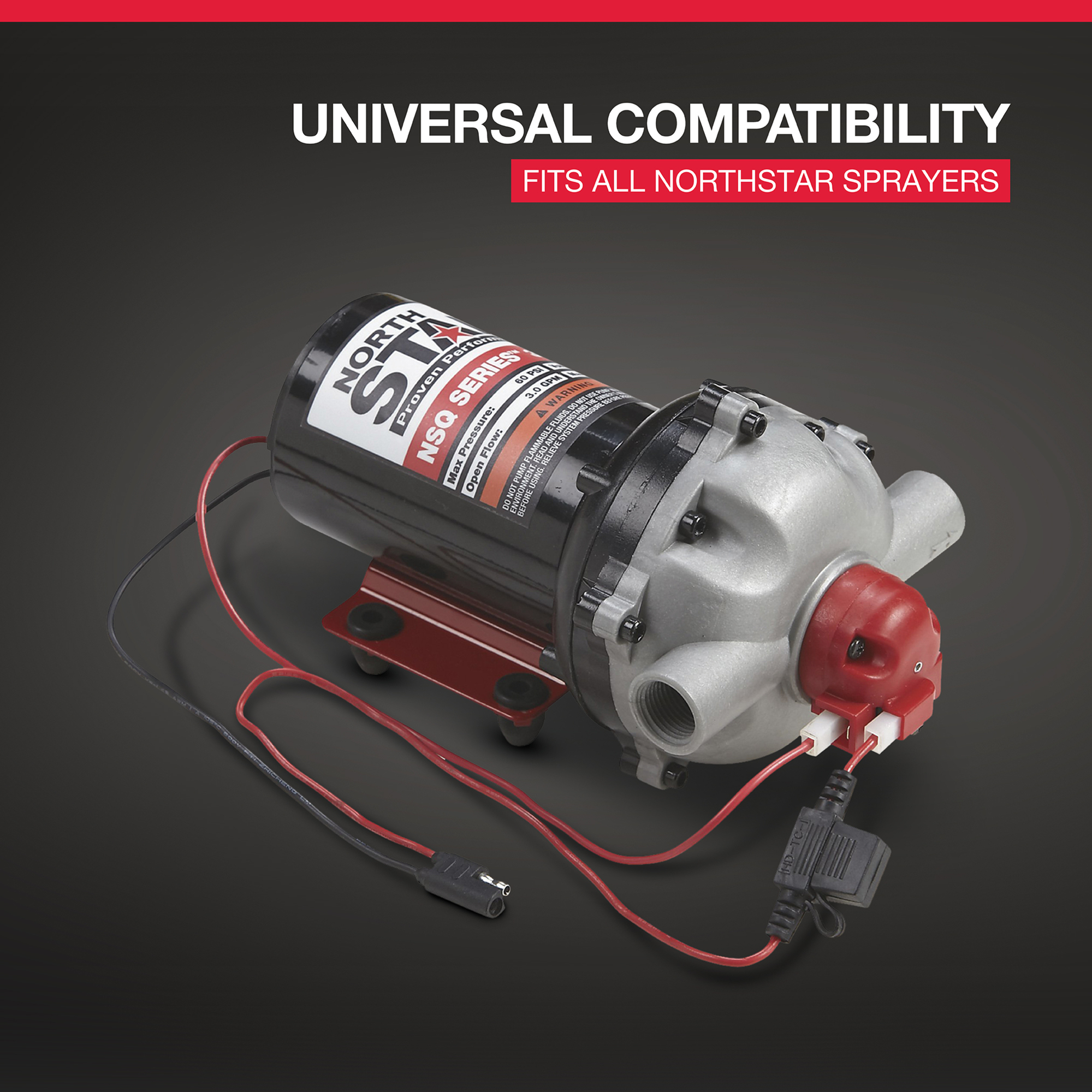

  • Fits all NorthStar sprayers and most other brands

Key Specs

AttributeSpecification

item#

2683061

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

6.37 LB

Max. PSI

60

Max. Flow Rate

3 GPM

Max. Temperature

140 °F
AttributeSpecification

Volts

12

Amps

10

Max. RPM

2,300

Inlet Port

1/2

Outlet Port

1/2

Self-Priming

Yes

Seal Type

Viton

Reviews

Questions & Answers

39 Reviews This action will navigate to reviews.

Questions

1–10 of 15 Questions
Sort by:

  1. Is this pump compatible and or is interchangabale with the NSQ 20200Q

    1 answer

    1. This pump is rated for 3 GPM and a maximum of 60 PSI. It features 1/2" NPT ports. This is significantly different from the NSQ20200Q pump which was rated for 2 GPM and a maximum of 200 PSI. It featured quick connect ports.

      Helpful?

  2. Can you use this as a bleach pump?

    1 answer

    1. This pump is not designed for use with bleach. Bleach would damage the pump.

      Helpful?

  3. How much head can this handle? Will it suck up water from a tank 3’ deep?

    1 answer

    1. This pump can self-prime up to 12 feet above the liquid level. It could handle a lift of 3 feet.

      Helpful?

  4. Does this have an internal check valve?

    1 answer

    1. The pump does not have an internal check valve. If a check valve is installed in the plumbing, it must have a cracking pressure of not more than 2 PSI (0.14 bar).

      Helpful?

  5. will this pump handle a boom sprayer that has 3 nozzle spray.

    1 answer

    1. The pump would be able to handle a boom sprayer with 3 nozzles.

      Helpful?

  6. Is this pump rated for continuous use? I spray ponds and fences

    1 answer

    1. This pump has a 100% continuous duty rating with no cool down period required.

      Helpful?

  7. can this pump be used to run a shower in a cabin

    1 answer

    1. This unit can handle hot water up to 140 degrees Fahrenheit, however it is not rated for potable water.

      Helpful?

  8. Can this run from a DC battery?

    1 answer

    1. This unit is designed for use with 12 volt DC batteries. Please see our Product Recommendations below.

      Helpful?

  9. Can the pressure valve be modified

    Are you able to adjust the pressure which the regulator turns on and off the motor? Could I have the pressure regulated at 40 (43 to be precise) psi.
    Additionally, how does the pressure regulation work, is it a switch which is activated at a designated pressure or is it an analog signal?

    1 answer

    1. The pressure switch reacts to outlet pressure, and interrupts power at the preset shut-off pressure indicated on the pump label. This should not be modified. A bypass regulator like the one listed below would be required to set the line pressure lower than the factory setting of the pump.

      Helpful?

  10. Flow Rate at 60 psi

    In the product description it says the pump has a flow rate of 3 GPM at 60psi but I would appreciate conformation. Is this the case, or is the flow rate reduced at 60 psi?

    1 answer

    1. This pump does produce 3 GPM @ 60 psi.

      Helpful?
