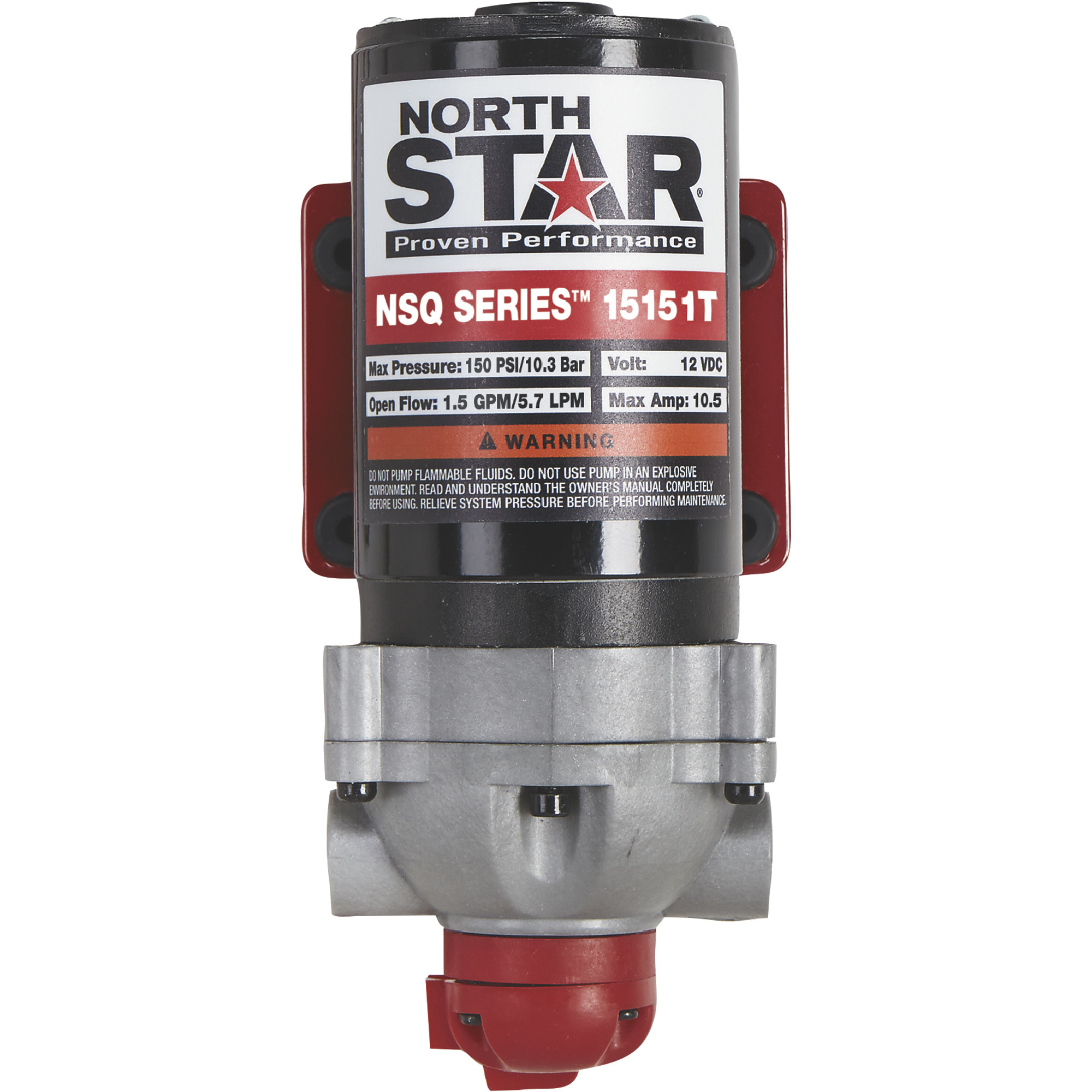

NorthStar NSQ Series 12 Volt High Pressure Sprayer Diaphragm Pump, 1.5 GPM, 150 PSI, 3/8in. NPT Ports

Item# 26815151
NorthStar NSQ Series 12 Volt High Pressure Sprayer Diaphragm Pump, 1.5 GPM, 150 PSI, 3/8in. NPT Ports

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar NSQ Series 12 Volt High Pressure Sprayer Diaphragm Pump, 1.5 GPM, 150 PSI, 3/8in. NPT Ports

Click or Tap image to Zoom

$219.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Delivers 150 PSI max and up to 1.5 GPM open flow
  • 12V DC/10.5 Amps max.
  • Automatic turn off when no flow is required to conserve battery power
  • Continuous run time/run dry without damaging the pump
  • Pressure switch cycles pump slowly to reduce wear and enhance durability and efficiency

See full description

Complete Your Solution

  • NorthStar NSQ Series 12 Volt High Pressure Sprayer Diaphragm Pump, 1.5 GPM, 150 PSI, 3/8in. NPT Ports
  • Valley Industries Long-Range Spray Gun - 26in., 25 GPM, 850 PSI, Adjustable Spray Pattern, Model# SG-3200
Price for all two:

$309.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar NSQ Series 12 Volt High Pressure Sprayer Diaphragm Pump helps you spray farther and higher. This 1.5 GPM, 150 PSI pump is designed to fit all NorthStar sprayers as well as most other sprayers. Packed with performance parts for dependable operation. Standard battery operation.

What's Included

    (1) Sprayer diaphragm pump

Downloads

Product Manual

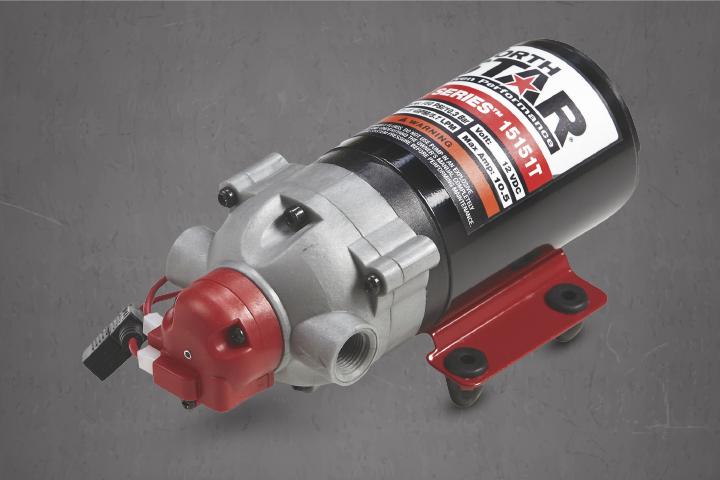

ENHANCED SPRAYING CAPABILITY

Elevate your spraying tasks with the NorthStar 1.5 GPM HIGH-PRESSURE PUMP, designed for superior reach and consistent HIGH-PRESSURE PERFORMANCE across all your projects


RELIABILITY REDEFINED

With the ability to run continuously and handle dry conditions without FALTERING, this pump is a steadfast companion for any spraying job, ENSURING UNINTERRUPTED OPERATION

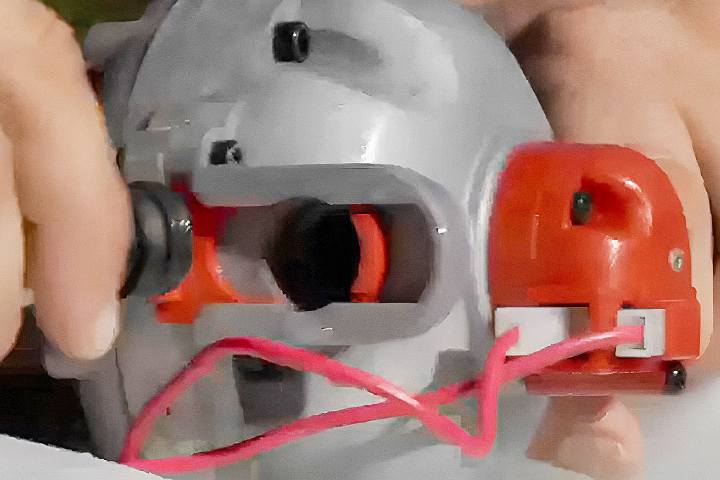

BUILT FOR THE LONG HAUL

Experience reduced MAINTENANCE and ENHANCED PERFORMANCE, as the pressure switch and quality components like the SANTOPRENE™ DIAPHRAGM and VITON® VALVES work together to minimize wear

Features + Benefits

  • Delivers 150 PSI max and up to 1.5 GPM open flow
  • 12V DC/10.5 Amps max.
  • Automatic turn off when no flow is required to conserve battery power
  • Continuous run time/run dry without damaging the pump
  • Pressure switch cycles pump slowly to reduce wear and enhance durability and efficiency
  • Self-priming to 8ft. above fluid level so no manual priming is necessary
  • Compatible with Roundup® agricultural brand herbicides
  • Santoprene™ diaphragm and Viton® valves offer exceptional performance and long life
  • 3/8in. NPT inlet and outlet ports for excellent flow

Key Specs

AttributeSpecification

item#

26815151

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

5.31 LB

Max. PSI

150

Max. Flow Rate

1.5 GPM

Max. Temperature

140 °F
AttributeSpecification

Volts

12

Amps

10.5

Inlet Port

3/8

Outlet Port

3/8

Self-Priming

Yes

Seal Type

Viton

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. At 150 psig what is the flow?

    1 answer

    1. At 150 PSI, the flow rate is 1.5 GPM.

      Helpful?

  2. Hello will this pump hood up using it to pump diesel

    1 answer

    1. This pump cannot be used for pumping diesel.

      Helpful?

  3. can I use this to move drinking water to a storage tank?

    1 answer

    1. This NorthStar pump is not designed to move potable water. I will attach a link below with your options, you can use items 157103, 157104, or 157101 for potable water applications.

      Helpful?

  4. Where do I find specific product dimensions?

    For mounting

    1 answer

    1. The mounting holes center to center are 2-1/4" long x 3-3/16" wide.

      Helpful?

  5. How much flow(gpm) would this pump produce at 80psi?

    1 answer

    1. At 80 PSI, the flow rate of this pump is approximately 1.05 GPM. To adjust this pump's PSI, a pressure regulator is necessary. Click the link below to view a pressure regulator that goes up to 100 PSI. We do not carry a regulator for a higher PSI.

      Helpful?

  6. could I use this to spray concrete sealer? It is xylene base product.

    1 answer

    1. This pump cannot be used to transfer/apply a xylene-based sealer. It is compatible with water-based, non-flammable sealants/sealers.

      Helpful?
