NorthStar Tow-Behind Hot Water Commercial Pressure Washer Trailer with 2 Wands, 4000 PSI, 7 GPM, NorthStar Engine, 525-Gal. Water Tank, Belt Drive

Item# 1575973
NorthStar Tow-Behind Hot Water Commercial Pressure Washer Trailer with 2 Wands, 4000 PSI, 7 GPM, NorthStar Engine, 525-Gal. Water Tank, Belt Drive

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Tow-Behind Hot Water Commercial Pressure Washer Trailer with 2 Wands, 4000 PSI, 7 GPM, NorthStar Engine, 525-Gal. Water Tank, Belt Drive

Click or Tap image to Zoom

$17,999.99

  • Shipping:

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 4,000 PSI, 7 GPM Commercial-Grade Cleaning Performance: Dual-wand cleaning capability delivers 7 GPM with 1 gun or 3.5 GPM with both guns to quickly remove grease, oil, mud, grime and other stubborn buildup
  • NorthStar e740 EFI Gas Engine: Commercial-grade 739cc EFI engine delivers reliable starting, consistent performance, improved fuel efficiency and 38.4 ft./lbs. gross torque for the toughest cleaning applications
  • Hot Water Cleaning Capability: Produces hot water up to 200°F to break down grease, oil and stubborn jobsite grime up to 2x faster
  • 525-Gallon Water Tank: Large-capacity onboard water supply supports extended cleaning sessions and allows operation in locations without access to running water
  • Trailer-Mounted Dual-Wand System: 7,000-lb. capacity highway-rated trailer setup includes dual hose reels with 150ft. high-pressure hoses, (2) spray guns with 4ft. lances, (15) quick-connect nozzles, a mounted toolbox and built-in jack with caster

See full description

Complete Your Solution

  • NorthStar Tow-Behind Hot Water Commercial Pressure Washer Trailer with 2 Wands, 4000 PSI, 7 GPM, NorthStar Engine, 525-Gal. Water Tank, Belt Drive
  • MAG 1 Pressure Washer Pump Oil, 30W, Universal Use, 32oz.
  • NorthStar Maintenance Kit, Fits NorthStar 670CC, 740CC and 825CC Engines, Model# 805646
Price for all three:

$18,074.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar Hot Water Commercial Pressure Washer Trailer is engineered for professionals who demand maximum productivity and self-contained cleaning capability. Equipped with dual spray wands, it allows 2 operators to work at the same time, helping crews clean more area in less time. Delivering 4,000 PSI and up to 7 GPM, this trailer-mounted system combines powerful pressure with high water flow to tackle grease, oil, mud and stubborn buildup. The hot water cleaning system improves cleaning efficiency on equipment, heavy machinery, fleets, concrete and industrial surfaces where cold water alone isn't enough. Its 525-gallon onboard water tank provides extended runtime for remote jobsites, while the NorthStar commercial engine delivers dependable power. Designed for contractors, municipalities, farms and fleet maintenance professionals, the NorthStar Hot Water Commercial Pressure Washer Trailer is an all-in-one trailer system built to maximize productivity.

What's Included

    (1) NorthStar Tow-Behind Hot Water Commercial Pressure Washer Trailer with 2 Wands (2) Hose reels (2) 150ft. high-pressure hoses (2) Spray guns with 4ft. lances (15) Quick-connect nozzles

Downloads

Product Manual

BUILT TO LAST

Constructed with an industrial belt drive pump featuring a brass manifold and ceramic plungers, this machine is ENGINEERED FOR DURABILITY in the most demanding conditions


TOTAL JOB VERSATILITY

From ADJUSTABLE TEMPERATURE and PRESSURE to the convenience of diagnostic lights and easy startup, this trailer is designed for ease of use and versatility in any cleaning task

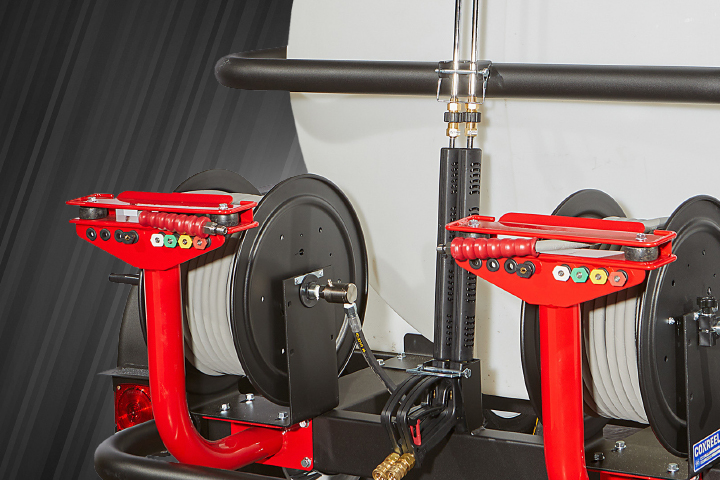

VERSATILE CLEANING POWER

Whether needing intense cleaning power from one gun or multitasking with two, this trailer delivers consistent 4,000 PSI for deep, EFFECTIVE CLEANING

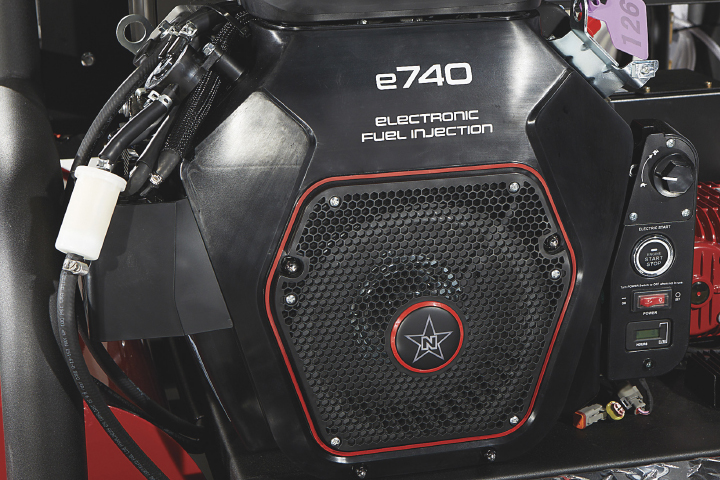

UNMATCHED ENGINE QUALITY

The NORTHSTAR E740 ENGINE, verified by independent authorities, sets the gold standard in efficiency and power for COMMERCIAL-GRADE ENGINES, after exhaustive testing


EFI ADVANTAGE

Leverage the cutting-edge ELECTRONIC FUEL INJECTION TECHNOLOGY for more consistent starts, less fuel consumption and more power, setting new standards in operational efficiency

Features + Benefits

  • 4,000 PSI, 7 GPM Commercial-Grade Cleaning Performance: Dual-wand cleaning capability delivers 7 GPM with 1 gun or 3.5 GPM with both guns to quickly remove grease, oil, mud, grime and other stubborn buildup
  • NorthStar e740 EFI Gas Engine: Commercial-grade 739cc EFI engine delivers reliable starting, consistent performance, improved fuel efficiency and 38.4 ft./lbs. gross torque for the toughest cleaning applications
  • Hot Water Cleaning Capability: Produces hot water up to 200°F to break down grease, oil and stubborn jobsite grime up to 2x faster
  • 525-Gallon Water Tank: Large-capacity onboard water supply supports extended cleaning sessions and allows operation in locations without access to running water
  • Trailer-Mounted Dual-Wand System: 7,000-lb. capacity highway-rated trailer setup includes dual hose reels with 150ft. high-pressure hoses, (2) spray guns with 4ft. lances, (15) quick-connect nozzles, a mounted toolbox and built-in jack with caster
  • Adjustable Thermostat and Pressure: Variable pressure and water temperature can tackle any job
  • Easy Start: Releases pressure buildup during startup, so the motor turns over smoothly
  • Oil Sight Glass: Makes oil checks easy
  • 12V DC Automotive or Marine Battery Required: Sold separately

Key Specs

AttributeSpecification

item#

1575973

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1950.0 LB

Pressure

4,000 PSI

Flow

7 GPM

Engine Brand

Northstar

Engine Model

E740

Engine Displacement

739 cc

Fuel Type

Gasoline

Pump

Northstar

Drive Style

Belt

Number of Tips Included

5

Adjustable Pressure

Yes

Gross Torque

38.4 ft-lbs.

Start Type

Electric and Recoil

Engine Oil Included

No
AttributeSpecification

Engine Oil Type

SAE 30 Motor Oil

Fuel Capacity

15 Gal

Max. Inlet Water Temp

140 °F

Max. Outlet Water Temp

200 °F

Orifice Size

7

Chemical Injector

Yes

Hose Length

150 ft

Coupler Size

3/8 in

Wheel Diameter

15 in

Nozzle Type

0°, 15°, 25°, 40° and Soap

Quick Connect Nozzle

Yes

Pump Oil Included

Yes

Pump Oil Type

Universal Tractor Transmission

Low Oil Shutdown

Yes

Thermal Protector

Yes

Product Weight

lb

Dimensions L x W x H (in.)

198.0 x 77.75 x 71.5 in

Reviews

Questions & Answers

24 Reviews This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. Does this pressure have the capability of holding 3 different types of water Hot, bleach and regular? If so, how does that work?

    1 answer

    1. This pressure washer can withstand a maximum inlet water temperature of 140°F. Do not use bleach in this system, as it can damage the pump and other components.

      Helpful?

  2. I've had this machine 10 years, the tank finally wore out. Can I just get the water tank??

    1 answer

    1. The water tank, part #796785, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  3. Need to replace insulation on burner. Where do I order parts on line? I need a parts Manuel for part numbers.

    1 answer

    1. Currently, the burner insulation is not sold as a separate part. Other parts for this unit can be found on pages 52-56 of the Product Manual located below the Product Summary on the web page. Parts can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  4. Is the trailer DOT approved?

    1 answer

    1. This trailer is DOT approved.

      Helpful?

  5. How many feet of hose comes with the wand?

    1 answer

    1. Each hose reel includes 100' of hose.

      Helpful?

  6. When should I change oil filter

    1 answer

    1. The oil filter assembly part number 805816 and oil should be changed with in the first month or 20 hours of use. The maintenance schedule will then be every 6 months or 200 hours of use. Northern Tool no longer sells the replacement oil filter assembly. To order, please contact our sister company Jacks Small Engines at www.Jackssmallengines.com.

      Helpful?

  7. What size oil filter is needed for this unit?

    1 answer

    1. The oil filter assembly, part #805816, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  8. What is the torque spec for the lug nuts?

    1 answer

    1. This trailer has 1/2" lug nuts. The torque range is 75-85 ft.-lbs.

      Helpful?

  9. How many gallons of fuel does it hold?

    1 answer

    1. The engine is equipped with a 15 gallon steel gas tank. The burner will also hold 15 gallons of fuel for heating.

      Helpful?

  10. Wat size is the lid on water tank

    1 answer

    1. The fill cap, part #SNY34700088, has a 9.75" overall diameter. This part is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?
