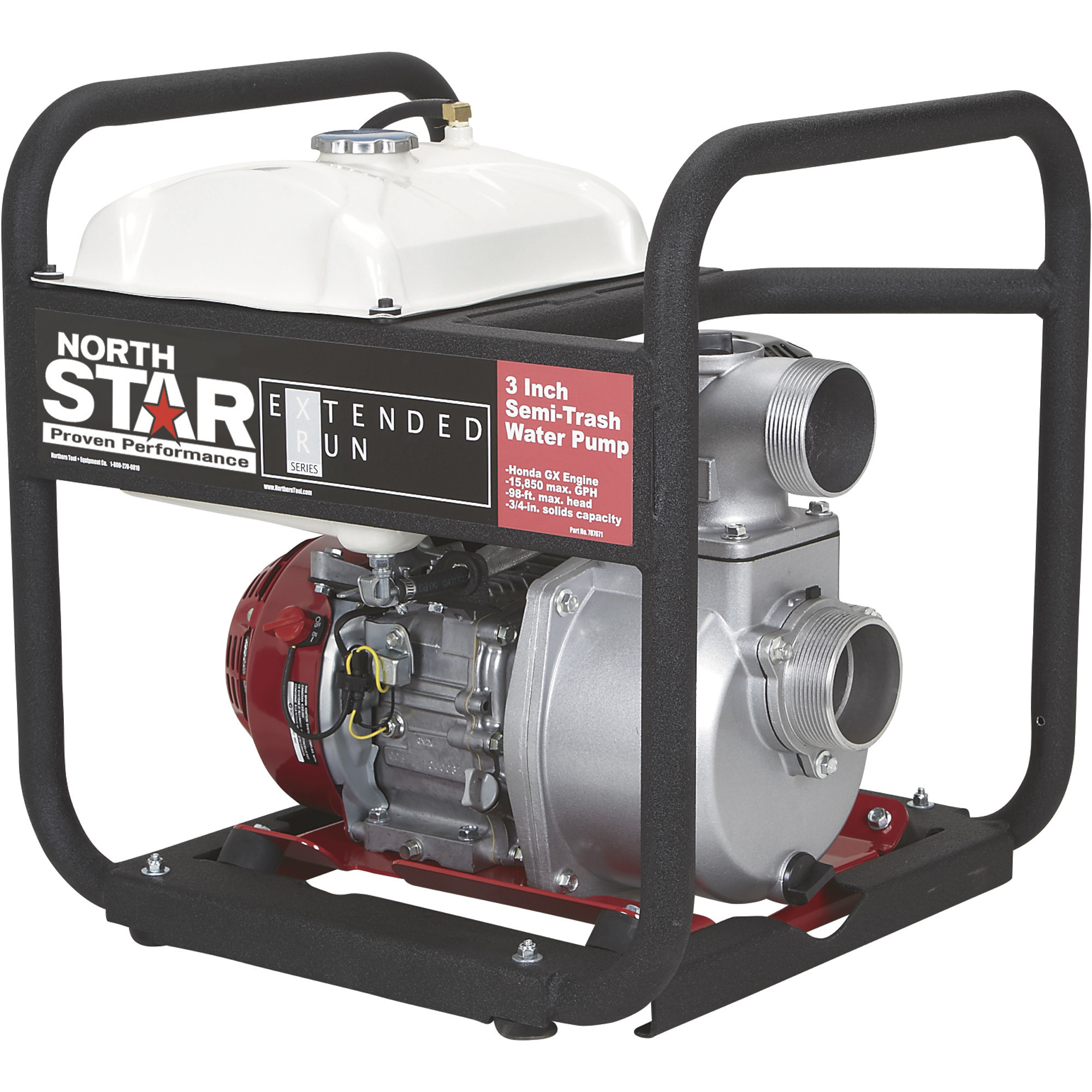

NorthStar Extended Run Semi-Trash Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 200cc Honda GX200 Engine

Item# 109171
"NorthStar Extended Run Semi-Trash Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 200cc Honda GX200 Engine"
NorthStar Extended Run Semi-Trash Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 200cc Honda GX200 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Extended Run Semi-Trash Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 200cc Honda GX200 Engine

Click or Tap image to Zoom

$899.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Provides more than 8 hours of continuous pumping without the need to refuel
  • Fully welded industrial 1-1/4in. steel roll cage with durable black wrinkle TGIC polyester electrostatic finish holds up to jobsite abuse
  • Long-life silicon carbide mechanical seal resists corrosion, wear and heat better than a standard seal
  • V-mount engine and pump isolation mounts for less vibration and extended life
  • Silicon carbide seals are 2x harder, 15% tougher, and 50% stronger than common aluminum oxide seals

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Extended Run Semi-Trash Pump, 3in. Ports, 15,850 GPH, 3/4in. Solids Capacity, 200cc Honda GX200 Engine
  • JGB Enterprises Water Pump Suction Hose, 3in. x 15ft., Model# A007-0489-1615
  • JGB Enterprises Water Pump Discharge Hose, 3in. x 50ft., Model# A008-0486-1650
  • JGB Enterprises Pump Hose Kit, 3in. Dia., 15ft. Suction Hose, 20ft. Discharge Hose, Model# A007-NTEHOSEKIT-3
Price for all four:

$1389.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar Extended Run Semi-Trash Water Pump provides more than 8 hours of continuous pumping without refueling, up to 4x the run time of typical pumps. It features a powerful, dependable Honda GX200 engine with Oil Alert that provides extra power, quieter performance and greater engine life. NorthStar uses long-lasting high-end silicon carbide seals that are specially suited for heavy-duty applications such as pumping contaminated and abrasive fluids.

What's Included

    (1) Extended run water pump

Downloads

Product Manual

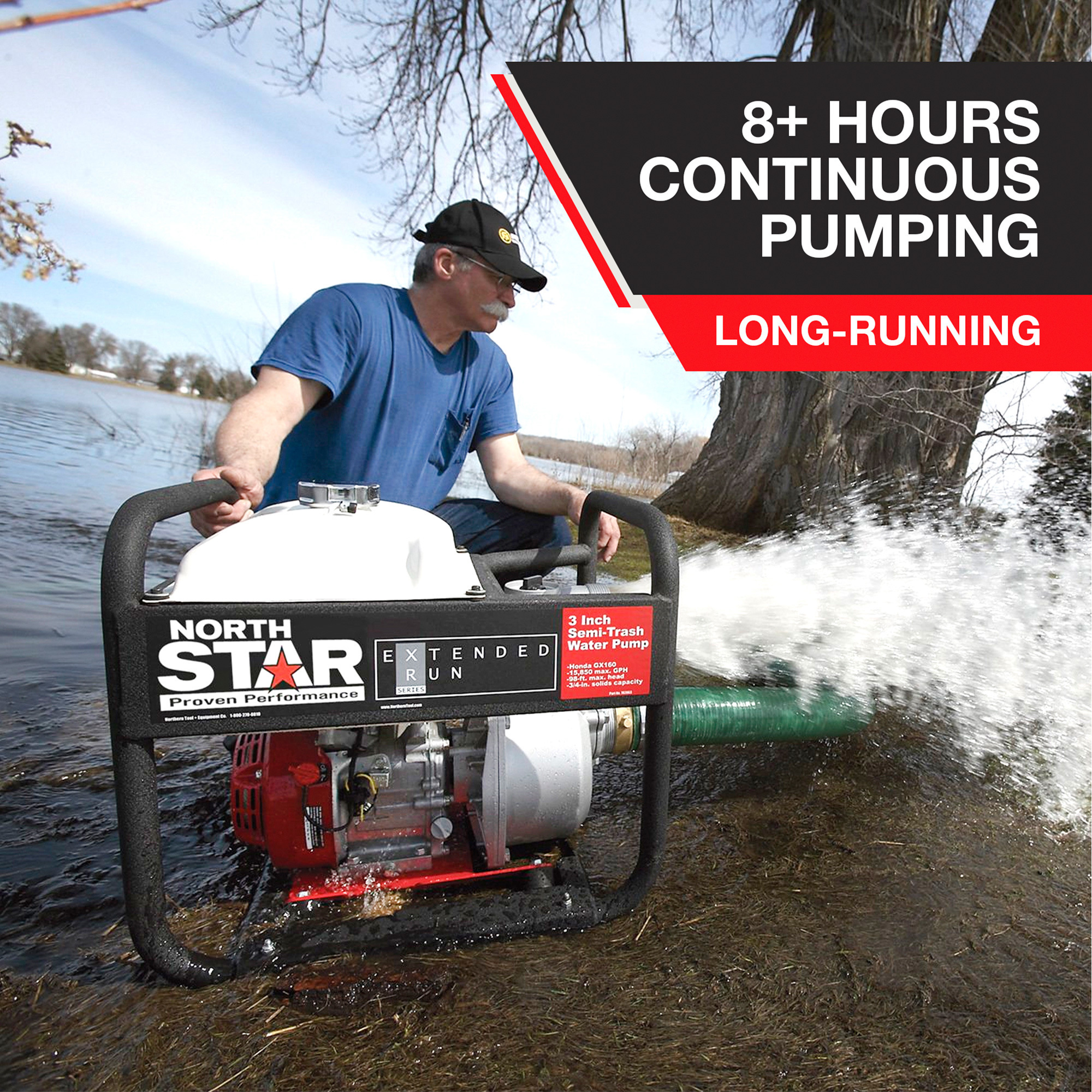

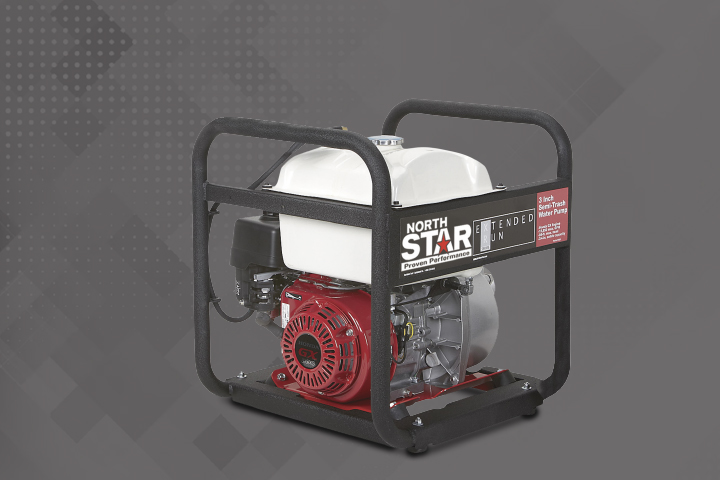

LONG-LASTING PERFORMANCE

The NorthStar 3 INCH SEMI-TRASH PUMP is designed for long-term reliability, providing more than 8 HOURS OF CONTINUOUS OPERATION which is ideal for large scale projects and emergency situations

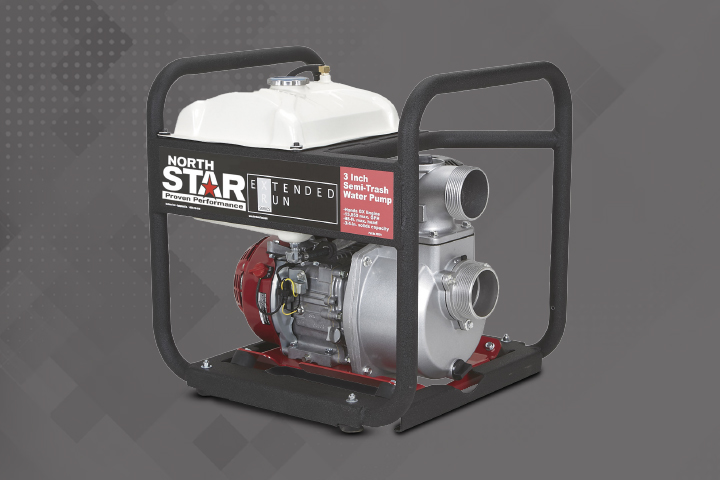

SUPERIOR MECHANICAL SEALS

The SILICON CARBIDE SEALS provide exceptional DURABILITY and PERFORMANCE, resisting wear, heat and corrosion more effectively than standard seals, making them suitable for handling semi-trash water with ease

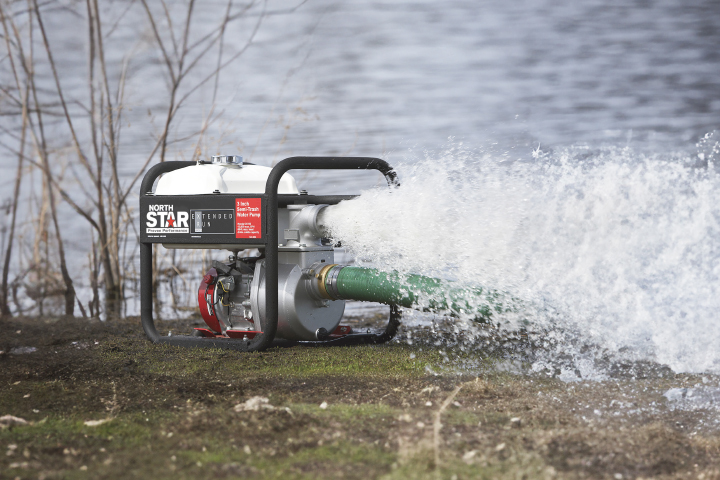

REDUCED OPERATIONAL NOISE

Engine and pump isolation mounts MINIMIZE VIBRATION, which not only PROLONGS THE LIFE of the pump but also makes its OPERATION SMOOTHER and LESS NOISY

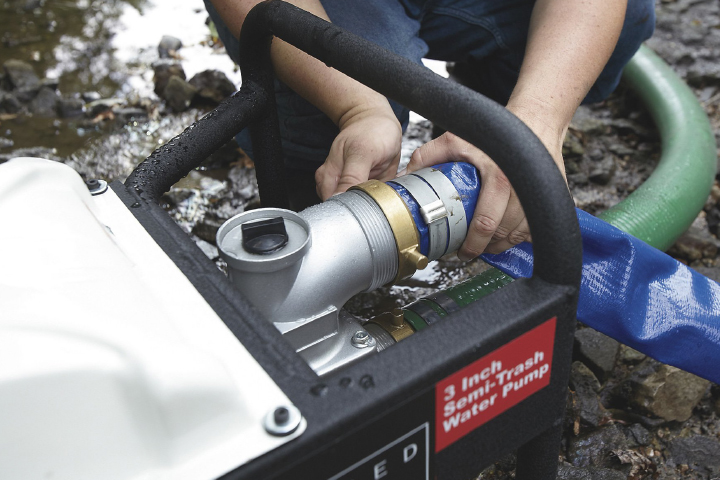

FLEXIBLE AND CONVENIENT

This SELF-PRIMING PUMP features standard NPT THREADS for easy connection to VARIOUS TYPES OF HOSE SETUPS and includes a check valve that keeps the system primed, simplifying startups and operation

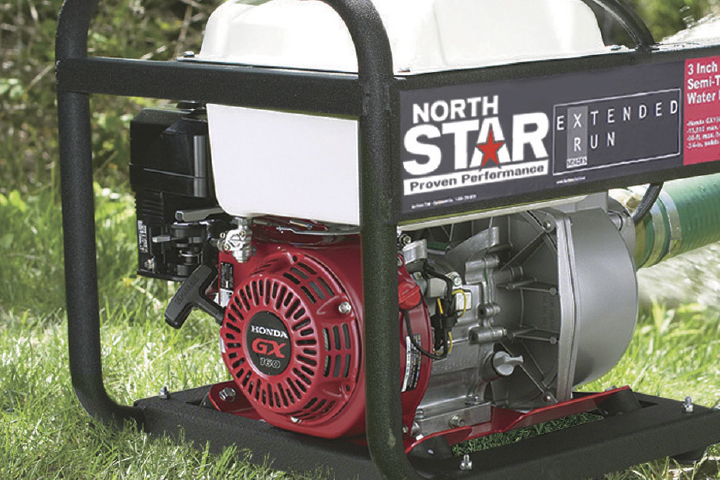

ENHANCED ENGINE EFFICIENCY

Powered by the reliable HONDA GX200, this pump delivers not only powerful performance but also operates more quietly and efficiently than conventional engines, thanks to the ADVANCED OIL ALERT® SYSTEM

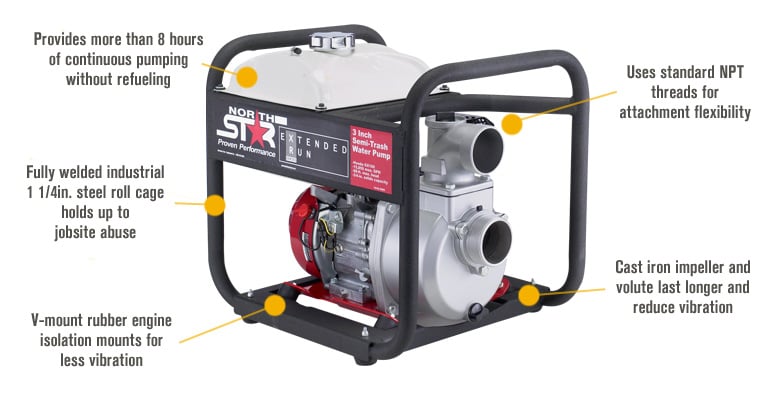

Features + Benefits

  • Provides more than 8 hours of continuous pumping without the need to refuel
  • Fully welded industrial 1-1/4in. steel roll cage with durable black wrinkle TGIC polyester electrostatic finish holds up to jobsite abuse
  • Long-life silicon carbide mechanical seal resists corrosion, wear and heat better than a standard seal
  • V-mount engine and pump isolation mounts for less vibration and extended life
  • Silicon carbide seals are 2x harder, 15% tougher, and 50% stronger than common aluminum oxide seals

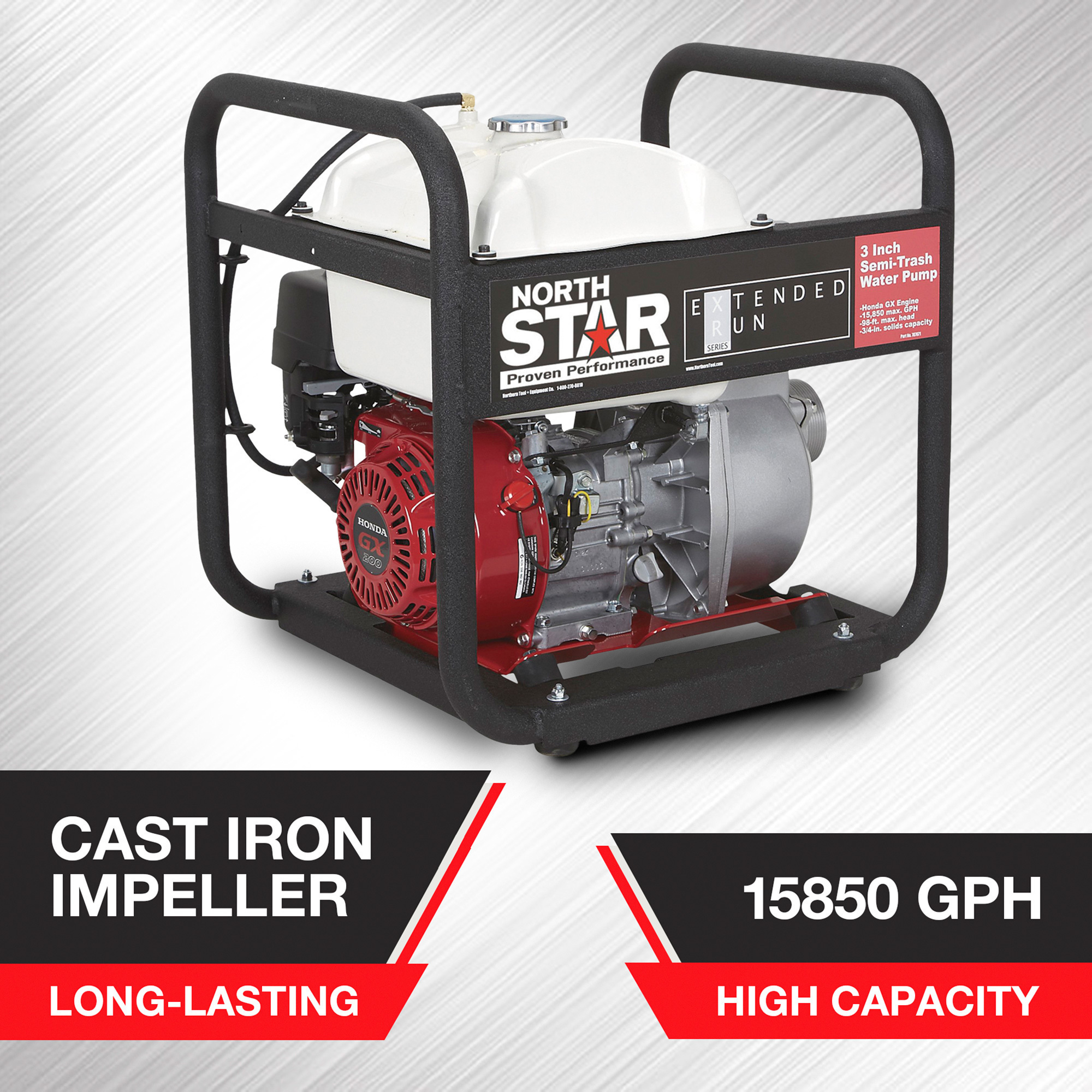

  • Long-lasting cast iron impeller and volute reduce vibration for semi-trash applications
  • All sheet metal parts are cut using a state of the art CO2 laser
  • Uses standard NPT threads for attachment flexibility
  • Utilizes a check valve to hold a prime while the pump is not running
  • Self-priming
  • Optional wheel kit (Item# 109172) also available

Key Specs

AttributeSpecification

item#

109171

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

90.0 LB

Max. Flow

15,850 GPM

Engine Displacement

200 cc

Engine Brand

Honda

Port Size

3 in

Pump Type

Semi-Trash Pump
AttributeSpecification

Self-Priming

Yes

Solids Capacity

0.75 in

Max. PSI

43.5 PSI

Fuel Tank Capacity

3.5 Gal

Max. Working Temperature

85 °F

Vertical Lift

23 ft

Housing Material

Aluminum

Product Weight

lb

Dimensions L x W x H (in.)

21.875 x 18.625 x 20.0 in

Reviews

Questions & Answers

29 Reviews This action will navigate to reviews.

Questions

1–10 of 23 Questions
Sort by:

  1. does it contain threaded connection

    does this include the threaded connection to accept the intake and outake hoses

    1. Yes. Both the inlet and outlet are 3" male pipe thread.

      Helpful?

    2. Yes, this pump includes standard 3" NPT ports for suction and discharge.

      Helpful?

    3. Yes

      Helpful?

  2. Does this engine have a oil shut down switch?

    1. Yes, it has a shut down and it has worked as it should.

      Helpful?

    2. Yes, This NorthStar semi-trash water pump features a low oil shutdown switch.

      Helpful?

  3. Can the discharge port be rotated?

    Hello,
    Can the discharge port be rotated 90 degrees so the hose doesn't kink? I noticed that the frame could possibly be in the way and create another problem.

    Thank Yoiu

    1. No it is solid

      Helpful?

    2. The discharge port can not be rotated. The frame work will not be a problem with the discharge hose angle.

      Helpful?

  4. Have a broken fin on the impeller. Looking to replace the part. How do I remove the impeller? Nothing in the owners manual on removal of it.

    1 answer

    1. To access the impeller for replacement, the pump cover will need to come off first. There is a bolt which holds the impeller in place, remove the bolt. Some force may be needed if the bolt has rusted into place.

      Helpful?

  5. Can you add an electric start to this model

    1 answer

    1. Electric start is not available for this pump.

      Helpful?

  6. Is top port inlet hose or discharge hose

    1 answer

    1. The discharge port is found on the top, the suction port is found on the bottom.

      Helpful?

  7. Can this pump be used to pump liquid fertilizer?

    1 answer

    1. This pump is not approved for use with fertilizers.

      Helpful?

  8. What is the horsepower

    1 answer

    1. The net rated power is 5.8 HP at 3600 RPM. The continuous rated power is 5.0 HP at 3600 RPM.

      Helpful?

  9. How many feet will this pump push water on level ground

    1 answer

    1. This pump has a max total head of 98 feet. Pumping further than that would cause a decrease in pressure and flow rate.

      Helpful?

  10. I am interested in buying only the pump or parts for the pump

    1 answer

    1. Please contact our NorthStar Parts department at 800.270.0810 for the pump and/or pump parts.

      Helpful?
