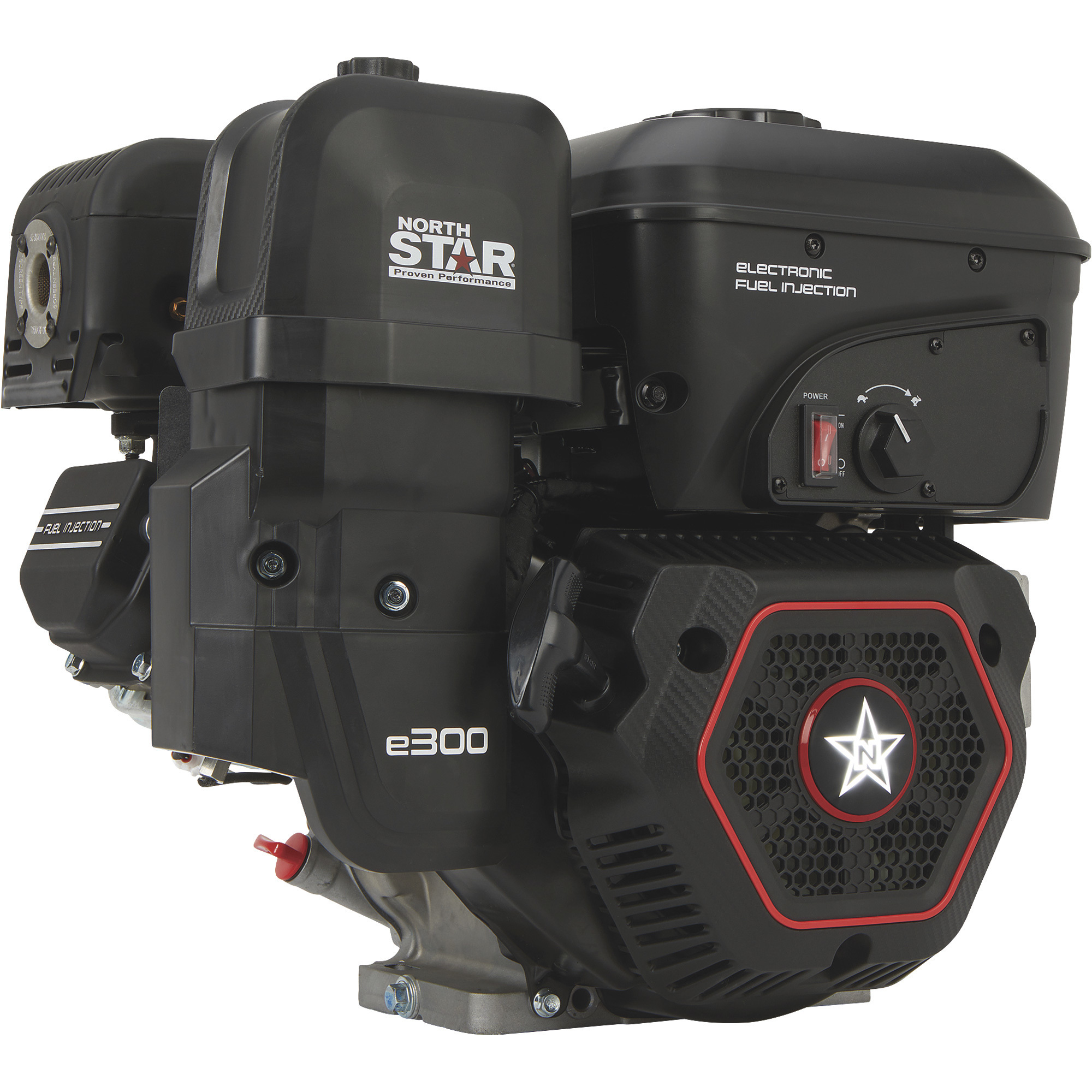

NorthStar e300 EFI Horizontal OHV Engine with Recoil Start, 300cc, 1in. x 3.48in. Shaft

Item# 114593
NorthStar e300 EFI Horizontal OHV Engine with Recoil Start, 300cc, 1in. x 3.48in. Shaft

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar e300 EFI Horizontal OHV Engine with Recoil Start, 300cc, 1in. x 3.48in. Shaft

Click or Tap image to Zoom

$429.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Four-stroke, overhead, single-cylinder
  • Net power output: 6.9kW
  • Max. RPM: 3600
  • 5in.(127mm) bolt circle and 3/8-16 UNC 2B Tap on a 6.5in. (165.1mm) bolt circle
  • Mounting base: 7.7in.L x 3.25in.W

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar e300 EFI Horizontal OHV Engine with Recoil Start, 300cc, 1in. x 3.48in. Shaft
  • NorthStar Maintenance Kit for NorthStar 300CC Engine, 2 Qts. 10/30W Oil, 12-Oz. Fuel Additive, 1 Filter, 1 Spark Plug, Model# 805643
  • NorthStar 10W-30 4-Cycle Engine Oil, 1 Quart
  • GDI, METER, HOUR, GDI, ROUND W/RET., Model# N530-0200-8111
Price for all four:

$542.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar e300 EFI Horizontal OHV Engine with Recoil Start is designed for the most demanding commercial applications. This engine is reliable, easy starting and meets EPA emission standard levels across 49 states. 114593 The NorthStar e300 EFI is a great replacement engine for: Honda: GX270, (270cc), Briggs & Stratton: XR1450, (306cc), Kohler: CH395, (277cc), Yamaha: MX300cc, (296cc).
Replacement compatibility may vary based on engine shaft, mounting plate, dimensions, and other specifications. Always verify specifications prior to purchase. Please see product manual for additional information.

What's Included

    (1) e300 EFI Horizontal OHV Engine (1) Sparkplug wrench

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Four-stroke, overhead, single-cylinder
  • Net power output: 6.9kW
  • Max. RPM: 3600
  • 5in.(127mm) bolt circle and 3/8-16 UNC 2B Tap on a 6.5in. (165.1mm) bolt circle
  • Mounting base: 7.7in.L x 3.25in.W
  • Easy-to-install model for small engine needs
  • EFI allows for fuel efficiency and easy starting in all weather conditions
  • Heavy-duty 1.45-gal. (5.5L) metal fuel tank
  • Transistorized Coil Ignition (TCI)
  • Gasoline fuel
  • Splash-type lubrication system
  • Net torque:18ft.-lbs./2500 rpm
  • Low oil shutdown turns engine off it runs low on oil, preventing serious damage or failure
  • Foam and paper air cleaner for protection against harmful debris
  • Air cooling system
  • 5-year limited warranty
  • 49-state compliant

Key Specs

AttributeSpecification

item#

114593

Brand

NorthStar

Manufacturer's Warranty

5 year limited warranty

Ship Weight

44.6 LB

Engine Displacement

301 cc

Engine Type

OHV

Shaft Diameter

1 in

Shaft Diameter Metric

25.4 mm

Shaft Length

3.48 in

Shaft Length Metric

88.5 mm

Fuel Type

Gasoline

Start Type

Recoil

Shaft Keyway

1/4 in

Net Torque

18 ft-lbs.

Crankshaft

1 x 3.48 In

PTO Height

5.25 in

Cylinders (qty.)

1

Net Power Output

9.25 HP

Compression Ratio

8:2:1

Fuel Tank

Yes

Fuel Tank Capacity

5.8 qt

Oil Capacity

1.05 qt
AttributeSpecification

Low Oil Shutdown

Yes

Max. RPM

3,600

Grade

E10

CARB Approved

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

No

Ignition System

Transistorized Coil Ignition (tci)

Lubrication System

Splash Type

Shaft End Tapped

7/16-20 UNF-2B

Bearing Type

6206

Auto Compression Release

Yes

Cooling System

Air

Bore

3.14 in

Stroke

2.36 in

Air Cleaner Type

Dual Element

Fuel Filter

Yes

Muffler Included

Yes

Bolt Circle

5in. (127mm) bolt circle and 3/8-16in. UNC 2B Tap on a 6.50in. (165.1mm) bolt circle in

Mounting Base Length

7.7 in

Mounting Base Width

3.25 in

Product Weight

62.8000 lb

Dimensions L x W x H (in.)

18.9 x 13.0 x 17.91 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. where would the mechanical throttle option be at on the engine?

    1 answer

    1. The mechanical throttle hook-up is located behind the panel where the throttle knob is located. We recommend taking this to a small engine shop to have it set up.

      Helpful?

  2. Does the motor have a mechanical throttle linkage hook up for throttle to be fitted to a go cart. Or is only throttle adjustment made by dial on the cowl?

    1 answer

    1. The engine does come with an option for a throttle cable.

      Helpful?

  3. How long should the 9v batteries last? I know quality of battery makes a big difference but on average is it after a few tanks of fuel?

    1 answer

    1. The 9V batteries should last more than one year. Note that the batteries are only required for the initial startup, as they assist with priming the fuel system when it is dry. Once the system is primed, the engine will start without the batteries. If the engine sits unused for an extended period, the fuel system may need to be primed again, which could require multiple pulls of the starter rope or replacing the batteries if they are depleted.

      Helpful?

  4. What the bolt mount hole size from left to right in front and front to back ?

    1 answer

    1. The engine mounting base bolt pattern is 7.7" on center x 3.72" on center.

      Helpful?

  5. What is difference between E420 NorthStar and e300 engine besides cc difference. Is it not a stronger engine?

    1 answer

    1. The e300 engine has a TCI (transistorized coil ignition) system with no governor system. It has a fuel tank capacity of 5.8 quarts and an oil capacity of 1.05 quarts. The net torque is 18 ft.-lbs. It also has a 1/4" shaft keyway.

      The e420 engines have a CDI (capacitor discharge ignition) system with a governor system. It has a fuel capacity of 6.55 quarts and an oil capacity of 1.16 quarts. The net torque is 25 ft.-lbs. It also has a 2-13/16" shaft keyway.

      Helpful?

  6. Is there a cold start high idle condition on first startup? What is the RPM used for this warm-up strategy?

    1 answer

    1. There is no cold start high idle condition. This is an EFI engine which will adjust to the running conditions such as cold temperatures, elevation, etc.

      Helpful?

  7. What is the idle RPM? How do you adjust the idle for clutch interfaces?

    1 answer

    1. The idle RPM is 2200 RPM +/- 200RPM. There is no further idle speed adjustment.

      Helpful?

  8. What are the 3 connectors on the back used for? Can I upgrade to remote kill switch and throttle with these connections?

    1 answer

    1. Regarding the three connectors on the engine (located near the side of the fuel tank).

      1. CAN Communication port: This is used for CAN communication protocols. This is where the OBDII meter connects to the engine.

      2. Remote Kill Switch: If the two wires in the connector are connected, the engine will immediately shut down.

      3. Idle Switch: If the two wires in the connector are connected, the engine will adjust to low speed idle (~2200 RPM).  When the wires are disconnected, full speed operation resumes.

      There are no aftermarket kits available to connect to the two remote kill and idle connections.

      Helpful?

  9. How many amps does its charging system produce? You need 20 amps on a pressure washer.

    1 answer

    1. This engine is equipped with a 15 amp fuse; however, the charging system provides 5 amps.

      Helpful?
