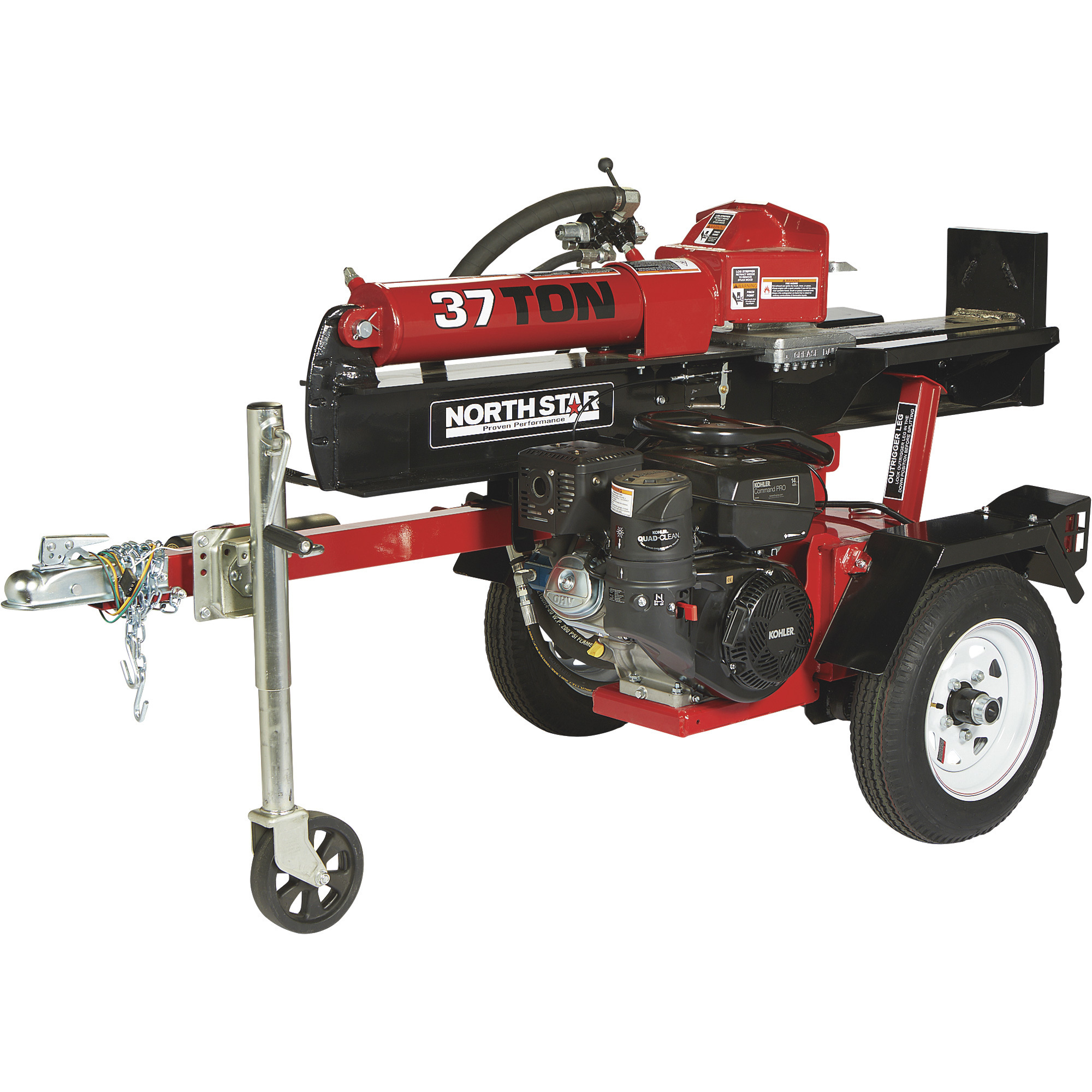

NorthStar Deluxe Horizontal/Vertical Log Splitter with Tow Package, 37-Ton Ram Force, 429cc Kohler CH440 Engine

Item# 11182
"NorthStar Deluxe Horizontal/Vertical Log Splitter with Tow Package, 37-Ton Ram Force, 429cc Kohler CH440 Engine"
NorthStar Deluxe Horizontal/Vertical Log Splitter with Tow Package, 37-Ton Ram Force, 429cc Kohler CH440 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Deluxe Horizontal/Vertical Log Splitter with Tow Package, 37-Ton Ram Force, 429cc Kohler CH440 Engine

Click or Tap image to Zoom

  • 429cc Kohler CH440 commercial series engine with low oil shutdown and steel fuel tank
  • Horizontal/vertical design delivers 37 tons of ram force to split large logs up to 25in.L x 16in. dia.
  • 5in. x 24in. cylinder with 14-sec. cycle time
  • On-road tow package includes Ultra-Tow Ultra-Pack high-speed hubs and 12in. wheels with high-speed tires, plus torsion suspension axle, adjustable jack with oversized wheel, 2in. coupler and light kit for high-speed towing
  • American-made 16 GPM pump and Brand valve

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

NorthStar's incredible Horizontal/Vertical Log Splitter with Tow Package has a multi-patented design that gives you premium components and exclusive features that let you save time and energy. This log splitter has a Kohler CH440 engine, a premium filtration system and a high-speed towing package. The backbone of this log splitter is an industrial-strength I-beam with heavy plate steel reinforcement. The patented wedge design, made with alloy steel, maintains consistent split and has a unique curve that reduces initial contact area for maximum penetrating force. The NorthStar Wedge Wings make each stroke more efficient. Auto-return wedge saves time and effort when splitting.

The premium hydraulic system is protected by a quad filtering system that uses 4 different components to protect the hydraulic system from contaminants. Large hydraulic oil reservoir allows fluid to cool, reducing wear and allowing fluid to last longer. Slide-action self-leveling pivot makes it simple to switch between horizontal and vertical split. Designed to be easy to use in both orientations. The on-road towing package includes Ultra-Tow Ultra-Pack high-speed hubs, a torsion axle, 12in. high-speed tires and integrated trailer lights that make it easy to get to the worksite. Some assembly required.

What's Included

    (1) Log splitter with tow package

Downloads

Product Manual

Features + Benefits

  • 429cc Kohler CH440 commercial series engine with low oil shutdown and steel fuel tank
  • Horizontal/vertical design delivers 37 tons of ram force to split large logs up to 25in.L x 16in. dia.
  • 5in. x 24in. cylinder with 14-sec. cycle time
  • On-road tow package includes Ultra-Tow Ultra-Pack high-speed hubs and 12in. wheels with high-speed tires, plus torsion suspension axle, adjustable jack with oversized wheel, 2in. coupler and light kit for high-speed towing
  • American-made 16 GPM pump and Brand valve
  • Auto-throttle control to save fuel, reduce noise and prolong engine life
  • Premium hydraulic filtration ensures long-lasting hydraulic components
  • Patented log stripper clears logs from retracting wedge
  • Engine guard protects against falling logs and debris
  • Heavy-duty log tables prevent logs from rolling off when split

Key Specs

AttributeSpecification

item#

11182

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

640.0 LB

Product Type

Gas

Ram Force

37 Tons

Max. Log Diameter

16 in

Max. Log Length

25 in

Continuous Force

34.3 Tons
AttributeSpecification

Engine Brand

Kohler

Engine Model

CH440

Engine Displacement

429 cc

Cycle Time

14 sec.

Tire Size

12 in

Splitter Orientation

Horizontal

Wheels

Yes

Product Weight

640.0000 lb

Dimensions L x W x H (in.)

92.5 x 45.0 x 48.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. what is the part number for the pump

    1 answer

    1. The part number for the hydraulic pump is 804105. We no longer sell parts through Northern Tool. To order, please contact our sister company Jacks Small Engines at the link below. https://jackssmallengines.com/

      Helpful?

  2. What type of hydraulic pump is on the splitter. Is it 2 stage

    1 answer

    1. The log splitter will come with a two stage 16 GPM hydraulic pump.

      Helpful?

  3. will the splitter come with the 15 gallons of hydraulic fluid.

    1 answer

    1. The log splitter does not include hydraulic fluid. This would be purchased locally.

      Helpful?

  4. what does "ram force" mean?

    1 answer

    1. Ram force is the force that is exerted on the cylinder of the ram. This log splitter has a ram force of 37 tons.

      Helpful?

  5. Does this unit ship fully assembled

    1 answer

    1. This log splitter does require some assembly. Assembly instructions begin on page 36 of the Product Manual located on the product web page.

      Helpful?

  6. After looking through the manual, I didn't see anything on the wedge wings. Does this unit come with them installed already?

    1 answer

    1. This log splitter will have wedge wings included.

      Helpful?

  7. Is this seriously only rated for 16in Dia logs? Seems limited for a 37 ton ram force.

    1 answer

    1. The log splitter is rated for a maximum log diameter of 16".

      Helpful?

  8. The specifications here, and in the product instructions that come with the 37 ton ram force splitter do not give the capacity of the hydraulic fluid tank, or the total fluid required when all hoses, pump and filter are full.  This would be helpful

    1 answer

    1. The hydraulic oil capacity of this log splitter is 15 gallons.

      Helpful?

  9. Is this an electric start engine?

    1 answer

    1. The engine on this log splitter is recoil start. It does not have electric start.

      Helpful?

  10. This log splitter has a high speed setup, 12" tires and high speed hubs. Can you drive with this log splitter behind your vehicle at speeds of 60 miles an hour?

    1 answer

    1. The maximum towing speed for this log splitter is 45 MPH.

      Helpful?
