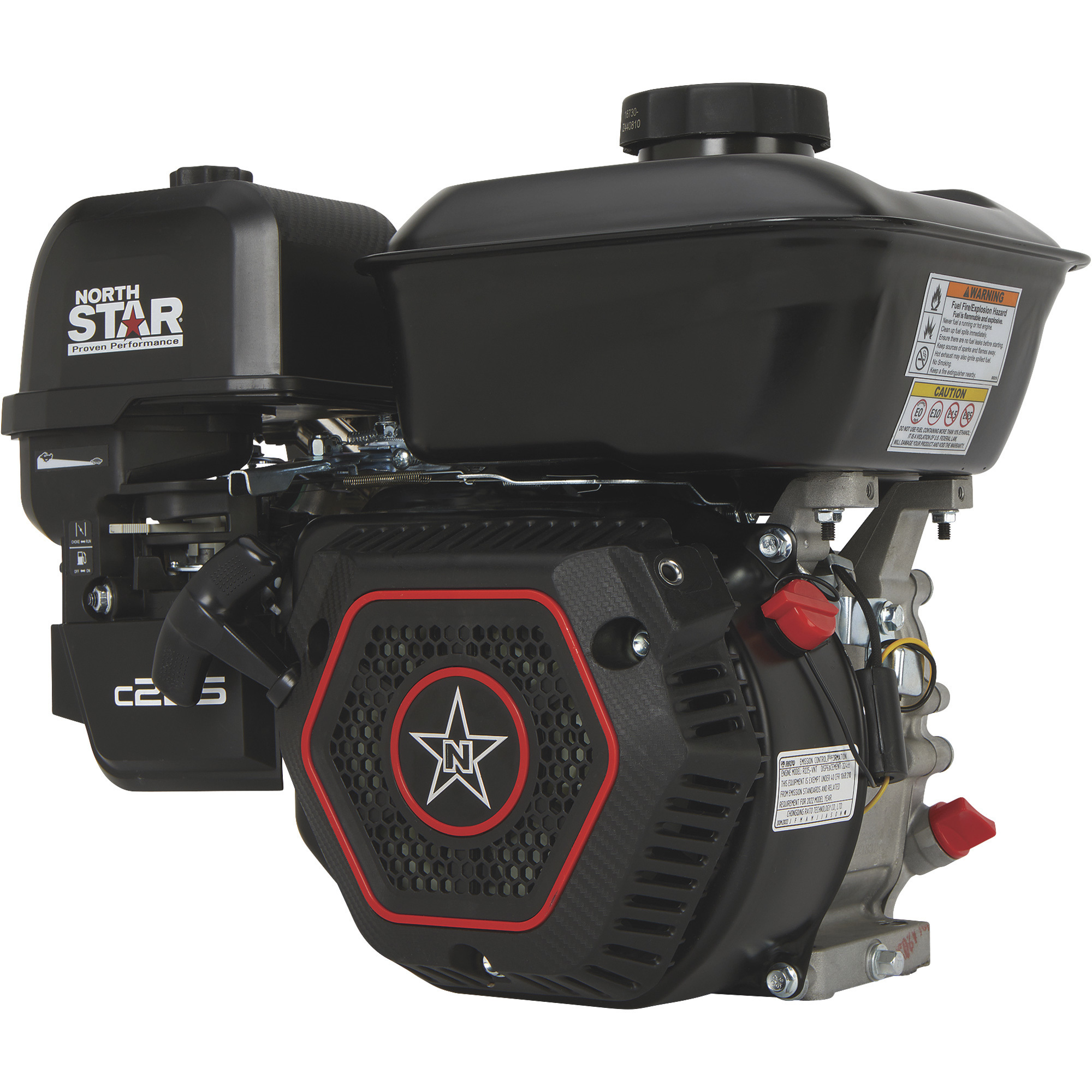

NorthStar c225 Horizontal OHV Engine with Recoil Start, 224cc, 3/4in. x 2-7/16in. Shaft

Item# 114655

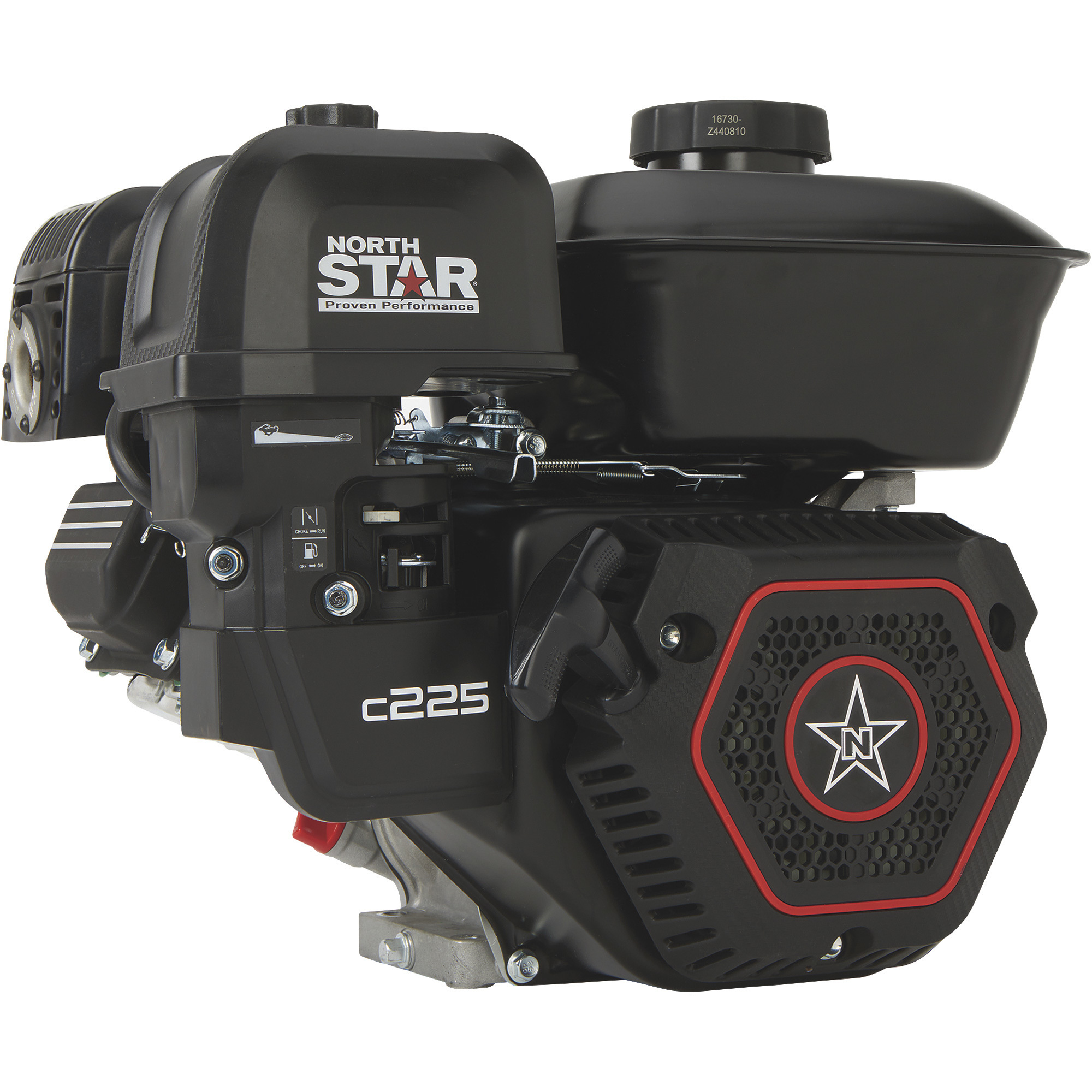

NorthStar c225 Horizontal OHV Engine with Recoil Start
NorthStar c225 Horizontal OHV Engine with Recoil Start, 224cc, 3/4in. x 2-7/16in. Shaft

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar c225 Horizontal OHV Engine with Recoil Start, 224cc, 3/4in. x 2-7/16in. Shaft

Click or Tap image to Zoom

  • OHV overhead valve design
  • CDI ignition system with recoil start featuring compression release for first pull starts
  • Bolt circle: 3 5/8in.
  • Mounting base: 6.378in.L x 3.15in.W (approx.)
  • Cast-iron cylinder sleeve reduces bore wear to extend engine life and reduce emissions and oil consumption

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar c225 Horizontal OHV Engine with Recoil Start is designed for the most demanding commercial applications. The 1000-hour engine provides enough power to run a wide range of equipment, including pressure washers, compressors, log splitters and chippers/shredders. This engine is reliable, easy starting and meets EPA standard levels across 49 states. Patent Protected. The NorthStar c225 engine is a great replacement engine for: Honda: GX160, (163cc), GC160, (160cc), Briggs & Stratton: XR950, (208cc), Kohler: CH260, (208cc), CH270, (208cc), Yamaha: MZ200, (192cc), Kawasaki: FJ1300, (133cc), FJ1800, (179cc).
Replacement compatibility may vary based on engine shaft, mounting plate, dimensions, and other specifications. Always verify specifications prior to purchase. Please see product manual for additional information.

What's Included

    (1) 224cc horizontal OHV engine (1) Spark plug wrench

Downloads

Product Manual
Play Item Video

Features + Benefits

  • OHV overhead valve design
  • CDI ignition system with recoil start featuring compression release for first pull starts
  • Bolt circle: 3 5/8in.
  • Mounting base: 6.378in.L x 3.15in.W (approx.)
  • Cast-iron cylinder sleeve reduces bore wear to extend engine life and reduce emissions and oil consumption
  • Easy-to-install model for small engine needs
  • Heavy-duty 3.3L metal fuel tank
  • USDA forestry approved
  • Spark Arrestor
  • Forged-steel crankshaft for superior strength in high-torque PTO applications
  • Dual ball bearings reduce friction and wear, delivering smooth operation and longer life
  • Internal oil splash enhancement system delivers extra lubrication
  • Sound pressure balanced muffler
  • Black aluminum alloy cylinder head cover
  • All-metal camshaft
  • Upgraded deep-groove ball bearing
  • Low oil shutdown turns engine off if it runs low on oil, preventing serious damage or failure
  • Pleated paper air filter and foam pre-cleaner for superior protection from harmful debris
  • Side air ports limit debris entry
  • 5-year limited warranty

Key Specs

AttributeSpecification

item#

114655

Brand

NorthStar

Manufacturer's Warranty

5 year limited warranty

Ship Weight

44.0 LB

Engine Displacement

224 cc

Engine Type

OHV

Shaft Diameter

3/4 in

Shaft Diameter Metric

19.05 mm

Shaft Length

2.43 in

Shaft Length Metric

61.7 mm

Start Type

Recoil

Shaft Keyway

1-51/64 in

Net Torque

13 ft-lbs.

Crankshaft

SAE J609EXT3 Straight Key W/shaft Dia.: 19.050mm (0.750in.) - Nominal

PTO Height

4.17 in

Cylinders (qty.)

1

Cylinder Bore

72mm

Net Power Output

6.5 HP

Compression Ratio

8.5:1

Fuel Tank Capacity

3.42 qt

Oil Capacity

0.58 qt
AttributeSpecification

Low Oil Shutdown

Yes

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Yes

Ignition System

Transitorical Configuration

Carburetor

Carburated

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

2.83 in

Stroke

2.17 in

Air Cleaner Type

Foam + paper

Choke Control

Manual

Throttle Control

Adjustable

Charging System Amps

No

Muffler Included

Yes

Bolt Circle

3.625 in

Mounting Base Length

6.378 in

Mounting Base Width

3.15 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What are the dimensions of the motor ?

    1 answer

    1. This engine measures 16.34" long x 12.2" wide x 14.17" high overall.

      Helpful?

  2. How does this engine produce 13ft-lb of torque with only 225cc? Does the engine have an alternator/stator?

    1 answer

    1. This engine and other 220cc Powerhorse engines designed by and manufactured for Northern Tool are commonly rated for 13 ft.-lbs. of torque because they are designed that way. This engine is not equipped with an alternator or charging circuit to charge a battery.

      Helpful?

  3. How tall is this system in total

    1 answer

    1. This engine is 16.34" long x 12.2" wide x 14.17" high overall.

      Helpful?

  4. Is it gas or diesel

    1 answer

    1. This NorthStar engine runs on gasoline.

      Helpful?

  5. Where is the serial number on this motor?

    1 answer

    1. When looking at the shaft, the serial number is going to be located on the left hand side of the engine, above the oil drain bolt.

      Helpful?

  6. Can you and an electric start to the Northstar c225?

    1 answer

    1. There is not an electric start available for this engine.

      Helpful?

  7. Who is the manufacturer and location of this engine?

    1 answer

    1. These engines are manufactured in China. Northern Tool + Equipment has worked diligently in developing and testing these engines up to our NorthStar brand standard. We feel that we have selected the premier small engine manufacture to partner with.
