This sprayer can handle up to 30' of hose without a drop in pressure.
NorthStar ATV Spot Sprayer, 10-Gallon Capacity, 1.1 GPM, 12 Volts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Free shipping (lower 48 states)Store Pickup:
Not Available

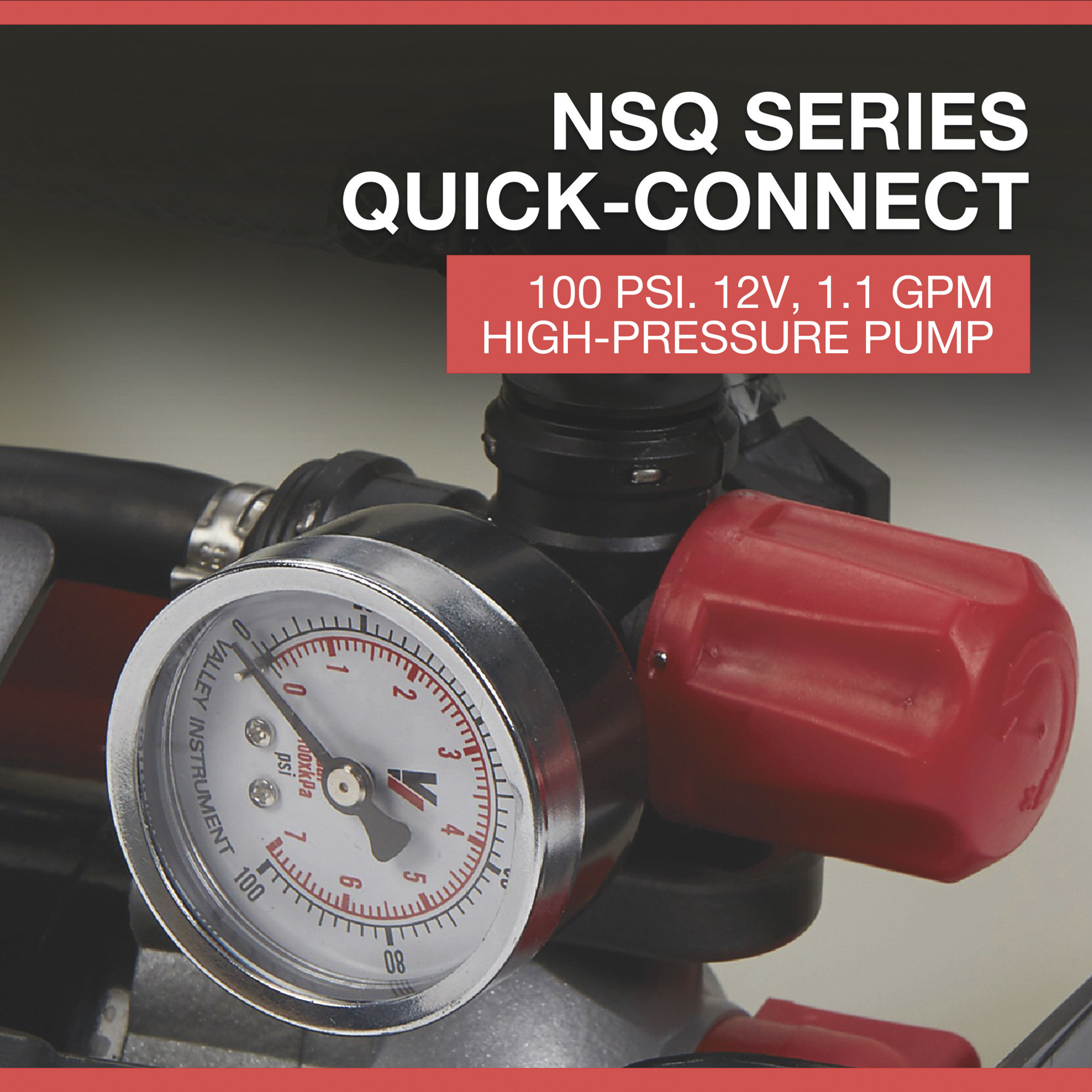

- 12V, 1.1 GPM high-pressure NorthStar NSQ Series quick-connect on-demand pump generates 100 PSI
- Pump valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
- Santoprene diaphragm has superior reliability and chemical resistance
- Regulator, pressure gauge and deluxe trigger spray gun for fine tuning of spray pressure
- Includes deluxe trigger spray gun with adjustable stream-to-cone brass nozzle and 15ft. of hose
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) Spot sprayer
Downloads

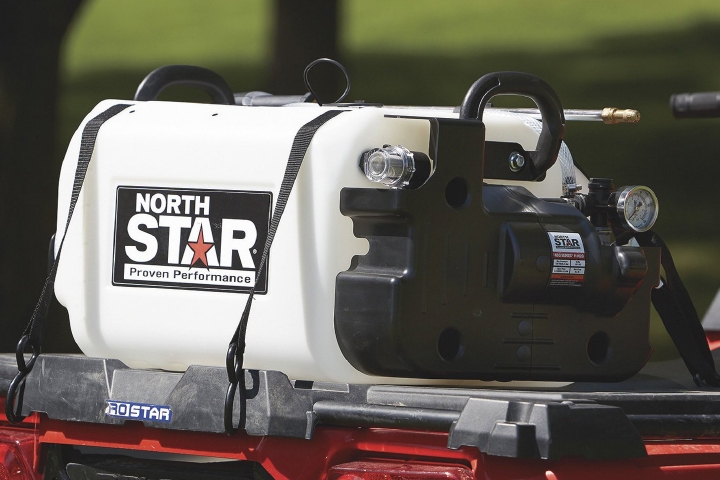

CONTINUOUS-DUTY MOTOR
An oversized ELECTRIC PUMP MOTOR rated for 100% CONTINUOUS-DUTY eliminates downtime, ENSURING CONSISTENT PERFORMANCE

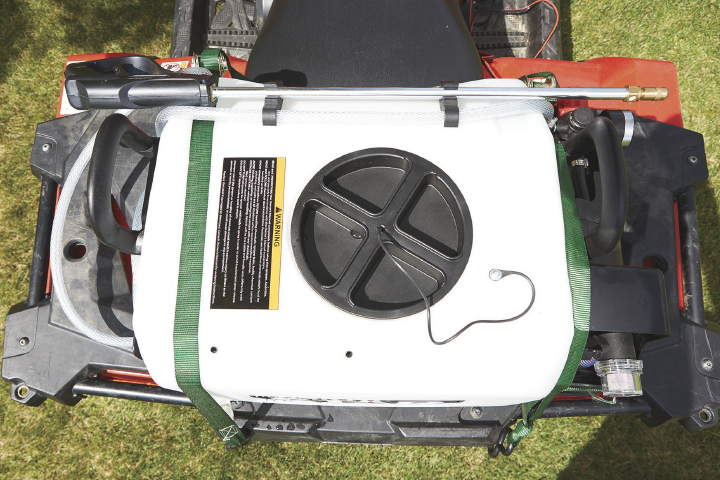

SAFE AND SECURE
An IN-LINE FUSE PROTECTS the system, while GALLON MARKERS MOLDED into the tank allow for easy monitoring of fluid levels

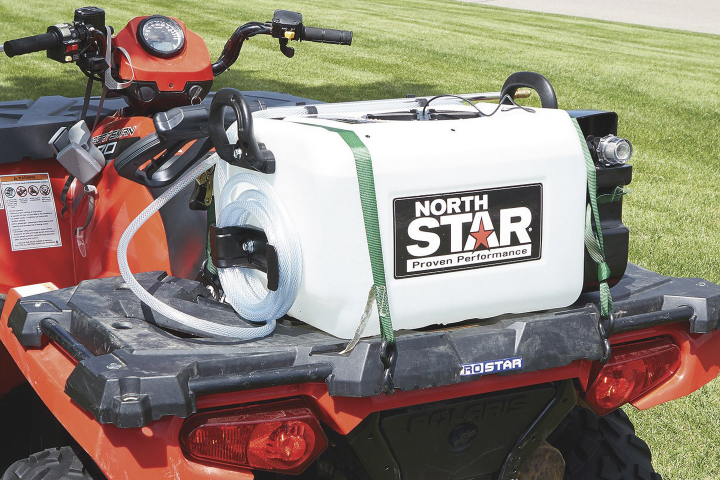

STORAGE AND TRANSPORT
Designed with handles for EASY TRANSPORTATION, HOSE WRAP and a SPRAY GUN MOUNTING location for tidy storage

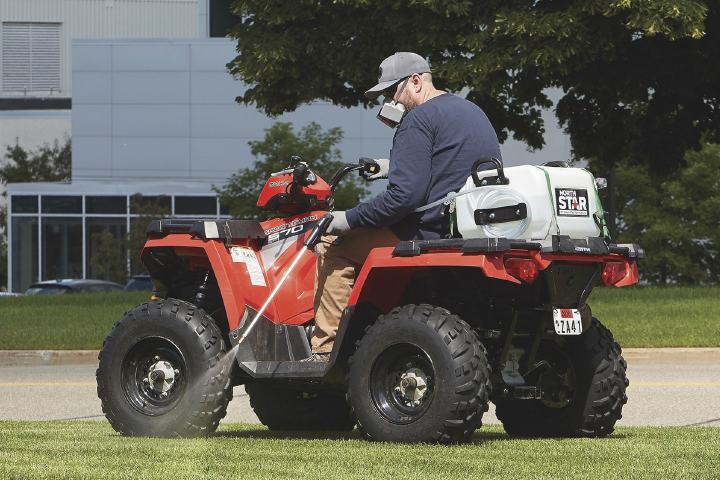

COMPATIBILITY
Fully compatible with ROUNDUP® AGRICULTURAL HERBICIDES, offering versatility in application
Features + Benefits

- 12V, 1.1 GPM high-pressure NorthStar NSQ Series quick-connect on-demand pump generates 100 PSI
- Pump valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
- Santoprene diaphragm has superior reliability and chemical resistance
- Regulator, pressure gauge and deluxe trigger spray gun for fine tuning of spray pressure
- Includes deluxe trigger spray gun with adjustable stream-to-cone brass nozzle and 15ft. of hose
- Oversized electric pump motor is rated for 100% continuous duty, which means no down time waiting for the motor to cool
- 8ft. wire harness with battery clamps easily connects and disconnects from your battery
- In-line switch allows you to turn the pump on and off from the driver's seat
- In-line fuse helps protect the system
- Exclusive, extra-thick walled polymer tank design offers superior crack, leak and chemical resistance
- Bottom-mount tank drain offers quick and easy draining and rinsing of tank
- Bypass flow returns to tank to keep chemicals well-mixed
- Easy access, oversized inlet filter keeps the system running clean
- Pump and sprayer components are compatible for use with Roundup® brand agricultural herbicides
- 15ft. x 3/8in. clear reinforced poly vinyl chloride hose makes monitoring chemical flow simple
- Handles make sprayer easy to transport
- Hose wrap and spray gun mounting location make storage easy
- Suction strainer with clear bowl is easy to remove for cleaning
- Gallon markers are molded into the tank for easy one-glance level checks
- Pump automatically turns off when maximum pressure is reached for enhanced durability and efficiency
Key Specs
| Attribute | Specification |
|---|---|
item# | 99918 |
Brand | NorthStar |
Manufacturer's Warranty | 2 year limited warranty |
Ship Weight | 9.6 LB |
Tank Size | 10 Gal |
Flow | 1.1 GPM |
Pressure | 100 PSI |
Spray Height | 14 ft |
| Attribute | Specification |
|---|---|
Spray Pattern | Cone, Stream |
Spray Gun Type | Deluxe |
Tow Behind Cart Included | No |
Pump Type | Northstar Quick-connect |
Hose Length | 180 in |
Product Weight | lb |
Dimensions L x W x H (in.) | 25.25 x 16.5 x 12.0 in |
Reviews
Questions & Answers
Questions
-
· 10 months ago
What pressure might I expect if I lengthen the hose to 25 ft . I don’t need 70 psi. I need more distance to spray on a hill not accessible.
1 answer-
NorthstarExpert12· 10 months ago
Helpful?
-
-
· a year ago
Is this sprayer rated for WD-40 or similar oils?
1 answer-
NorthstarExpert12· a year ago
This sprayer is not rated for use with WD-40, oil or other petroleum based products.
Helpful?
-
-
· a year ago
Do you need a battery at all times to run the 12v, DC motor?
1 answer-
NorthstarExpert12· a year ago
This sprayer does need to be connected to a 12V battery for the pump to run.
Helpful?
-
-
· 2 years ago
By reading the past reviews. Does this product need assembly to be performed before using the product? I have purchased a similar one from tractor supply and there was no assembly required. Just wondering before I purchase this product.
1 answer-
NorthstarExpert30· 2 years ago
Some assembly would be required on this sprayer. Instructions can be found on page 11 of the manual.
Helpful?
-
-
· 2 years ago
I need a new nozzle where can I purchase
1 answer-
NorthstarExpert11· 2 years ago
The nozzle tip is part number 799021. We no longer sell parts through Northern Tool. To order, please contact our sister company Jacks Small Engine at the link provided. https://jackssmallengines.com/
Helpful?
-
-
· 2 years ago
Is the wiring harness included?
1 answer-
NorthstarExpert7· 2 years ago
Yes, the wiring harness is included with this NorthStar Sprayer.
Helpful?
-
-
· 2 years ago
Can I use it to pressure wash my condo balcony with the nozzle it comes with?
1 answer-
NorthstarExpert7· 2 years ago
This would be a very low pressure spray at 100 PSI. The pump cannot be used softwash cleaners. I would recommend our NorthStar softwash sprayer for this application. Please view item #157140.
Helpful?
-
-
· 2 years ago
Can you change the spray head? If so what adapters fit or size please.
1 answer-
NorthstarExpert7· 2 years ago
We recommend using the included nozzle and gun, as it was designed, for optimal performance. The nozzle has a cone and stream pattern.
Helpful?
-
-
· 2 years ago
Can this be used with a hose reel instead of the gun/wand provided?
1 answer-
NorthstarExpert12· 2 years ago
This sprayer is not designed to be used with a hose reel. We recommend using the included hose and gun, as it was designed, for optimal performance.
Helpful?
-
-
· 2 years ago
What are the dimensions of this unit?
1 answer-
NorthstarExpert11· 2 years ago
The dimensions on the sprayer are 25.25" L x 16.5" W x 12" H.
Helpful?
-
Warranty
Manufacturer's Warranty
2 year limited warranty
Extend Your Warranty Coverage with a Northern Protection Plan (NPP)
Replacement Plan — 1 Year
A Northern Protection Plan is available after adding the product to your shopping cart.
Compare with Most Popular in Broadcast + Spot Sprayers
See All Broadcast + Spot Sprayers
See All NorthStar Broadcast + Spot Sprayers
Currently Viewing This Product
$179.99Shipping:
Free shipping (lower 48 states)Store Pickup:
Not Available
- $219.99
Shipping:
Free shipping (lower 48 states) - Available nowStore Pickup:
Not Available
NorthStar ATV Broadcast and Spot Sprayer with 2-Nozzle Boom, 26-Gallon Capacity, 2.2 GPM, 12 Volt DC
Item # 99909
$319.99Reg $349.99Save $30.00Order today to get this price.
Shipping:
Free shipping (lower 48 states) - Available nowStore Pickup:
Not Available
Specifications
10 Gal
26 Gal
26 Gal
1.1 GPM
2.2 GPM
2.2 GPM
100 PSI
70 PSI
70 PSI
14 ft
19 ft
19 ft
Cone, Stream
Cone, Stream
Cone, Stream
Deluxe
Deluxe
Deluxe
No
No
No
Northstar Quick-connect
Northstar Quick-connect
Northstar Quick-connect
180 in
180 in
180 in
lb
lb
lb
25.25 x 16.5 x 12.0 in
35.5 x 18.0 x 15.0 in
35.5 x 18.0 x 15.0 in
-
-
6.7 ft
