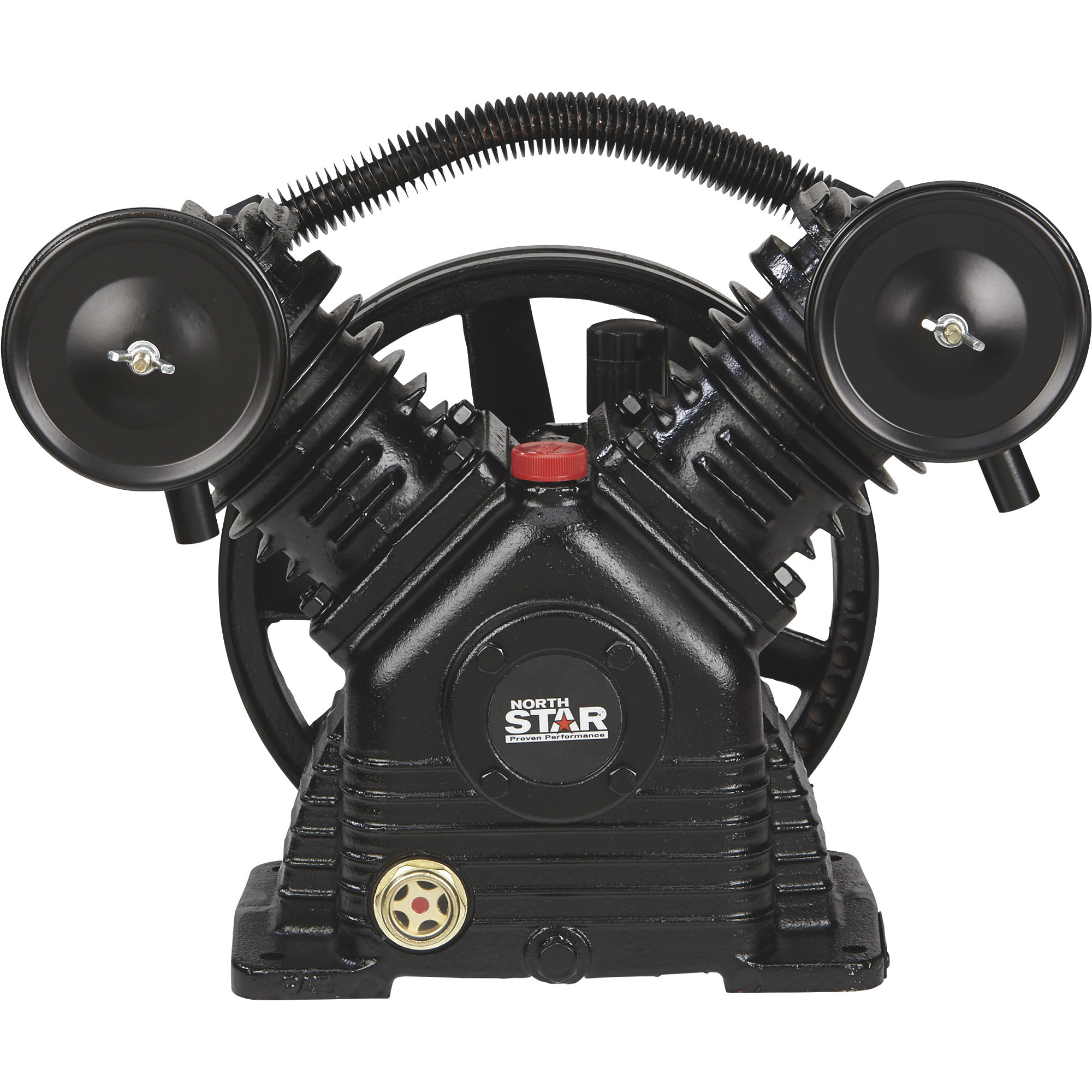

NorthStar Air Compressor Pump, 1-Stage, 2-Cylinder, 13.7 CFM @ 90 PSI

Item# 4592900
"NorthStar Air Compressor Pump, 1-Stage, 2-Cylinder, 13.7 CFM @ 90 PSI"
NorthStar Air Compressor Pump, 1-Stage, 2-Cylinder, 13.7 CFM @ 90 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Air Compressor Pump, 1-Stage, 2-Cylinder, 13.7 CFM @ 90 PSI

Click or Tap image to Zoom

$419.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Full cast iron pump for long service life
  • V-style cylinder design for superior cooling
  • Pump head made of FC35 Grade cast iron
  • Floating-type Swedish steel valves deliver much longer valve life
  • Operates at slower RPM to run cooler and last longer

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Air Compressor Pump, 1-Stage, 2-Cylinder, 13.7 CFM @ 90 PSI
  • NorthStar Air Compressor Start-Up Kit, Fits Item#s 459212, 459222, 459392, 459232, 25653, 25654
  • MAG 1 Pressure Washer Pump Oil, 30W, Universal Use, 32oz.
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all four:

$536.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

High-quality NorthStar® belt-driven pump works with gas or electric motors and features a full cast iron pump for longevity, Low Vibration Technology (LVT) for smooth running and long life, a V-type cylinder orientation for consistent cooling and bearings on both ends of crankshaft for excellent support.

What's Included

    (1) Air compressor pump

Downloads

Product Manual
Play Item Video

Superior Design for Industry-Leading Pumps

Low Vibration and Durability

The last thing you want to worry about is your compressor breaking down in the middle of a job. The NorthStar® 2-Cylinder Air Compressor Pump has been engineered with superior technology to keep you working without interruption. Innovative Low Vibration Technology (LVT) gives you a dynamically balanced pump for smooth operation and long service life. Bearings are placed on both ends of the pump's crankshaft for superior support and less wear and tear. The result is reliable, dependable operation of your NorthStar® air compressor pump, year after year.

Longer Pump Life

Heat can be a powerful enemy to the longevity of your air compressor pump. That's why this NorthStar® 2-Cylinder Air Compressor Pump has been engineered with a V-style cylinder orientation to eliminate hotspots and provide consistent cooling, resulting in longer pump life. The pump cylinders, heads and crankcase are made of cast iron for extra-long service life. And the pump utilizes premium-quality floating-type Swedish steel valves for trouble-free performance. Thanks to this excellent technology, you can count on your NorthStar® air compressor pump to perform flawlessly for many years.

Features + Benefits

  • Full cast iron pump for long service life
  • V-style cylinder design for superior cooling
  • Pump head made of FC35 Grade cast iron
  • Floating-type Swedish steel valves deliver much longer valve life
  • Operates at slower RPM to run cooler and last longer
  • Low Vibration Technology (LVT) features a dynamically balanced pump for smooth operation and long life
  • One-piece cast iron crankcase has bearings on both ends of crankshaft for superior crankshaft support, not overhung crankshaft design
  • Single-stage, 2-cylinder pump
  • Produces 13.7 CFM @ 90 PSI
  • Requires 4 HP electric or 5.5 HP gas motor
  • 100% duty cycle
  • 130 max. PSI

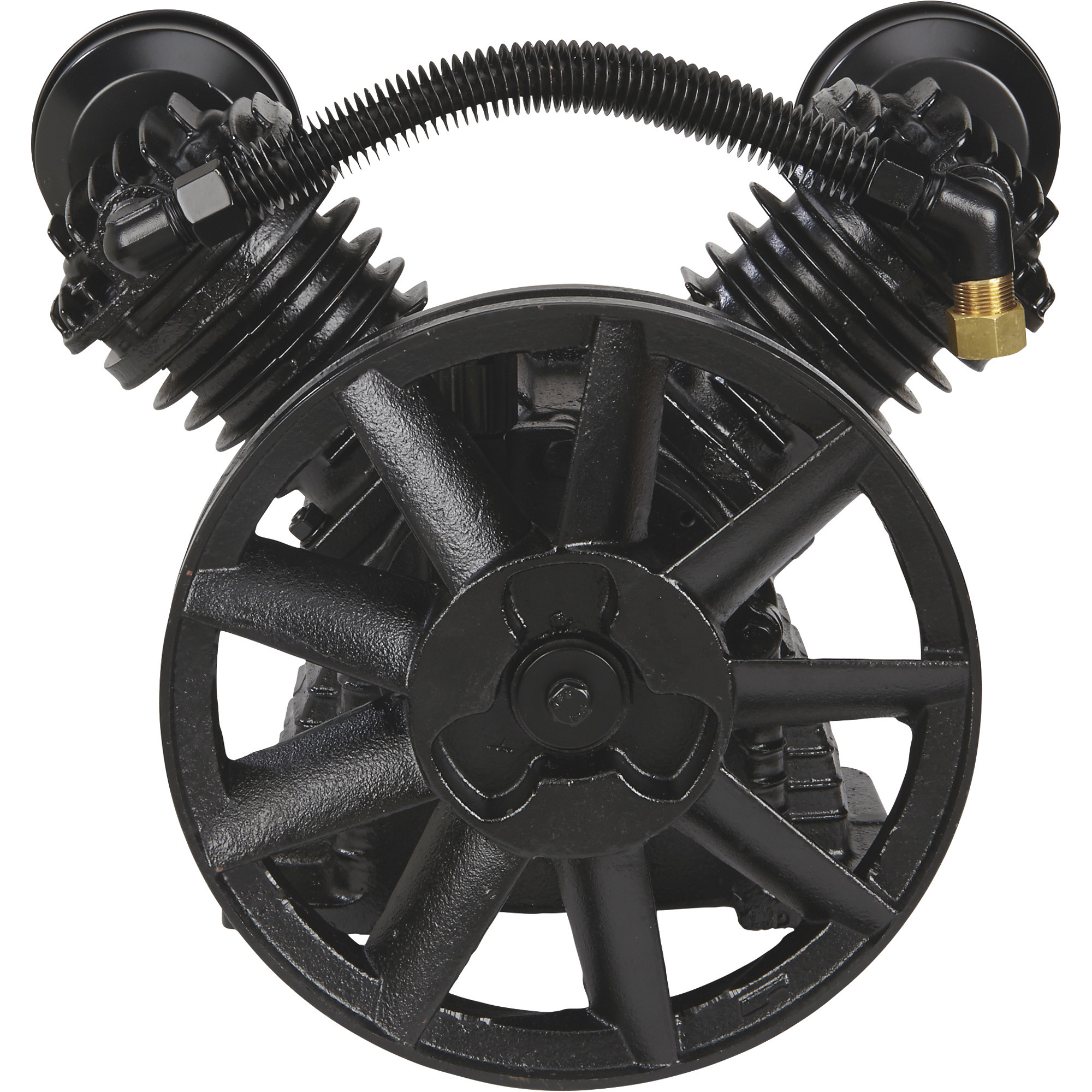

  • 10.5in. dia. oversized flywheel for cooler operation
  • Heavy cast iron flywheel provides extra momentum
  • Step-type piston rings ensure piston ring overlap for better compression
  • Sight glass for quick viewing of oil level
  • Replaceable crank journals and wrist pin journal/needle bearings
  • Two-piece connecting rods can be rebuilt for superior serviceability
  • Uses single A-groove belt
  • 5/8in. compression outlet

Key Specs

AttributeSpecification

item#

4592900

Brand

NorthStar

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

53.2 LB
AttributeSpecification

Stage

1

Max. PSI

130

Product Weight

lb

Dimensions L x W x H (in.)

15.0 x 15.0 x 15.0 in

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

1–10 of 23 Questions
Sort by:

  1. what is the rotation of the pump clock wise are counter

    1. Looking at the pump with the flywheel end directly in front of you, the rotation is counter-clockwise.

      Helpful?

    2. The fly wheel on this pump must spin counter clockwise.

      Helpful?

  2. What is the outlet fitting type and size?

    I am putting this on a tank that has a 1/2 inch compression fitting inlet.

    1. The outlet fitting is a 5/8 compression fitting. I had the same issue, and used a 5/8 to 1/2 reduction fitting to reach the tank's check valve. I was unable to find a check valve that had the same tank threads with a 5/8 inlet. I didn't have any performance issues

      Helpful?

    2. This pump uses a 5/8" compression fitting on the outlet.

      Helpful?

  3. What is the RPM?

    1. Max is 1396 rpm

      Helpful?

    2. The maximum pump RPM on this compressor pump is 1396.

      Helpful?

  4. What size is the shaft at the flywheel?

    1. I didn't measure mine it is tapered

      Helpful?

    2. This air compressor pump has a tapered shaft that is unique to the flywheel that comes with the pump.

      Helpful?

  5. Dose this unit have stainless steel reeds.

    1 answer

    1. The Swedish Steel Floating Valves on this air compressor pump do have stainless steel reeds.

      Helpful?

  6. Also what is the height In inches from the compressor base to top of cylinders I have limited SPACE Thanks

    1 answer

    1. The overall height would be 15".

      Helpful?

  7. How long is the manufactures warranty?

    1 answer

    1. This will come with a 12 month parts and labor warranty.

      Helpful?

  8. This compressor is rated at a max of 130 psi, what's stops it from building over that?

    1 answer

    1. There are typically two types of control systems depending on if the prime mover is a gas/diesel engine or electric motor. For an electric motor, the device that limits the maximum pressure is a pressure switch. It is plumbed into the compressor air tank to sense tank pressure and will cut electrical power to the electric motor when the maximum pressure is achieved. For a gas/diesel engine, the device that limits the maximum pressure is called a Pilot Valve. Since gas/diesel engines cannot typically be automatically started and stopped, the pilot valve simply diverts the air flow from the compressor pump into either the tank or the atmosphere. It is also plumbed into the compressor air tank. When below the maximum pressure, air is added into the tank. When the maximum pressure is reached, it stops adding air to the tank and instead sends the air to the atmosphere.

      Helpful?

  9. What are the mounting holes measurements?

    1 answer

    1. The bolt pattern is 8.425 inches wide and 4.724 inches front to back. The bolt holes are 0.374 inches.

      Helpful?

  10. What size pulley is required for the electric motor?

    1 answer

    1. To determine the motor pulley diameter, use the below equation.

      Pump RPM (1396) x Flywheel diameter (10.5) divided by the RPM of the motor would equal the the pulley diameter.

      Helpful?
