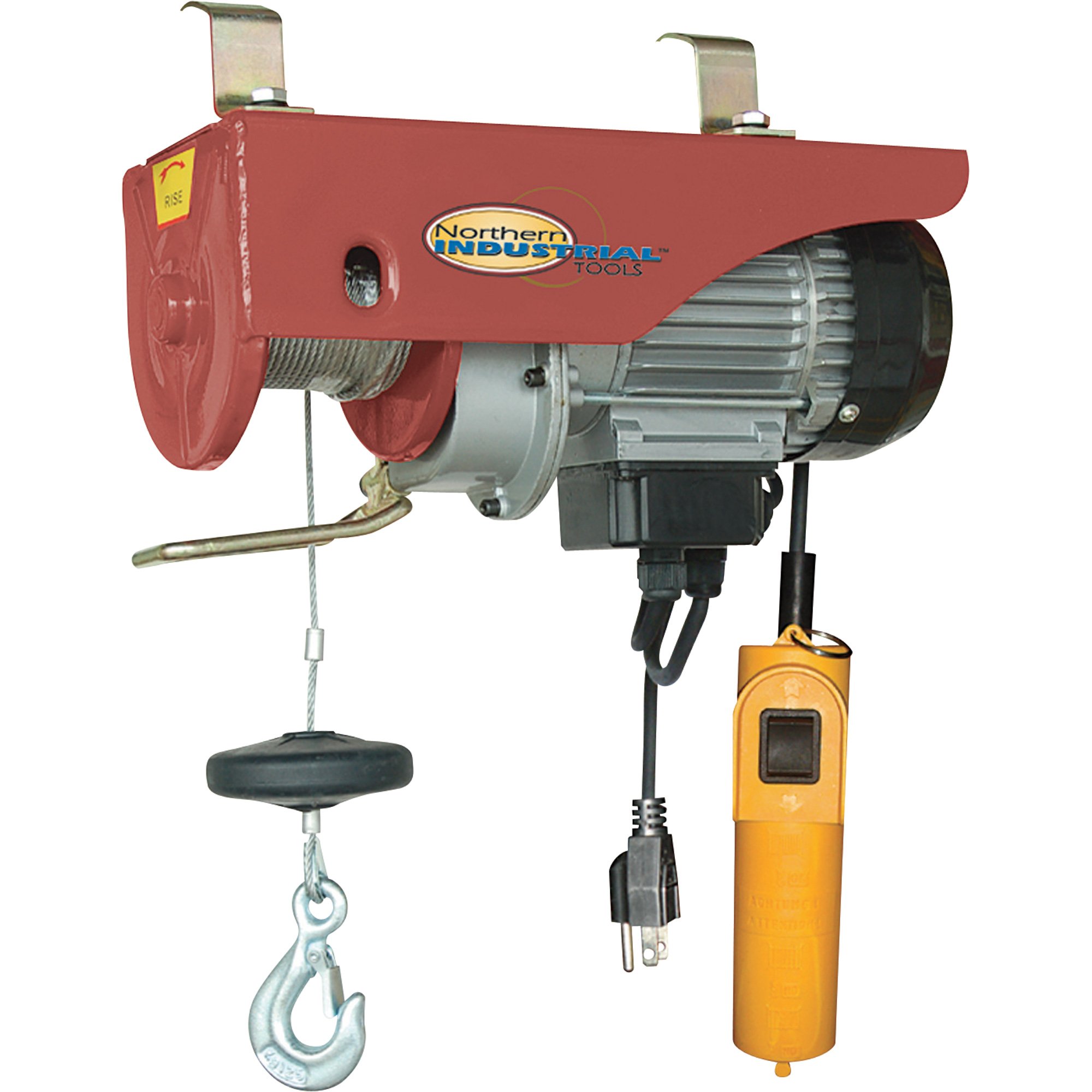

Northern Industrial Tools Electric Hoist — 220/440-Lb. Capacity

Item# 14226
Northern Industrial Tools Electric Hoist - 220/440-Lb. Capacity
Northern Industrial Tools Electric Hoist — 220/440-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Northern Industrial Tools Electric Hoist — 220/440-Lb. Capacity

Click or Tap image to Zoom

  • Hz: 60
  • RPMs: 1725
  • On/Off switch
  • Power-up, power-down, and brake
  • Auto stop feature automatically applies brakes to secure the load if power is lost

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Northern Industrial Tools 440-lb. Load Capacity (double line) Electric Hoist is great for lifting engines, tables, lumber, shop equipment and a whole range of other products. No need to climb a ladder and crank a lever with this hoist; you can remain on the ground to control operations. Includes rocker-style remote control, 47ft. cable with cable guard, stopper and hook with safety latch.

What's Included

  • (1) Electric hoist
  • (1) Switch handle
  • (1) Hook
  • (1) Mounting kit

Downloads

Product Manual

Features + Benefits

  • Hz: 60
  • RPMs: 1725
  • On/Off switch
  • Power-up, power-down, and brake
  • Auto stop feature automatically applies brakes to secure the load if power is lost
  • Mounting hardware included
  • Remote: 5 ft. 4 in.
  • Cord: 57in.
  • Cable reel is metal
  • Hand switch is plastic
  • Four holes on top and 2 two-hole straps in half circle shape that can be used in mount hole and then unit is installed on bar
  • Duty cycle: S3 20%–10min.
  • Brackets: 5.25in. x 3.75in.

Key Specs

AttributeSpecification

item#

14226

Brand

Northern Industrial Tools

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

30.85 LB

Amps

4.5

Single Line Lift Capacity

220 lb

Double Line Lift Capacity

440 lb

Single Line Lift Height

36 ft
AttributeSpecification

Double Line Lift Height

18 ft

Single Line Lift Speed

33 ft./min.

Double Line Lift Speed

16.5 ft./min.

Cable Length

39 ft

Cable Diameter

0.12 in

Duty Cycle

10 min

Horsepower

0.75 HP

Dimensions L x W x H (in.)

13.5 x 5.25 x 7 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–10 of 30 Questions
Sort by:

  1. Item# 14226 OSHA Compliant?

    Is Item# 14226 hoist compliant with OSHA standards for use in a manufacturing operation?

    1. NO

      Helpful?

    2. This electric hoist is not OSHA compliant for use in manufacturing operations.

      Helpful?

  2. Does the motor have a higher duty cycle if lifting a light load?

    I would like to know if this hoist can be run at a higher duty cycle if it is lifting a very light load (30lbs). For example, could it be run for a few hours with a lifting time of about 5 seconds and 10 seconds rest?

    1. Yes, duty cycle actually tells your the motor will heat up and kick out the thermal safety switch at or about 20% of ten minutes while lifting a maximum load. So, the amount of work the hoist does generates heat, the lighter the load the lower the heat put out by the motor windings. Also, it the ambient temperature is high or low that will affect the length of time you can operate within the motors thermal safety range also.

      Helpful?

    2. This electric hoist has a 20% duty cycle regardless of the weight of the load(max capacities of 220 lbs./single line and 440 lbs./double line).

      Helpful?

  3. can the hoist be mounted upside down - paying off upward?

    1. I would say no as you would have no way of winding the cable correctly and crossing cables causes fraying under load.

      Helpful?

    2. This hoist is designed for lifting. It is not designed to be mounted upside down. Doing so would void the warranty and could create a dangerous situation.

      Helpful?

  4. Is it possible to attach this hoist to an eye hook on the ceiling?

    1 answer

    1. This Northern Industrial Tools Electric Hoist is recommended to be mounted to a beam/pole using the brackets that are included with the hoist. It is not recommended to attach this hoist to an eye hook on a ceiling.

      Helpful?

  5. Does this have a brushed or brushless motor

    1 answer

    1. The Northern Industrial Tools Electric Hoist has a brushless motor.

      Helpful?

  6. hoist use for dumbwaiter?

    I was thinking about using this hoist for a possible dumbwaiter. I'm a bit concerned about the duty cycle. I can only it for 2 minutes, then have to wait 10 minutes before I can use it again? Is that right? Please advise. Thank you.

    1 answer

    1. This electric hoist has a 20% duty cycle. It can be used for 2 minutes straight then it requires 8 minutes of rest before it can be used again.

      Helpful?

  7. Can the hoist be rotatated 90° when mounted?

    If so, does it matter what side is facing down? Based on the photo, it appears that there is a hole on the side that the cable can be fed through. Is that the case? Thanks.

    1 answer

    1. This hoist should only be mounted as pictured and not rotated 90 degrees. The hole in the frame is for attaching the bottom hook when using a snatch block to double the line capacity.

      Helpful?

  8. Can I mount an Electric hoist upside down?

    I would like to mount an electric hoist upside down as I don't have room above the lifting area to mount it. It would be pulling from a pulley 4 foot higher than itself to lift items on the other side of a wall. I'm thinking when pulling from a pulley above the steel rope will still wind on the drum as usual.

    1 answer

    1. This hoist is not designed for and should not be used in an upside down position.

      Helpful?

  9. where to hang?

    Is it suitable to hang on the garage ceiling?
    What are other options to hanging?

    1 answer

    1. This hoist is designed to be attached to a beam or pipe (up to 1 7/8") and be securely held in place by both included hangers. The beam or steel pipe must be capable of carrying several times the weight of the hoist and its designated maximum capacity. If in doubt, consult a registered engineer and building code.

      Helpful?

  10. Can you permanent mount the hoist to a wooden beam in the garage?

    1 answer

    1. This electric hoist is designed to be attached to a beam or steel pipe and bed securely held in place by both of the brackets/hangers. This hoist is only intended to be mounted using the included hangers. It cannot be mounted to a beam without the hangers.

      Helpful?
