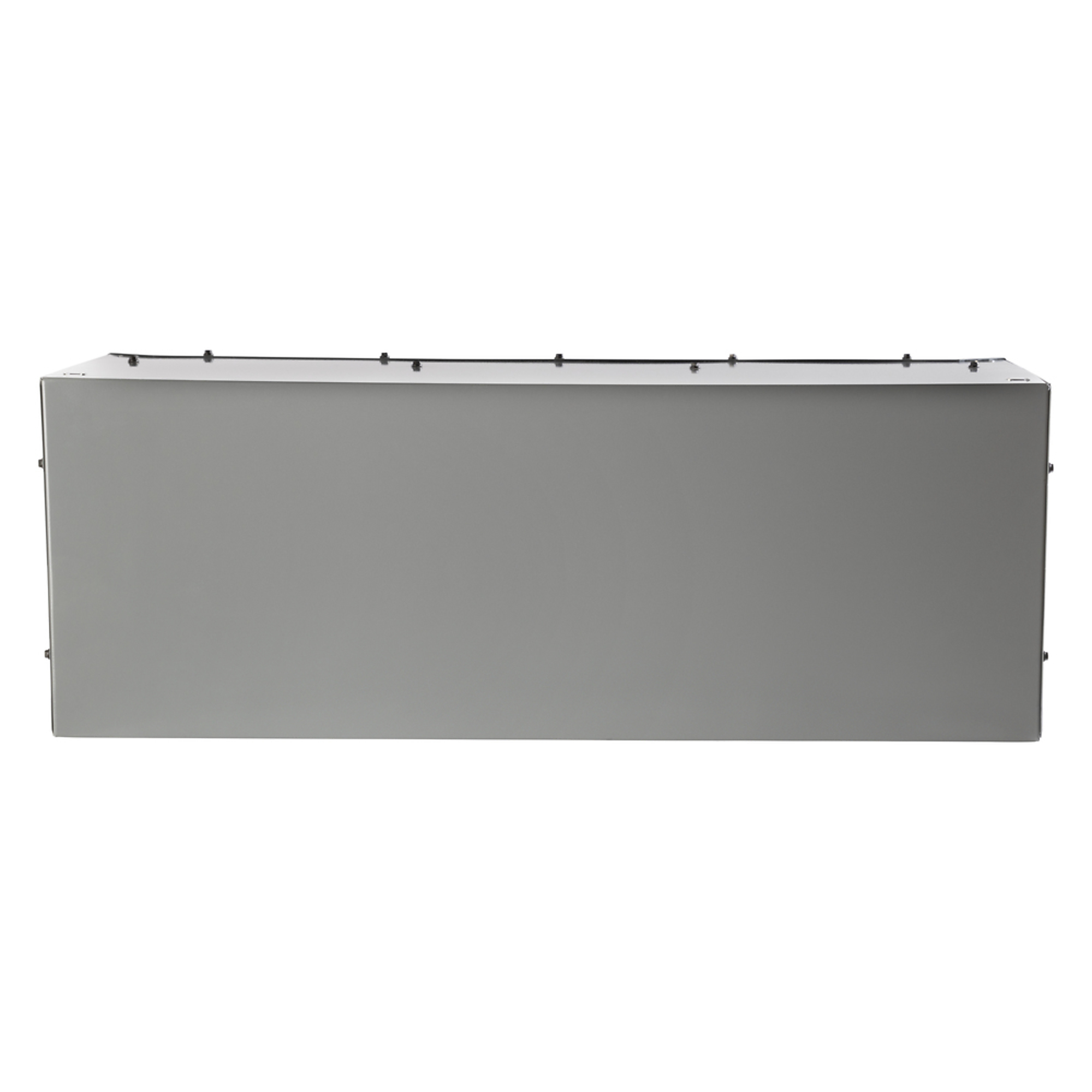

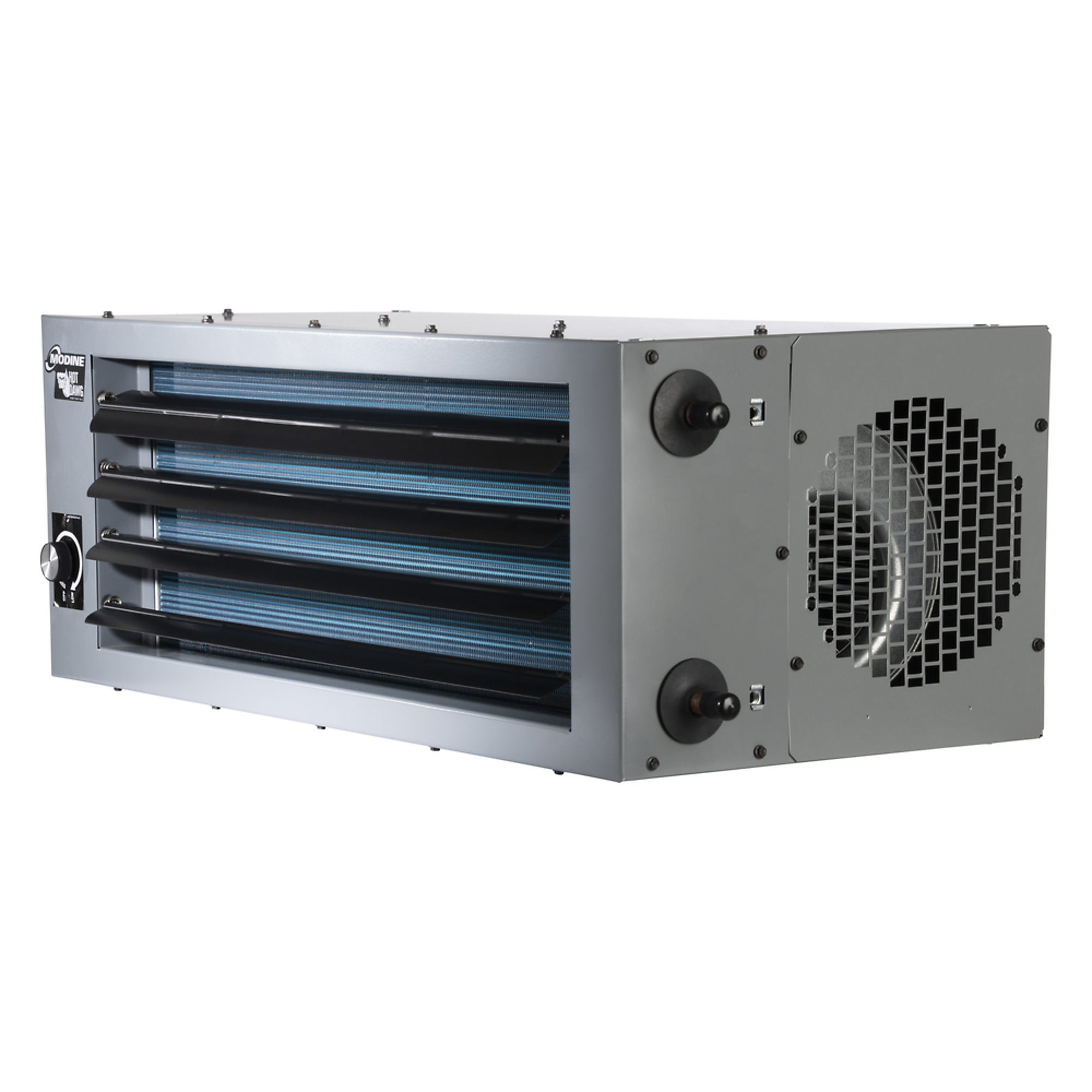

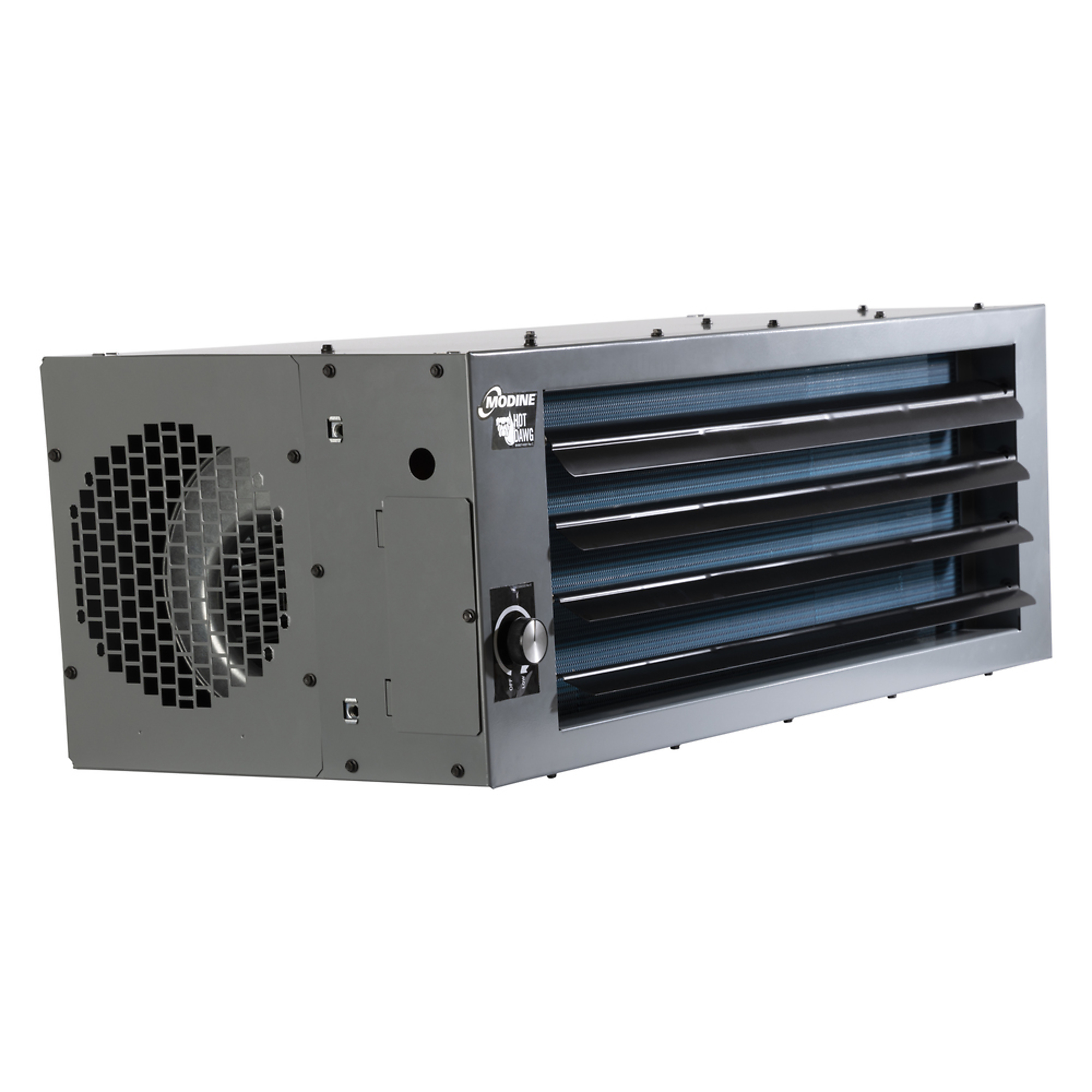

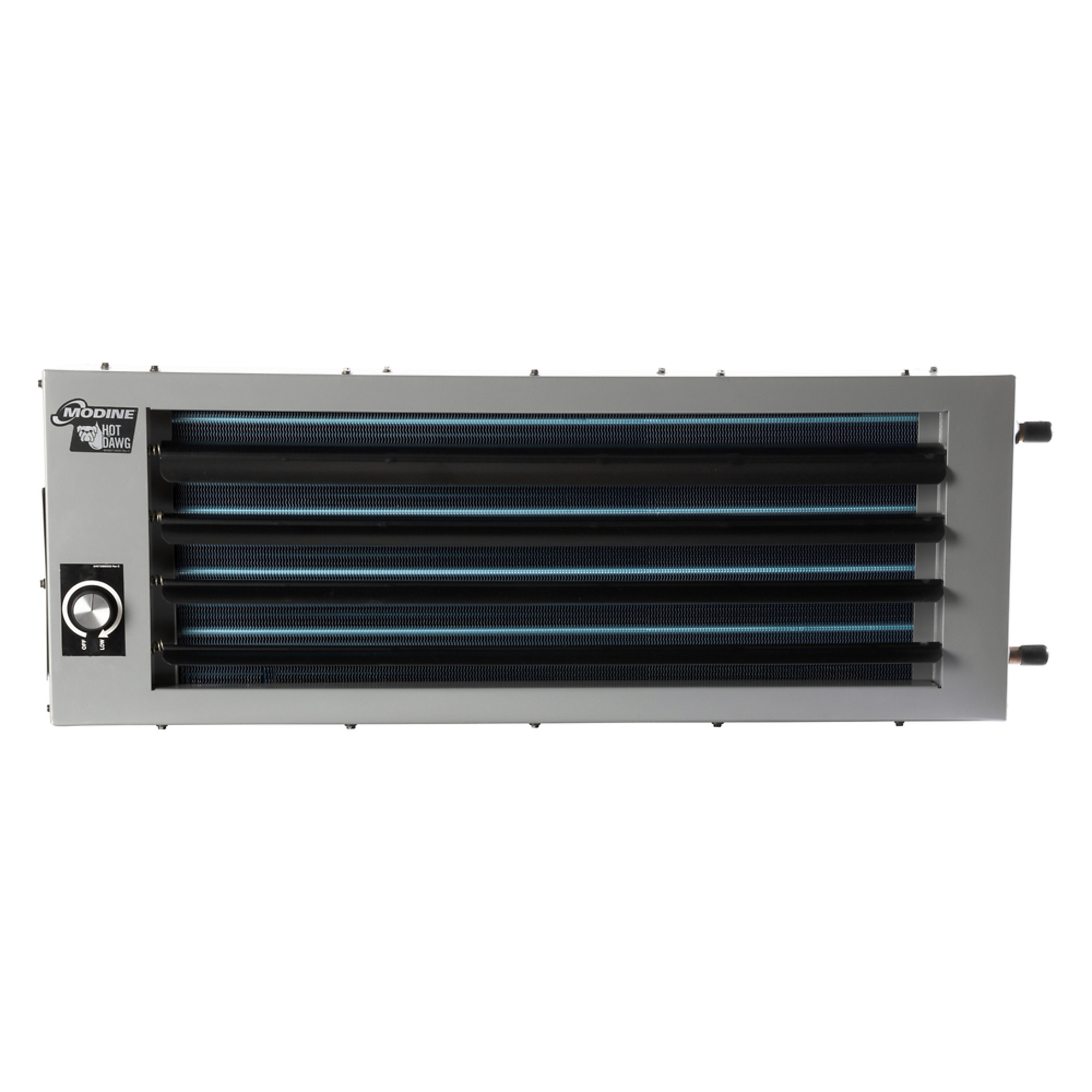

Modine Hot Dawg H20 Hydronic Hot Water Unit Heater - 45,000 BTU, Forced Air, Blower Included, 115V, Single Phase, Model #HHD 45SC01SA

Item# 6868046
Modine Hot Dawg H20 Hydronic Hot Water Unit Heater - 45,000 BTU, Forced Air, Blower Included, 115V, Single Phase, Model #HHD 45SC01SA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Modine Hot Dawg H20 Hydronic Hot Water Unit Heater - 45,000 BTU, Forced Air, Blower Included, 115V, Single Phase, Model #HHD 45SC01SA

Click or Tap image to Zoom

$1555.00

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Low-profile design with flexible mounting options (parallel, perpendicular, or recessed between joints) allows for horizontal or vertical air delivery
  • Easy versatile installation options due to the electrical and piping connections’ ability to easily be reversed in the field
  • Typical Applicaton is 1 to 2 car garage
  • Includes two mounting brackets with vibration isolators to reduce noise and vibration
  • The internal coil can handle water pressures up to 150PSI and temperature up to 200° F

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Modine’s Hot Dawg® H2O is the only low-profile residentially-certified hot-water unit heater in North America. Available in two sizes, the Hot Dawg® H2O offers a one-of-a-kind heating solution for your garage or workshop, as well as commercial, industrial, and institutional installations. With side access piping and all moving parts enclosed, the Hot Dawg® H2O has the versatility to be mounted almost any way you would like, allowing for air to be delivered vertically or horizontally. Modine’s Hot Dawg® H2O can run off your boiler system, ground source heat pump, or hot water heater. Modine is Designed, Engineered Assembled in the USA. Modine Unit Heaters qualify for Build America Buy America (BABA) Act.

What's Included

    (1) Hydronic Unit Heater (2) Mounting Brackets

Downloads

Product Manual Product Manual2

Features + Benefits

  • Low-profile design with flexible mounting options (parallel, perpendicular, or recessed between joints) allows for horizontal or vertical air delivery
  • Easy versatile installation options due to the electrical and piping connections’ ability to easily be reversed in the field
  • Typical Applicaton is 1 to 2 car garage
  • Includes two mounting brackets with vibration isolators to reduce noise and vibration
  • The internal coil can handle water pressures up to 150PSI and temperature up to 200° F

Key Specs

AttributeSpecification

item#

6868046

Brand

Modine

Manufacturer's Warranty

2 year limited warranty

Ship Weight

66.0 LB

Heat Output

45,000 Btu/hour

Heat Type

Forced Air

Needs Direct Venting

No
AttributeSpecification

Blower Included

Yes

Thermostat Included

No

Remote Included

No

Phase

Single-phase

Volts

115

Product Weight

75.0000 lb

Dimensions L x W x H (in.)

34.0 x 16.0 x 12.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
