Milwaukee Permanent Corded Electric Magnetic Drill Press, 1-5/8in. Drill Capacity, 13 Amp, 2.3 HP, Model# 4274-21

Item# 51684
Top Seller
Milwaukee Permanent Corded Electric Magnetic Drill Press, 1-5/8in. Drill Capacity, 13 Amp, 2.3 HP, Model# 4274-21

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee Permanent Corded Electric Magnetic Drill Press, 1-5/8in. Drill Capacity, 13 Amp, 2.3 HP, Model# 4274-21

Click or Tap image to Zoom

$1799.00

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Powerful 13 Amp motor
  • Tool free adjustment: cutter to twist bit
  • Optimized cutting and drilling speeds
  • Tool free motor head adjustment
  • 3/4 in. weldon quick change arbor

See full description

Complete Your Solution

  • Milwaukee Permanent Corded Electric Magnetic Drill Press, 1-5/8in. Drill Capacity, 13 Amp, 2.3 HP, Model# 4274-21
  • Milwaukee 15-Pc. SHOCKWAVE RED HELIX Titanium Drill Bit Set, 1/4in., SAE, Model# 48-89-4670
  • Milwaukee Annular Cutter Kit, 9-Pc., Model# 49-22-8410
  • Milwaukee Titanium-Coated Drill Bit Set, 20-Pc., Model# 48-89-1105
Price for all four:

$2343.93

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

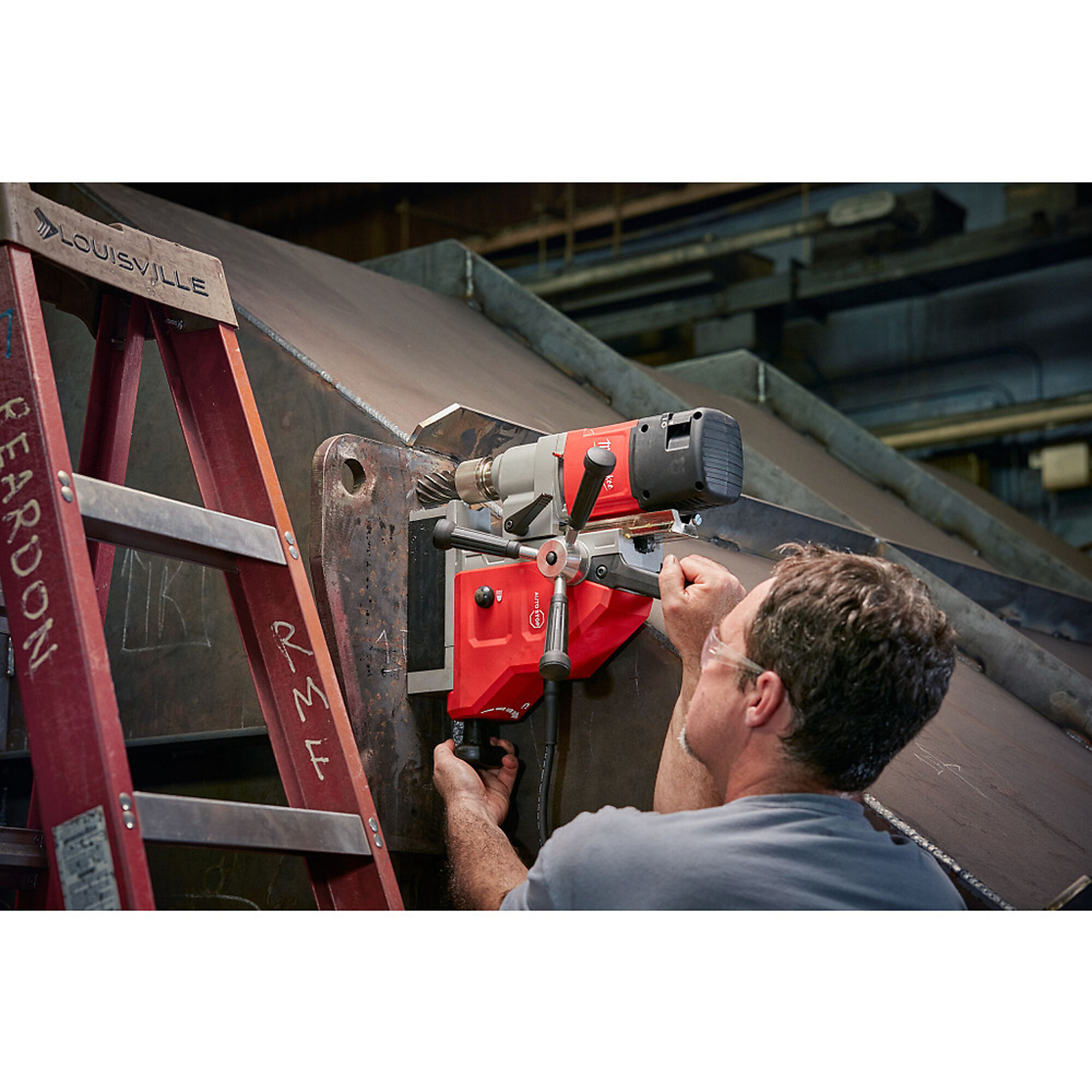

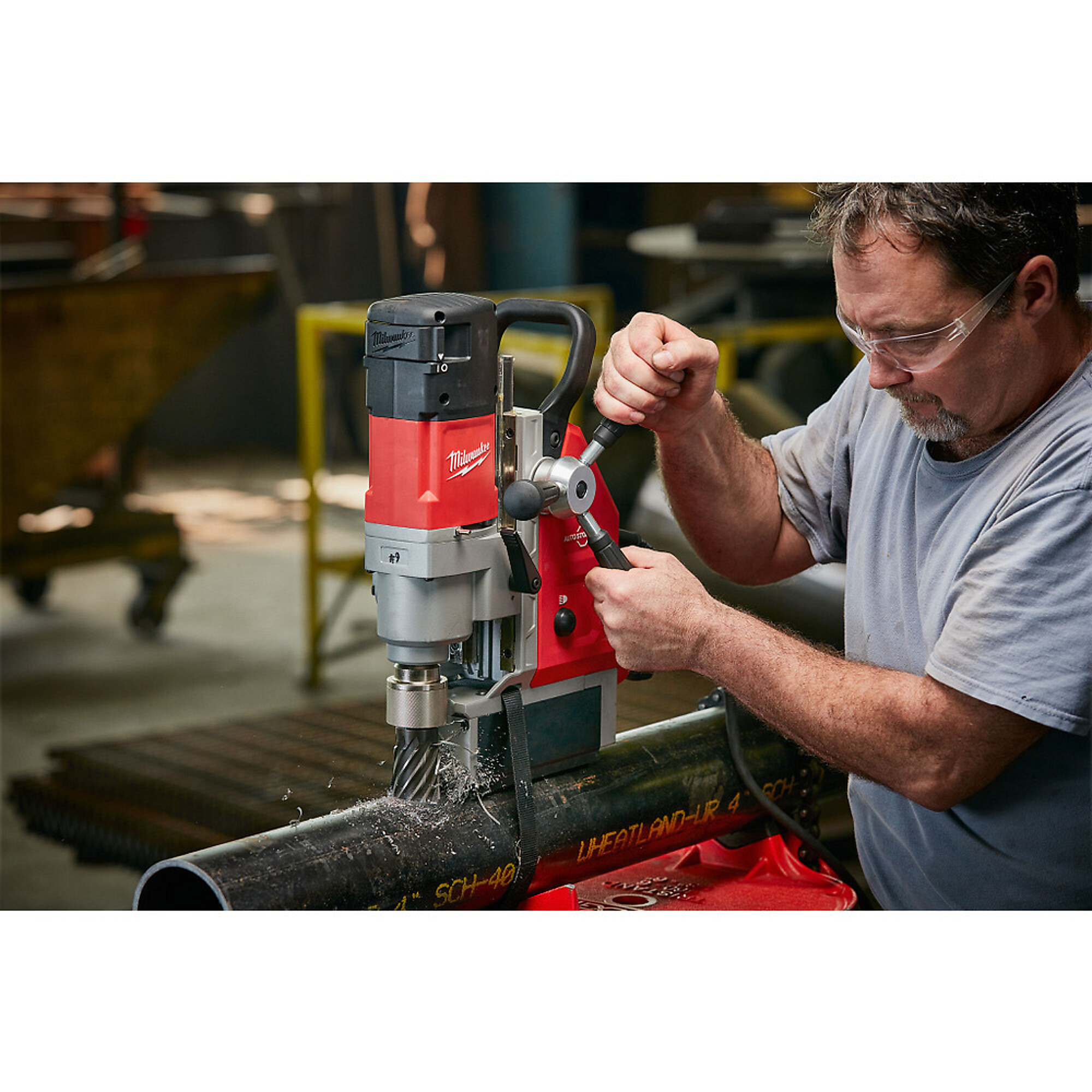

The Milwaukee 1-5/8in. Magnetic Drill delivers the fastest drilling and strongest hold on 1/4in. steel in its class. It is 13 Amp motor delivers the fastest drilling w/ annular cutters or twist drill bits. Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters at 475 RPM and twist drill bits at 730 RPM. The permanent magnet base operates without electricity for continuous magnetic hold even during power interruption. Activating partial magnet mode with a 1/4 turn of the magnet nob allows for faster, easier hole alignment. This magnet technology makes the Milwaukee 1-5/8in. Magnetic Drill better for vertical and overhead drilling applications than traditional electromagnetic models.

What's Included

    (1) 1-5/8" Magnetic Drill Kit (4274-21) (1) 3/4” Weldon to ½” Chuck adapter (1) Chuck Key (1) Lubrication Spray Bottle (1) Safety Strap (1) Carrying Case (2) 1” Retractable Pilot Pin

Downloads

Product Manual

Features + Benefits

  • Powerful 13 Amp motor
  • Tool free adjustment: cutter to twist bit
  • Optimized cutting and drilling speeds
  • Tool free motor head adjustment
  • 3/4 in. weldon quick change arbor
  • 2 speed gear box: 475/730 RPM
  • Auto-stop lift-off detection
  • Tool free feed-handle
  • LED light
  • Magnetic base operates without electricity

Key Specs

AttributeSpecification

item#

51684

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

49.0 LB

Drilling Capacity

1-5/8 in

Horsepower

2.3 HP

Volts

120

Amps

13 A

Cordless

No
AttributeSpecification

Tool Only

No

Chuck Type

Keyed in

Chuck Size

1/2 in

Max. Speed

730 rpm

Storage Type

Case

Batteries Included

No

Product Weight

lb

Dimensions L x W x H (in.)

13.75 x 7.5 x 12.25 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. IS THIS AUTOMATIC TO

    1 answer

    1. This product does not feature an automatic throttle. The drill press would have a permanent magnetic base. See page 5 of the product manual on our website for operating instructions.

      Helpful?

  2. With the drill chuck adapter installed what is maximum length of drill bit you can change out without repositioning the drill unit?

    1 answer

    1. This is a compact drill. The maximum stroke length is 5 3/4". The motor can not be raised to accommodate for a longer bit size.

      Helpful?

  3. Will the permanent magnet in this drill lose some of it's strength over time? When the magnet knob is turned to the off position, does it de-magnetize the base area so that the metal shavings and chips can be easily brushed off?

    1 answer

    1. The permanent magnet could lose its strength over time; however, there are too many factors to determine the length of time. The base will de-magnetize when the magnet knob is turned to the OFF position.

      Helpful?

  4. What size pipe will this stick too?

    1 answer

    1. The drill will magnetically attach to 1/4" or thicker ferrous stock. Do not use stock less than 1/4" thick. It will no hold onto stainless steel.

      Helpful?

  5. will the 3/4" weldon take a 19.5mm bit or will i need an adaptor

    1 answer

    1. A 19.5 mm bit will fit the chuck. The stroke length is 5.75".

      Helpful?

  6. What's the travel?

    1 answer

    1. This mag drill has a 5-3/4" travel length.

      Helpful?

  7. How thin of sheet metal can you use with good hold.

    On a horizontal surface will the magnet hold on to 18 gauge steel to cut a 3/8'' hole?

    1 answer

    1. The thinnest metal this will work with and hold down well is 1/4 inch.

      Helpful?

  8. Does the drill have reverse, variable speed and bits?

    Are the two speeds described variable? Is there a reverse? Can the unit handle regular drill bits as well as annular bits? Why is it none of the photographs show the control panel on the unit?

    1 answer

    1. The two speed function would not be variable speed. This Magnetic Drill is non-reversible. It comes with a quick change chuck to use standard drill bits and annular bits. You may click on the owner's manual on our Website to view the control panel.

      Helpful?
