Milwaukee Magnum Drill Press — 1.1 HP, Model# 4270-20

Item# M0103
"FREE SHIPPING - Milwaukee Magnum Drill Press - 1.1 HP, Model# 4270-20"

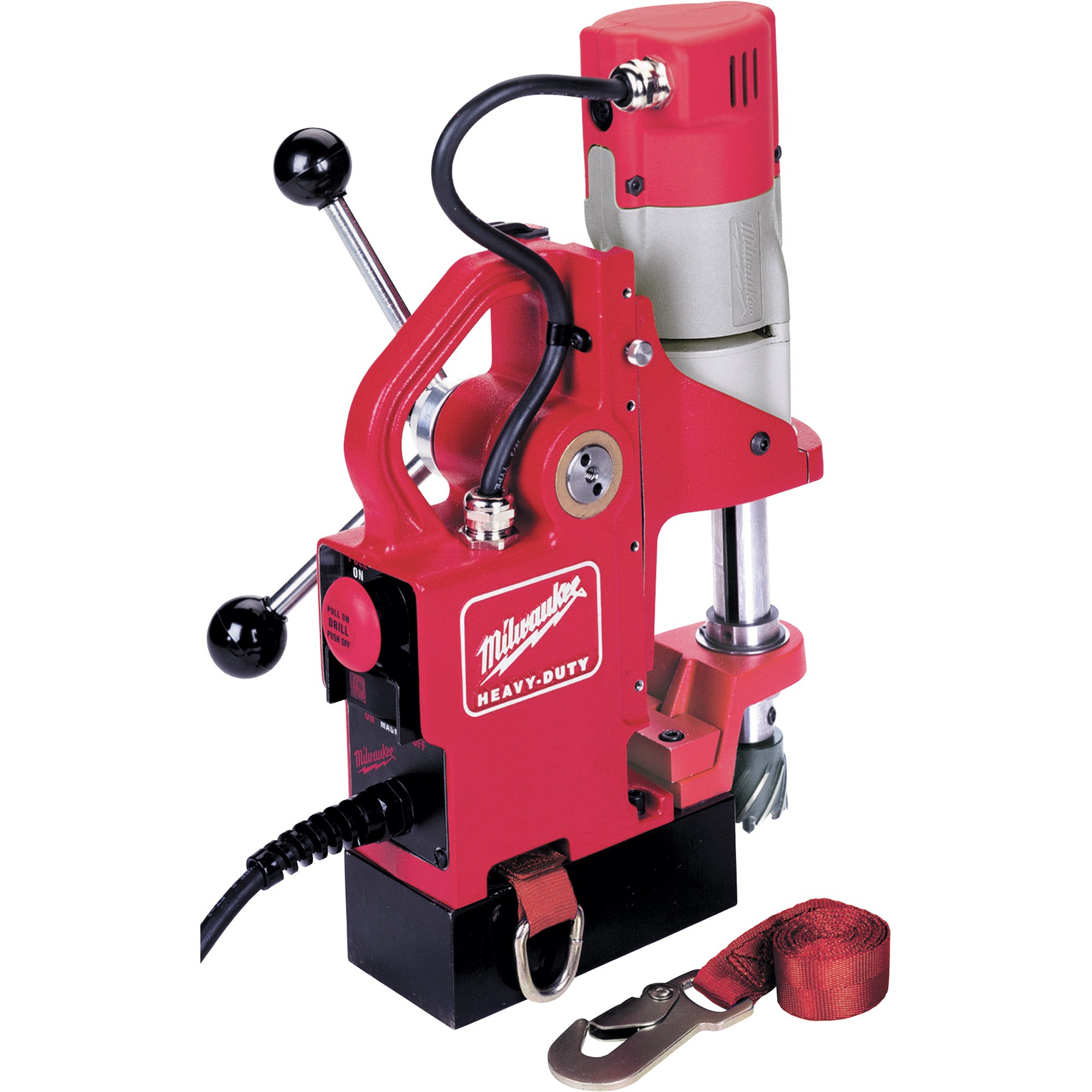

Milwaukee Magnum Drill Press — 1.1 HP, Model# 4270-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee Magnum Drill Press — 1.1 HP, Model# 4270-20

Click or Tap image to Zoom

  • Powerful 9.0 Amp motor
  • The strong two-coil magnet provides 2300 lbs. of deadlift force on 1in. thick steel
  • Simple two-button control panel is located on the back, away from feed handle obstruction
  • Feed handle can be conveniently relocated to the opposite side without the use of tools
  • High-strength two-coil magnet

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

For remote drilling in metal, the 4270-20 is a great choice. It can drill up to 1 1/2in. diameter holes through 2in. thick steel with annular cutters, or 1/2in. diameter holes 4 1/4in. deep with twist drill bits. The tool is setup to accept standard 3/4in. Weldon shank cutters. USA.

What's Included

  • (1) Drill press, Model# 4270-20
  • (1) Lubricant spray bottle
  • (1) Nylon safety strap
  • (1) Two hex wrenches

Downloads

Product Manual

Features + Benefits

  • Powerful 9.0 Amp motor
  • The strong two-coil magnet provides 2300 lbs. of deadlift force on 1in. thick steel
  • Simple two-button control panel is located on the back, away from feed handle obstruction
  • Feed handle can be conveniently relocated to the opposite side without the use of tools
  • High-strength two-coil magnet
  • 750 lbs. drill point pressure
  • 6.6in. drill travel
  • 8ft. fixed cord

Key Specs

AttributeSpecification

item#

M0103

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

31.0 LB

Horsepower

1.1 HP
AttributeSpecification

Volts

120

Amps

9.0

Chuck Type

Weldon

Storage Type

None

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. I need the measure also for the witdth please

    The width of the base is really what we need, to know if it fits on our beams. Please supply this one also.
    Thanks for your other answer and have a good day

    1. The width is 3-13/16" without the handle assembly.

      Helpful?

    2. The width of this Magnum Drill Press is 3.80 (3-13/16") without the handle assembly.

      Helpful?

  2. what is the size of the base in inches?

    We need to drill many holes on an "I" shape beam, and need to know if the base will fit. Thanks.

    1. The overall length is 9-3/8".

      Helpful?

    2. The overall length of this Magnum Drill Press is 9-3/8".

      Helpful?
