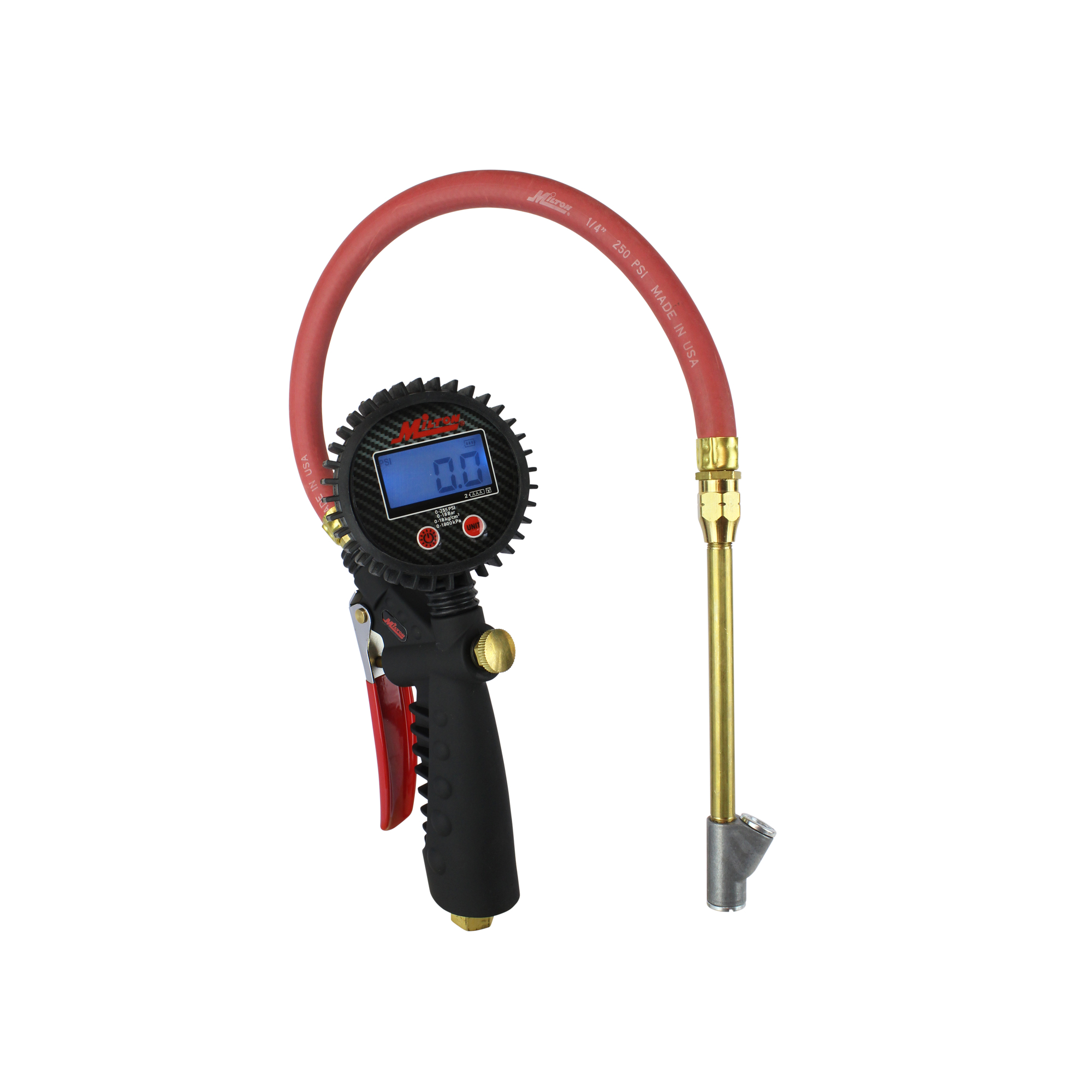

Milton, Digital Inflator Gauge with Straight Foot Hd Chuck, Model# S-577D

Item# 4706246
Milton, Digital Inflator Gauge with Straight Foot Hd Chuck, Model# S-577D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milton, Digital Inflator Gauge with Straight Foot Hd Chuck, Model# S-577D

Click or Tap image to Zoom

$134.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • GAUGE SWIVELS: Reads at any angle, lays flat in your toolbox. Gauge protected by rubber boot.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

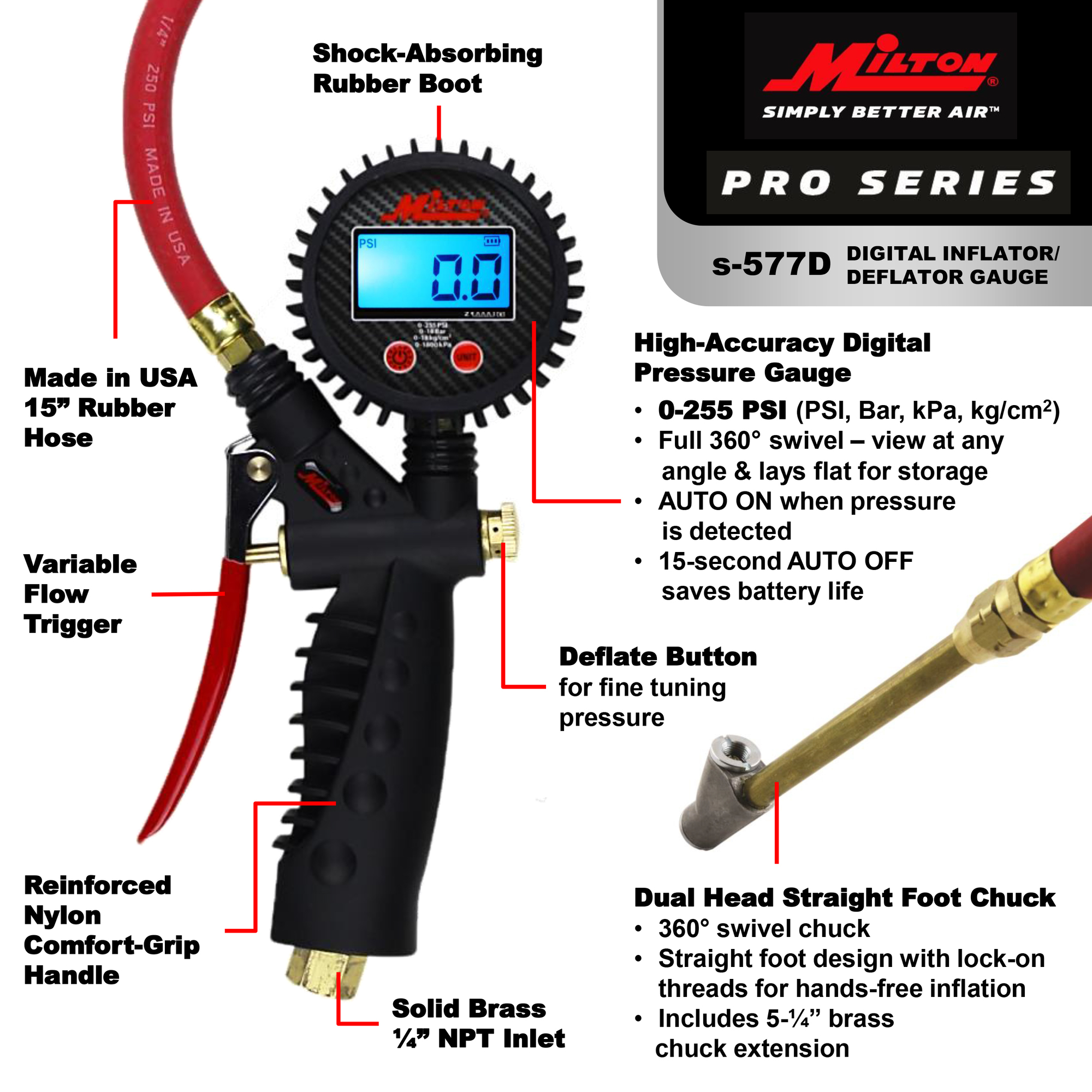

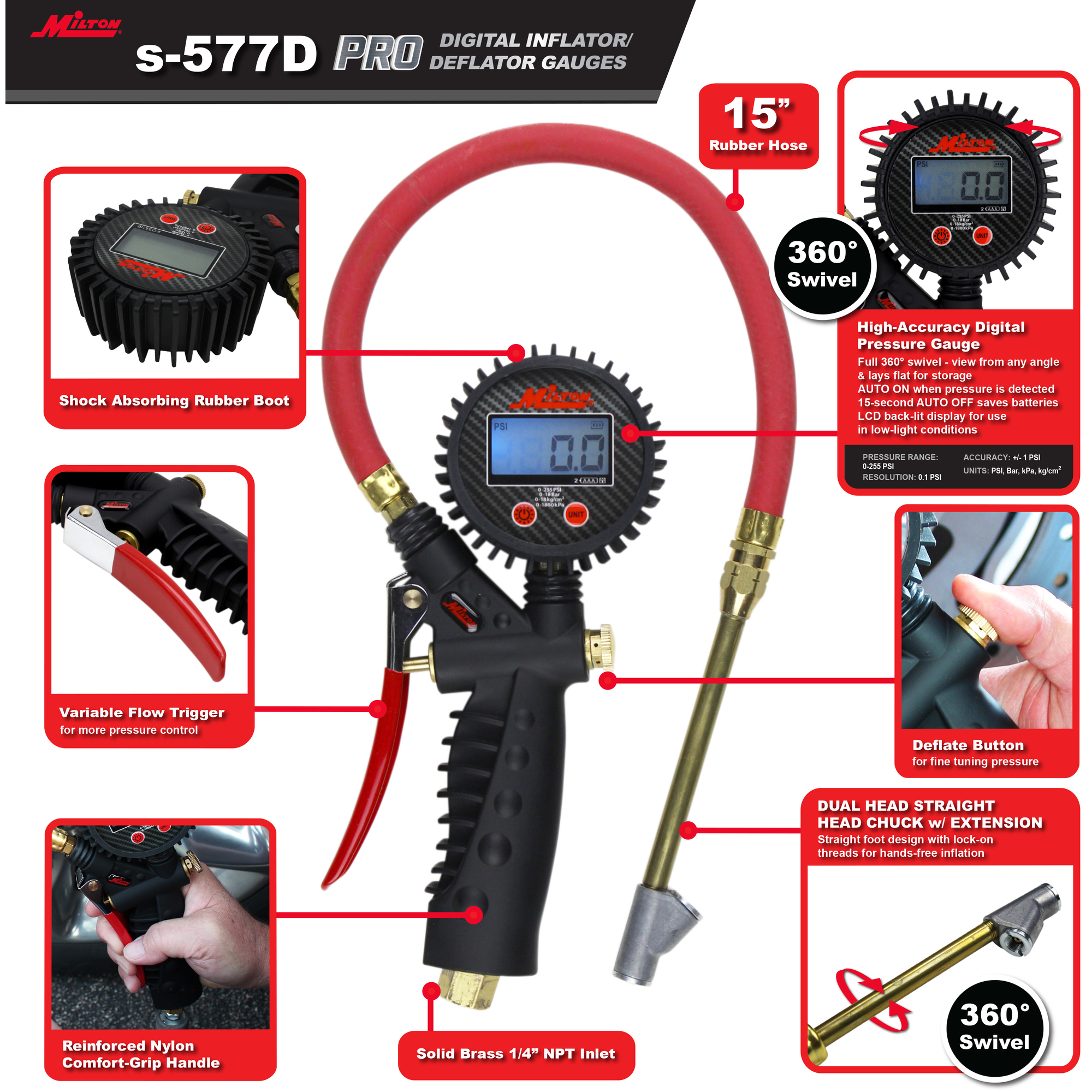

Optimize your tire pressure accuracy with this digital inflator gauge, made with a LCD screen measuring in increments of 0.1 PSI and backlit for better measurement reading in dark environments. This comes with a 15in. hose and a Straight Foot Head Chuck with Lock-On Threads (dual headed, not requiring a hold on the chuck during inflation). Our digital gauges also come with a 360 degree swivel gauge (head rotates for an easy and comfortable measurement reading) and +/- 1 PSI accuracy across a range of 0-255 PSI. This turns on automatically when it detects pressure and includes an Auto-shut off feature after 15 seconds that saves on battery life. Designed with a rugged and ergonomic handle grip, shock-resistant rubber boot, and deflate button for overshot tire pressure. This provides 4 units of measurements: (PSI, Bar, kg/cm2, kPa), compared to the traditional 2 units from an analog gauge. Carbon fiber gauge face appearance with a protective rubber boot to shield against impacts. Comfort molded nylon handle with coating is incredibly durable and ergonomic. Steel inflator trigger with separate brass deflation button for quick fine tuning in case you go past your target pressure. Solid brass fittings throughout provide long-lasting performance, with 1/4in. NPT female air inlet (Milton 727 plug is recommended). PACKAGE CONTENTS: Digital Inflator Gauge w/rugged comfort-grip handle 15” Rubber Hose Straight Foot Dual Chuck + deflate button 2 AAA Batteries (already inserted) Handle: reinforced coated nylon Trigger: plated steel with PVC grip Hose: 1/4in. ID x 15in. EPDM rubber w/ brass fittings Operating temperature: -4 to +140 degrees F (-20 to +60 C) Air inlet: 1/4in. NPT female (Milton 727 plug sold separately)

What's Included

    (1) Inflator Gauge

Features + Benefits

  • GAUGE SWIVELS: Reads at any angle, lays flat in your toolbox. Gauge protected by rubber boot.

Key Specs

AttributeSpecification

item#

4706246

Brand

Milton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.96 LB

Product Type

Inflation Gauge

Head Type

Dual
AttributeSpecification

Material

Combination

Connection Size NPT

1/4 in. NPT

Lock-On

Yes

Deflator Button

Yes

Product Weight

1.8100 lb

Dimensions L x W x H (in.)

9.9 x 4.6 x 1.6 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
