Milton, Analog Inflator Gauge with Straight Foot Head Chuck, Model# S-577A-S

Item# 4705972
Milton, Analog Inflator Gauge with Straight Foot Head Chuck, Model# S-577A-S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milton, Analog Inflator Gauge with Straight Foot Head Chuck, Model# S-577A-S

Click or Tap image to Zoom

$119.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • WHY LIQUID? Absorbs vibration/pressure spikes, reduces wear, and is better in corrosive environments

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

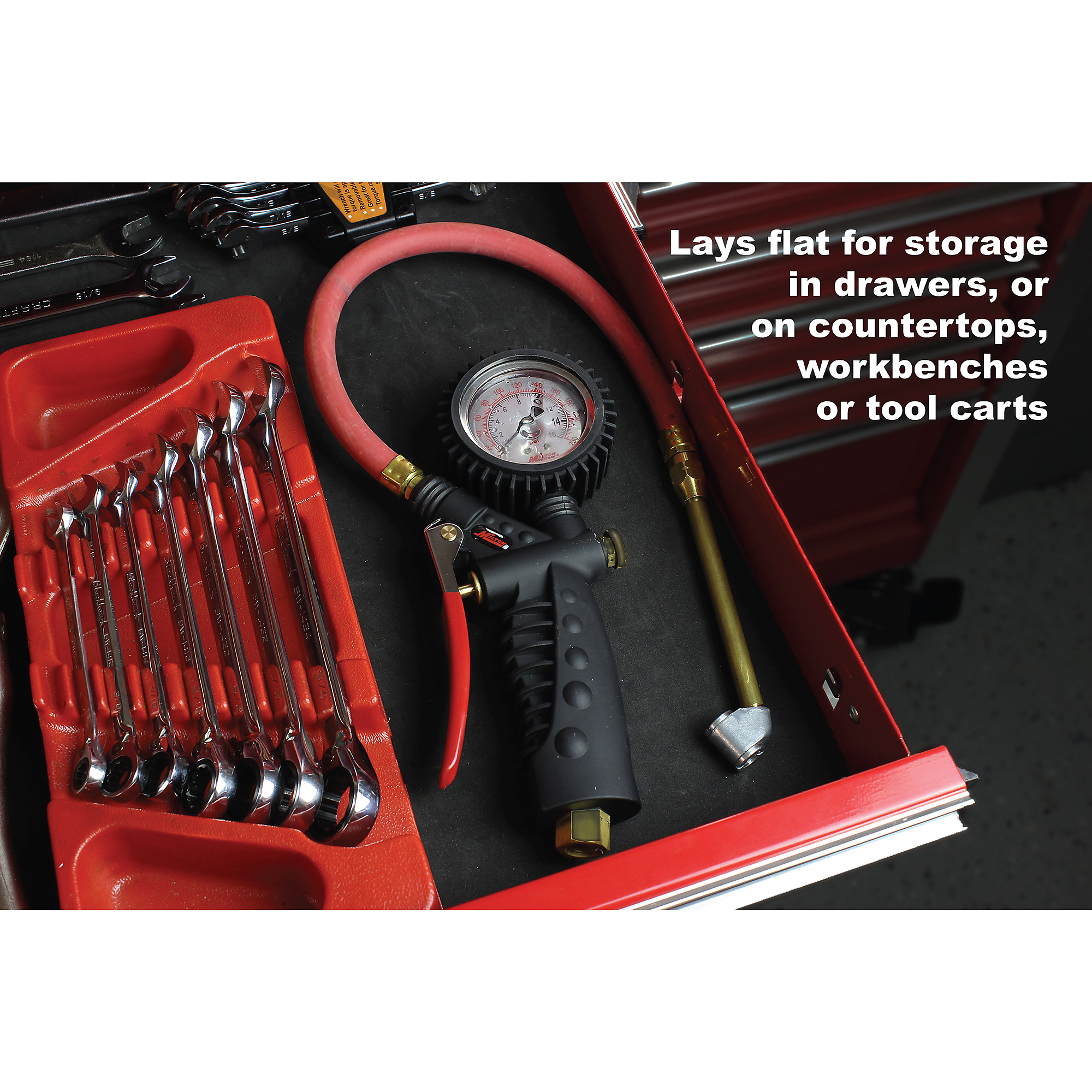

No need to worry about batteries with this analog inflator gauge, filled with liquid (silicone oil) that provides optimal accuracy, pressure spike prevention, and a cushioned tick to optimize the lifespan of the mechanical parts inside the gauge. This also has a deflate button for when you overshoot the pressure. It comes with a 15in. hose and a Straight Foot Head Chuck with Lock-On Threads (dual headed, not requiring a hold on the chuck during inflation). The 360 swivel dial gauge is fitted with a rubber boot which protects it from corrosion, impacts, and shocks. INCLUDES: - Analog inflator gauge with rugged comfort-grip handle, shock-resistant protective rubber boot, deflate button, 15in. hose, and straight foot head chuck. (Assembly required.) PRODUCT SPECIFICATIONS: Gauge: - Resolution: 1 PSI - Diameter: 2.75in. - Units of measure: PSI (0-160), Bar (0-11) - Liquid filled: silicone based oil Handle: reinforced coated nylon Trigger: plated steel with PVC grip Fittings and deflate button: solid brass Hose: 1/4in. ID x 15in. EPDM rubber w/ brass fittings Operating temperature: -4 to +158 degrees F (-20 to +70 C) Air inlet: 1/4in. NPT female (Milton 727 plug sold separately)

What's Included

    (1) Inflator Gauge

Features + Benefits

  • WHY LIQUID? Absorbs vibration/pressure spikes, reduces wear, and is better in corrosive environments

Key Specs

AttributeSpecification

item#

4705972

Brand

Milton Industries

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.09 LB

Product Type

Inflation Gauge

Head Type

Dual
AttributeSpecification

Material

Combination

Connection Size NPT

1/4 in. NPT

Lock-On

Yes

Deflator Button

Yes

Product Weight

1.9400 lb

Dimensions L x W x H (in.)

9.9 x 4.6 x 1.6 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
